Craftsman
Lawn & Garden Engine

Model # 143576042 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143576042 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

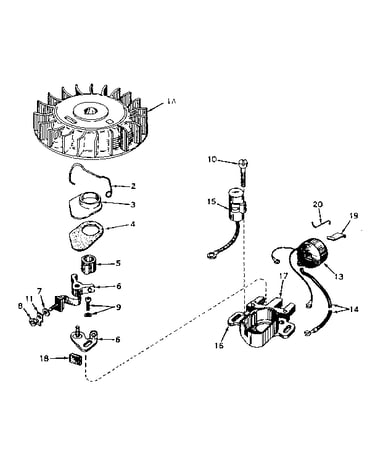

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 200 parts  |

Needl/seat 631021
#12

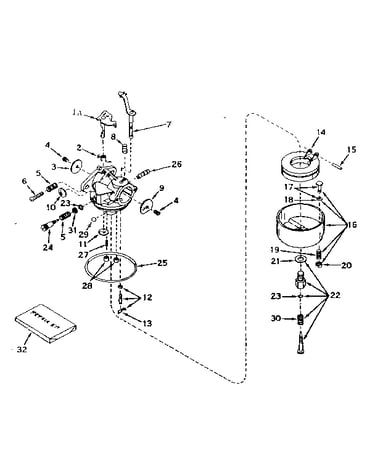

Carburetor diagram

Needl/seat

Part #631021

The manufacturer no longer makes this part, and there's no substitute part

O-ring 631028
#25

Carburetor diagram

O-ring

Part #631028

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27110
#21

Carburetor diagram

Gasket

Part #27110

The manufacturer no longer makes this part, and there's no substitute part

Breather Element Air Filter 28424
#40

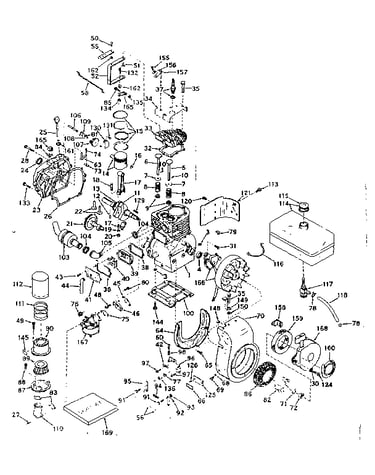

Basic engine diagram

Breather element air filter

Part #28424

The manufacturer no longer makes this part, and there's no substitute part

/fuel Bowl 631025
#16

Carburetor diagram

/fuel bowl

Part #631025

The manufacturer no longer makes this part, and there's no substitute part

Spring Retainer 630731
#2

Carburetor diagram

Spring retainer

Part #630731

The manufacturer no longer makes this part, and there's no substitute part

Spring 590454
#5

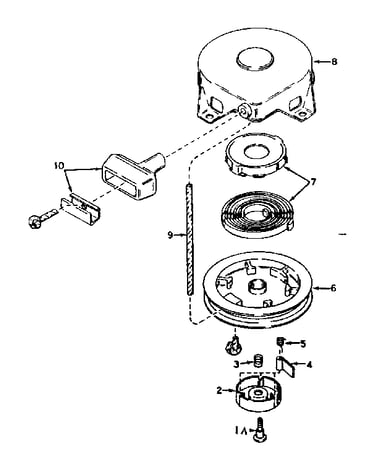

Rewind starter no. 590449 diagram

Spring

Part #590454

The manufacturer no longer makes this part, and there's no substitute part

Governor Gear Assembly 30591
#107

Basic engine diagram

Governor gear assembly

Part #30591

The manufacturer no longer makes this part, and there's no substitute part

Spool 30588A
#109

Basic engine diagram

Spool

Part #30588A

The manufacturer no longer makes this part, and there's no substitute part

Tube 27627
#44

Basic engine diagram

Tube

Part #27627

The manufacturer no longer makes this part, and there's no substitute part
