Model # YMER7765WW1 Official Maytag electric freestanding range

Here are the diagrams and repair parts for Official Maytag YMER7765WW1 electric freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

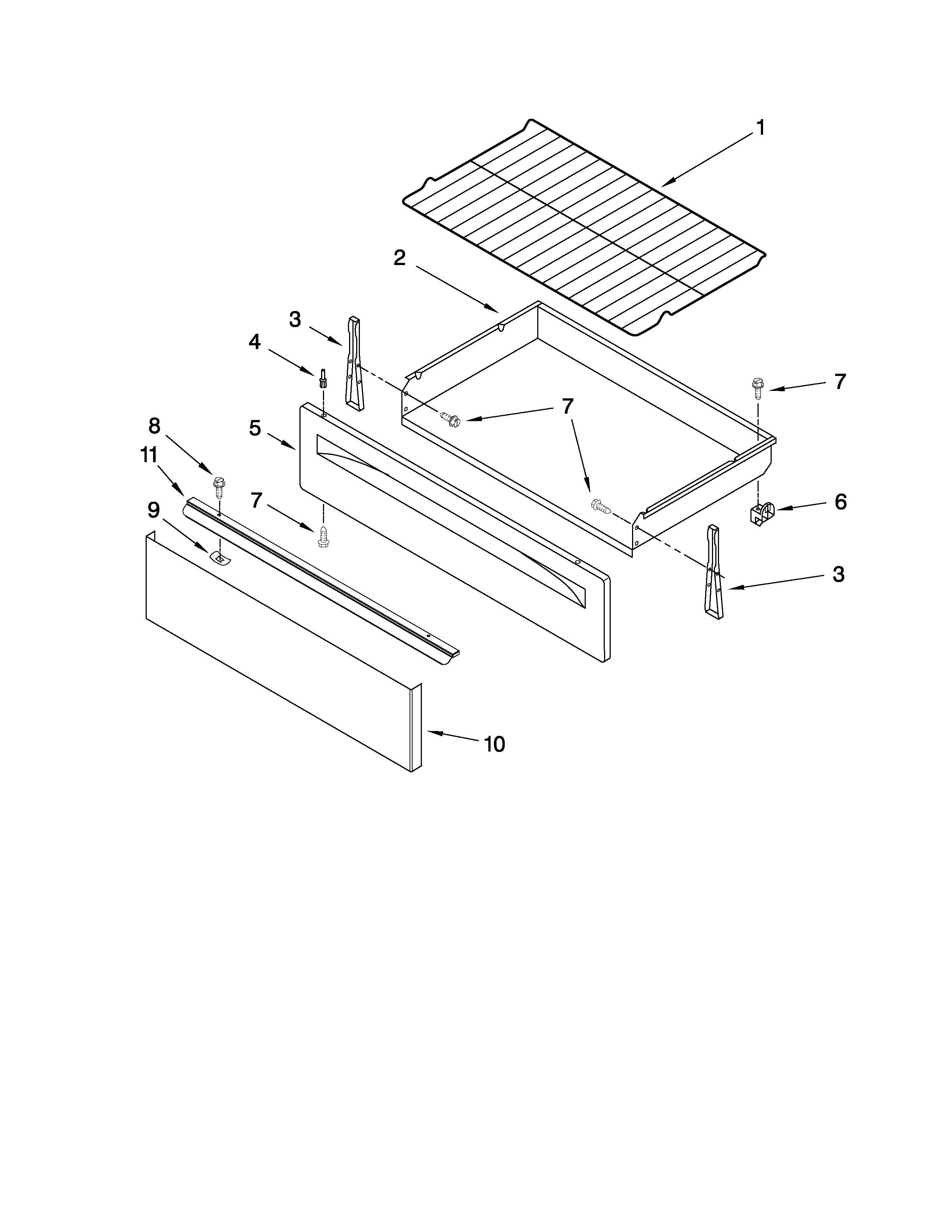

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 164 parts  |
Light Bulb 311255
#35

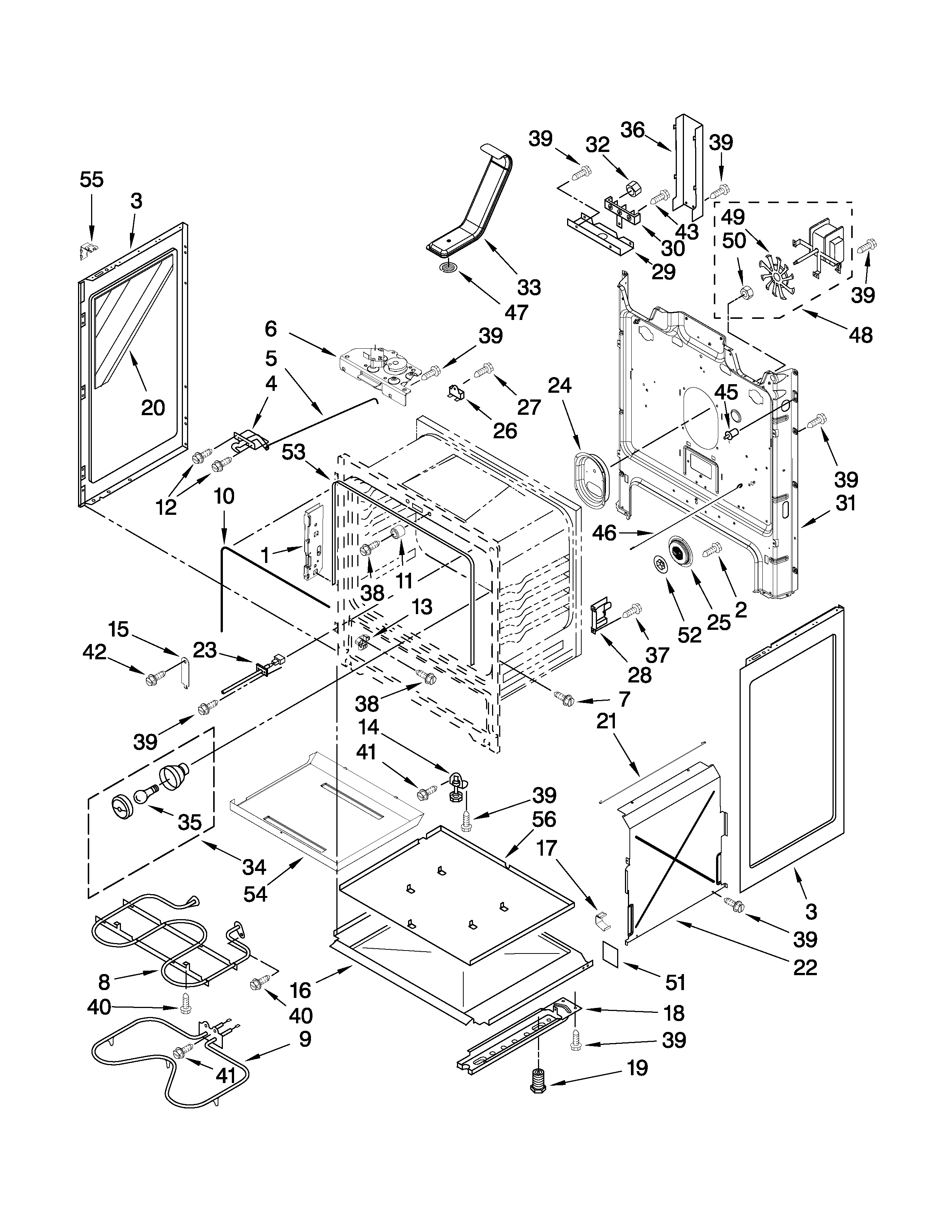

Chassis parts diagram

Light bulb

Part #311255

Replaced by #40A15

?
Manufacturer substitution
This part replaces 311255. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Range Oven Temperature Sensor W10181986
#23

Chassis parts diagram

Range oven temperature sensor

Part #W10181986

Replaced by #WPW10181986

?
Manufacturer substitution
This part replaces W10181986. Substitute parts can look different from the original.
BEST SELLER
$65.03 |
8% OFF Phone Price : $71.03
In Stock
Infinite Switch (silver) 3148951
#4A

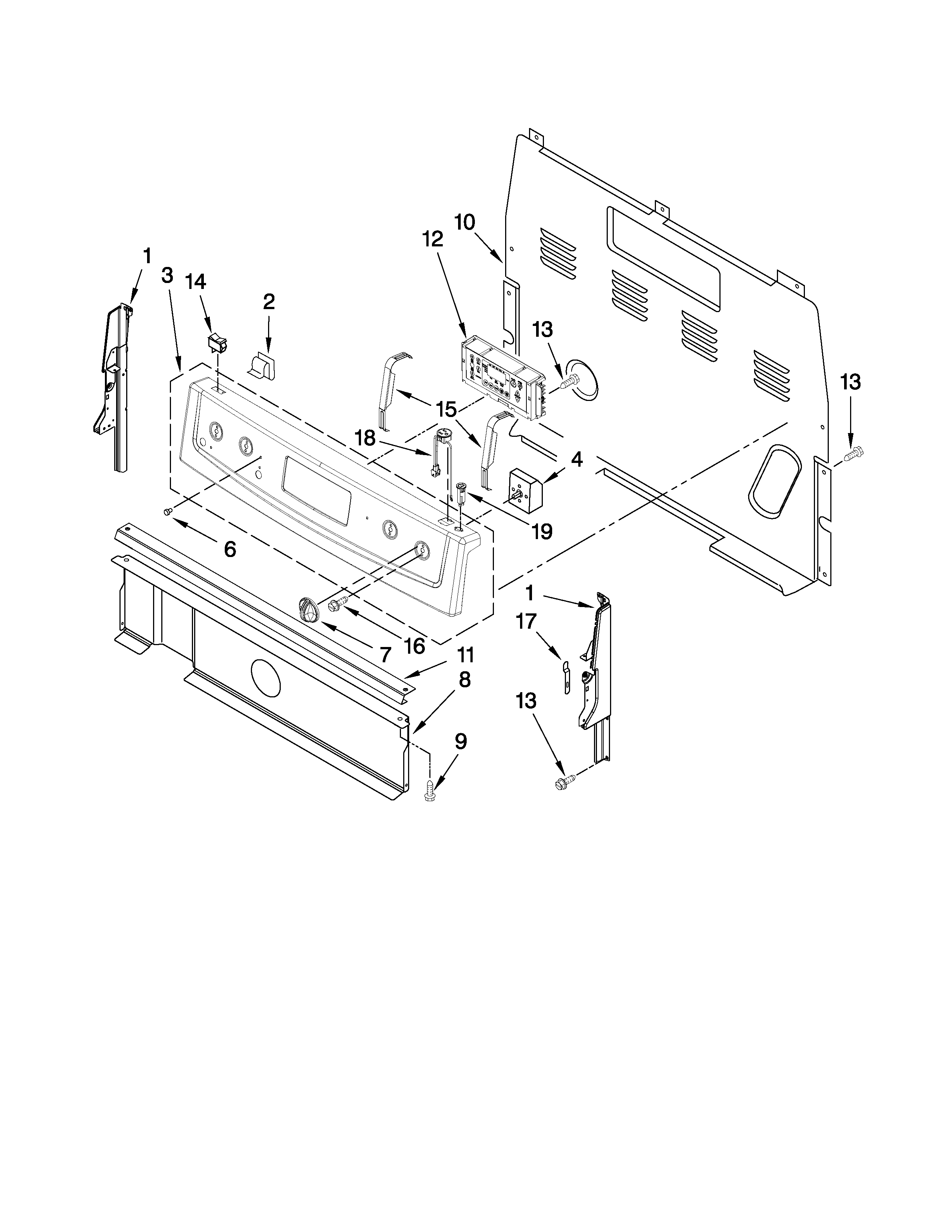

Control panel parts diagram

Infinite switch (silver)

Part #3148951

Replaced by #WP3149404

?
Manufacturer substitution
This part replaces 3148951. Substitute parts can look different from the original.
BEST SELLER
$37.05 |
14% OFF Phone Price : $43.05
In Stock
Range Dual Radiant Surface Element W10169799
#5A

Cooktop parts diagram

Range dual radiant surface element

Part #W10169799

Replaced by #W11517959

?
Manufacturer substitution
This part replaces W10169799. Substitute parts can look different from the original.
BEST SELLER
$85.00 |
7% OFF Phone Price : $91.00
In Stock
Range Radiant Surface Element, 6-in 8523698
#5B

Cooktop parts diagram

Range radiant surface element, 6-in

Part #8523698

Replaced by #W10823711

?
Manufacturer substitution
This part replaces 8523698. Substitute parts can look different from the original.
BEST SELLER
$148.63 |
7% OFF Phone Price : $160.63
In Stock
Appliance Touch-up Paint 72017
#NI

Optional parts diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Door Trim (black) W10144870
#1A

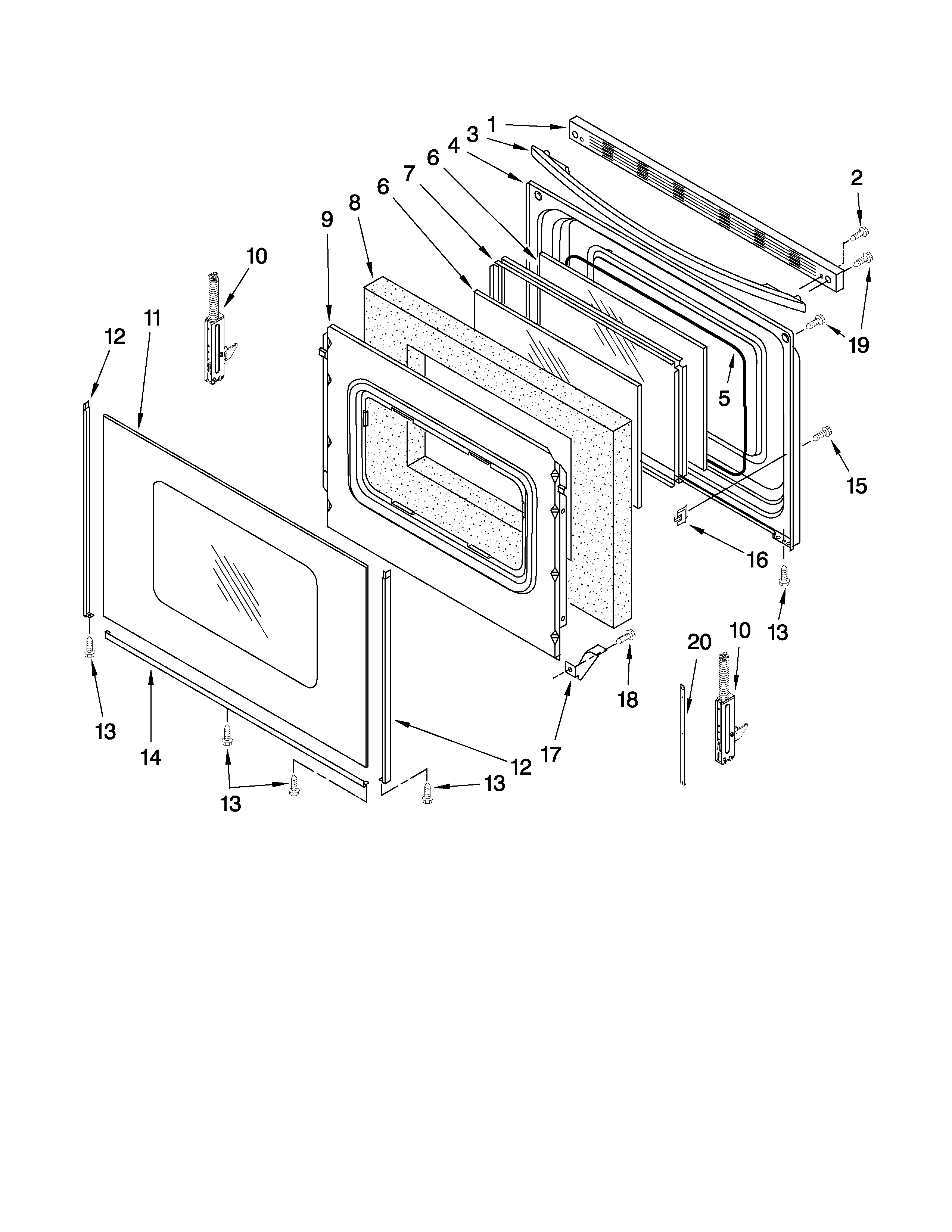

Door parts diagram

Door trim (black)

Part #W10144870

Replaced by #WPW10310922

?
Manufacturer substitution
This part replaces W10144870. Substitute parts can look different from the original.
BEST SELLER
$93.66 |
6% OFF Phone Price : $99.66
In Stock
Range Screw W10200660
#2

Door parts diagram

Range screw

Part #W10200660

Replaced by #WPW10200660

?
Manufacturer substitution
This part replaces W10200660. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.00 |
14% OFF Phone Price : $7.00
In Stock
Range Broil Element 9757340
#8

Chassis parts diagram

Range broil element

Part #9757340

Replaced by #WPW10583047

?
Manufacturer substitution
This part replaces 9757340. Substitute parts can look different from the original.
$72.71 |
8% OFF Phone Price : $78.71
In Stock
Range Radiant Element W10162040
#5

Cooktop parts diagram

Range radiant element

Part #W10162040

Replaced by #W10823727

?
Manufacturer substitution
This part replaces W10162040. Substitute parts can look different from the original.
$150.96 |
7% OFF Phone Price : $162.96
In Stock
