Whirlpool
Electric Range

Model # RS675PXEQ2 Official Whirlpool 30" electric drop-in oven

Here are the diagrams and repair parts for Official Whirlpool RS675PXEQ2 30" electric drop-in oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 157 parts  |
Bake Element 4452153
#7

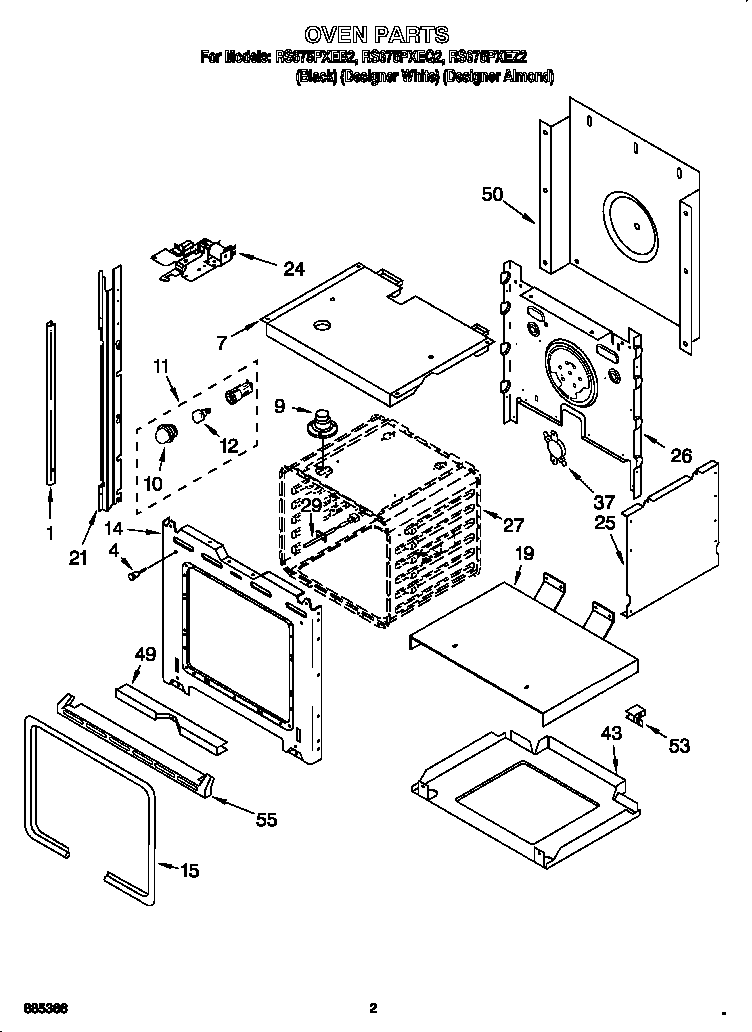

Internal oven diagram

Bake element

Part #4452153

Replaced by #WPW10207397

?
Manufacturer substitution
This part replaces 4452153. Substitute parts can look different from the original.
BEST SELLER
$49.26 |
11% OFF Phone Price : $55.26
In Stock
Wall Oven Door Inner Glass 4449259
#3

Oven door diagram

Wall oven door inner glass

Part #4449259

Replaced by #WP4449259

?
Manufacturer substitution
This part replaces 4449259. Substitute parts can look different from the original.
BEST SELLER
$80.39 |
7% OFF Phone Price : $86.39
In Stock
Range High-limit Thermostat 4451442
#37

Oven diagram

Range high-limit thermostat

Part #4451442

Replaced by #WP9759243

?
Manufacturer substitution
This part replaces 4451442. Substitute parts can look different from the original.
BEST SELLER
$45.89 |
12% OFF Phone Price : $51.89
In Stock
Blower 4451744
#3

Top venting diagram

Blower

Part #4451744

Replaced by #WPW10016550

?
Manufacturer substitution
This part replaces 4451744. Substitute parts can look different from the original.
BEST SELLER
$146.16 |
8% OFF Phone Price : $158.16
In Stock
Touch-up Paint (black) 72032

#NI

All parts diagram

Touch-up paint (black)

Part #72032

Replaced by #72032

?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.02 |
10% OFF Phone Price : $10.02
In Stock
Range Coil Surface Element, 8-in 660533
#12A

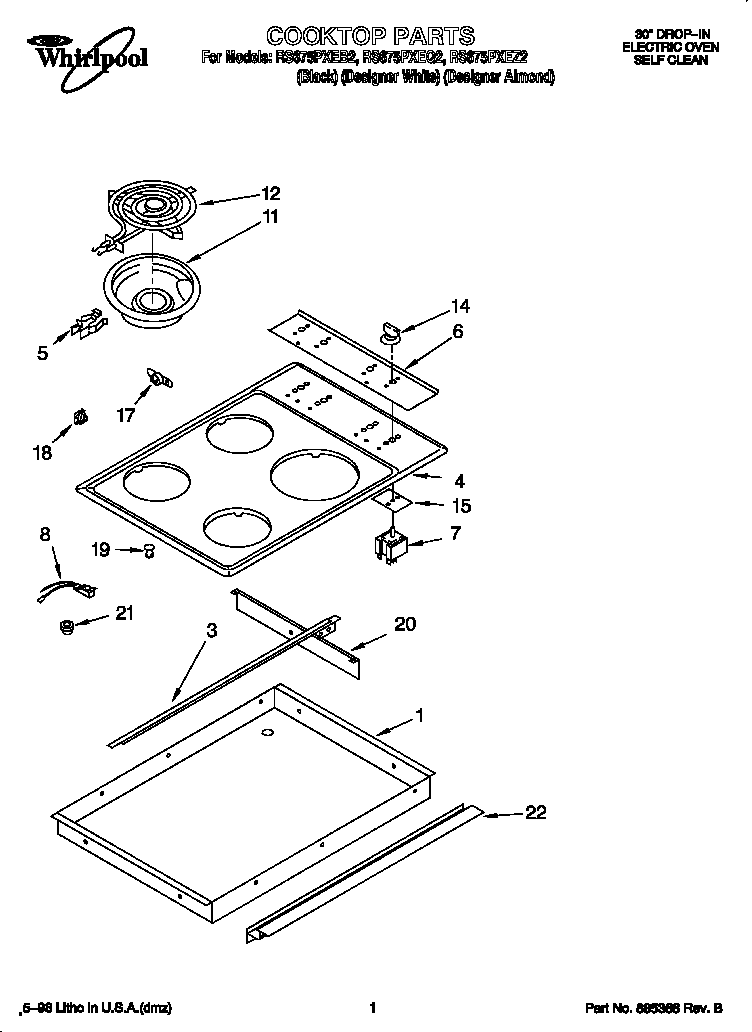

Cooktop diagram

Range coil surface element, 8-in

Part #660533

Replaced by #WP660533

?
Manufacturer substitution
This part replaces 660533. Substitute parts can look different from the original.
$25.41 |
19% OFF Phone Price : $31.41
In Stock
Drip Bowl 3150246
#11A

Cooktop diagram

Drip bowl

Part #3150246

Replaced by #W10196406RW

?
Manufacturer substitution
This part replaces 3150246. Substitute parts can look different from the original.
$12.95 |
13% OFF Phone Price : $14.95
In Stock
Wall Oven Door Inner Glass 4449263
#7

Oven door diagram

Wall oven door inner glass

Part #4449263

Replaced by #WP4449263

?
Manufacturer substitution
This part replaces 4449263. Substitute parts can look different from the original.
$83.77 |
7% OFF Phone Price : $89.77
In Stock
Oven Rack 4448717
#6

Internal oven diagram

Oven rack

Part #4448717

Replaced by #WPW10179152

?
Manufacturer substitution
This part replaces 4448717. Substitute parts can look different from the original.
$56.83 |
10% OFF Phone Price : $62.83
In Stock
Light Bulb 4452166
#12

Oven diagram

Light bulb

Part #4452166

Replaced by #WP4173175

?
Manufacturer substitution
This part replaces 4452166. Substitute parts can look different from the original.
This item is not returnable
$34.59 |
15% OFF Phone Price : $40.59
In Stock
