Model # 48GP036090300 Official Carrier central package

Here are the diagrams and repair parts for Official Carrier 48GP036090300 central package, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

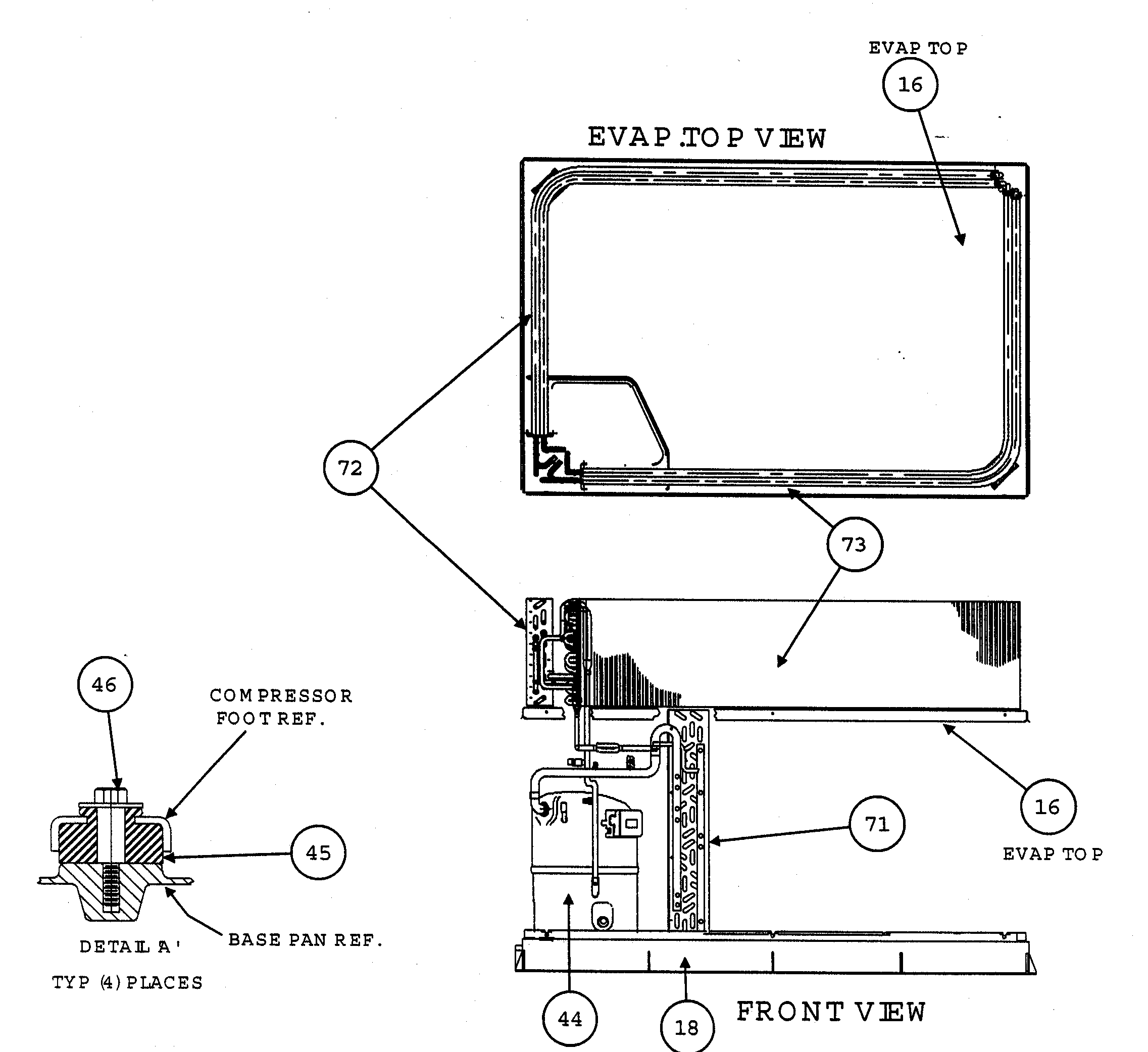

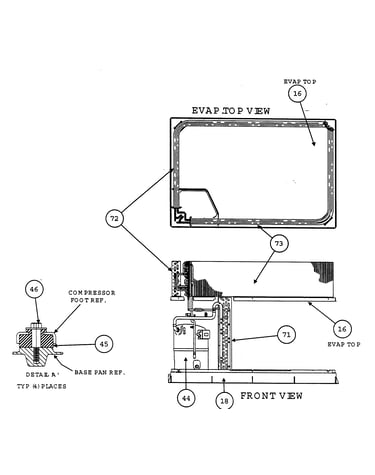

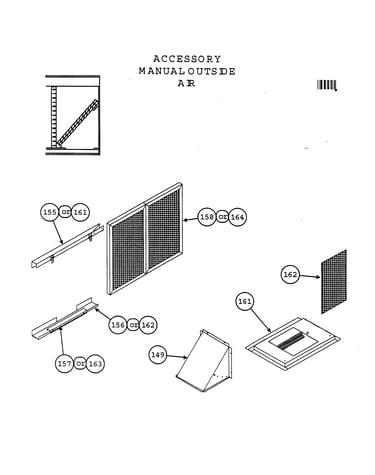

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 122 parts  |
Contactor HN51JD024
#52

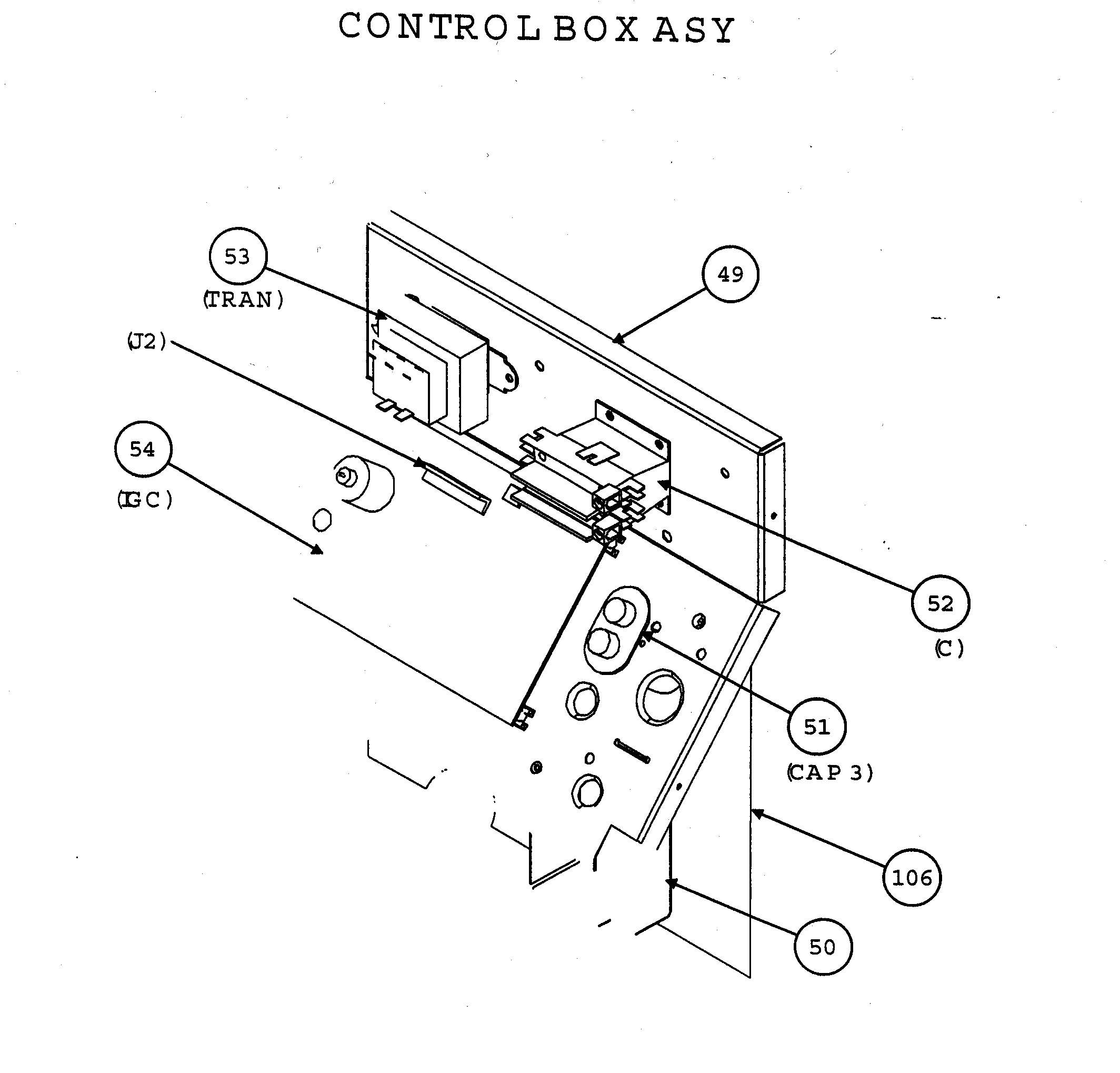

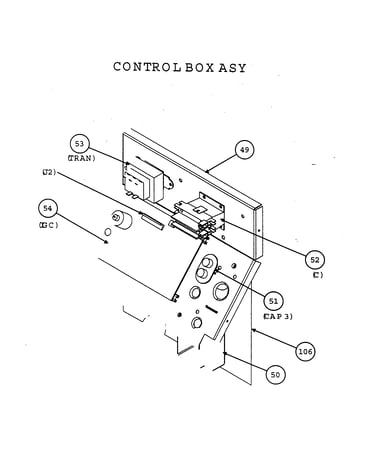

Control box assy diagram

Contactor

Part #HN51JD024

Replaced by #90-244

?
Manufacturer substitution
This part replaces HN51JD024. Substitute parts can look different from the original.
BEST SELLER
$26.61 |
18% OFF Phone Price : $32.61
In Stock
Circ Board LH33WP003
#54

Control box assy diagram

Circ board

Part #LH33WP003

$495.60 |
$12.00 OFF Phone Price : $507.60
In Stock
Central Air Conditioner Heat Exchanger 48GS660003
#95

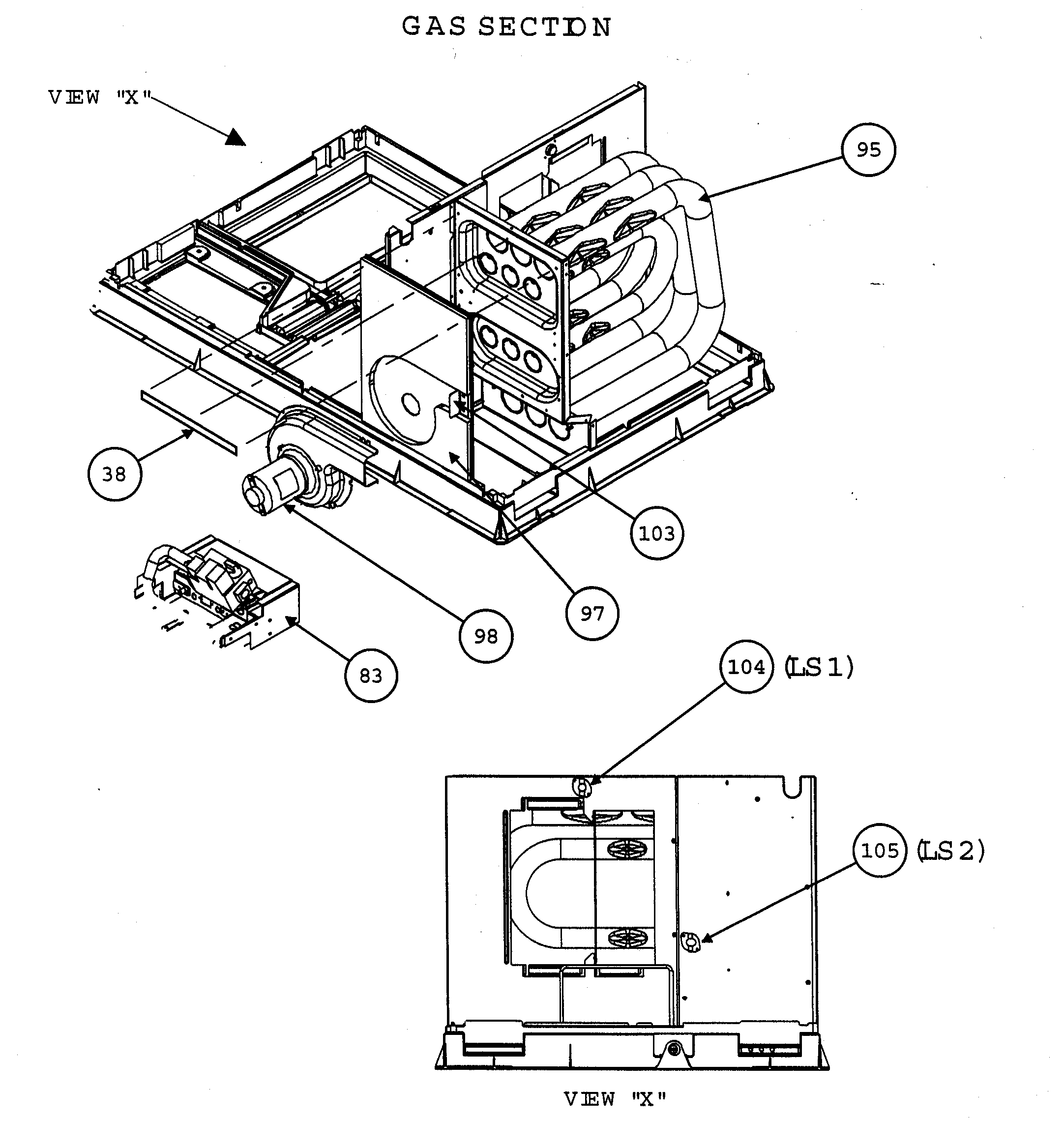

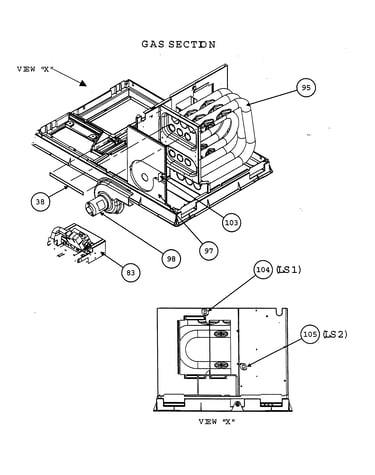

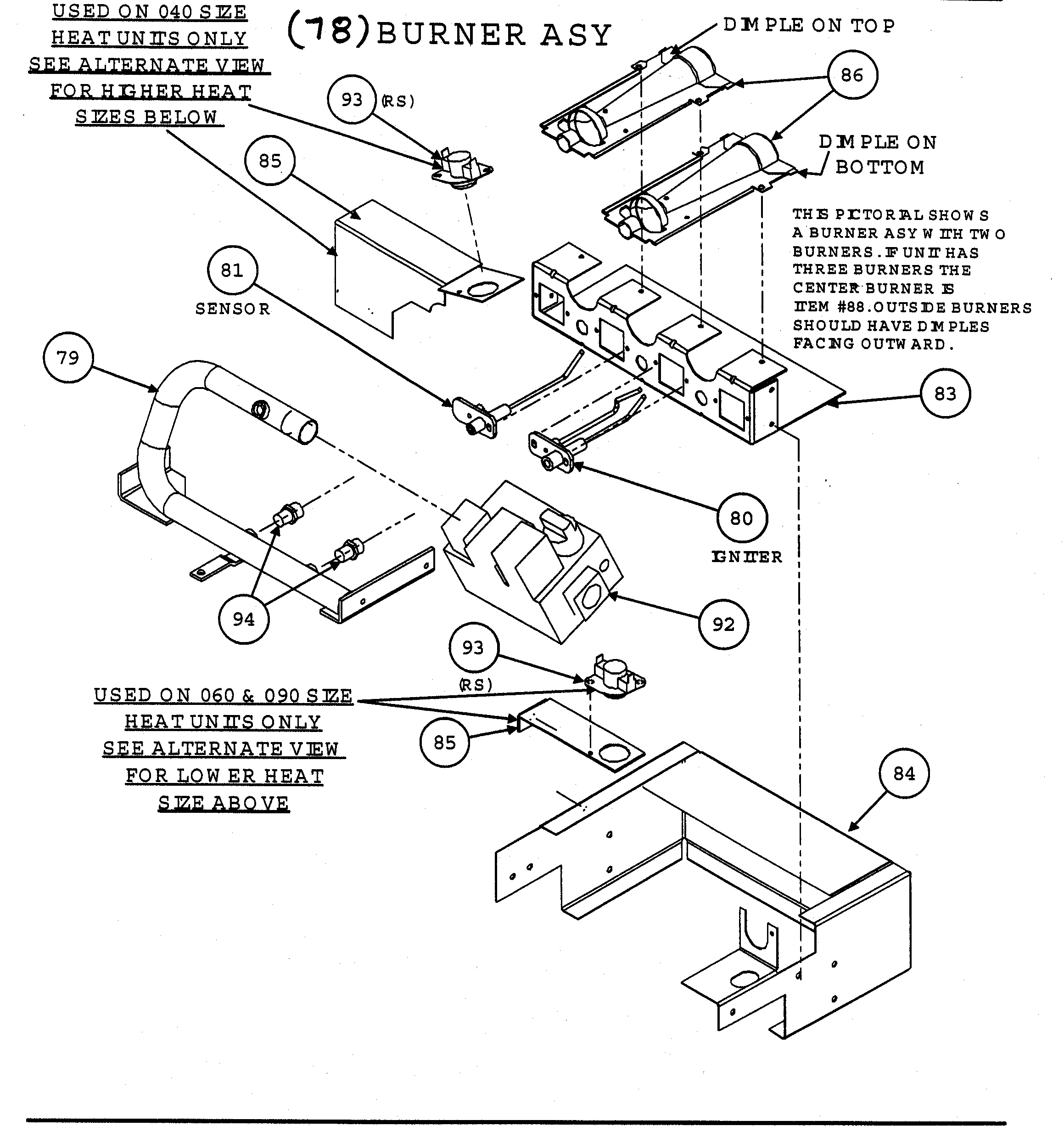

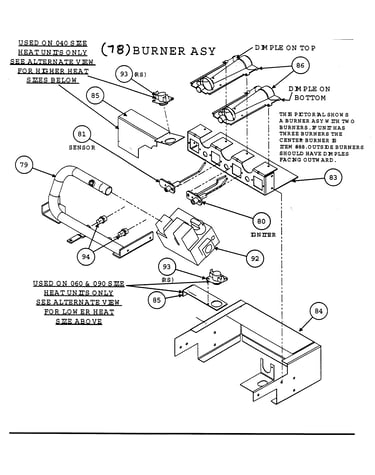

Gas section diagram

Central air conditioner heat exchanger

Part #48GS660003

$769.05
In Stock
Furnace Heat Exchanger Cover 48GS400108
#97

Gas section diagram

Furnace heat exchanger cover

Part #48GS400108

$325.53 |
$12.00 OFF Phone Price : $337.53
In Stock

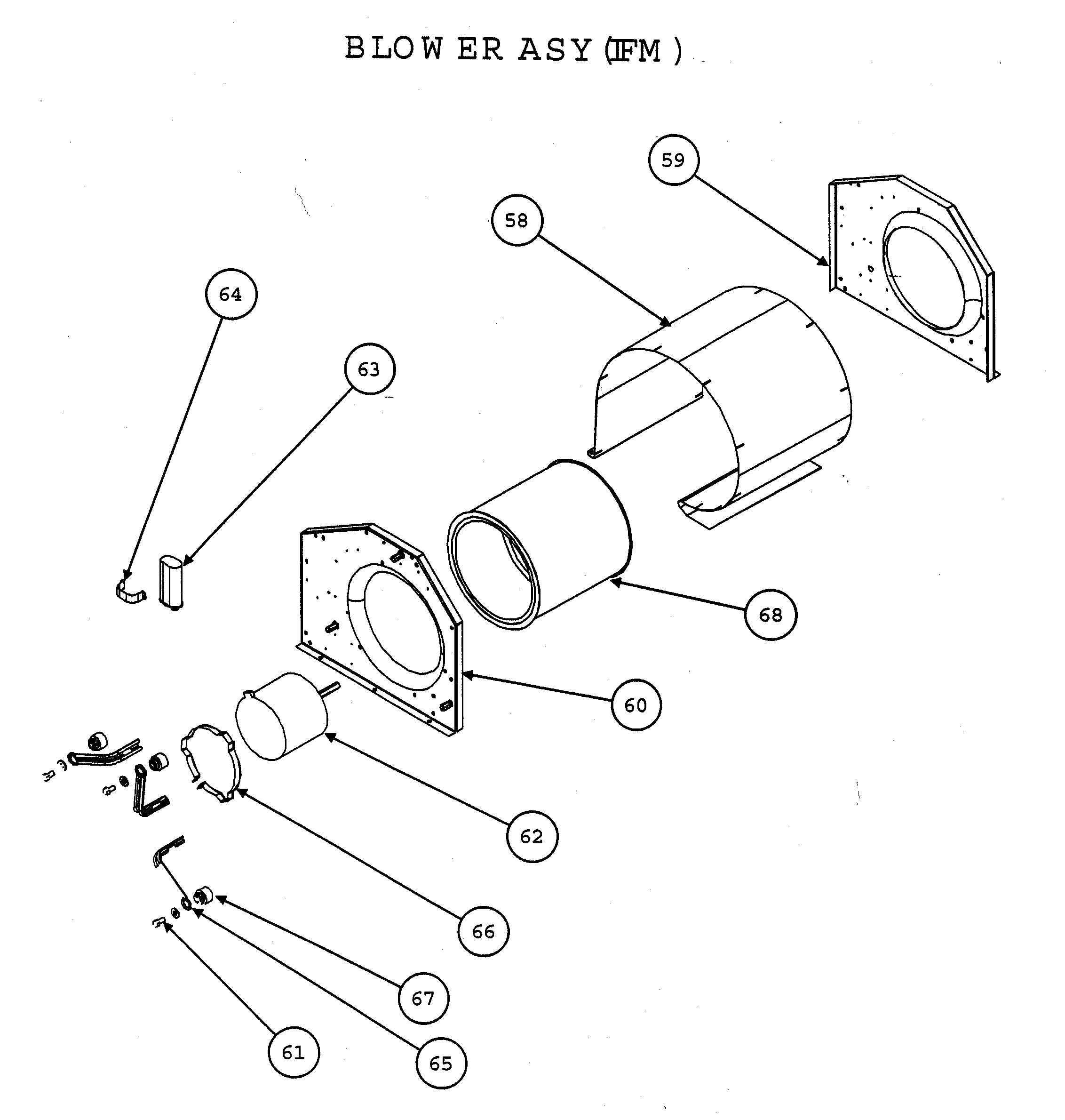

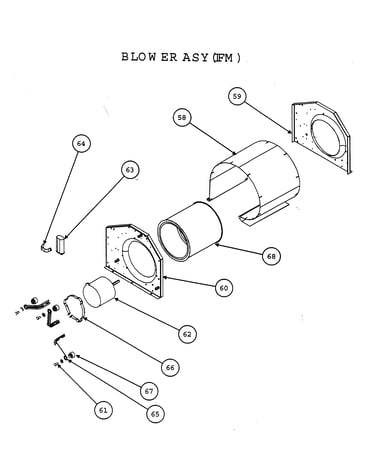

Blower Assembly 48GS400106
#98

Gas section diagram

Blower assembly

Part #48GS400106

Replaced by #48GS400649

?
Manufacturer substitution
This part replaces 48GS400106. Substitute parts can look different from the original.
$708.46 |
$12.00 OFF Phone Price : $720.46
In Stock
Payne Panel 48GS400483
#9

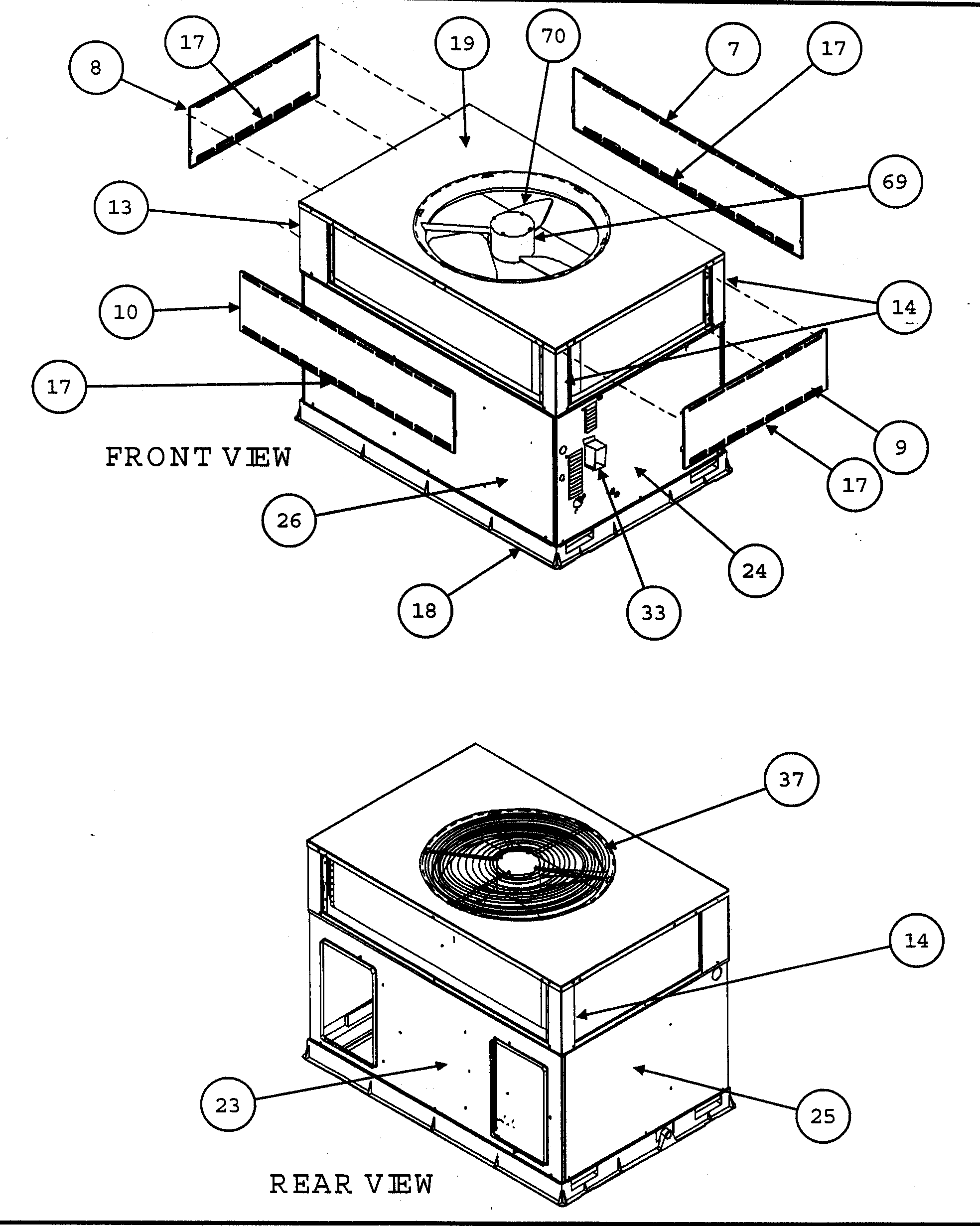

Front view/rear view diagram

Payne panel

Part #48GS400483

$169.52
In Stock
Paint 313974-751
#NI

Front view/rear view diagram

Paint

Part #313974-751

$60.89
In Stock
Central Air Conditioner Wire Harness 9962-0083
#110

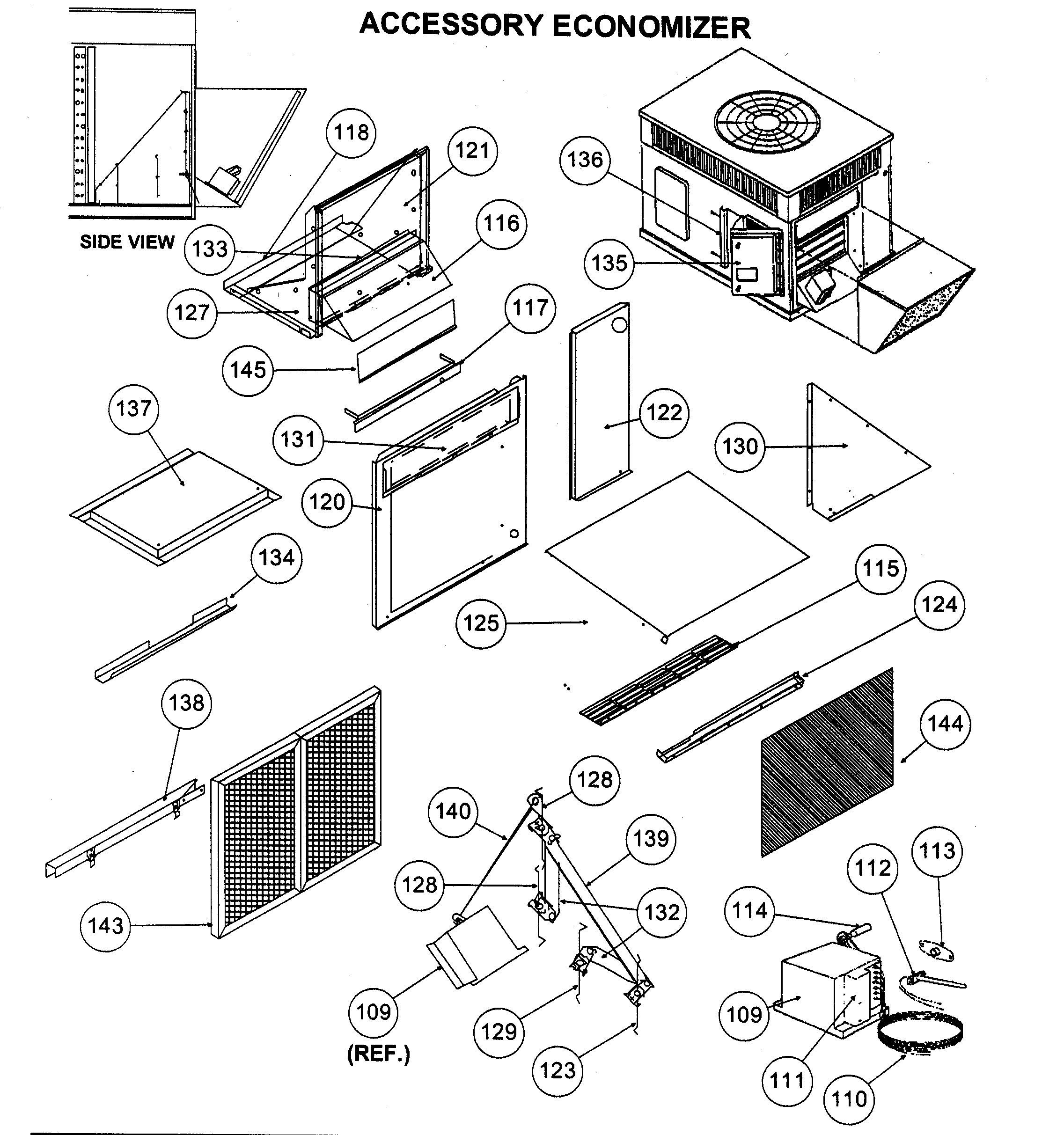

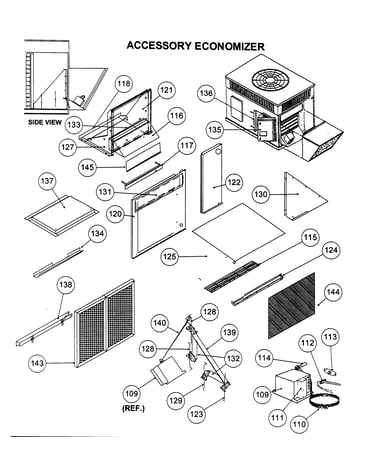

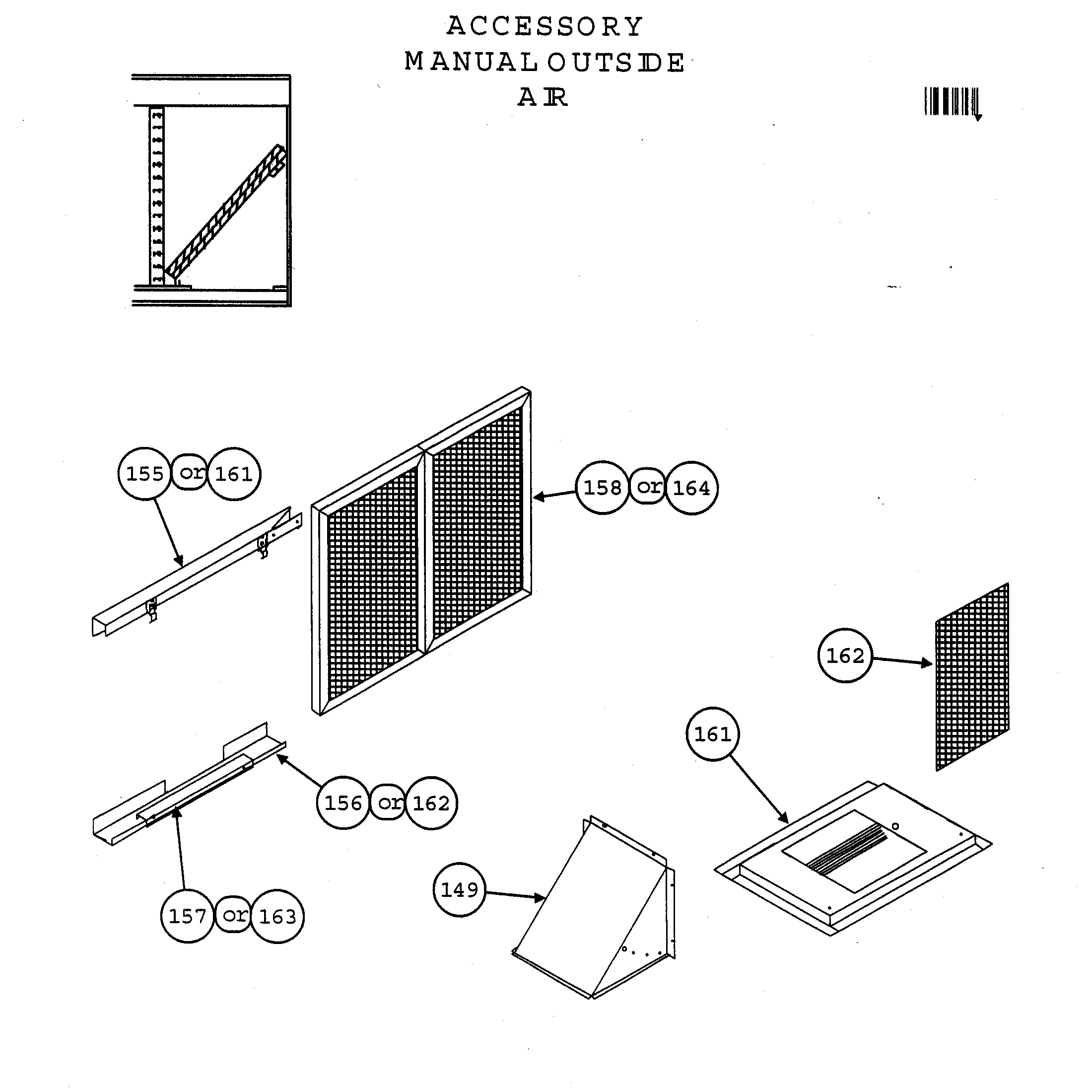

Accessory 1 diagram

Central air conditioner wire harness

Part #9962-0083

$357.73
In Stock
Payne Panel 48GS400482
#8

Front view/rear view diagram

Payne panel

Part #48GS400482

$156.22
In Stock
Partition 48GS500004
#20

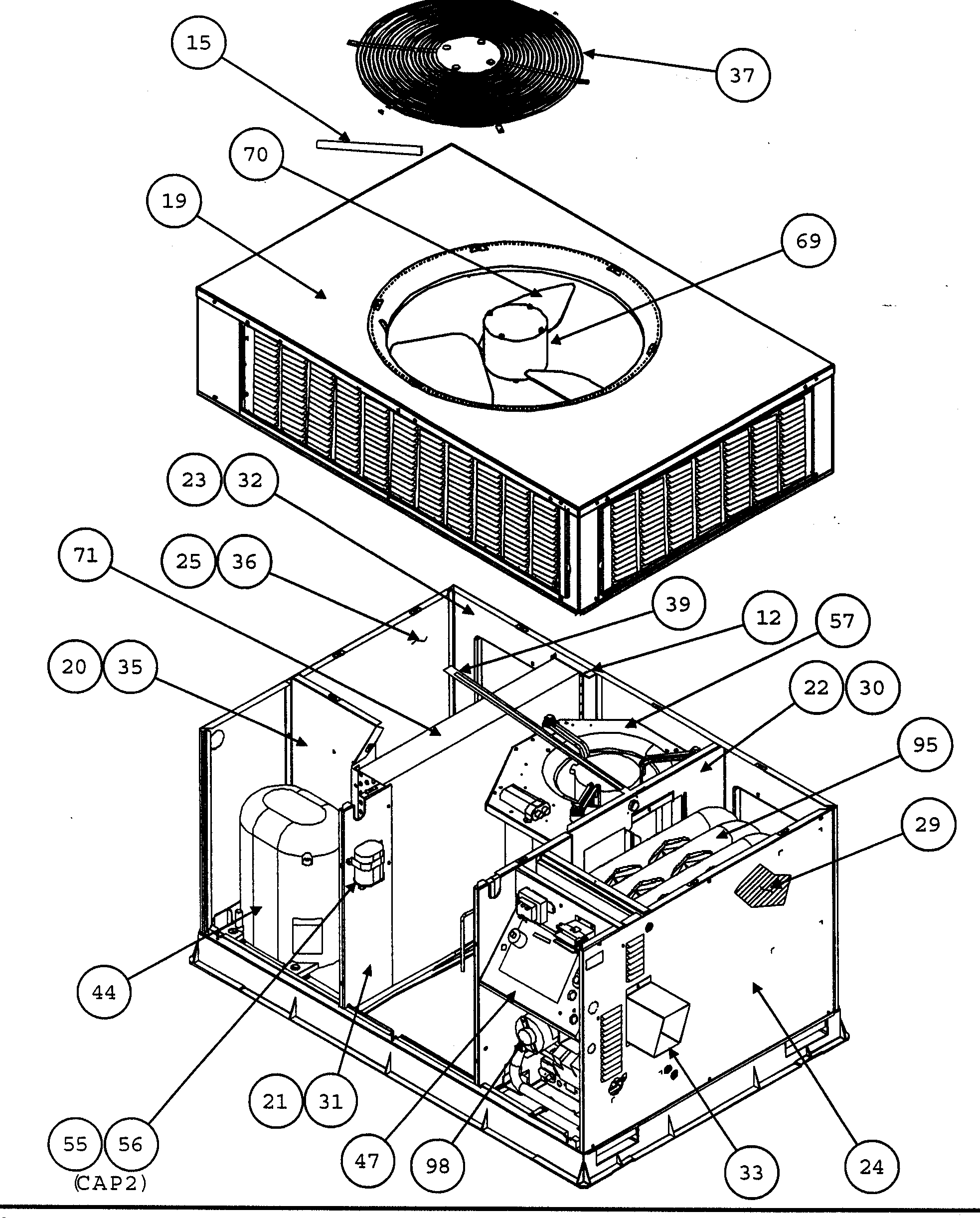

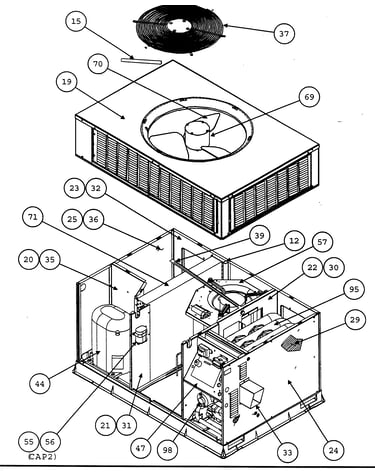

Inside view diagram

Partition

Part #48GS500004

$106.13
In Stock
