Model # TU4000XMP0 Official Whirlpool compactor

Here are the diagrams and repair parts for Official Whirlpool TU4000XMP0 compactor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 124 parts  |
Trash Compactor Top Limit And Directional Switch 777811
#18

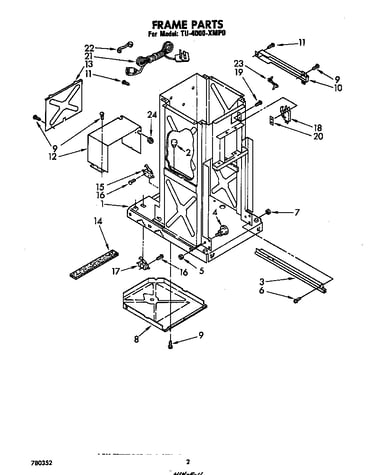

Frame diagram

Trash compactor top limit and directional switch

Part #777811

Replaced by #WP777811

?
Manufacturer substitution
This part replaces 777811. Substitute parts can look different from the original.
BEST SELLER
$50.97 |
11% OFF Phone Price : $56.97
In Stock
Motor 777707
#2A

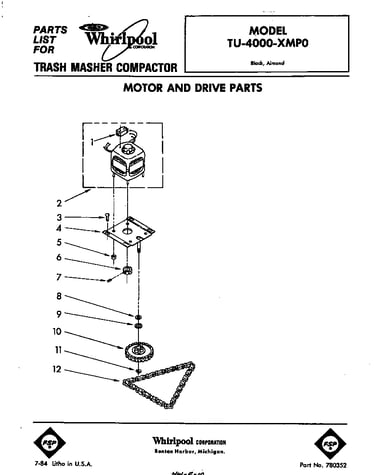

Motor and drive diagram

Motor

Part #777707

Replaced by #W10439651

?
Manufacturer substitution
This part replaces 777707. Substitute parts can look different from the original.
BEST SELLER
$190.18 |
6% OFF Phone Price : $202.18
In Stock
Motor 777709
#2

Motor and drive diagram

Motor

Part #777709

Replaced by #W10439651

?
Manufacturer substitution
This part replaces 777709. Substitute parts can look different from the original.
BEST SELLER
$190.18 |
6% OFF Phone Price : $202.18
In Stock
Switch 777710
#1A

Motor and drive diagram

Switch

Part #777710

Replaced by #W10439651

?
Manufacturer substitution
This part replaces 777710. Substitute parts can look different from the original.
BEST SELLER
$190.18 |
6% OFF Phone Price : $202.18
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#21L

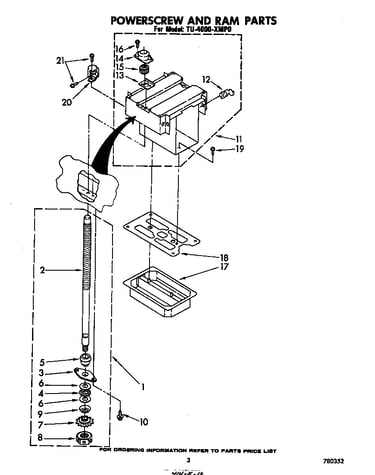

Powerscrew and ram diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Switch 608452
#10

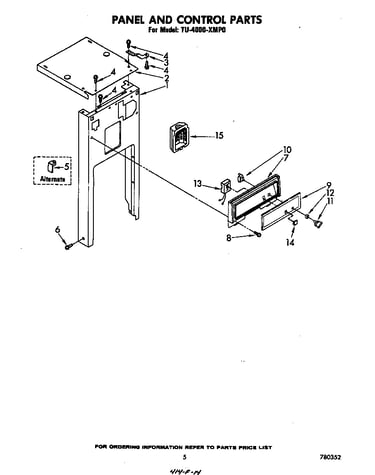

Panel and control diagram

Switch

Part #608452

Replaced by #675382

?
Manufacturer substitution
This part replaces 608452. Substitute parts can look different from the original.
BEST SELLER
$102.63 |
10% OFF Phone Price : $114.63
In Stock
Paint (white) 350930
#21V

Powerscrew and ram diagram

Paint (white)

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Screw 777595
#19

Powerscrew and ram diagram

Screw

Part #777595

Replaced by #WP681414

?
Manufacturer substitution
This part replaces 777595. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Bearing 776261
#16

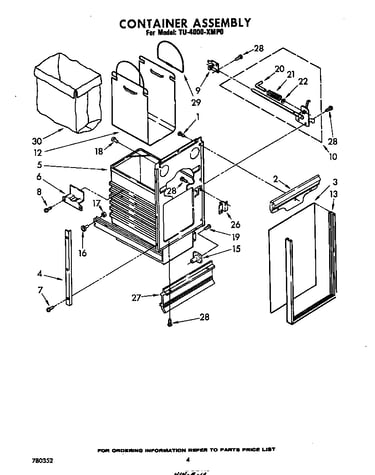

Container assembly diagram

Bearing

Part #776261

Replaced by #WP9871602

?
Manufacturer substitution
This part replaces 776261. Substitute parts can look different from the original.
This item is not returnable
$10.15 |
16% OFF Phone Price : $12.15
In Stock
Trash Compactor Power Nut 777533
#15

Powerscrew and ram diagram

Trash compactor power nut

Part #777533

Replaced by #WP777533

?
Manufacturer substitution
This part replaces 777533. Substitute parts can look different from the original.
$32.48 |
16% OFF Phone Price : $38.48
In Stock
