Model # TBG18DAXMRAA Official GE refrigerator - x series

Here are the diagrams and repair parts for Official GE TBG18DAXMRAA refrigerator - x series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

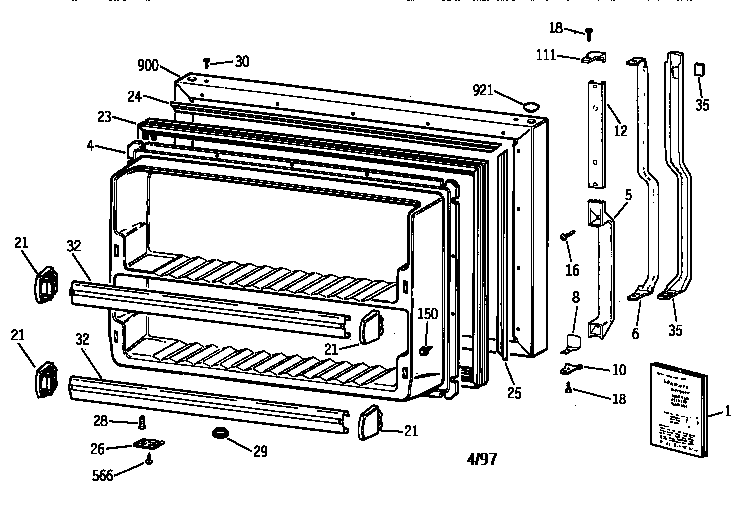

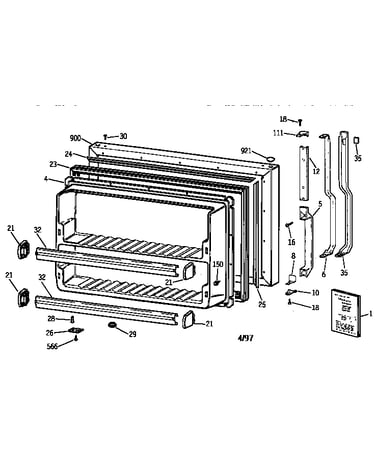

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 192 parts  |
Dryer Filter WR86X0096
#740

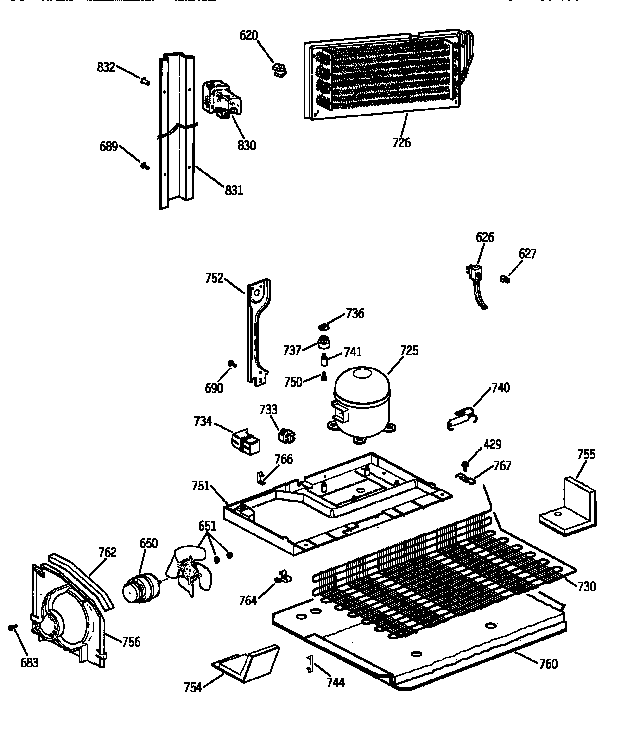

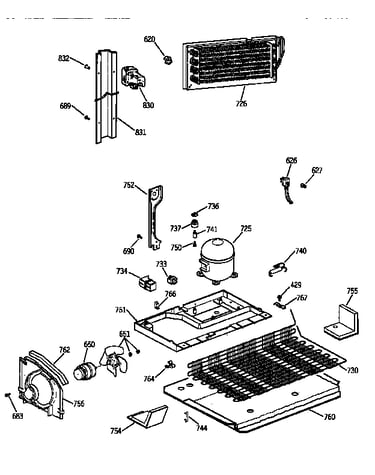

Unit parts diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Door Gasket WR24X0450
#104

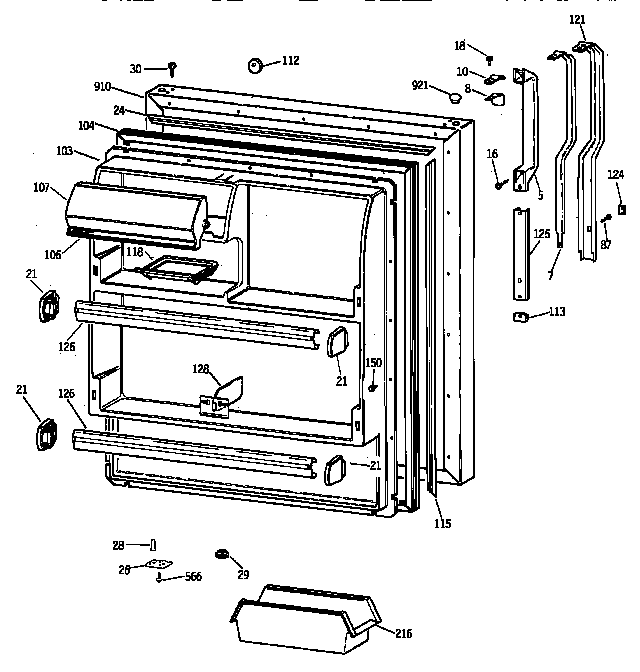

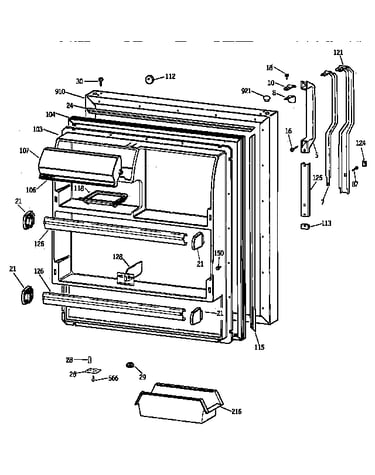

Fresh food door diagram

Refrigerator door gasket

Part #WR24X0450

Replaced by #WR24X450

?
Manufacturer substitution
This part replaces WR24X0450. Substitute parts can look different from the original.
$96.44 |
11% OFF Phone Price : $108.44
In Stock

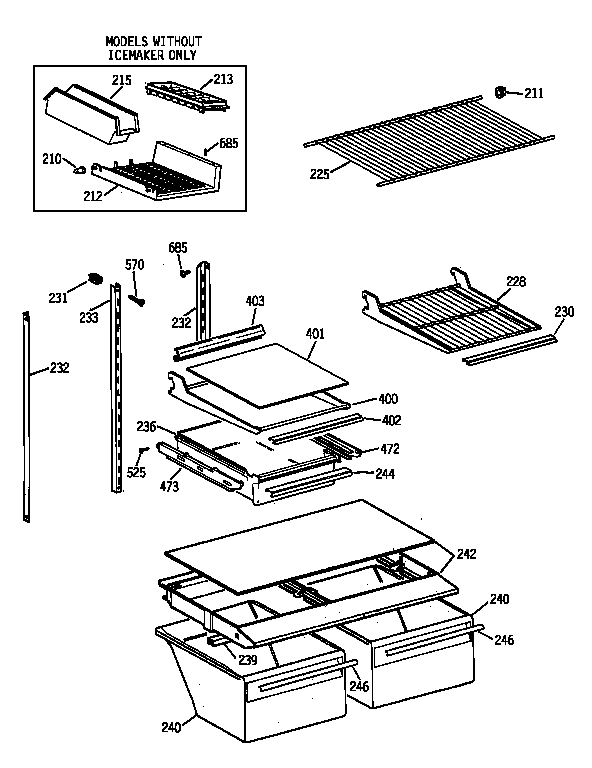

Refrigerator Shelf Cap WR02X8345
Refrigerator shelf cap

Part #WR02X8345

Replaced by #WR2X8345

?
Manufacturer substitution
This part replaces WR02X8345. Substitute parts can look different from the original.
This item is not returnable
$15.26 |
12% OFF Phone Price : $17.26
In Stock
Refrigerator Light Switch WR23X0359
#609

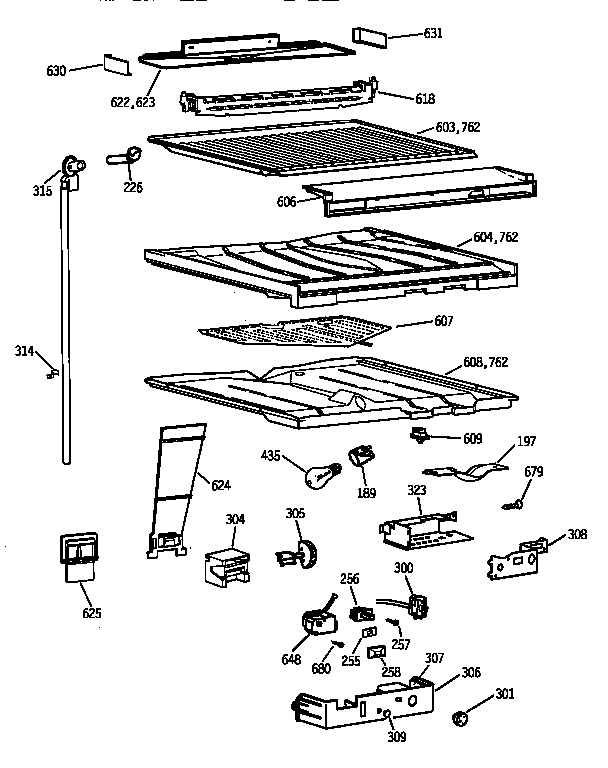

Compartment separator parts diagram

Refrigerator light switch

Part #WR23X0359

Replaced by #WR23X37285

?
Manufacturer substitution
This part replaces WR23X0359. Substitute parts can look different from the original.
$8.11
In Stock
Refrigerator Cover Gasket WR14X0313
Refrigerator cover gasket

Part #WR14X0313

Replaced by #WR14X313

?
Manufacturer substitution
This part replaces WR14X0313. Substitute parts can look different from the original.
$17.31 |
10% OFF Phone Price : $19.31
In Stock
Refrigerator Wheel WR02X3594
#264

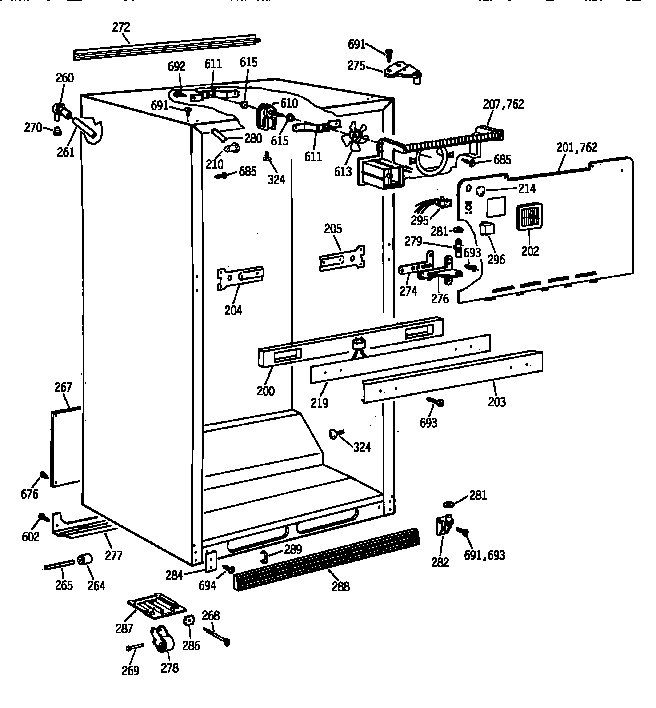

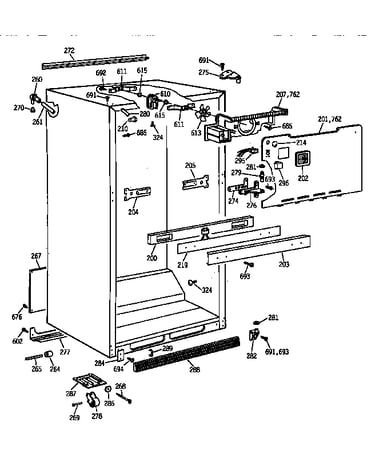

Cabinet parts diagram

Refrigerator wheel

Part #WR02X3594

Replaced by #WR2X3594

?
Manufacturer substitution
This part replaces WR02X3594. Substitute parts can look different from the original.
This item is not returnable
$21.62 |
22% OFF Phone Price : $27.62
In Stock
Refrigerator Screw WR01X1804
Refrigerator screw

Part #WR01X1804

Replaced by #WR01X10606

?
Manufacturer substitution
This part replaces WR01X1804. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Lamp 240v WR23X0442
#435

Compartment separator parts diagram

Lamp 240v

Part #WR23X0442

Replaced by #WR02X12207

?
Manufacturer substitution
This part replaces WR23X0442. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Hinge Washer WR01X1797
#281

Cabinet parts diagram

Hinge washer

Part #WR01X1797

Replaced by #WR1X1797D

?
Manufacturer substitution
This part replaces WR01X1797. Substitute parts can look different from the original.
$23.67 |
20% OFF Phone Price : $29.67
In Stock
Refrigerator Mounting Screw WZ05X0246
#689

Unit parts diagram

Refrigerator mounting screw

Part #WZ05X0246

This item is not returnable
$2.16
In Stock
