Model # 587706100 Official Kenmore portable dishwasher

Here are the diagrams and repair parts for Official Kenmore 587706100 portable dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

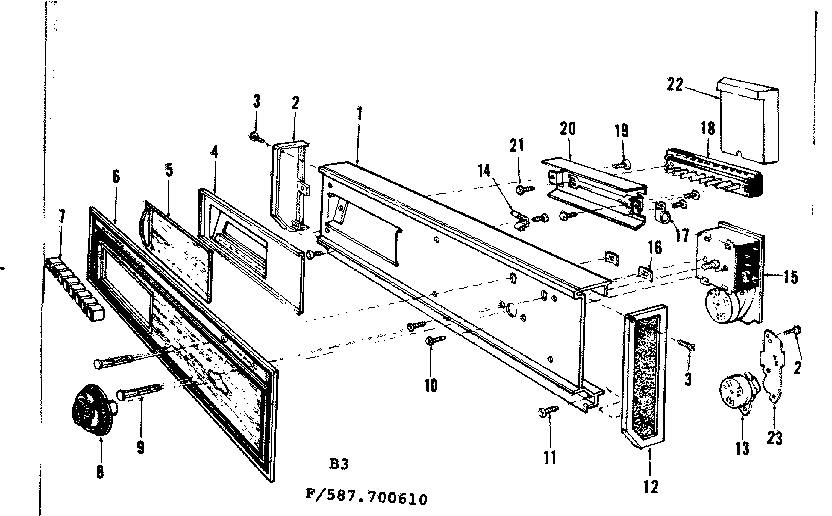

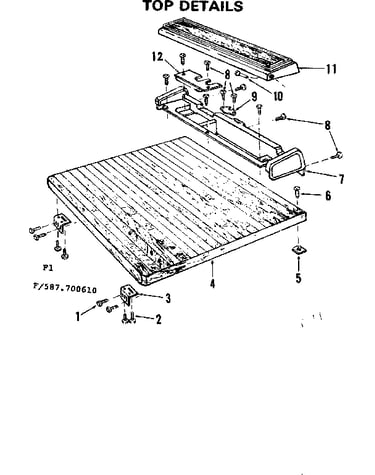

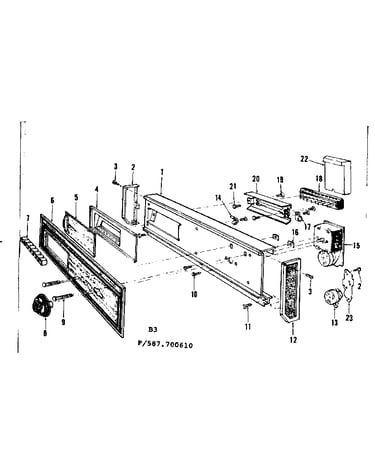

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 236 parts  |
Screw 806890
#6

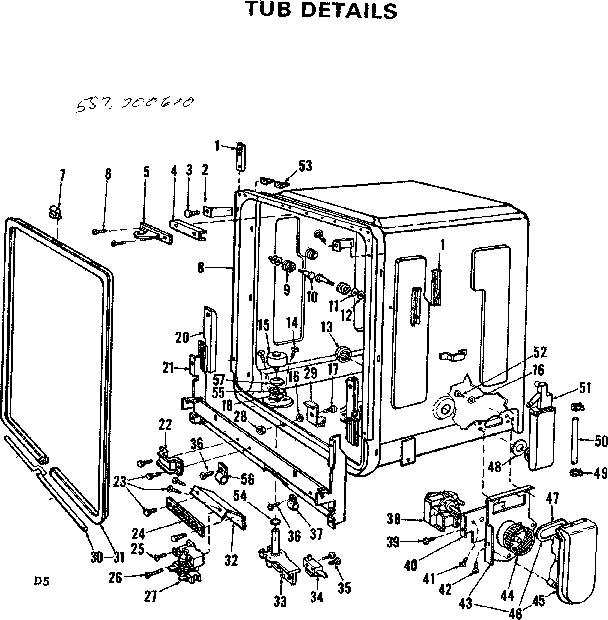

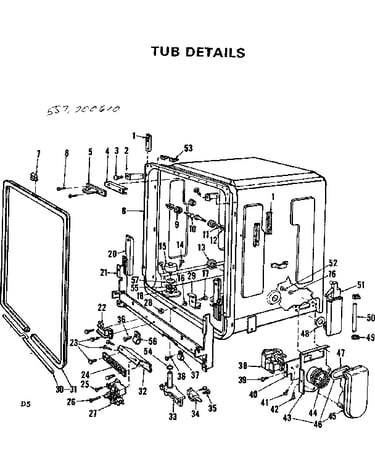

Tub details diagram

Screw

Part #806890

Replaced by #131302901

?
Manufacturer substitution
This part replaces 806890. Substitute parts can look different from the original.
This item is not returnable
$5.40 |
16% OFF Phone Price : $6.40
In Stock
Nut 804527
#30

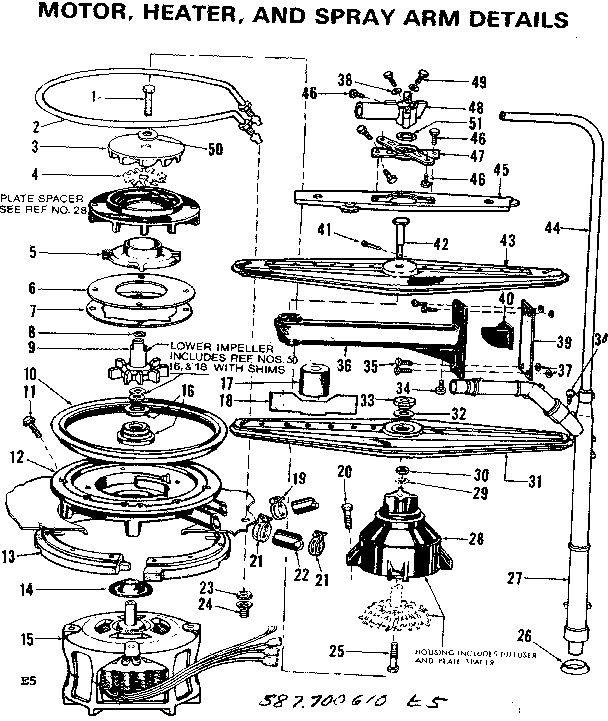

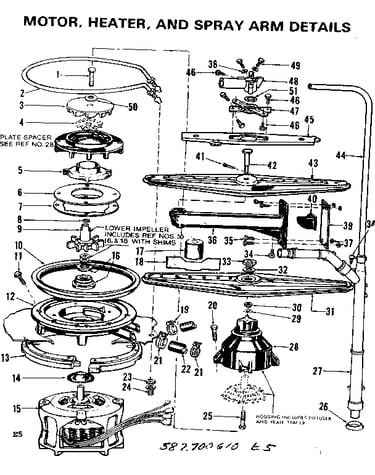

Motor heater and spray arm details diagram

Nut

Part #804527

Replaced by #316205500

?
Manufacturer substitution
This part replaces 804527. Substitute parts can look different from the original.
This item is not returnable
$11.20
In Stock
Gasket 808063
#18

Tub details diagram

Gasket

Part #808063

Replaced by #5300808063

?
Manufacturer substitution
This part replaces 808063. Substitute parts can look different from the original.
This item is not returnable
$4.51 |
18% OFF Phone Price : $5.51
In Stock
Cam 806566
#49

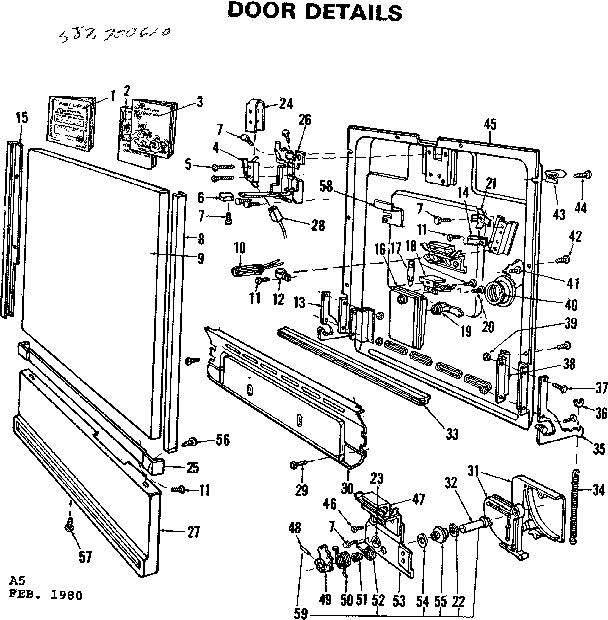

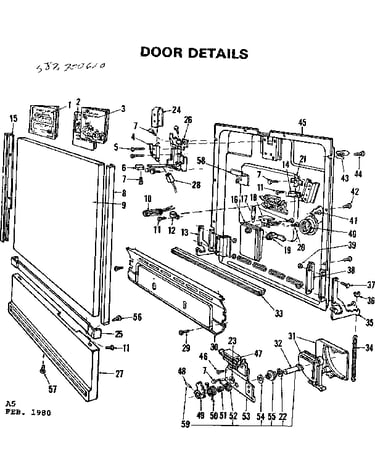

Door details diagram

Cam

Part #806566

Replaced by #154180301

?
Manufacturer substitution
This part replaces 806566. Substitute parts can look different from the original.
$16.20
In Stock
Silverware Basket 807856
#2

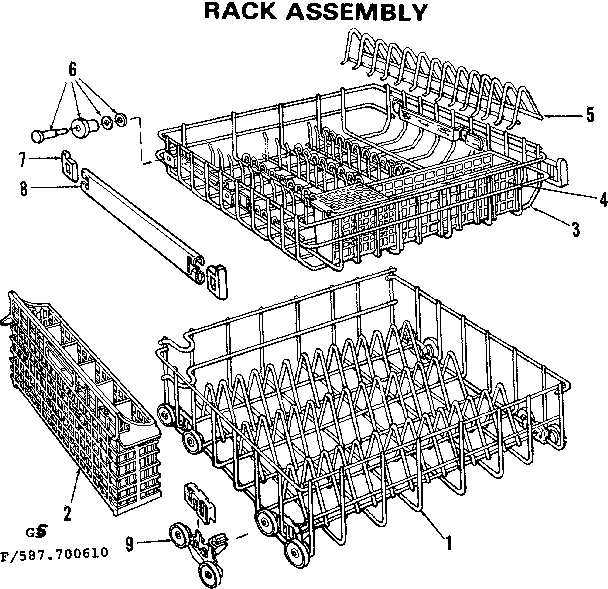

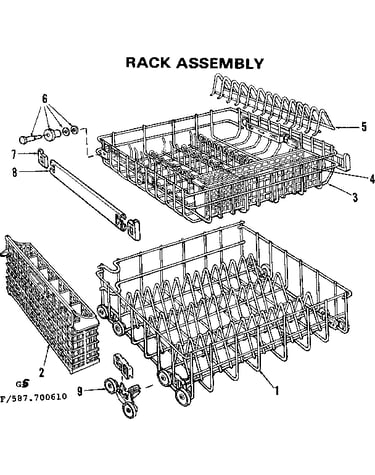

Rack assembly diagram

Silverware basket

Part #807856

Replaced by #5304509753

?
Manufacturer substitution
This part replaces 807856. Substitute parts can look different from the original.
This item is not returnable
$28.93 |
17% OFF Phone Price : $34.93
In Stock
Washer 807373
#5

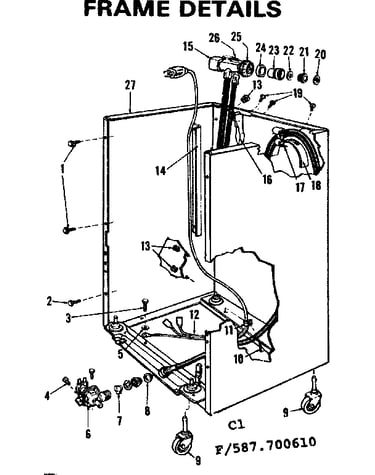

Frame details diagram

Washer

Part #807373

Replaced by #5300807373

?
Manufacturer substitution
This part replaces 807373. Substitute parts can look different from the original.
This item is not returnable
$7.49
In Stock
Gasket 805763
#7

Tub details diagram

Gasket

Part #805763

Replaced by #5300805763

?
Manufacturer substitution
This part replaces 805763. Substitute parts can look different from the original.
$84.49
In Stock
Cam Spring 806567
#51

Door details diagram

Cam spring

Part #806567

Replaced by #5300806567

?
Manufacturer substitution
This part replaces 806567. Substitute parts can look different from the original.
$29.93
In Stock
Nut 806834
#24

Motor heater and spray arm details diagram

Nut

Part #806834

Replaced by #154106202

?
Manufacturer substitution
This part replaces 806834. Substitute parts can look different from the original.
$7.99 |
11% OFF Phone Price : $8.99
In Stock
Spray Arm 805577
#31

Motor heater and spray arm details diagram

Spray arm

Part #805577

Replaced by #5300808961

?
Manufacturer substitution
This part replaces 805577. Substitute parts can look different from the original.
$142.10
In Stock
