Side-By-Side Refrigerator

Model # CSD2525ARB Official Magic Chef side-by-side refrigerator

Here are the diagrams and repair parts for Official Magic Chef CSD2525ARB side-by-side refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part

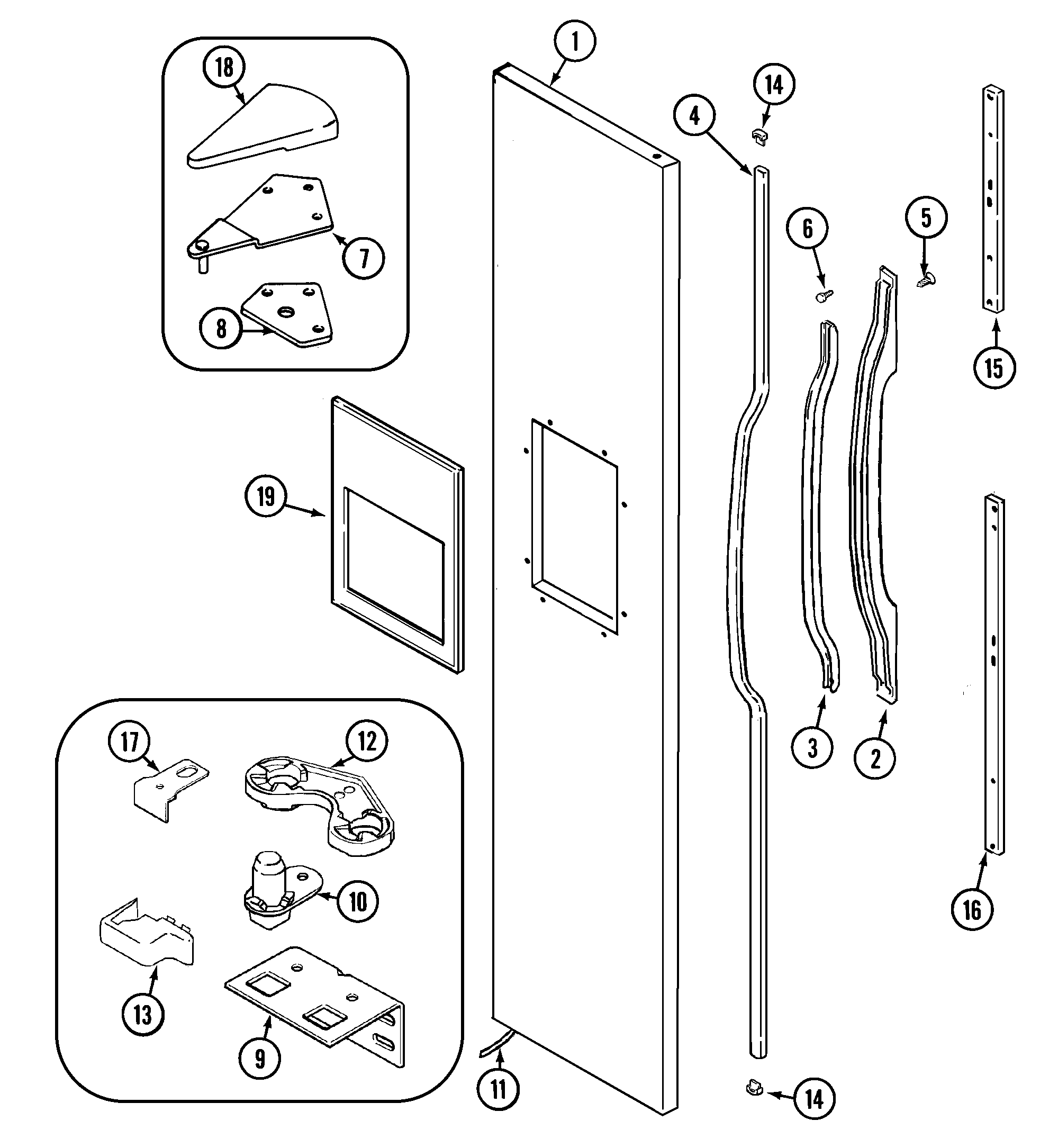

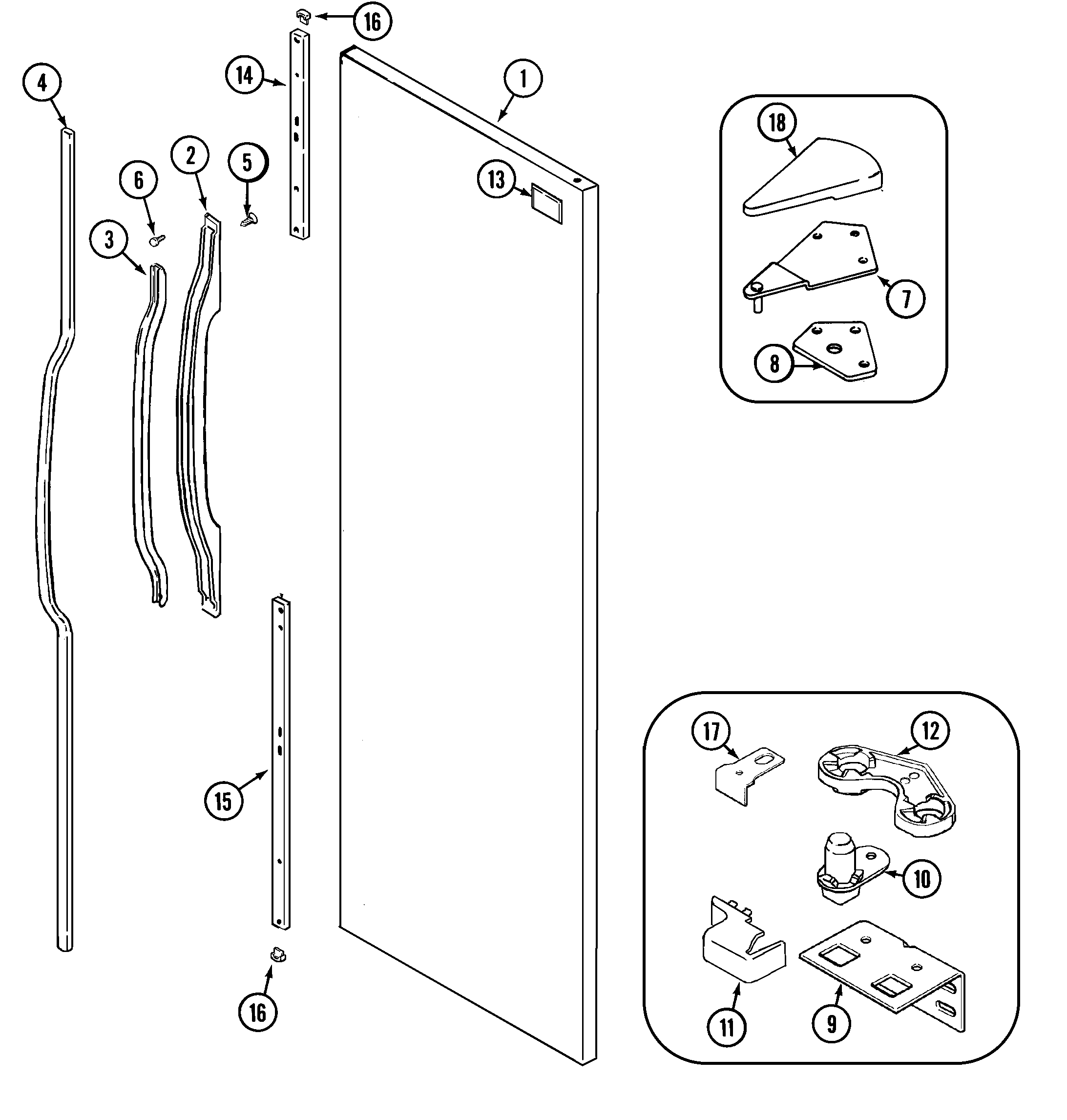

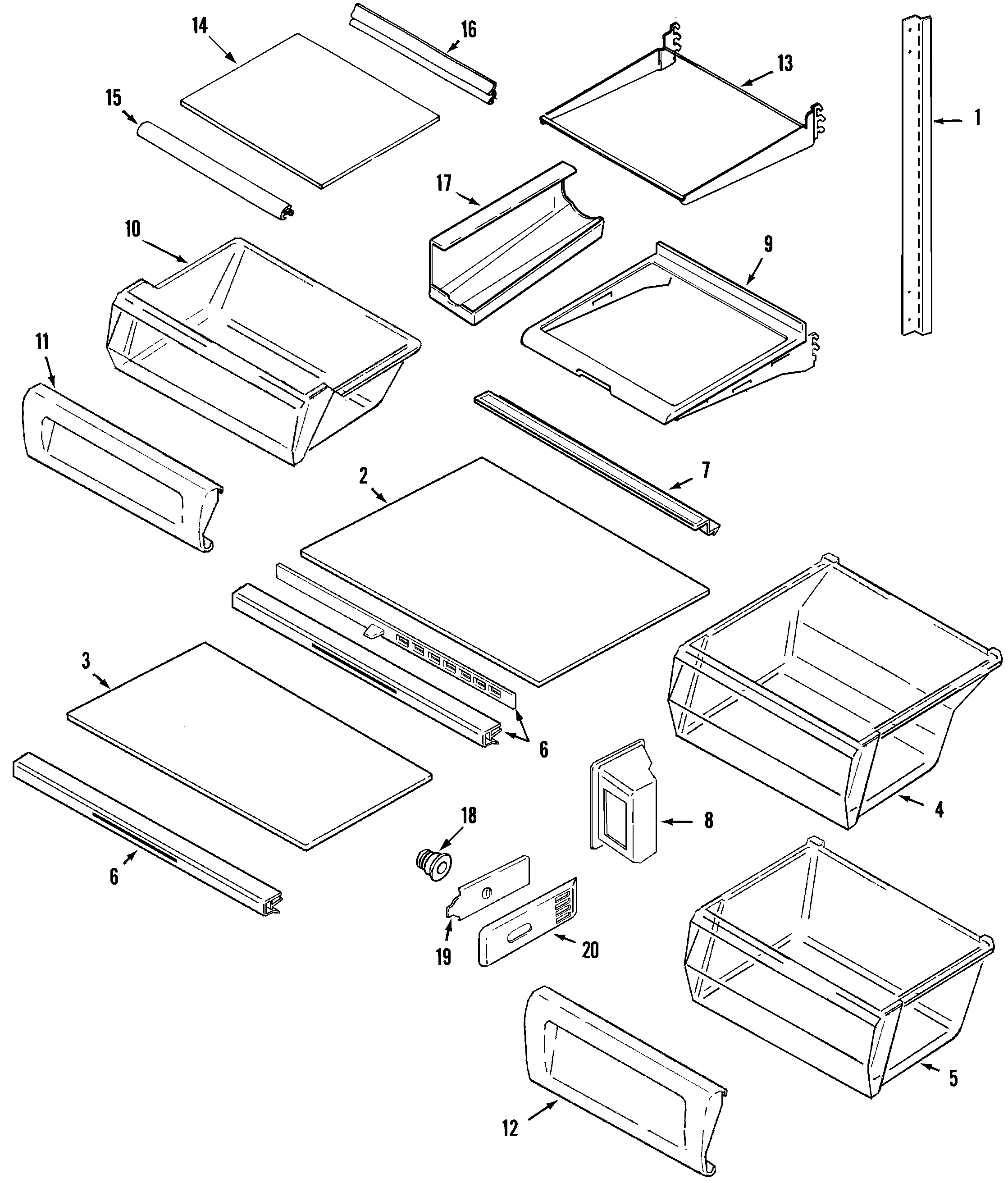

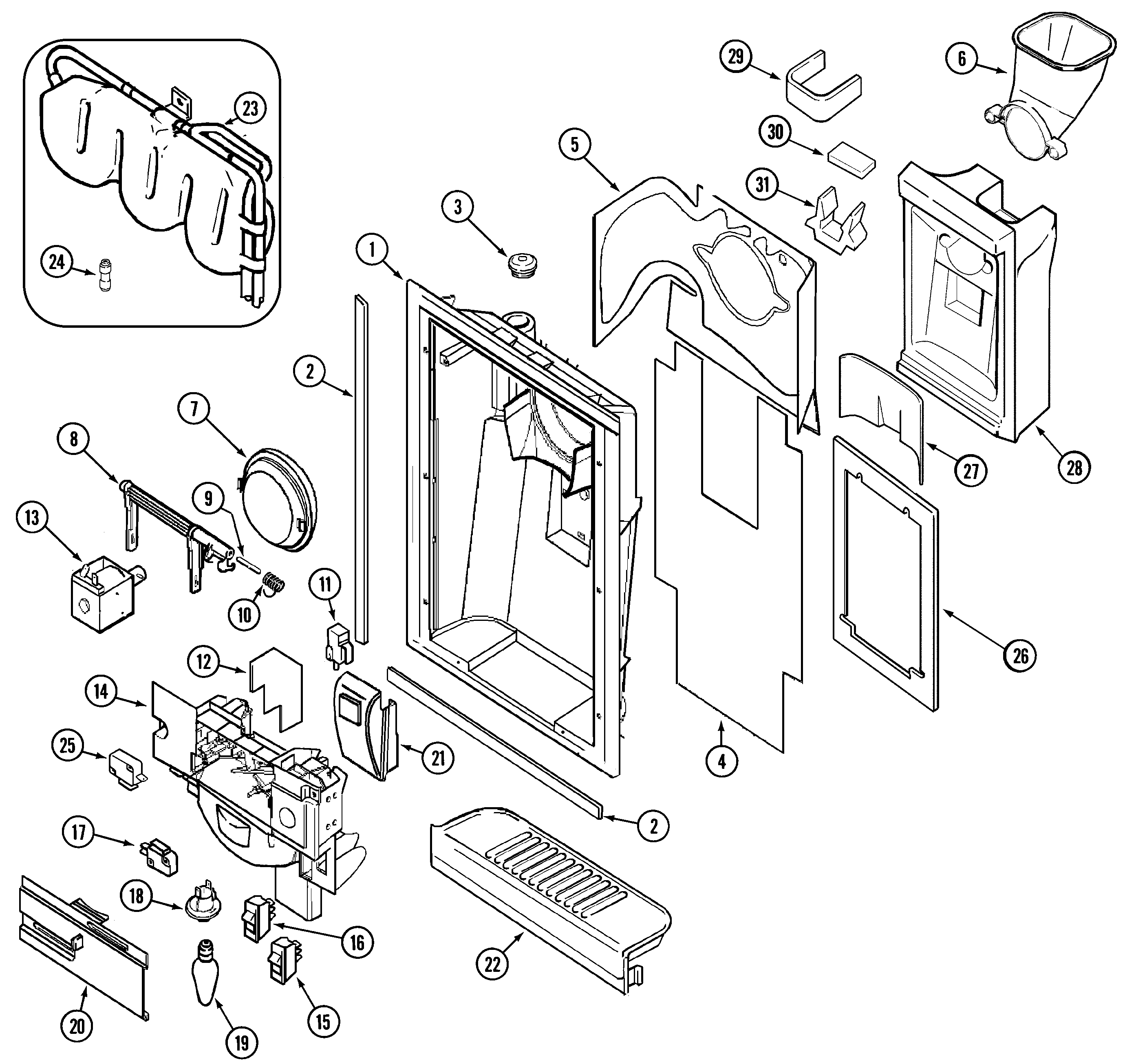

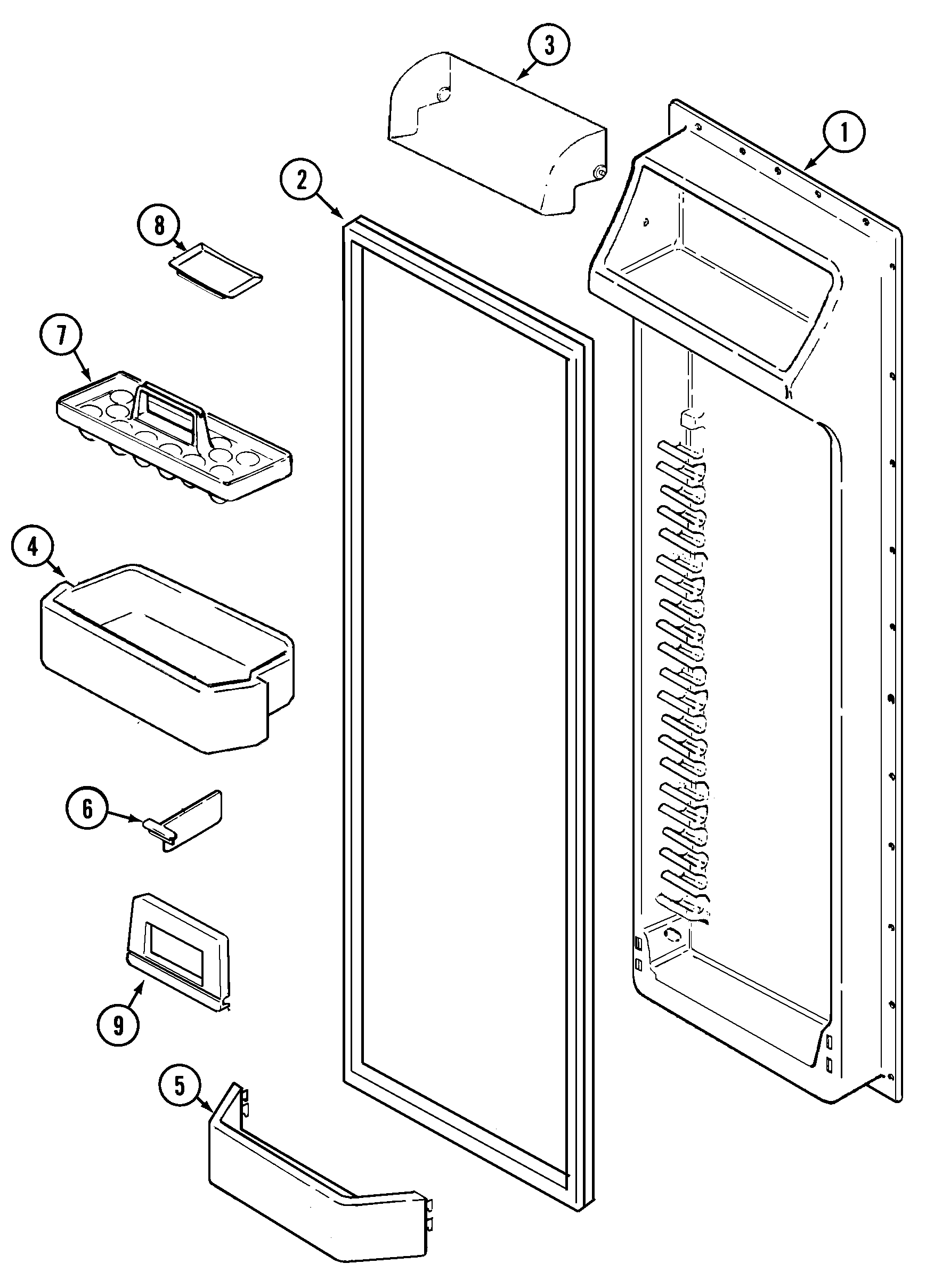

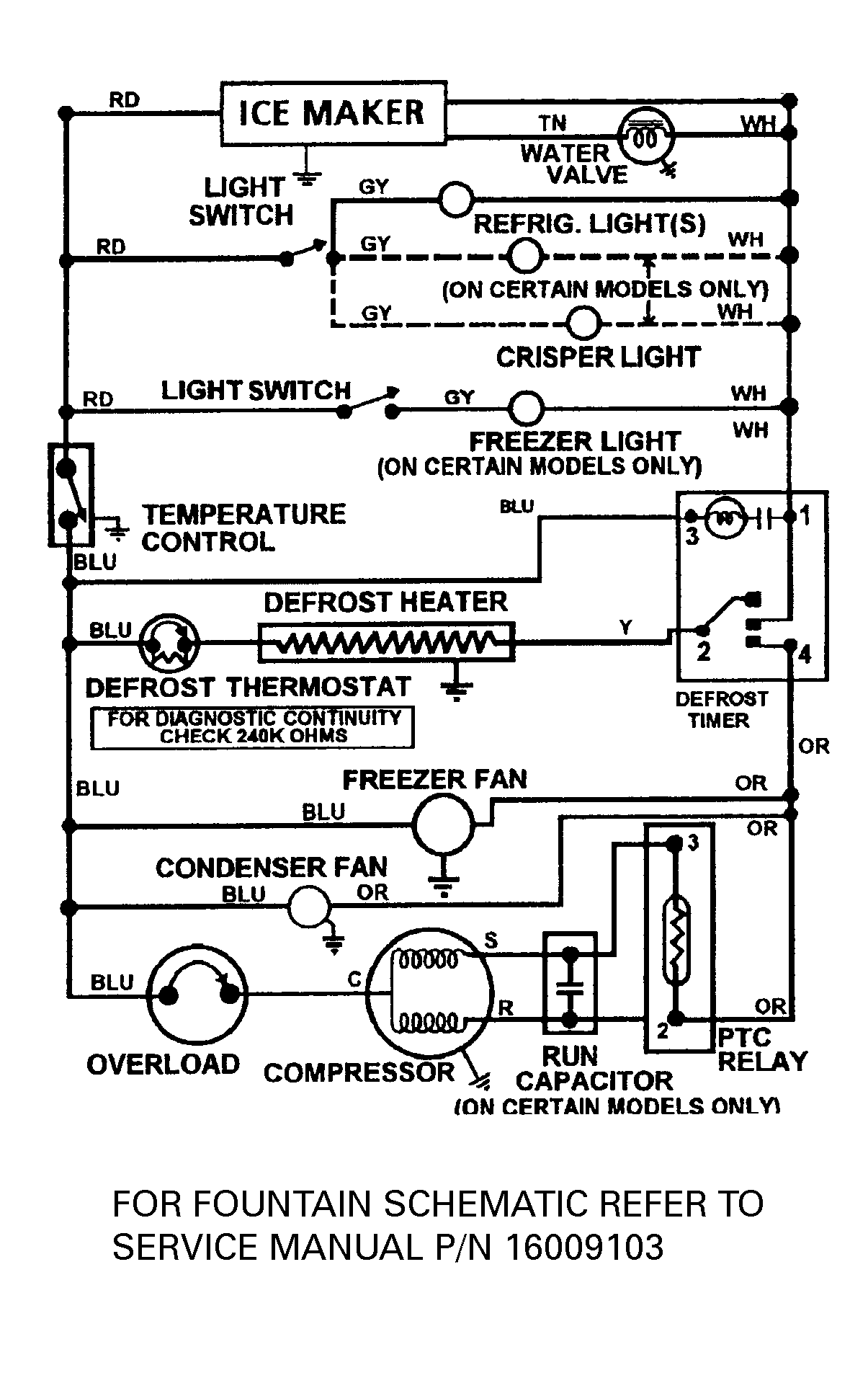

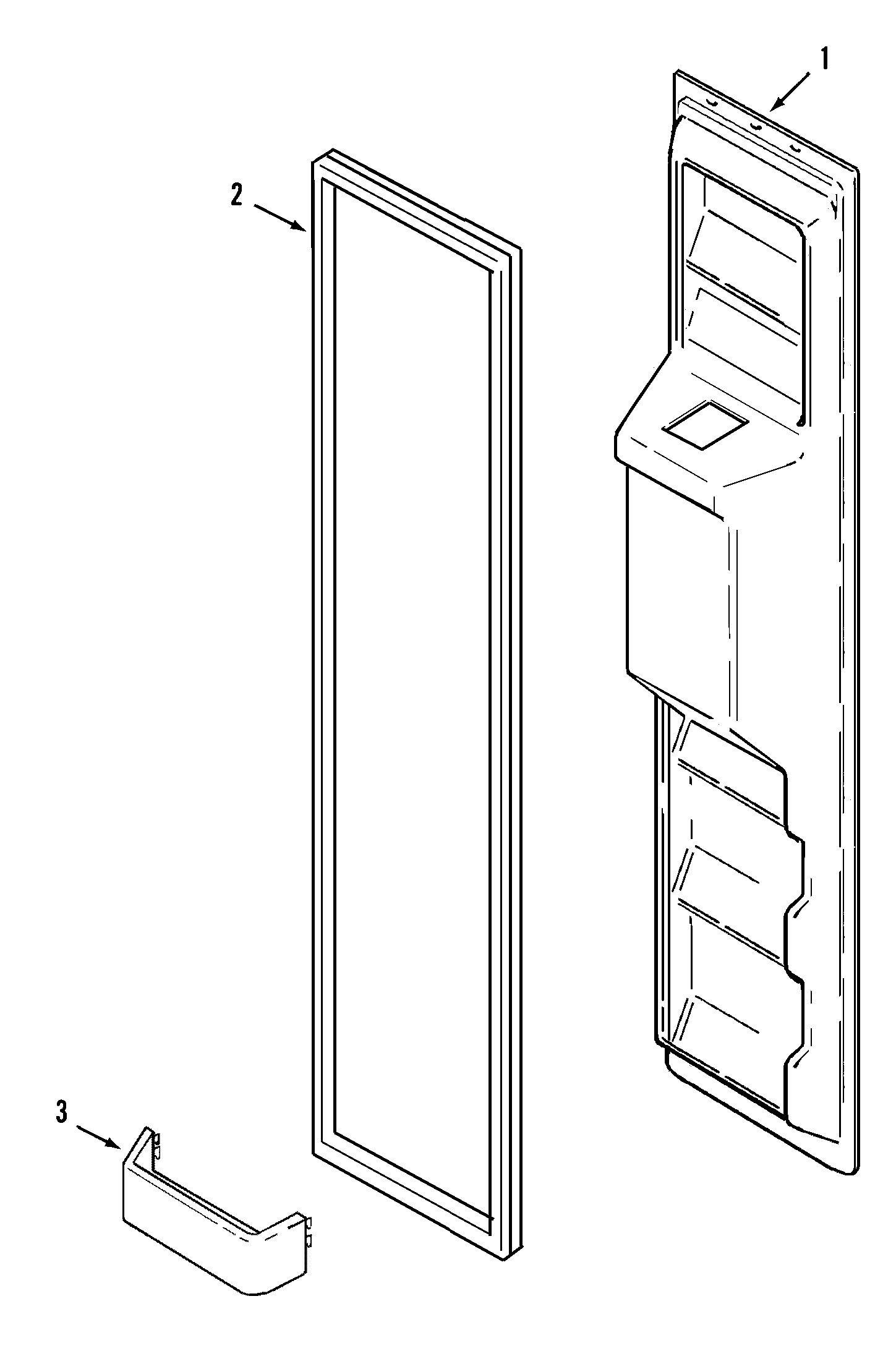

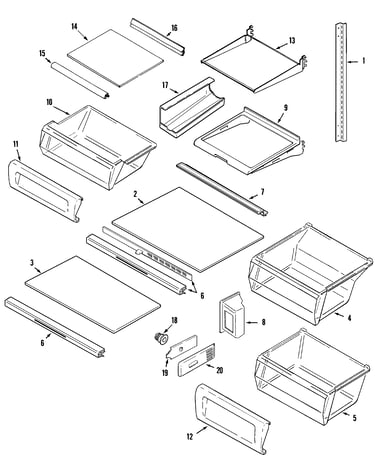

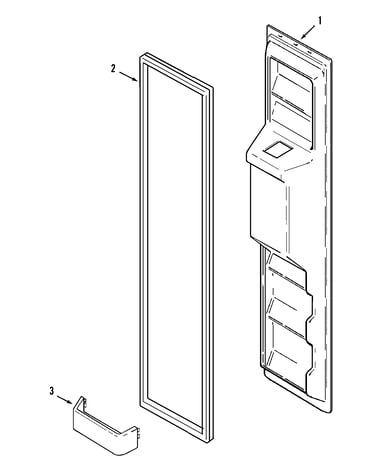

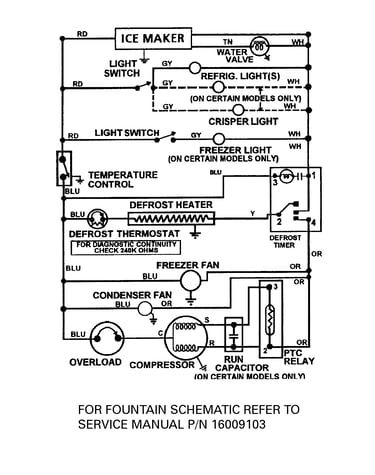

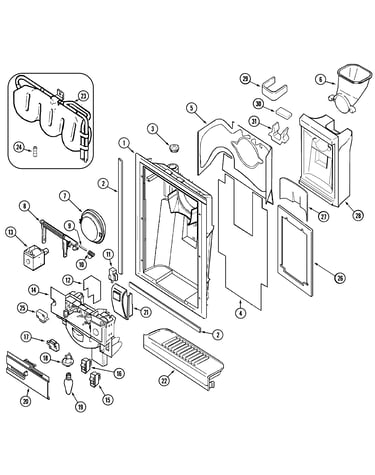

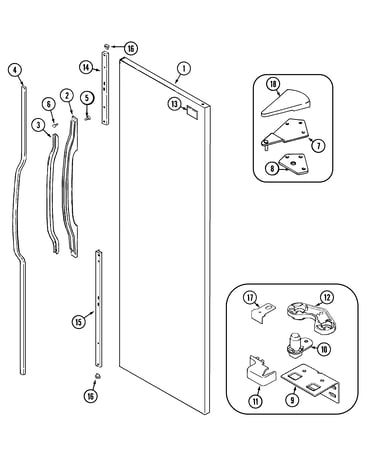

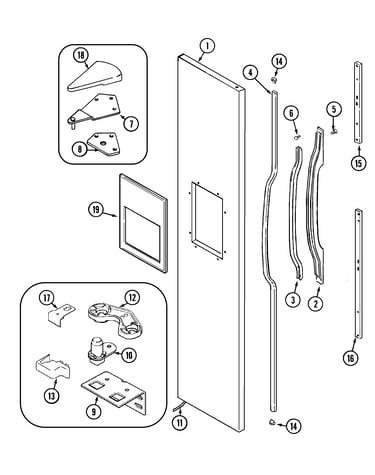

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
CSD2525ARB Refrigerators
Refrigerator Uv Dye Dryer 13900-1
#13

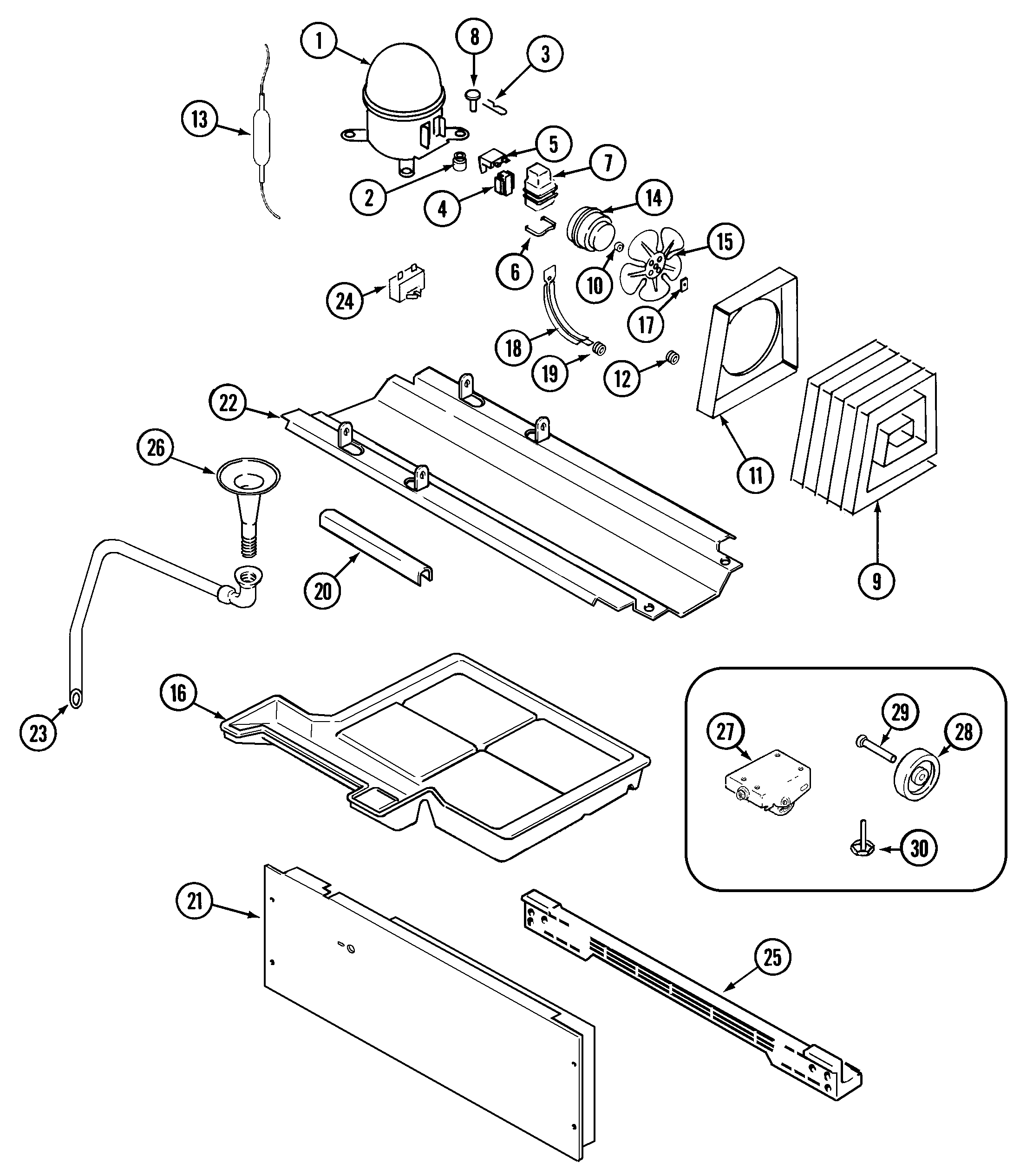

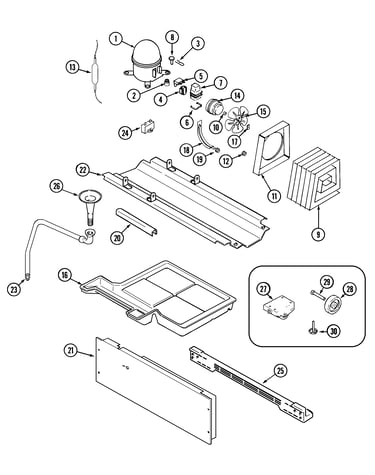

Compressor diagram

Refrigerator uv dye dryer

Part #13900-1

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900-1. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Ice Maker Module 95109-1
#1

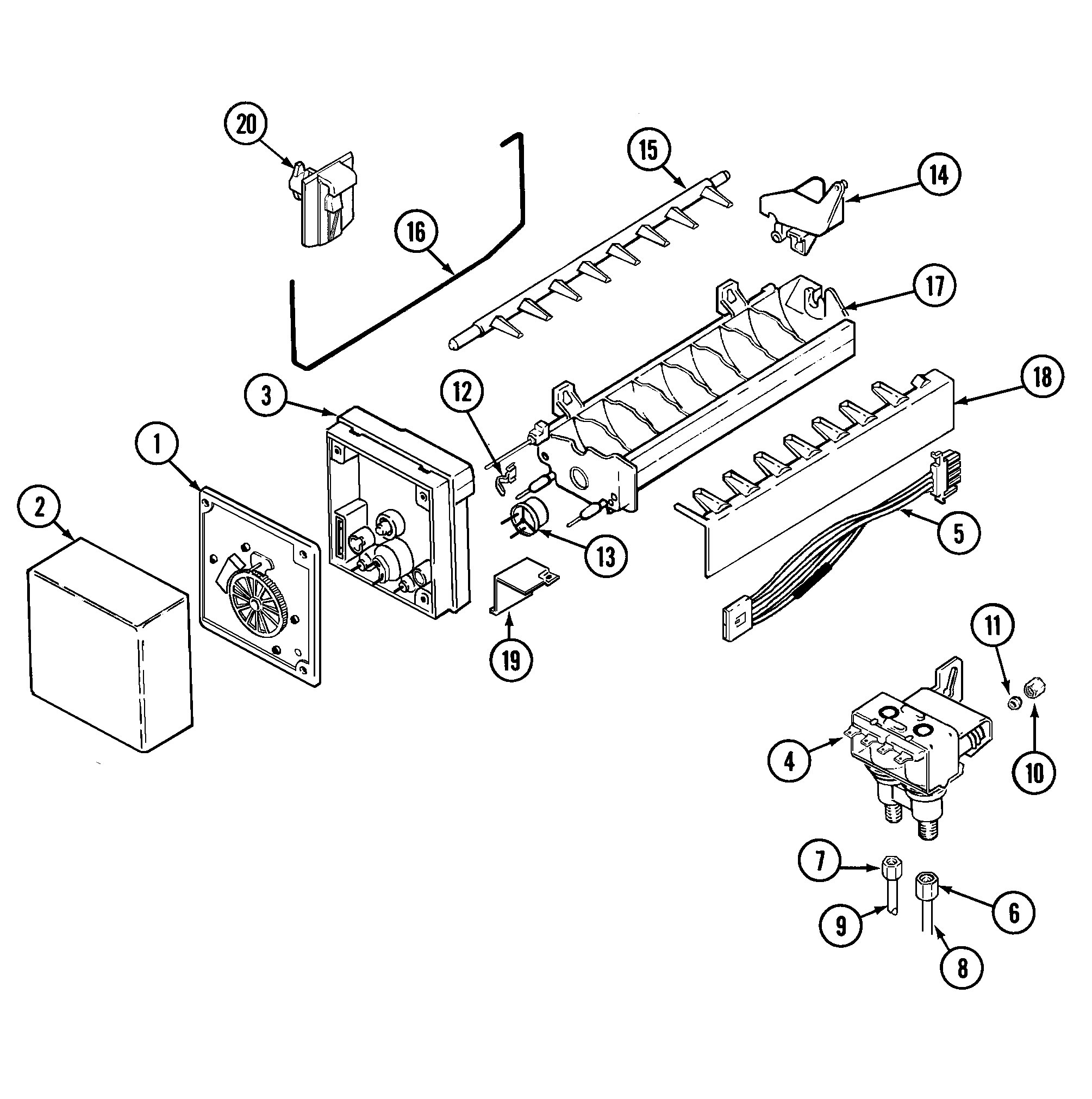

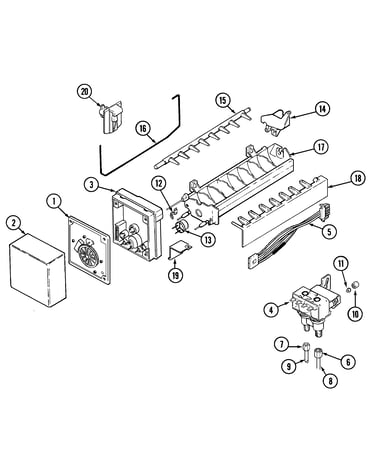

Ice maker diagram

Refrigerator ice maker module

Part #95109-1

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Mold And Heater 95098-1
#17

Ice maker diagram

Refrigerator mold and heater

Part #95098-1

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces 95098-1. Substitute parts can look different from the original.
4.12 (52)
BEST SELLER
$88.34 |
6% OFF Phone Price : $94.34
In Stock
Refrigerator Light Bulb 31956-1
#30

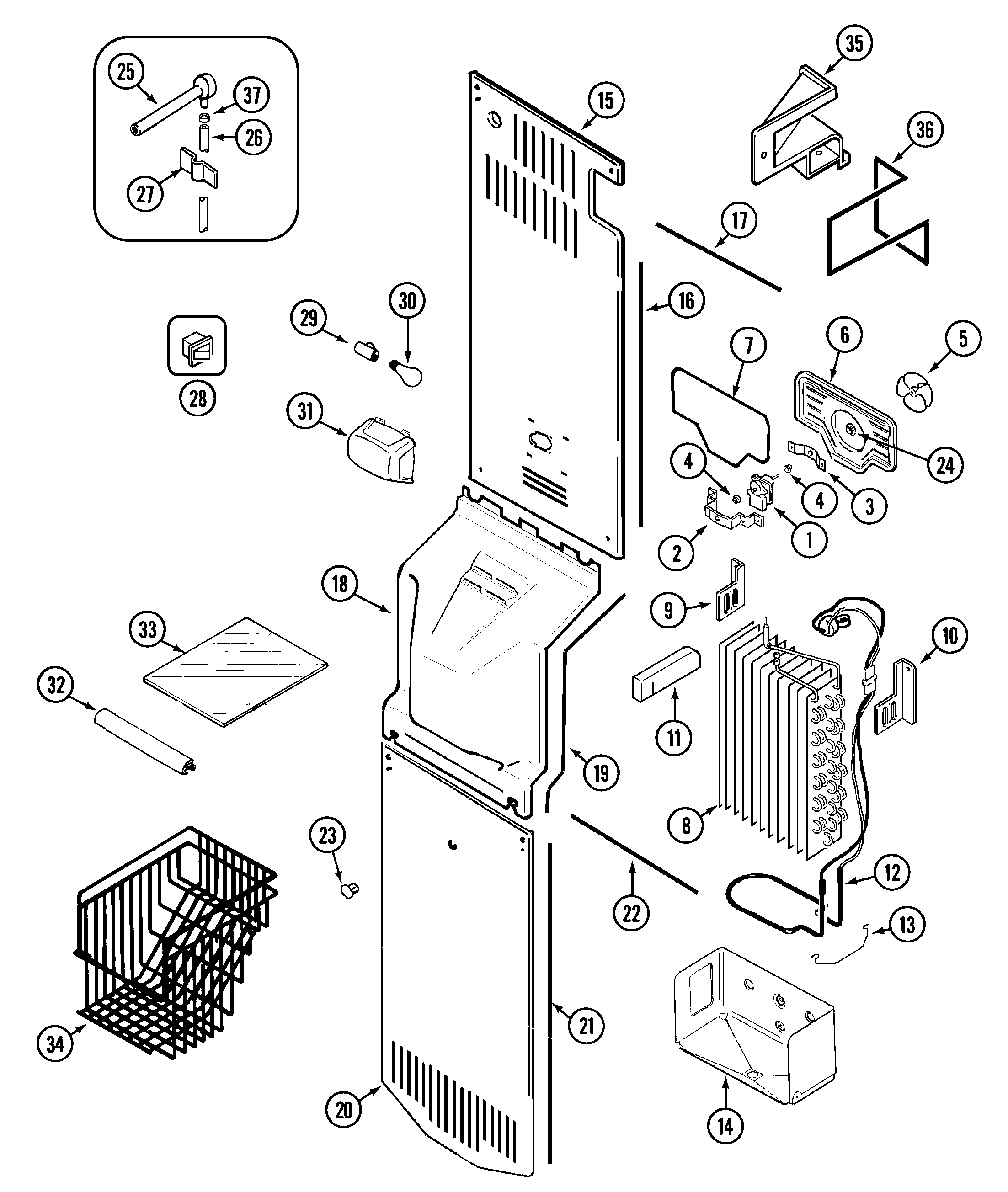

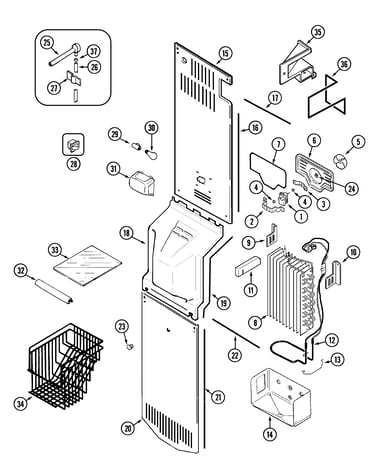

Freezer compartment diagram

Refrigerator light bulb

Part #31956-1

Replaced by #40A15

?
Manufacturer substitution
This part replaces 31956-1. Substitute parts can look different from the original.
1.72 (18)
BEST SELLER
$17.23 |
10% OFF Phone Price : $19.23
In Stock
Light Switch 66987-1
#20

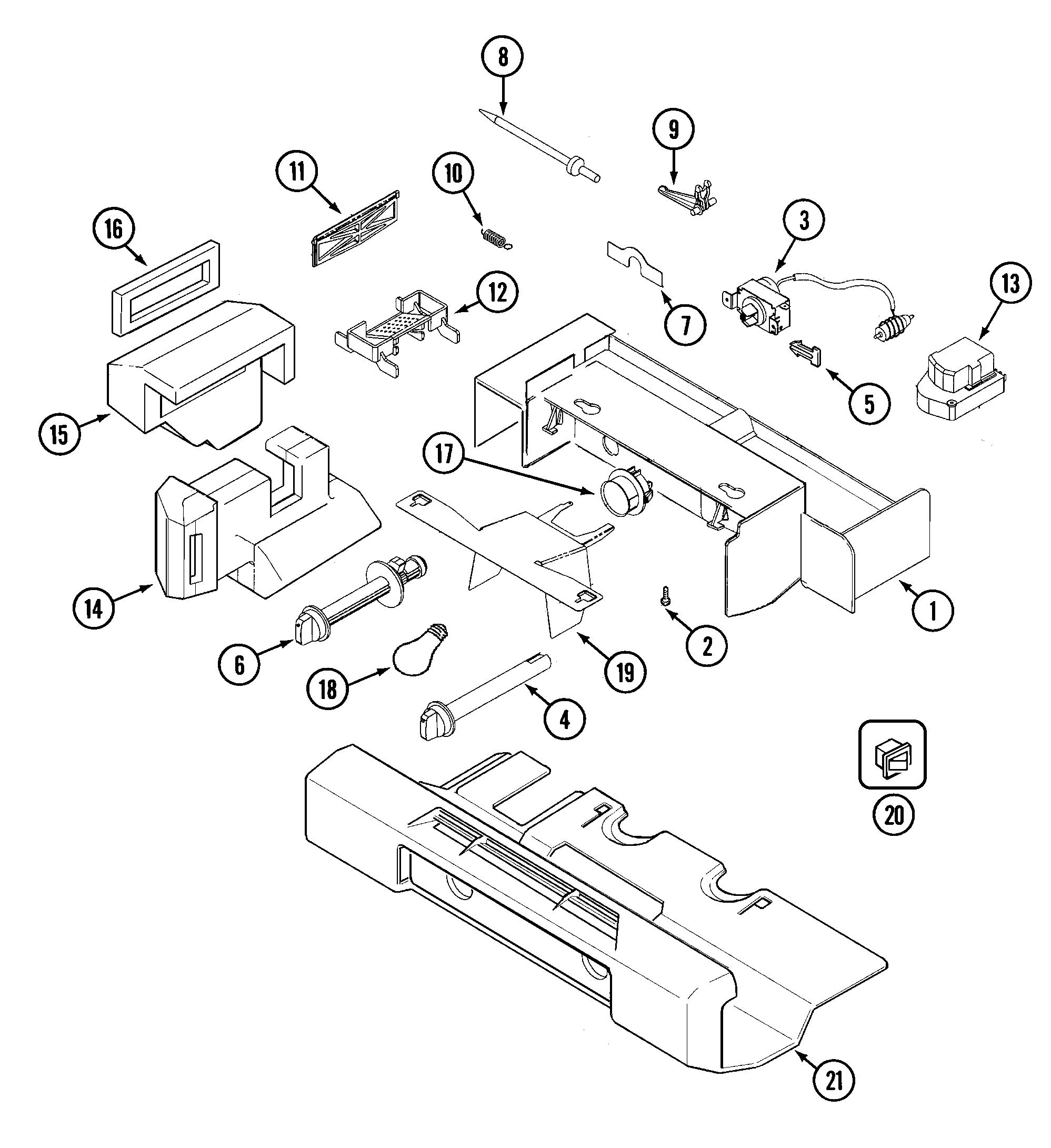

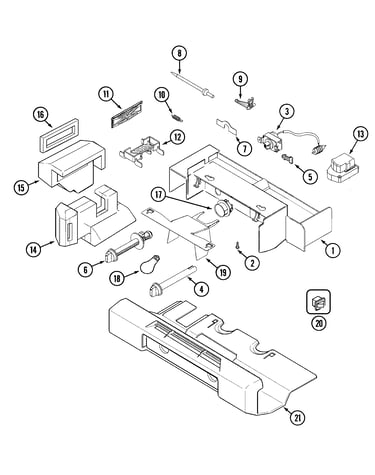

Controls diagram

Light switch

Part #66987-1

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 66987-1. Substitute parts can look different from the original.
3.82 (11)
BEST SELLER
$24.42 |
20% OFF Phone Price : $30.42
In Stock
Refrigerator Light Switch 61003254
#28

Freezer compartment diagram

Refrigerator light switch

Part #61003254

Replaced by #W11396033

?
Manufacturer substitution
This part replaces 61003254. Substitute parts can look different from the original.
3.5 (20)
BEST SELLER
$20.09 |
23% OFF Phone Price : $26.09
In Stock
Refrigerator Condenser Fan Motor 61001562
#14

Compressor diagram

Refrigerator condenser fan motor

Part #61001562

Replaced by #833697

?
Manufacturer substitution
This part replaces 61001562. Substitute parts can look different from the original.
4.8 (10)
BEST SELLER
$54.25 |
10% OFF Phone Price : $60.25
In Stock

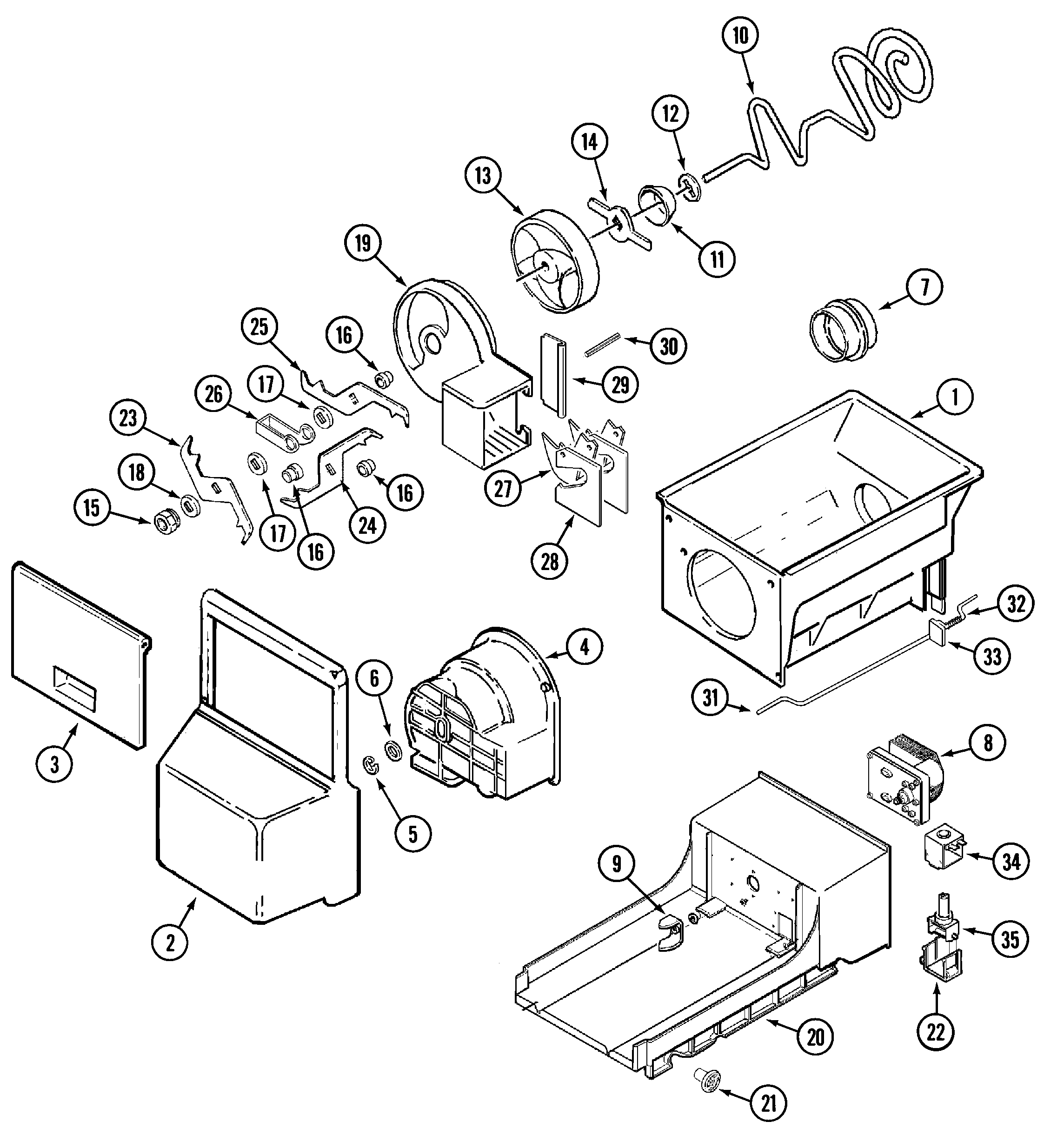

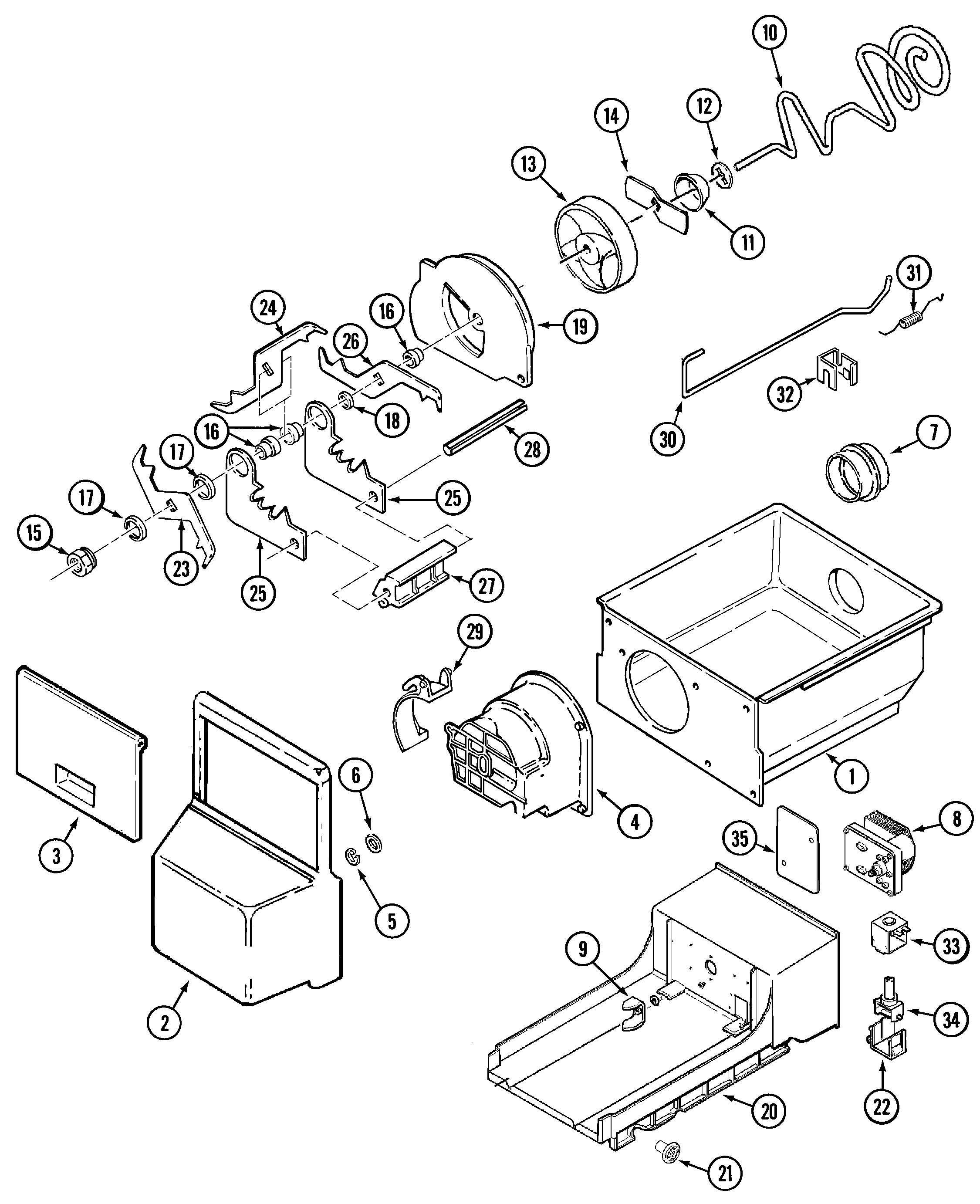

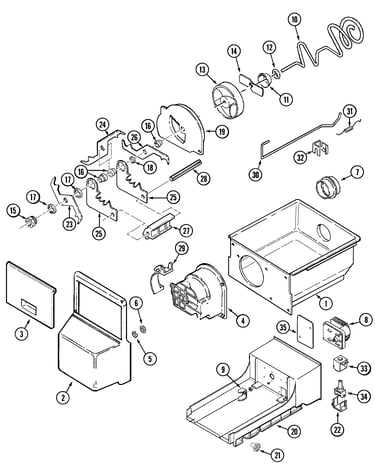

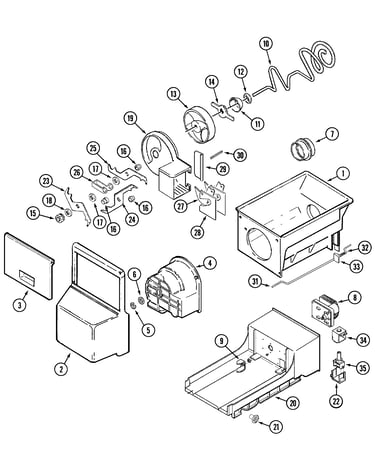

Yoke,ice Dis 63052-1
Yoke,ice dis

Part #63052-1

Replaced by #WP63052-2

?
Manufacturer substitution
This part replaces 63052-1. Substitute parts can look different from the original.
BEST SELLER
$32.08 |
16% OFF Phone Price : $38.08
In Stock
Refrigerator Ice Maker Shut-off Arm 70142-1
#16

Ice maker diagram

Refrigerator ice maker shut-off arm

Part #70142-1

Replaced by #W11342242

?
Manufacturer substitution
This part replaces 70142-1. Substitute parts can look different from the original.
3.6 (5)
BEST SELLER
$32.71 |
15% OFF Phone Price : $38.71
In Stock
Refrigerator Start Relay 61003115
#4

Compressor diagram

Refrigerator start relay

Part #61003115

Replaced by #W10920279

?
Manufacturer substitution
This part replaces 61003115. Substitute parts can look different from the original.
4.2 (5)
BEST SELLER
$50.86 |
11% OFF Phone Price : $56.86
In Stock
