Model # KSS3121ER0 Official KitchenAid soda fountain

Here are the diagrams and repair parts for Official KitchenAid KSS3121ER0 soda fountain, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |
Screw 697773
#9

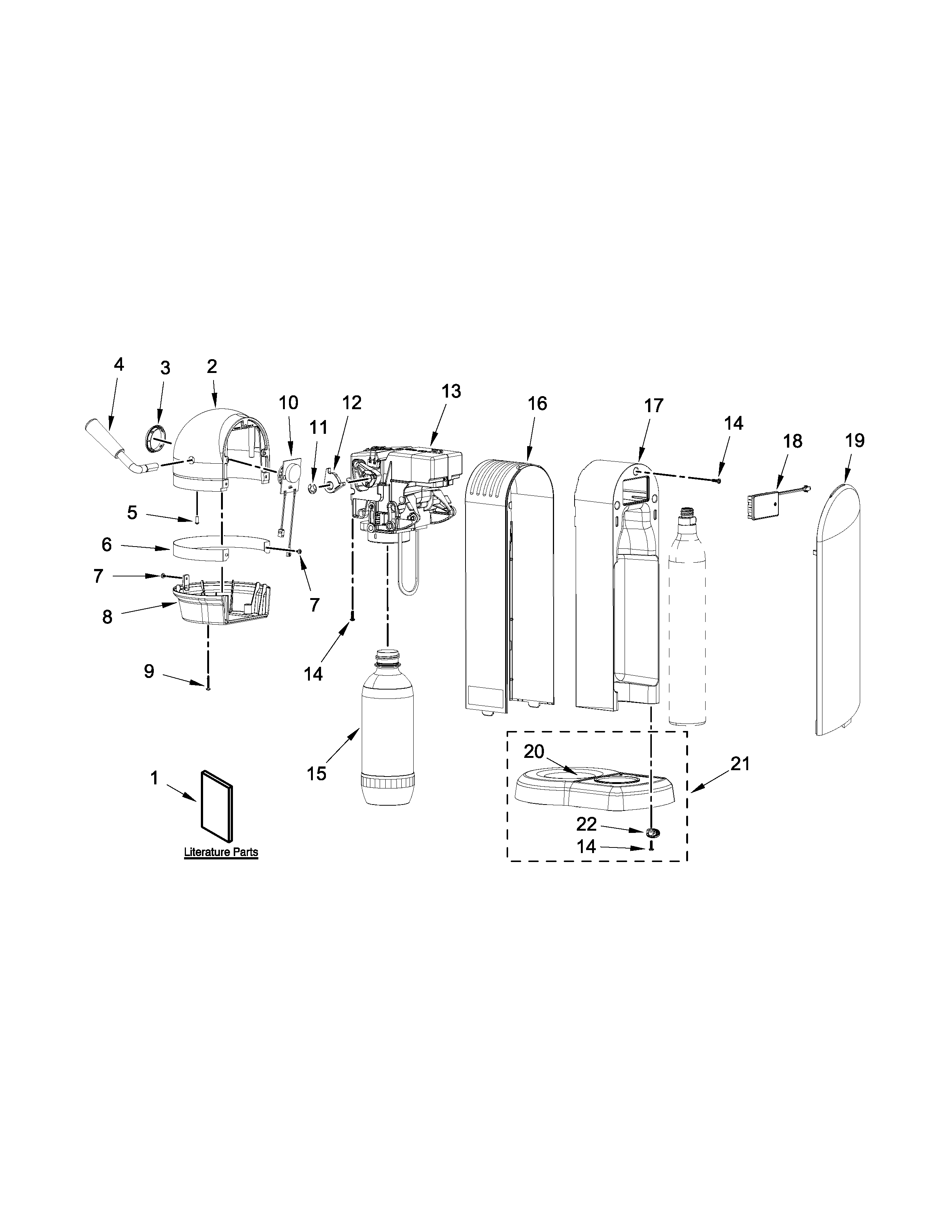

Unit parts diagram

Screw

Part #697773

Replaced by #WP3395530

?
Manufacturer substitution
This part replaces 697773. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 3400814
#14

Unit parts diagram

Screw

Part #3400814

Replaced by #WP3400814

?
Manufacturer substitution
This part replaces 3400814. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
Back Order
Base Assembly W10784766
#21C

Unit parts diagram

Base assembly

Part #W10784766

$73.89
In Stock
Housing Uppe W10784764
#2C

Unit parts diagram

Housing uppe

Part #W10784764

$68.18
In Stock
Screw 3400617
#7

Unit parts diagram

Screw

Part #3400617

This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Column- Sz P W10784765
#17C

Unit parts diagram

Column- sz p

Part #W10784765

$86.89
In Stock
Foot 9709707
#22

Unit parts diagram

Foot

Part #9709707

Replaced by #WP9709707

?
Manufacturer substitution
This part replaces 9709707. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Ring 354987
#11

Unit parts diagram

Ring

Part #354987

Replaced by #WP354987

?
Manufacturer substitution
This part replaces 354987. Substitute parts can look different from the original.
This item is not returnable
$8.69 |
10% OFF Phone Price : $9.69
In Stock
Carbonator Assembly (us/canada) W10635490
#13

Unit parts diagram

Carbonator assembly (us/canada)

Part #W10635490

The manufacturer no longer makes this part, and there's no substitute part

Trim Band W10622297
#6

Unit parts diagram

Trim band

Part #W10622297

The manufacturer no longer makes this part, and there's no substitute part
