Model # 11076570600 Official Kenmore electric dryer
Here are the diagrams and repair parts for Official Kenmore 11076570600 electric dryer, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

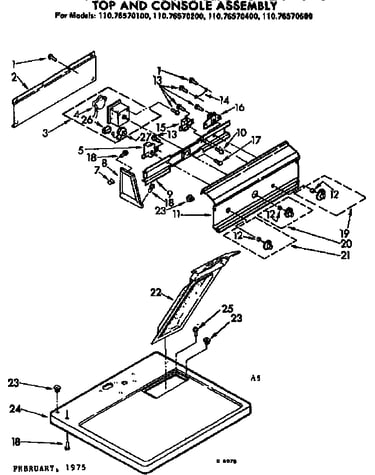

SELECT DIAGRAM
Browse Parts for
11076570600 Electric Dryer
#30

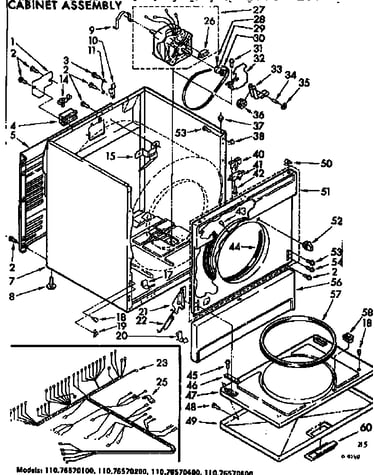

Cabinet assembly diagram
Drum belt
Part #349533
Replaced by #341241
?
Manufacturer substitution
This part replaces 349533. Substitute parts can look different from the original.
$11.80 |
14% OFF Phone Price : $13.80
In Stock
#34
Cabinet assembly diagram
Shaft pulley
Part #337407
Replaced by #WP691366
?
Manufacturer substitution
This part replaces 337407. Substitute parts can look different from the original.
$17.12 |
10% OFF Phone Price : $19.12
In Stock
#33
Cabinet assembly diagram
Bracket
Part #337510
Replaced by #WP691366
?
Manufacturer substitution
This part replaces 337510. Substitute parts can look different from the original.
$17.12 |
10% OFF Phone Price : $19.12
In Stock
#36
Cabinet assembly diagram
Pulley
Part #347226
Replaced by #WP691366
?
Manufacturer substitution
This part replaces 347226. Substitute parts can look different from the original.
$17.12 |
10% OFF Phone Price : $19.12
In Stock
#27A
Cabinet assembly diagram
Motor
Part #343234
Replaced by #279827
?
Manufacturer substitution
This part replaces 343234. Substitute parts can look different from the original.
$78.95 |
7% OFF Phone Price : $84.95
In Stock
#26A
Cabinet assembly diagram
Switch
Part #337351
Replaced by #279827
?
Manufacturer substitution
This part replaces 337351. Substitute parts can look different from the original.
$78.95 |
7% OFF Phone Price : $84.95
In Stock
#37

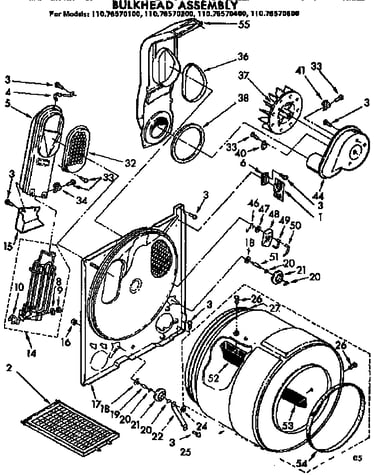

Bulkhead assembly diagram
Dryer blower wheel
Part #343939
Replaced by #WP694089
?
Manufacturer substitution
This part replaces 343939. Substitute parts can look different from the original.
$26.12 |
19% OFF Phone Price : $32.12
In Stock
#52
Cabinet assembly diagram
Door strike
Part #236876
Replaced by #279570
?
Manufacturer substitution
This part replaces 236876. Substitute parts can look different from the original.
This item is not returnable
$4.01 |
20% OFF Phone Price : $5.01
In Stock
#58
Cabinet assembly diagram
Door catch
Part #347813
Replaced by #279570
?
Manufacturer substitution
This part replaces 347813. Substitute parts can look different from the original.
This item is not returnable
$4.01 |
20% OFF Phone Price : $5.01
In Stock
#14
Bulkhead assembly diagram
Heater element
Part #685942
Replaced by #WP4391960
?
Manufacturer substitution
This part replaces 685942. Substitute parts can look different from the original.
$34.33 |
15% OFF Phone Price : $40.33
In Stock
