Model # HCH648GKA100 Official ICP air conditioner heat pump outside unit

Here are the diagrams and repair parts for Official ICP HCH648GKA100 air conditioner heat pump outside unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 57 parts |

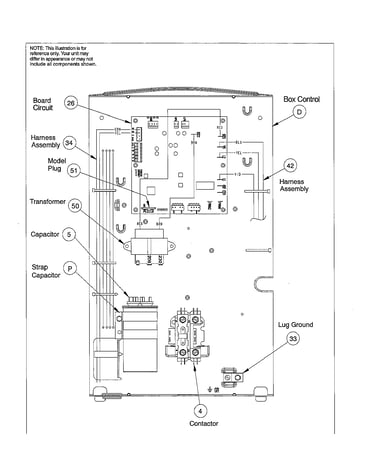

Control panel diagram

Central air conditioner contactor

Part #1172472

$61.35 |

9% OFF Phone Price : $67.35

In Stock

Qty

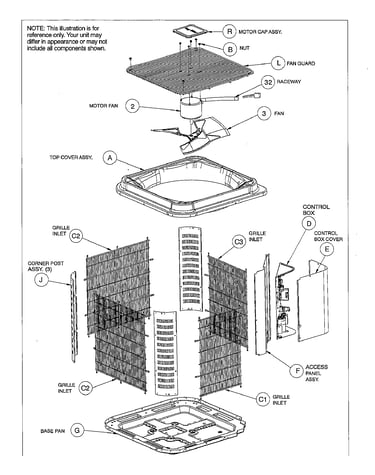

Outer parts diagram

Central air conditioner condenser fan blade

Part #1172716

$197.11

In Stock

Qty

Outer parts diagram

Fan guard

Part #1174032

$223.96 |

5% OFF Phone Price : $235.96

In Stock

Qty

#16

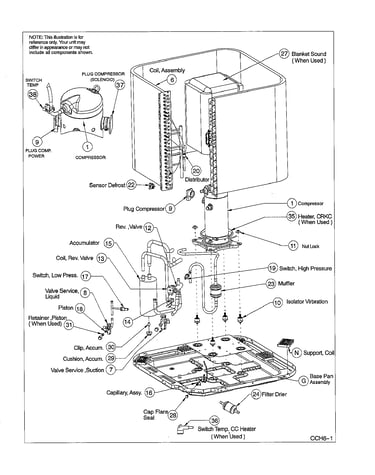

Inner parts diagram

Capillary

Part #1174096

$135.14

In Stock

Qty

Outer parts diagram

Top cover

Part #1178327

$289.53

In Stock

Qty

#14

Inner parts diagram

Plug assembly

Part #1185101

$16.74

In Stock

Qty

#23

Inner parts diagram

Muffler

Part #1177828

$68.47

In Stock

Qty

Central air conditioner condenser electronic control board

Part #1184617

$143.68

In Stock

Qty

#19

Inner parts diagram

Sw press-h

Part #1185102

$50.98

In Stock

Qty

#51

Control panel diagram

Plug model

Part #1184946

$23.64

In Stock

Qty
