Model # C1403--- Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover C1403- upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |
Kenmore Vacuum Switch 28218043
#12

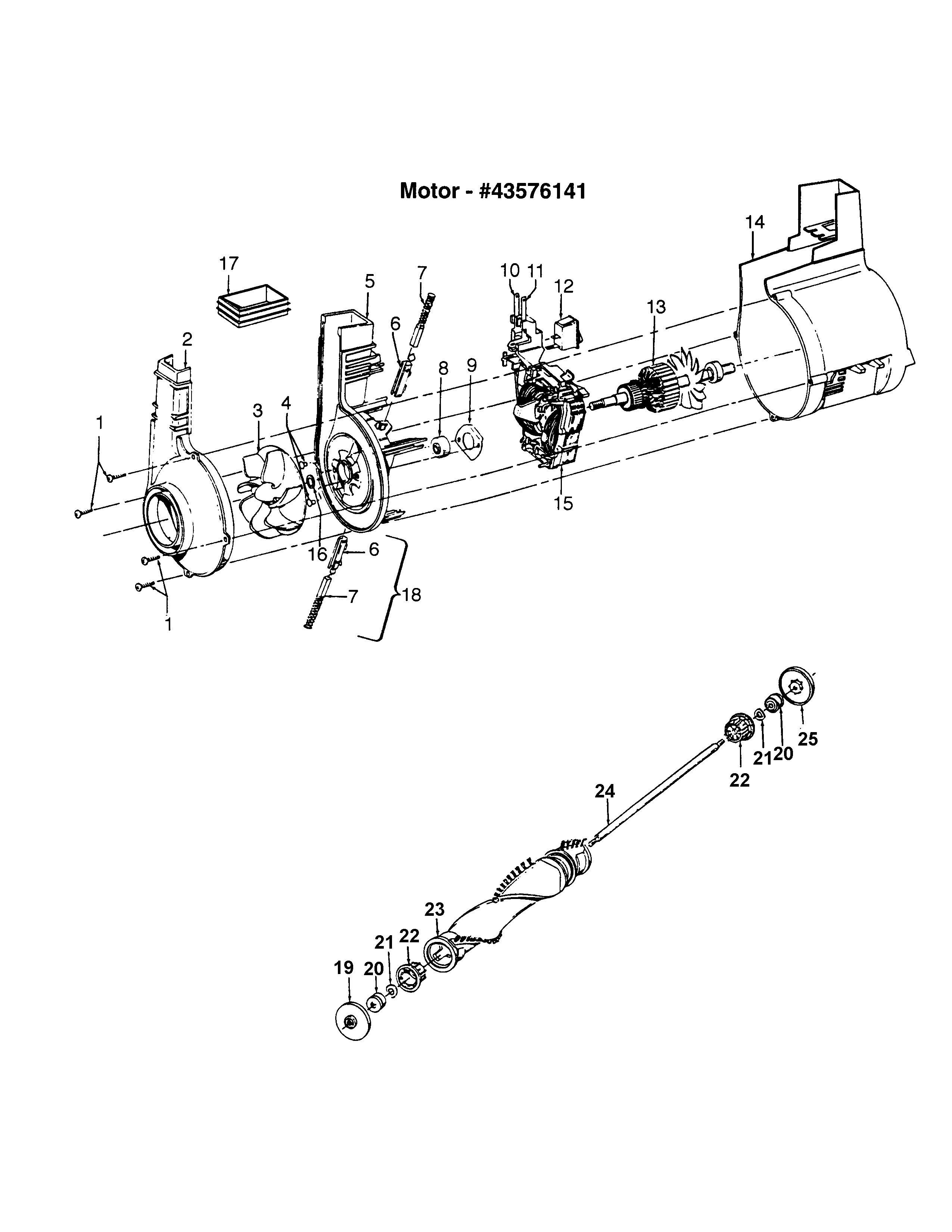

Agitator, motor assembly diagram

Kenmore vacuum switch

Part #28218043

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel Retainer 36131056
#24

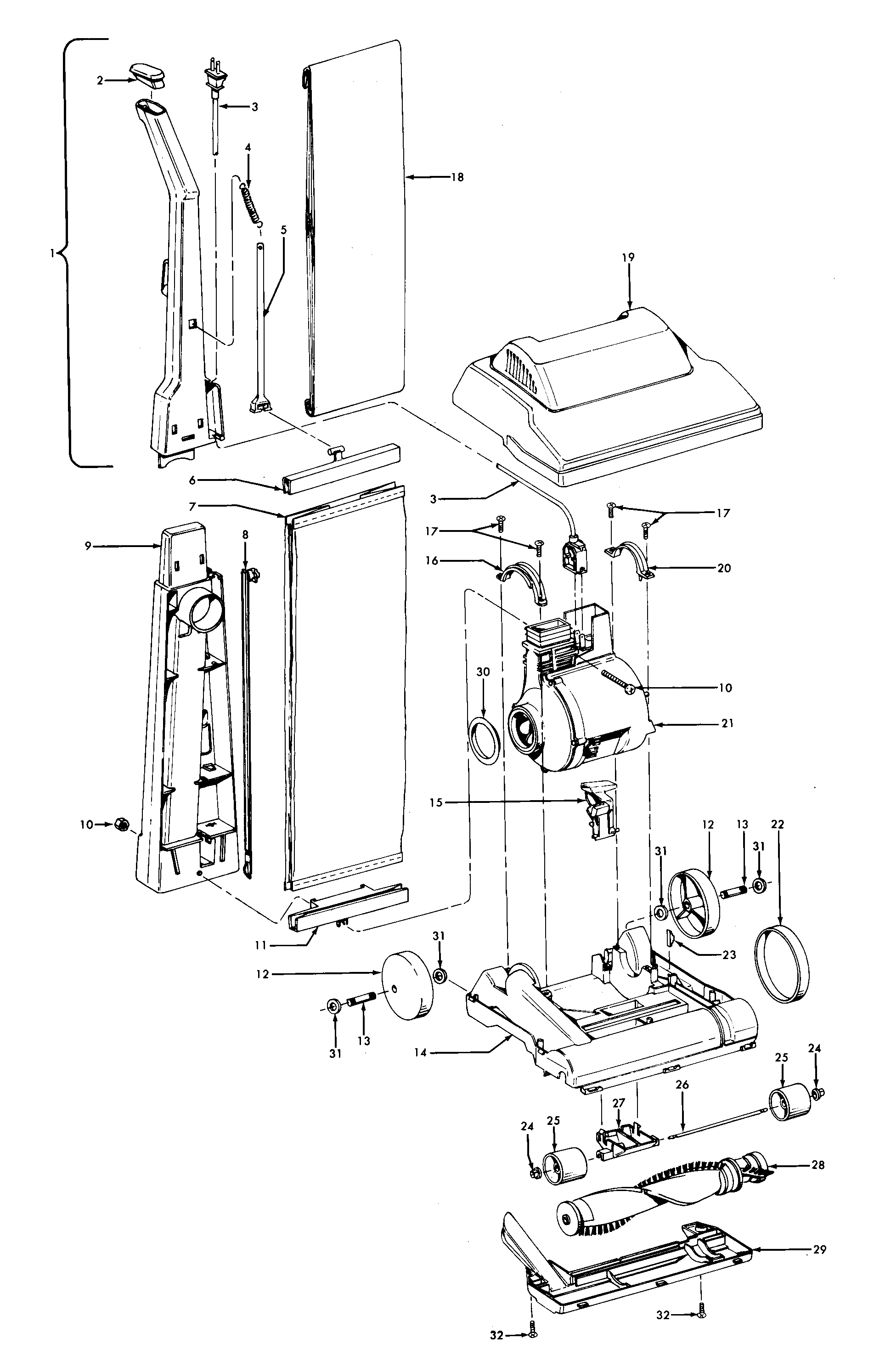

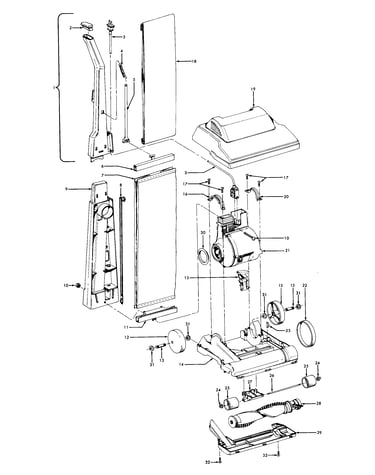

Handle, mainbody, outerbag, hood diagram

Vacuum wheel retainer

Part #36131056

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor Mount 36131057
#16

Handle, mainbody, outerbag, hood diagram

Vacuum motor mount

Part #36131057

The manufacturer no longer makes this part, and there's no substitute part

Handle Cap 37911079
#2

Handle, mainbody, outerbag, hood diagram

Handle cap

Part #37911079

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle Release Control Rod 38456036
#8

Handle, mainbody, outerbag, hood diagram

Vacuum handle release control rod

Part #38456036

The manufacturer no longer makes this part, and there's no substitute part

Bag Strap 36425071
#5

Handle, mainbody, outerbag, hood diagram

Bag strap

Part #36425071

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel Axle 31531008
#13

Handle, mainbody, outerbag, hood diagram

Vacuum wheel axle

Part #31531008

The manufacturer no longer makes this part, and there's no substitute part

Release Lever Handle 38458022
#15

Handle, mainbody, outerbag, hood diagram

Release lever handle

Part #38458022

The manufacturer no longer makes this part, and there's no substitute part

Seal 38784016
#30

Handle, mainbody, outerbag, hood diagram

Seal

Part #38784016

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Bearing 43267002
#20

Agitator, motor assembly diagram

Vacuum beater bar bearing

Part #43267002

The manufacturer no longer makes this part, and there's no substitute part
