Haier
Dishwasher

Model # ESD301 Official Haier dishwasher

Here are the diagrams and repair parts for Official Haier ESD301 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

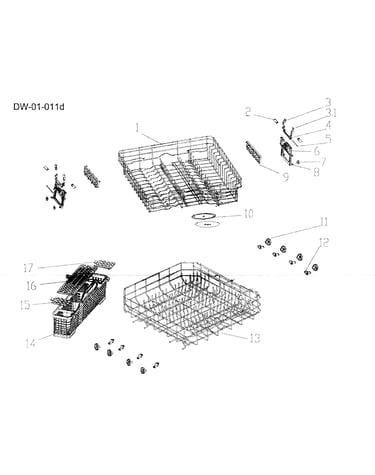

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |
Dishwasher Door Seal DW-6190-06
#3

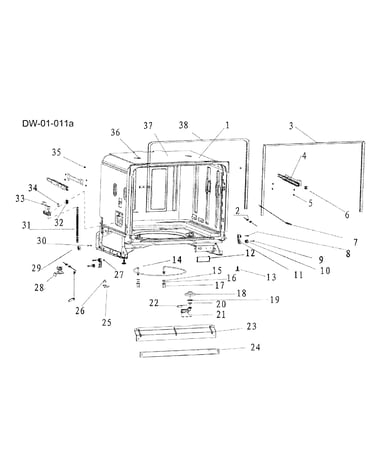

Cabinet assy diagram

Dishwasher door seal

Part #DW-6190-06

$15.49
In Stock
Dishwasher Door Cable DW-1302-11
#7

Cabinet assy diagram

Dishwasher door cable

Part #DW-1302-11

$8.99
In Stock
Dishwasher Door Seal DW-3100-18
#38

Cabinet assy diagram

Dishwasher door seal

Part #DW-3100-18

$25.71
In Stock
Dishwasher Door Seal DW-6190-07
#5

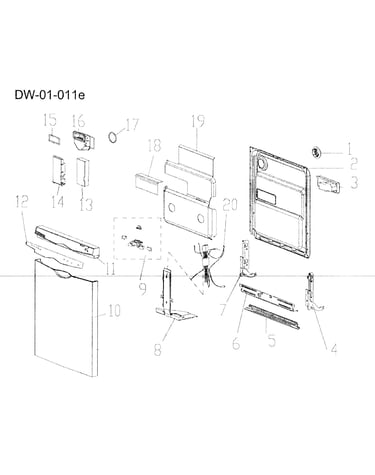

Door assy diagram

Dishwasher door seal

Part #DW-6190-07

Replaced by #DW-3100-036

?
Manufacturer substitution
This part replaces DW-6190-07. Substitute parts can look different from the original.
$8.99
In Stock
Gasket DW-3100-19
#17

Door assy diagram

Gasket

Part #DW-3100-19

This item is not returnable
$2.49
In Stock
Lower Arm DW-0100-01
#16

Sprayer assy diagram

Lower arm

Part #DW-0100-01

$8.99
In Stock
Connector DW-1830-02
#15

Sprayer assy diagram

Connector

Part #DW-1830-02

This item is not returnable
$2.49
In Stock
Bracket DW-0850-09
#18

Door assy diagram

Bracket

Part #DW-0850-09

$8.99
In Stock
Front Panel (black) DW-5200-38
#11

Door assy diagram

Front panel (black)

Part #DW-5200-38

$34.99
In Stock
Plate DW-5300-10
#34

Cabinet assy diagram

Plate

Part #DW-5300-10

$9.49
In Stock
