Model # LFID2422RF2A Official Frigidaire dishwasher

Here are the diagrams and repair parts for Official Frigidaire LFID2422RF2A dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

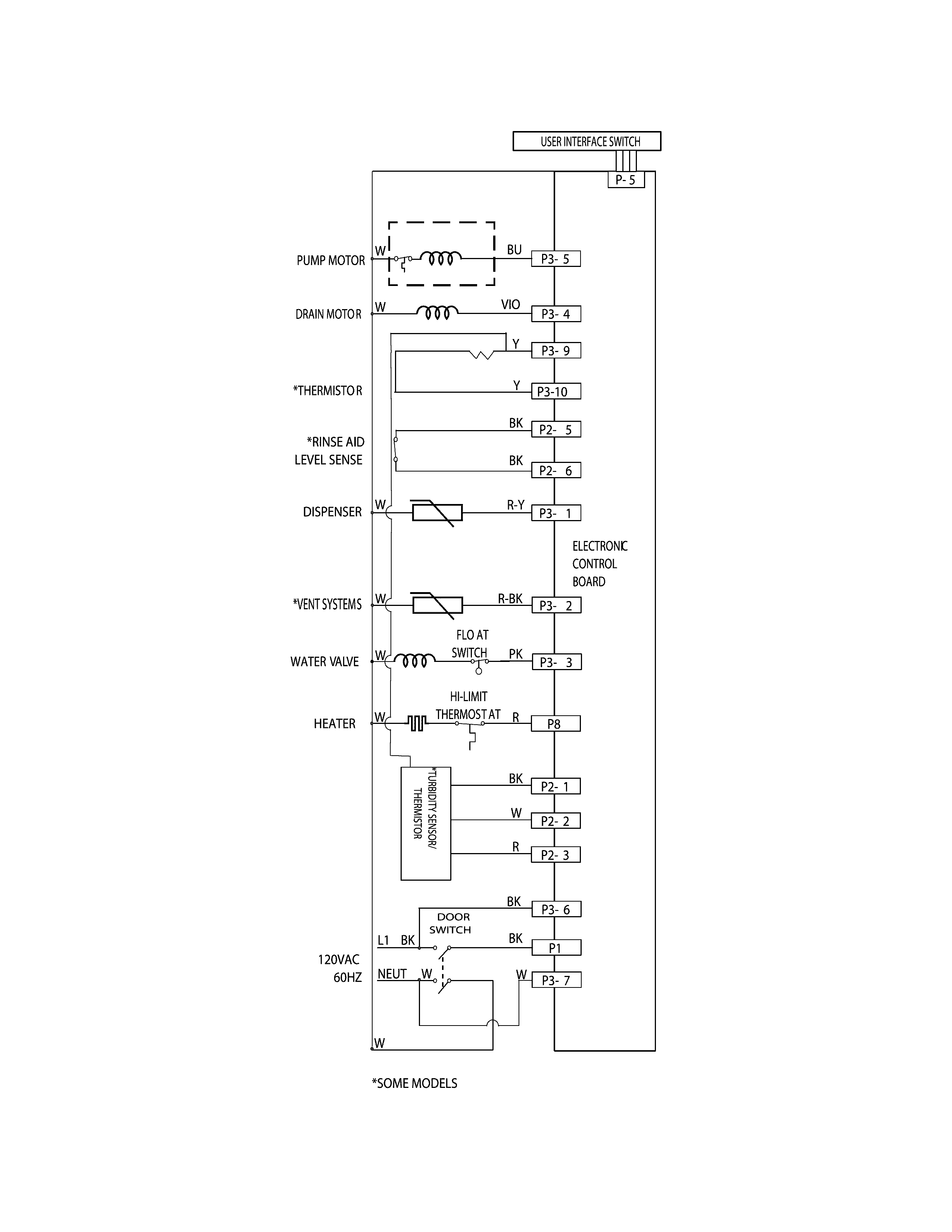

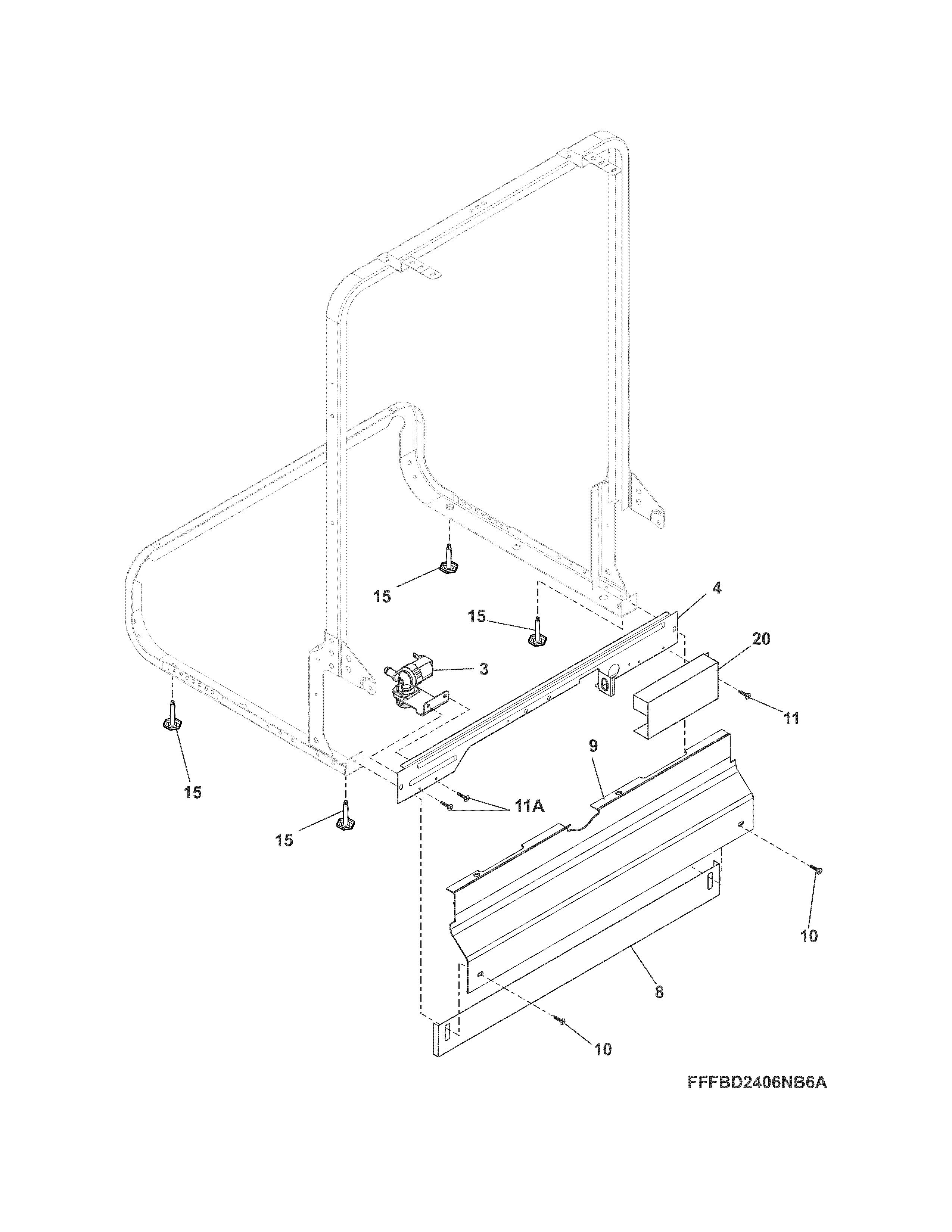

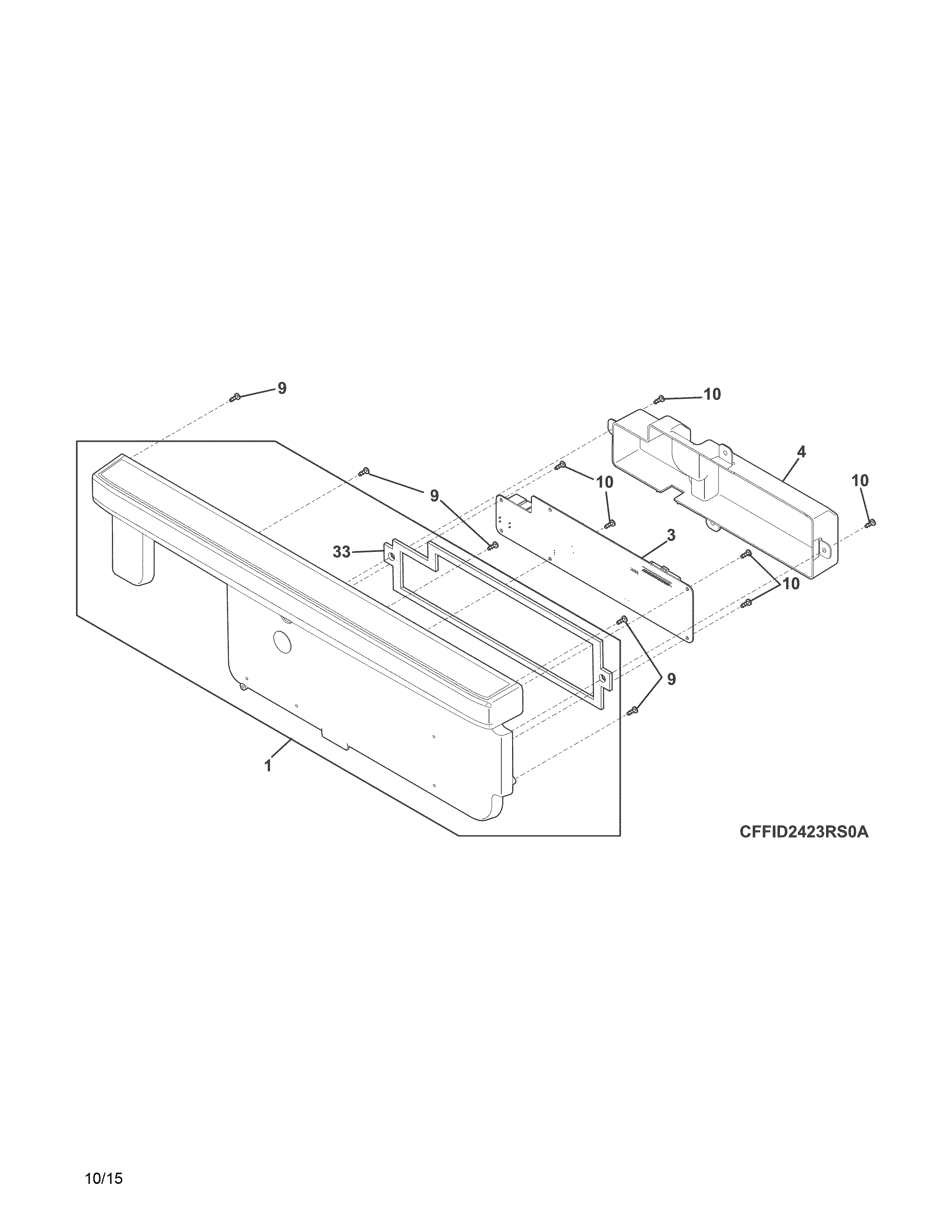

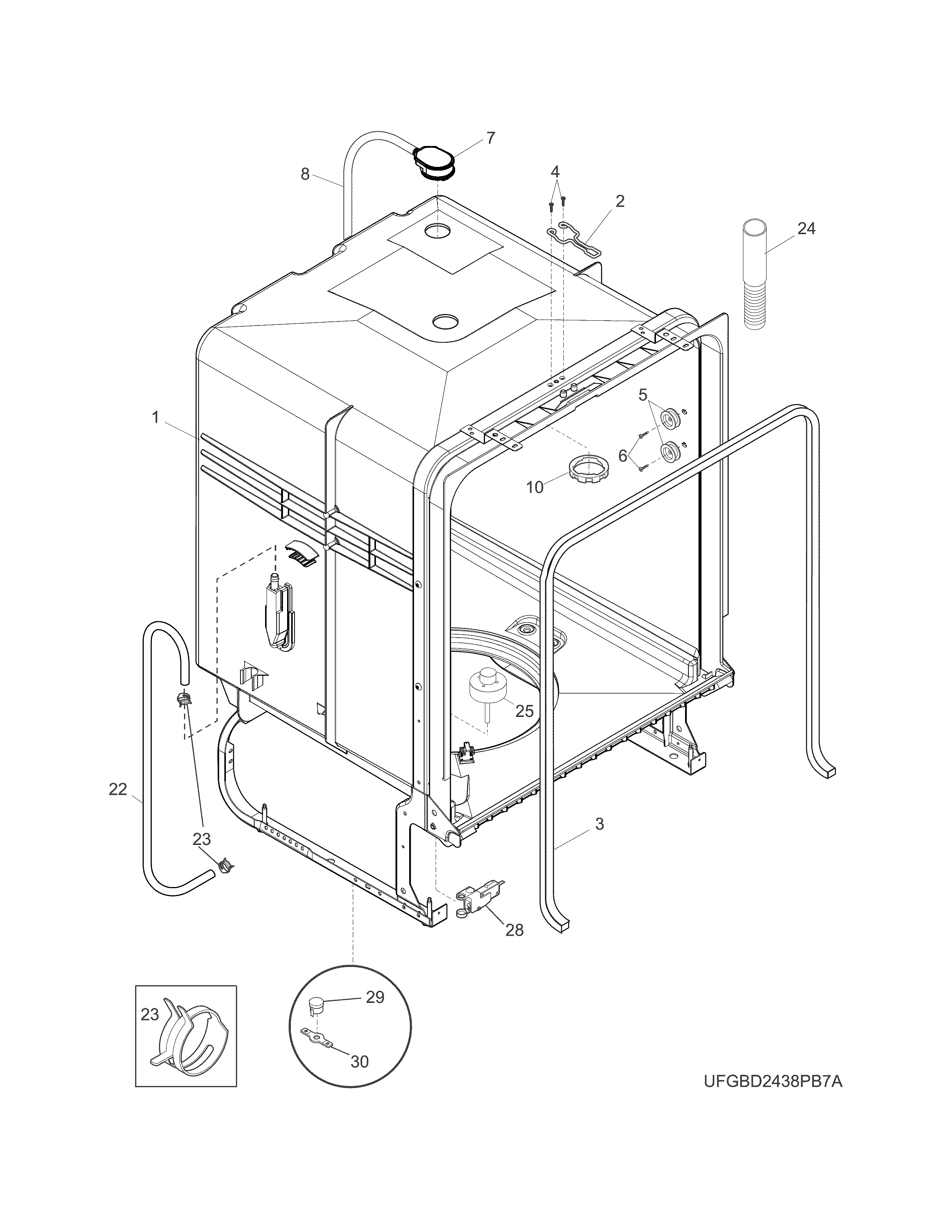

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 103 parts  |
Dishwasher Spray Arm 154568002
#24

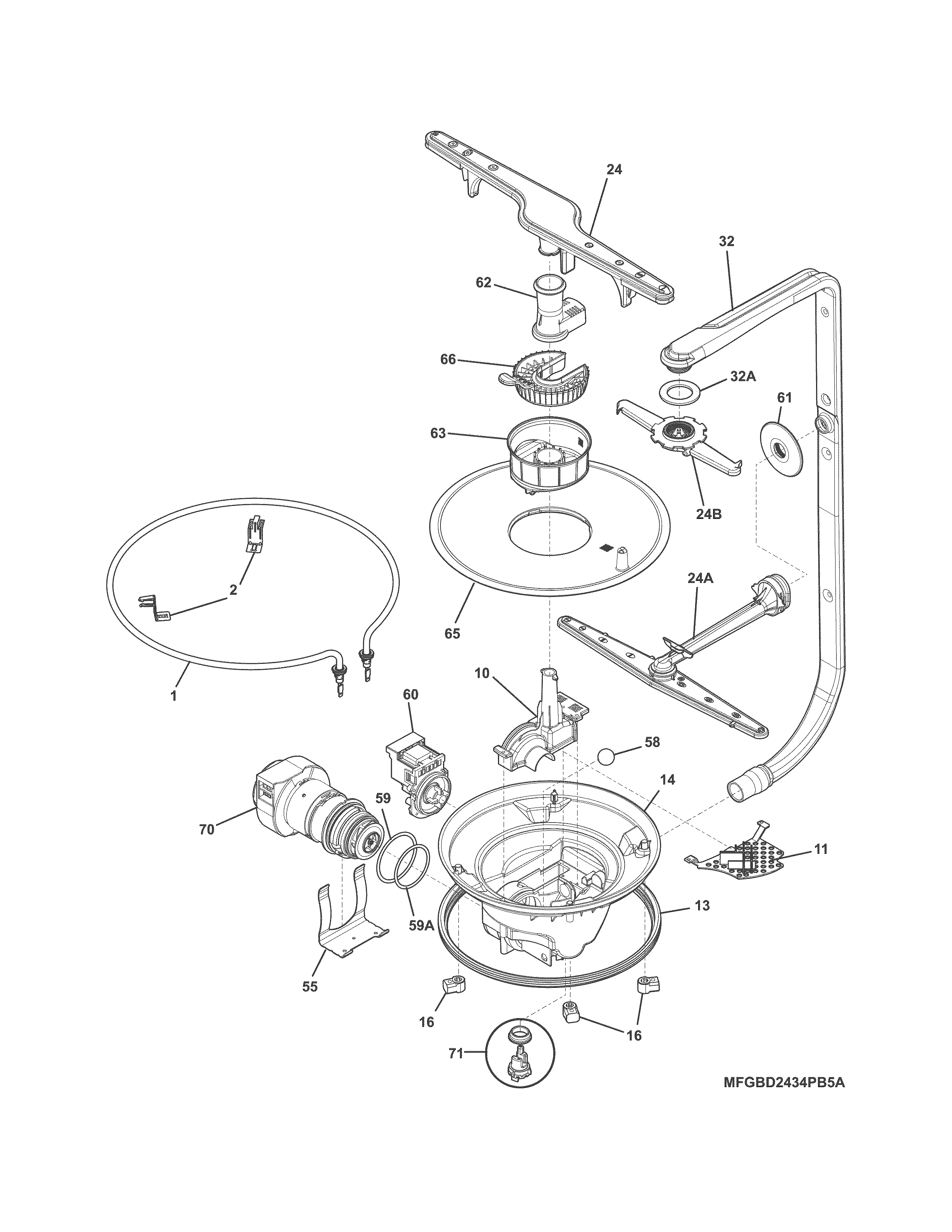

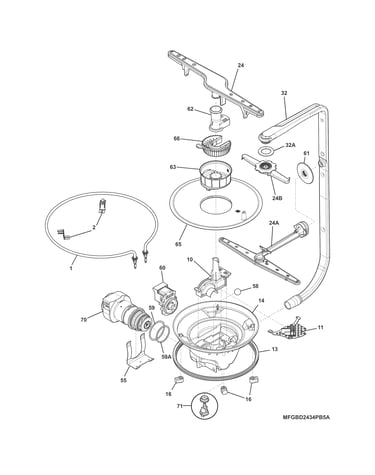

Motor & pump diagram

Dishwasher spray arm

Part #154568002

Replaced by #5304517203

?
Manufacturer substitution
This part replaces 154568002. Substitute parts can look different from the original.
BEST SELLER
$40.17 |
13% OFF Phone Price : $46.17
In Stock
Drain Pump A 5304492415
#60

Motor & pump diagram

Drain pump a

Part #5304492415

Replaced by #A00126401

?
Manufacturer substitution
This part replaces 5304492415. Substitute parts can look different from the original.
BEST SELLER
$86.05 |
7% OFF Phone Price : $92.05
In Stock
Dishwasher Pump And Motor Assembly (replaces 154588701, 154792801, 154794401) 154844301
#70

Motor & pump diagram

Dishwasher pump and motor assembly (replaces 154588701, 154792801, 154794401)

Part #154844301

BEST SELLER
$136.14 |
8% OFF Phone Price : $148.14
In Stock
Dishwasher Heating Element (replaces 154663801) 154825001
#1

Motor & pump diagram

Dishwasher heating element (replaces 154663801)

Part #154825001

BEST SELLER
$58.92 |
9% OFF Phone Price : $64.92
In Stock
Dishwasher Door Bottom Seal 5304500204
#49

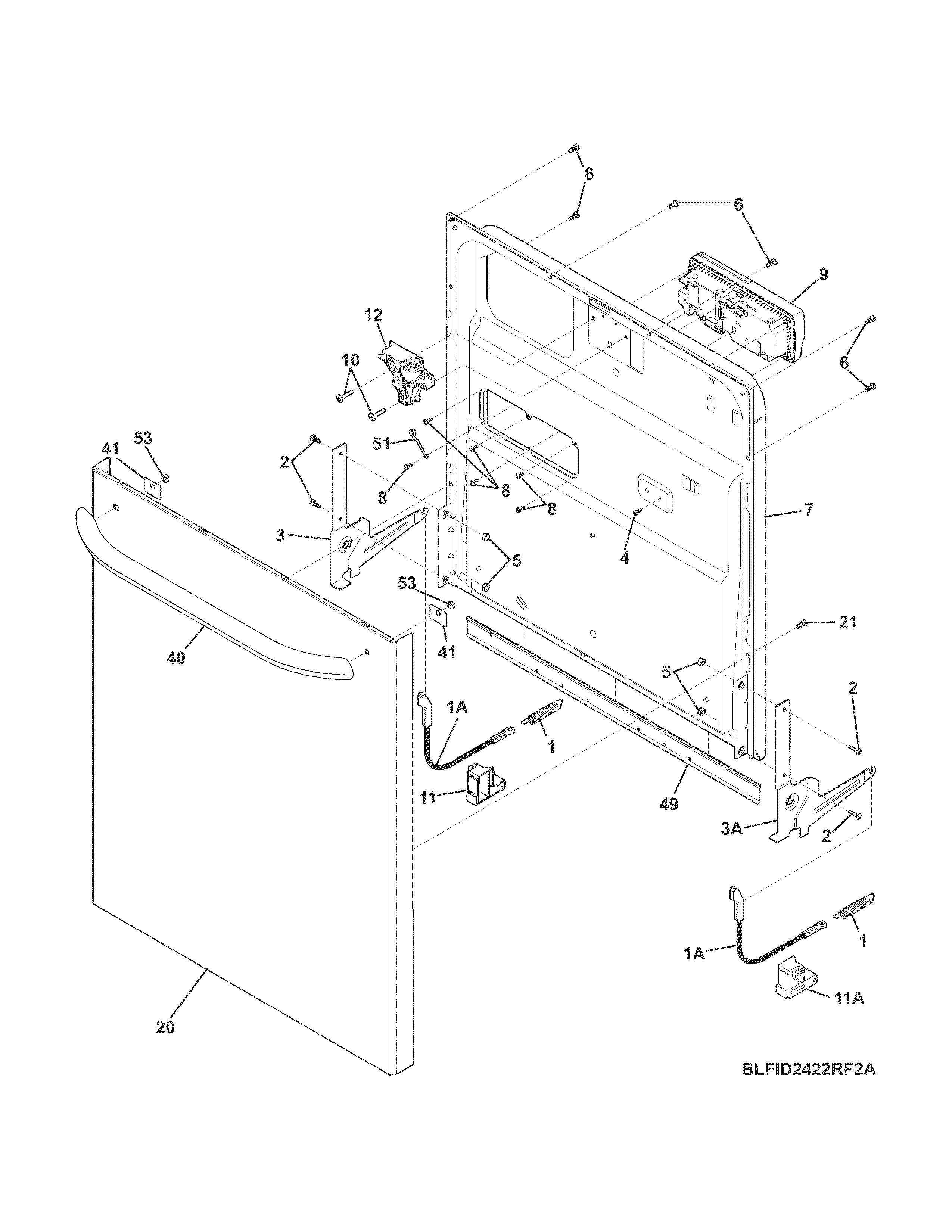

Door diagram

Dishwasher door bottom seal

Part #5304500204

BEST SELLER
$27.18 |
18% OFF Phone Price : $33.18
In Stock
Dishwasher Pump O-ring, Rear 154246901
#59

Motor & pump diagram

Dishwasher pump o-ring, rear

Part #154246901

BEST SELLER
$38.87 |
13% OFF Phone Price : $44.87
In Stock
Dishwasher Pump O-ring, Front 154247001
#59A

Motor & pump diagram

Dishwasher pump o-ring, front

Part #154247001

BEST SELLER
$38.87 |
13% OFF Phone Price : $44.87
In Stock
Dishwasher Detergent Dispenser Assembly 154860102
#9

Door diagram

Dishwasher detergent dispenser assembly

Part #154860102

Replaced by #5304506521

?
Manufacturer substitution
This part replaces 154860102. Substitute parts can look different from the original.
BEST SELLER
$58.78 |
9% OFF Phone Price : $64.78
In Stock
Dishwasher Dishrack Roller, Lower 154174503
#7

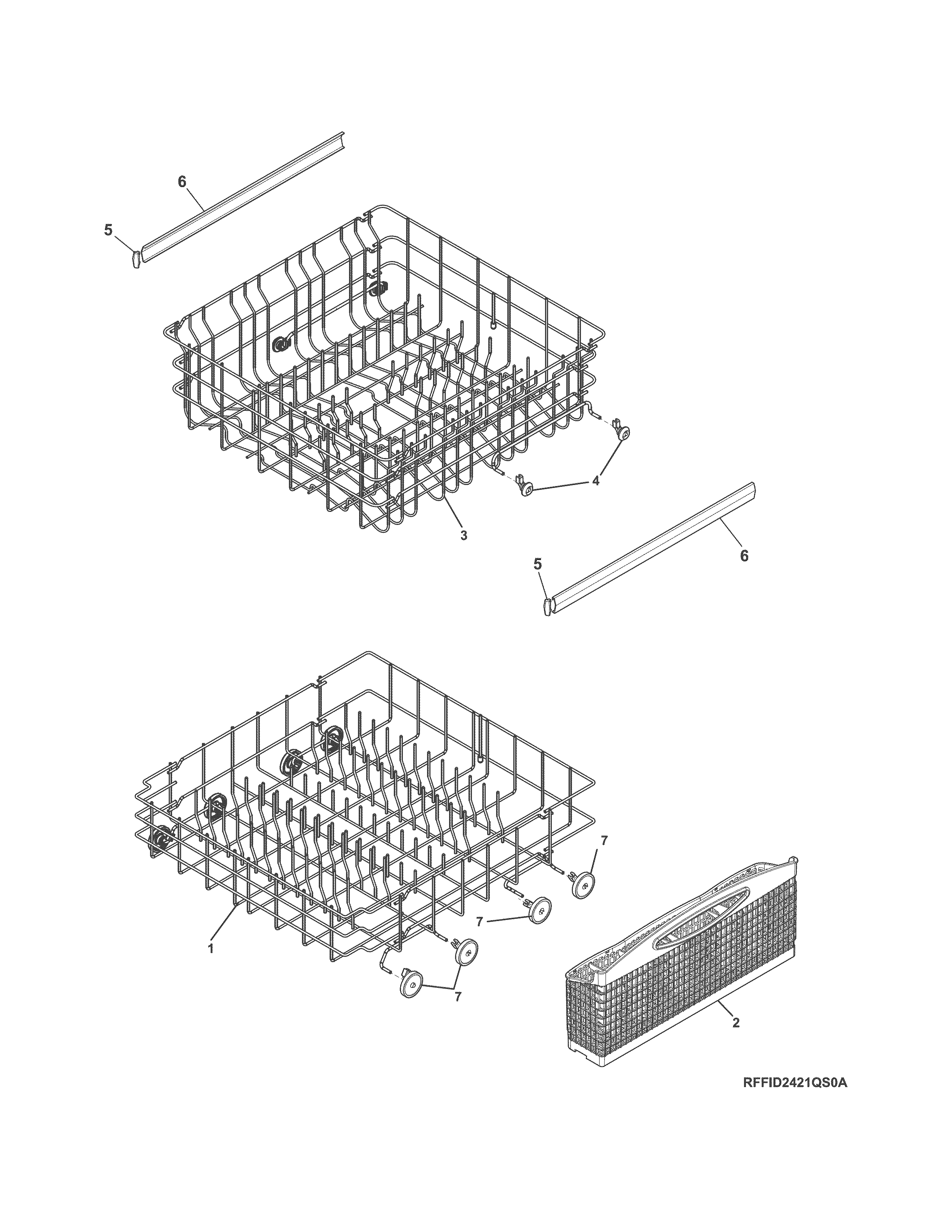

Racks diagram

Dishwasher dishrack roller, lower

Part #154174503

Replaced by #5304532229

?
Manufacturer substitution
This part replaces 154174503. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.88 |
17% OFF Phone Price : $5.88
In Stock
Dishwasher Door Cable 154578801
#1A

Door diagram

Dishwasher door cable

Part #154578801

Replaced by #154756401

?
Manufacturer substitution
This part replaces 154578801. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.66
In Stock
