Carrier
Heating & Cooling Combined Unit

Model # 48XT042090300 Official Carrier package unit

Here are the diagrams and repair parts for Official Carrier 48XT042090300 package unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 143 parts  |
Pcb Assembly HK38EA008
#74

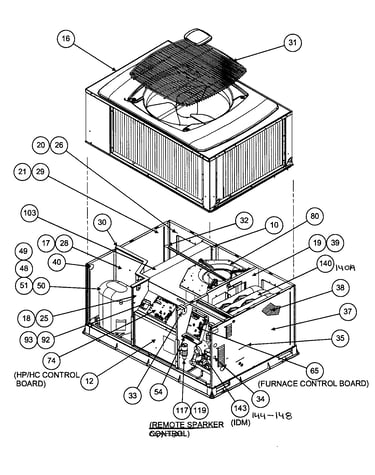

Outside view diagram

Pcb assembly

Part #HK38EA008

Replaced by #HK38EA023

?
Manufacturer substitution
This part replaces HK38EA008. Substitute parts can look different from the original.
$971.19 |
$12.00 OFF Phone Price : $983.19
In Stock
Control Board HK42FZ024
#65

Outside view diagram

Control board

Part #HK42FZ024

Replaced by #HK42FZ035

?
Manufacturer substitution
This part replaces HK42FZ024. Substitute parts can look different from the original.
$809.30 |
$12.00 OFF Phone Price : $821.30
In Stock
Insulation 48SS500601
#140A

Outside view diagram

Insulation

Part #48SS500601

$39.82
In Stock
Accumator KH71KN161
#112

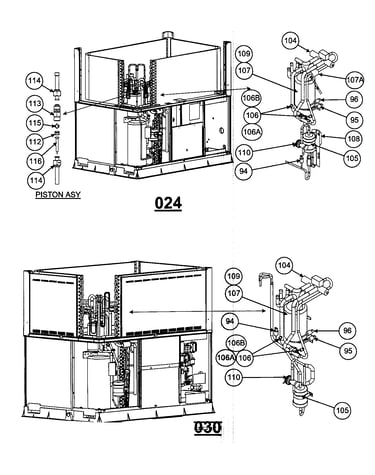

Switch assy diagram

Accumator

Part #KH71KN161

$225.04
In Stock
Carrier Flue Box Cvr Assy 48DU400023
#120

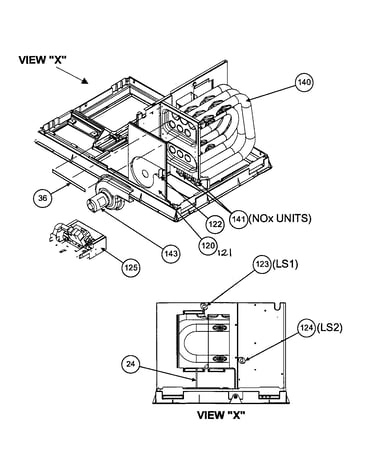

Exchange assy diagram

Carrier flue box cvr assy

Part #48DU400023

$354.30
In Stock
Grille 50SZ500126
#31

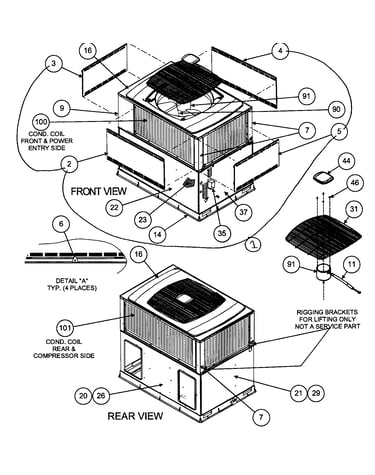

Front view/rear view diagram

Grille

Part #50SZ500126

$452.53
In Stock
Plate 50SS500879
#36

Exchange assy diagram

Plate

Part #50SS500879

$558.65
In Stock
Top, Evap 48GS400244
#13

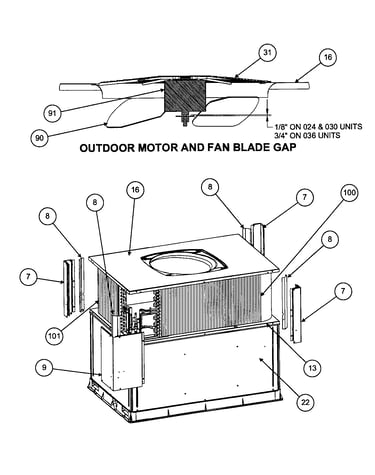

Outdoor motor/fan blade gap diagram

Top, evap

Part #48GS400244

$427.15
In Stock
Scroll 48GS500242
#81

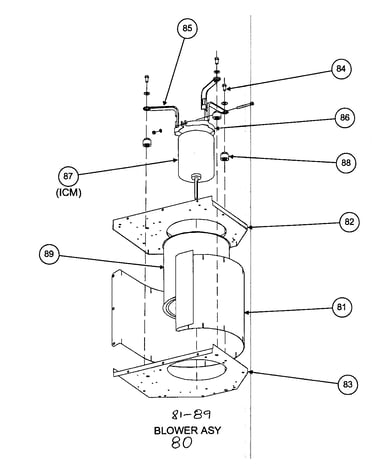

Blower assy diagram

Scroll

Part #48GS500242

$233.73
In Stock
Strap Cap P281-0028
#93

Outdoor motor/fan blade gap diagram

Strap cap

Part #P281-0028

$18.83
In Stock
