Model # 867768282 Official Kenmore gas furnace

Here are the diagrams and repair parts for Official Kenmore 867768282 gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

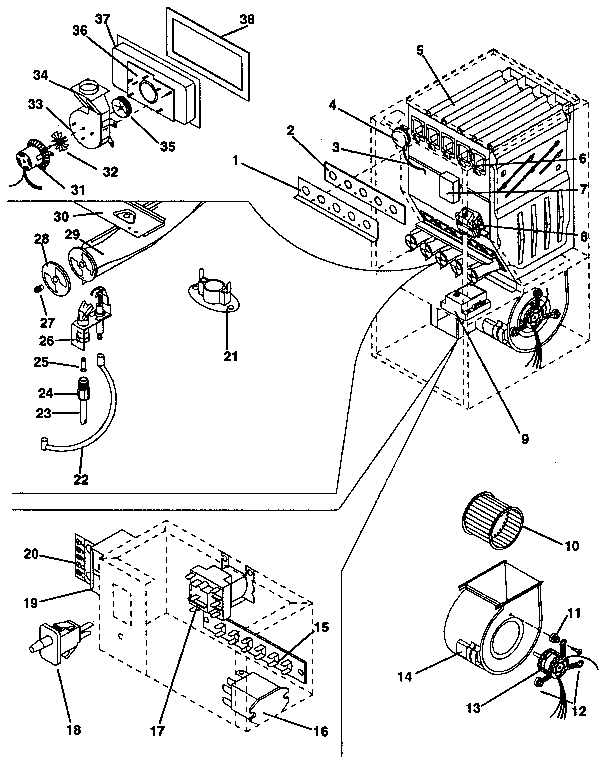

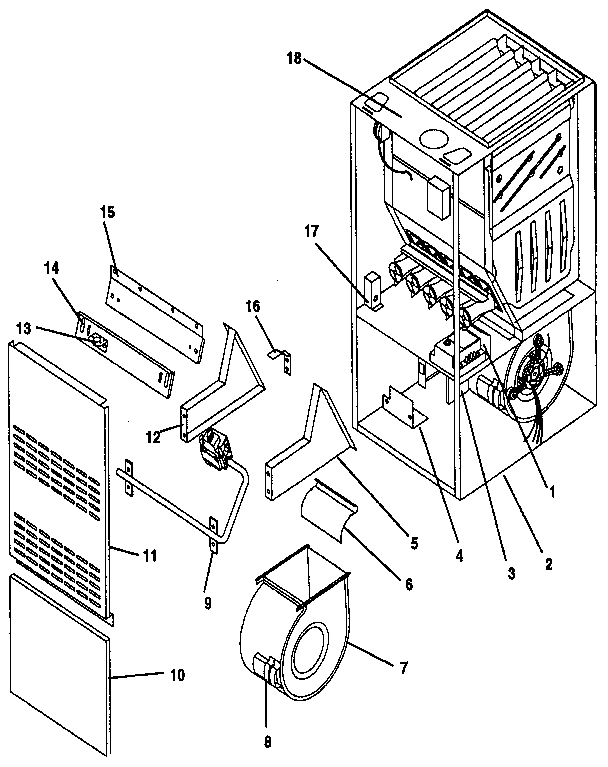

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Module 1005651
#9

Functional replacement diagram

Module

Part #1005651

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 91593
#14

Functional replacement diagram

Capacitor

Part #91593

Replaced by #12908

?
Manufacturer substitution
This part replaces 91593. Substitute parts can look different from the original.
This item is not returnable
$5.26 |
16% OFF Phone Price : $6.26
In Stock
Furnace Burner 613709
#29

Functional replacement diagram

Furnace burner

Part #613709

$177.29 |
6% OFF Phone Price : $189.29
In Stock
Furnace Inducer Vent Motor Assembly 1006168

#NI

All parts diagram

Furnace inducer vent motor assembly

Part #1006168

$395.09 |
$12.00 OFF Phone Price : $407.09
In Stock
Central Air Conditioner Air Handler Blower Wheel 96839
#10

Functional replacement diagram

Central air conditioner air handler blower wheel

Part #96839

$148.95 |
7% OFF Phone Price : $160.95
In Stock
Furnace Blower Fan Motor Mounting Kit 609227
#12

Functional replacement diagram

Furnace blower fan motor mounting kit

Part #609227

$113.60
In Stock
Furnace Vent Motor Gasket 607014
#36

Functional replacement diagram

Furnace vent motor gasket

Part #607014

This item is not returnable
$44.60
In Stock
Heat Exchgr 1006782
#5

Functional replacement diagram

Heat exchgr

Part #1006782

$1296.68
In Stock
Board Termin 612254
#20

Functional replacement diagram

Board termin

Part #612254

$20.06
In Stock
Switch 611872
#18

Functional replacement diagram

Switch

Part #611872

$25.58
In Stock
