GE
Washer

Model # WWA5412BAL Official GE washer

Here are the diagrams and repair parts for Official GE WWA5412BAL washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 327 parts  |
Washer Timer Knob Clip (replaces Wh01x2117, Wh1x1499, Wh1x1610, Wh2x561) WH1X2117
Washer timer knob clip (replaces wh01x2117, wh1x1499, wh1x1610, wh2x561)

Part #WH1X2117

BEST SELLER
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Washer Hose Clamp Kit WH1X2036
Washer hose clamp kit

Part #WH1X2036

$11.59 |
15% OFF Phone Price : $13.59
In Stock
Dryer Screw WH2X930
Dryer screw

Part #WH2X930

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
1/4 Termin WH1X2038

#NI

All parts diagram

1/4 termin

Part #WH1X2038

This item is not returnable
$2.29
In Stock
Washer Leveling Leg Rubber Pad WH1X484
#463

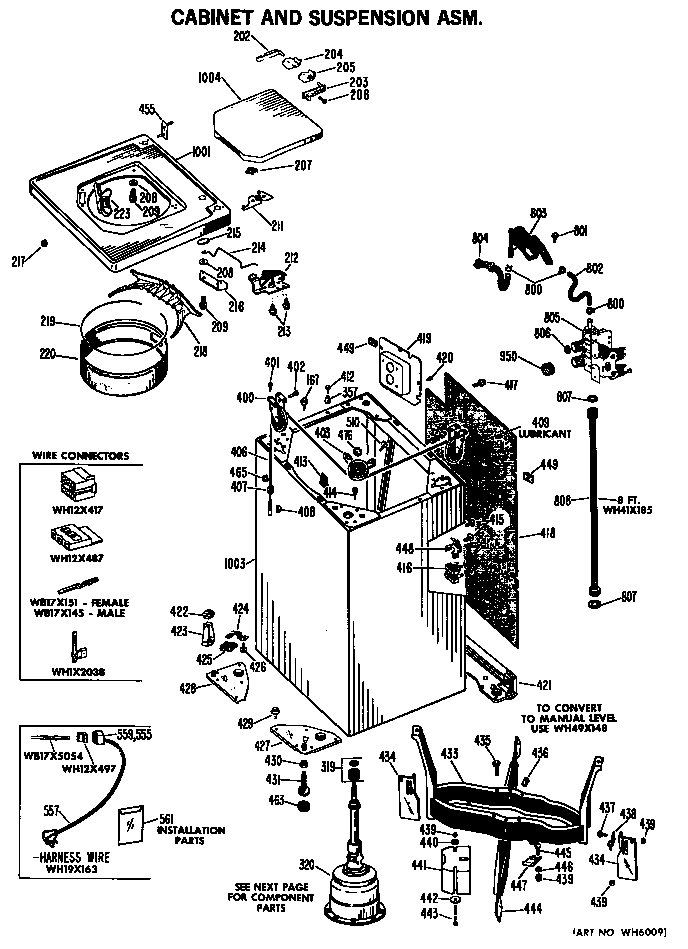

Cabinet and suspension asm. diagram

Washer leveling leg rubber pad

Part #WH1X484

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Spring WH1X1707
#915

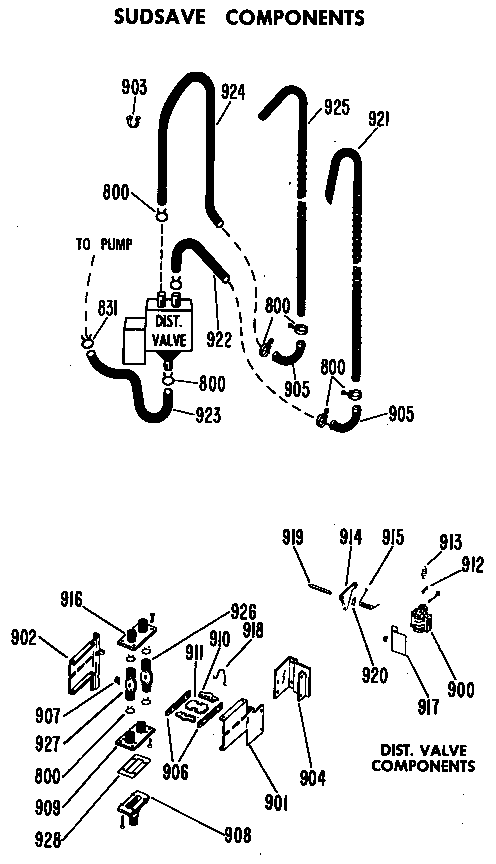

Sudsave components diagram

Spring

Part #WH1X1707

$7.99
In Stock
Washer Drive Belt (replaces Wh01x2026, Wh1x1904) WH1X2026
#603

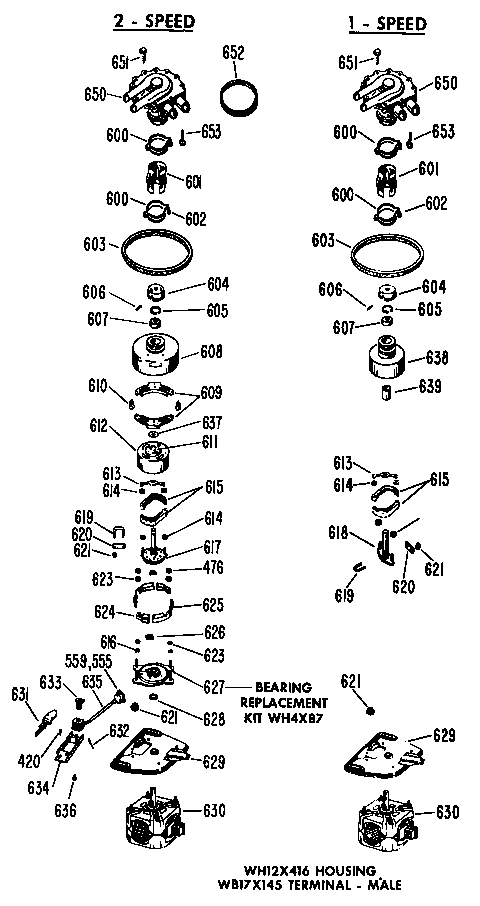

2 - speed diagram

Washer drive belt (replaces wh01x2026, wh1x1904)

Part #WH1X2026

$7.73 |
11% OFF Phone Price : $8.73
In Stock
Cotter Pin WH1X1712
#920

Sudsave components diagram

Cotter pin

Part #WH1X1712

This item is not returnable
$2.29
In Stock
Washer Tub Gasket WH8X305
#313

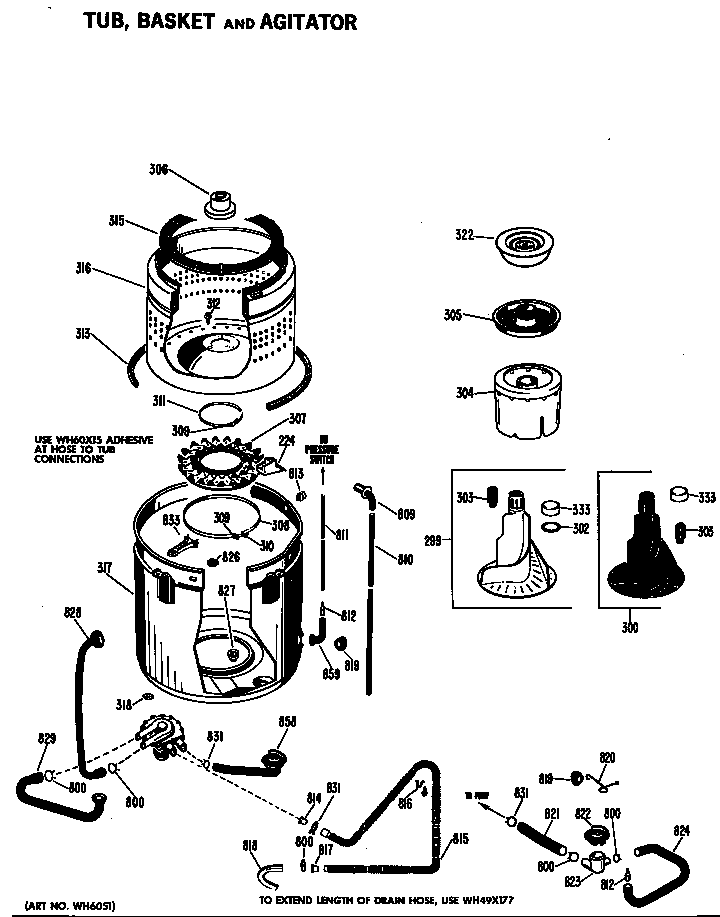

Tub, basket and agitator diagram

Washer tub gasket

Part #WH8X305

$39.59 |
13% OFF Phone Price : $45.59
In Stock
In.hose 4 WH41X58
#808

Cabinet and suspension asm. diagram

In.hose 4

Part #WH41X58

Replaced by #WH41X10207

?
Manufacturer substitution
This part replaces WH41X58. Substitute parts can look different from the original.
This item is not returnable
$22.73 |
21% OFF Phone Price : $28.73
In Stock
