Panasonic
Digital Camcorder

Model # PV-GS83P Official Panasonic digital camcorder

Here are the diagrams and repair parts for Official Panasonic PV-GS83P digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

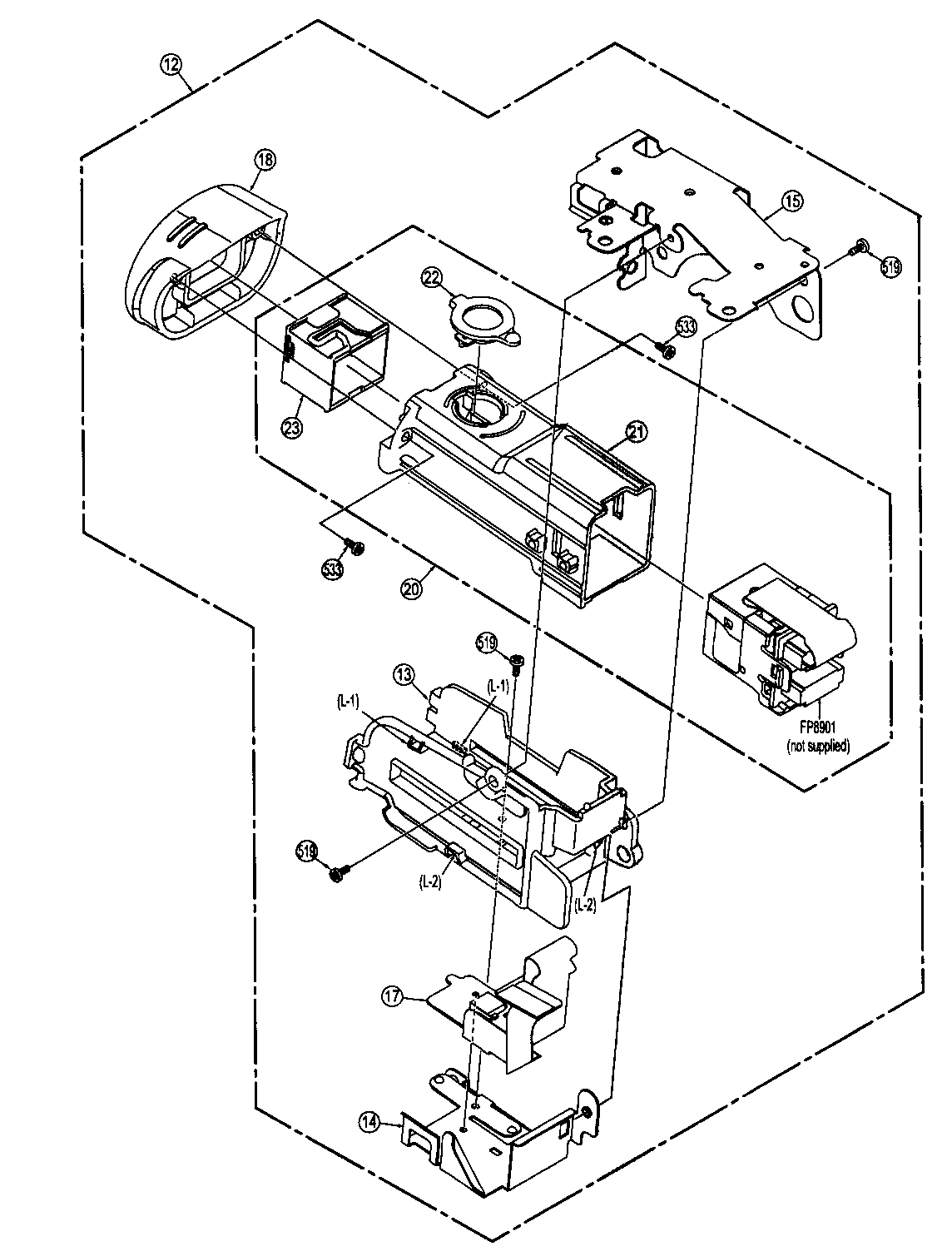

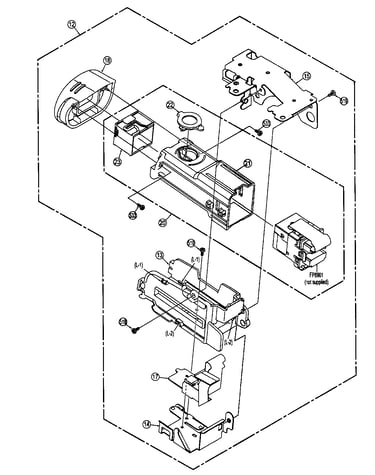

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Sensor B3GA00000062
#NI

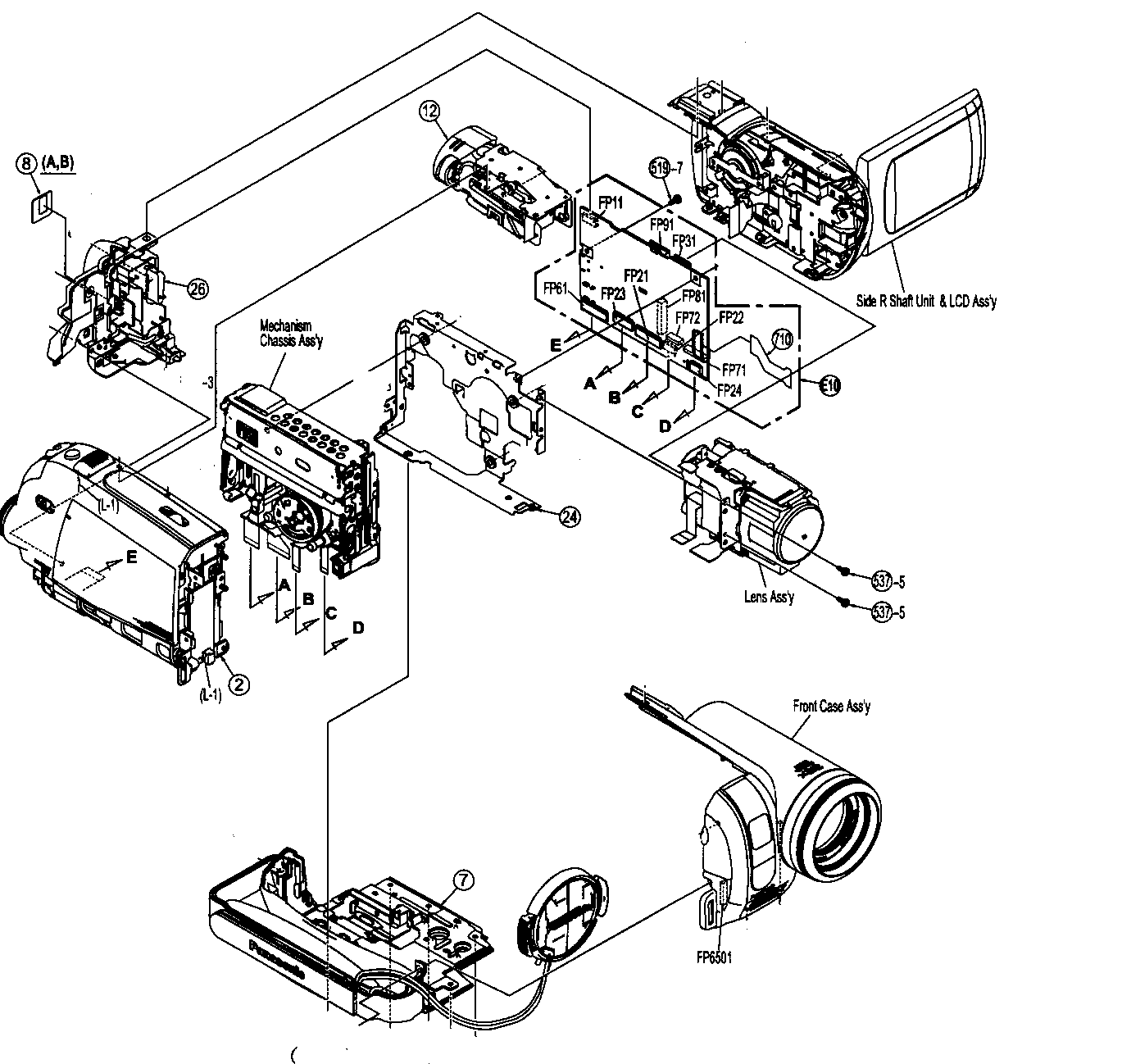

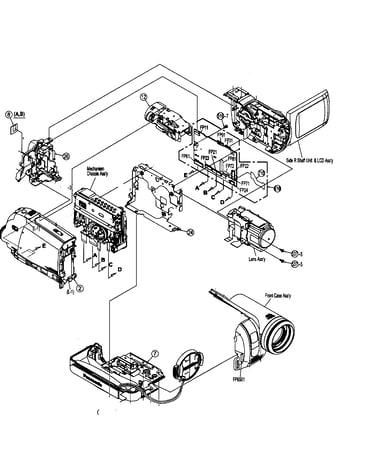

Cabinet parts diagram

Sensor

Part #B3GA00000062

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit C0ABBB000369
#NI

Cabinet parts diagram

Integrated circuit

Part #C0ABBB000369

The manufacturer no longer makes this part, and there's no substitute part

Ccd Pcb LSEQ0830
#E50

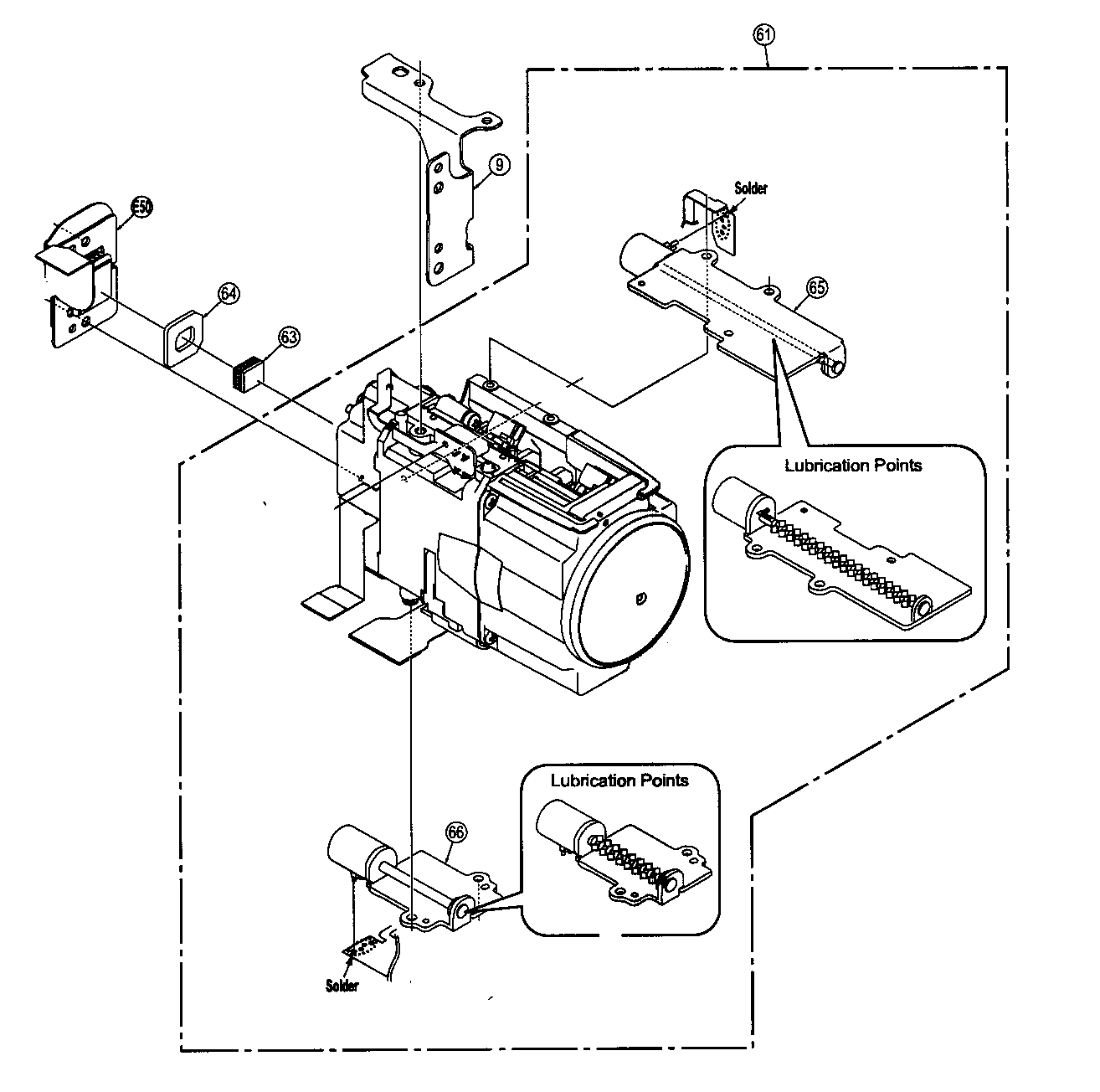

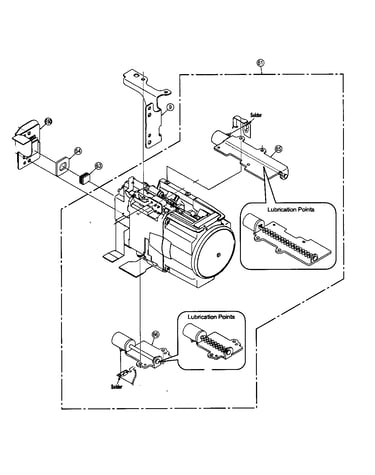

Ccd/lens assy diagram

Ccd pcb

Part #LSEQ0830

The manufacturer no longer makes this part, and there's no substitute part

Absorber D4ED1120A005
#NI

Cabinet parts diagram

Absorber

Part #D4ED1120A005

The manufacturer no longer makes this part, and there's no substitute part

Lcd Case LSYK1923
#44

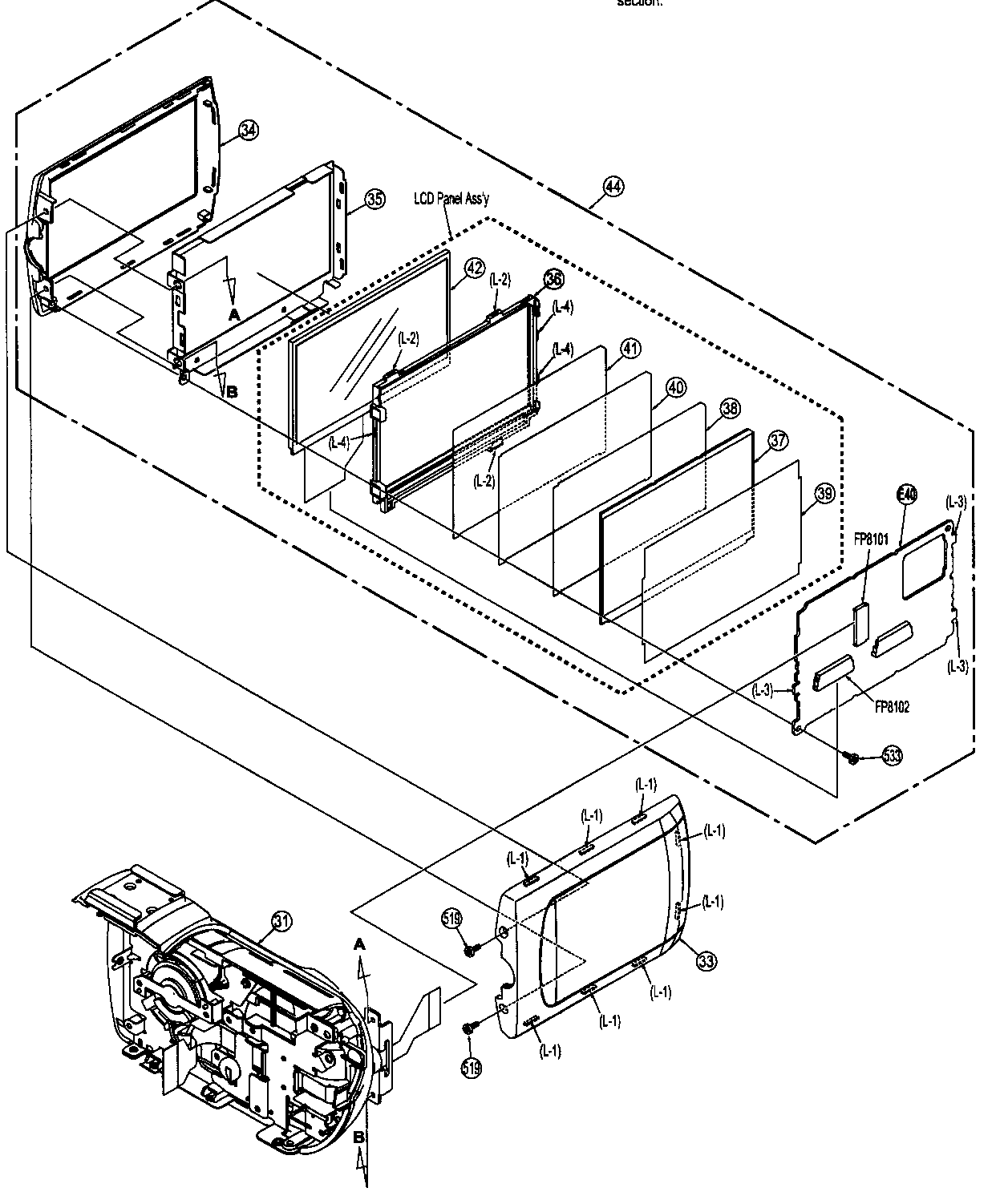

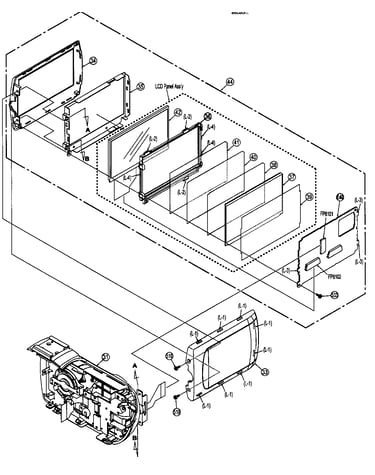

Side r shaft/lcd assy diagram

Lcd case

Part #LSYK1923

The manufacturer no longer makes this part, and there's no substitute part

Microphone LSEK0684
#701

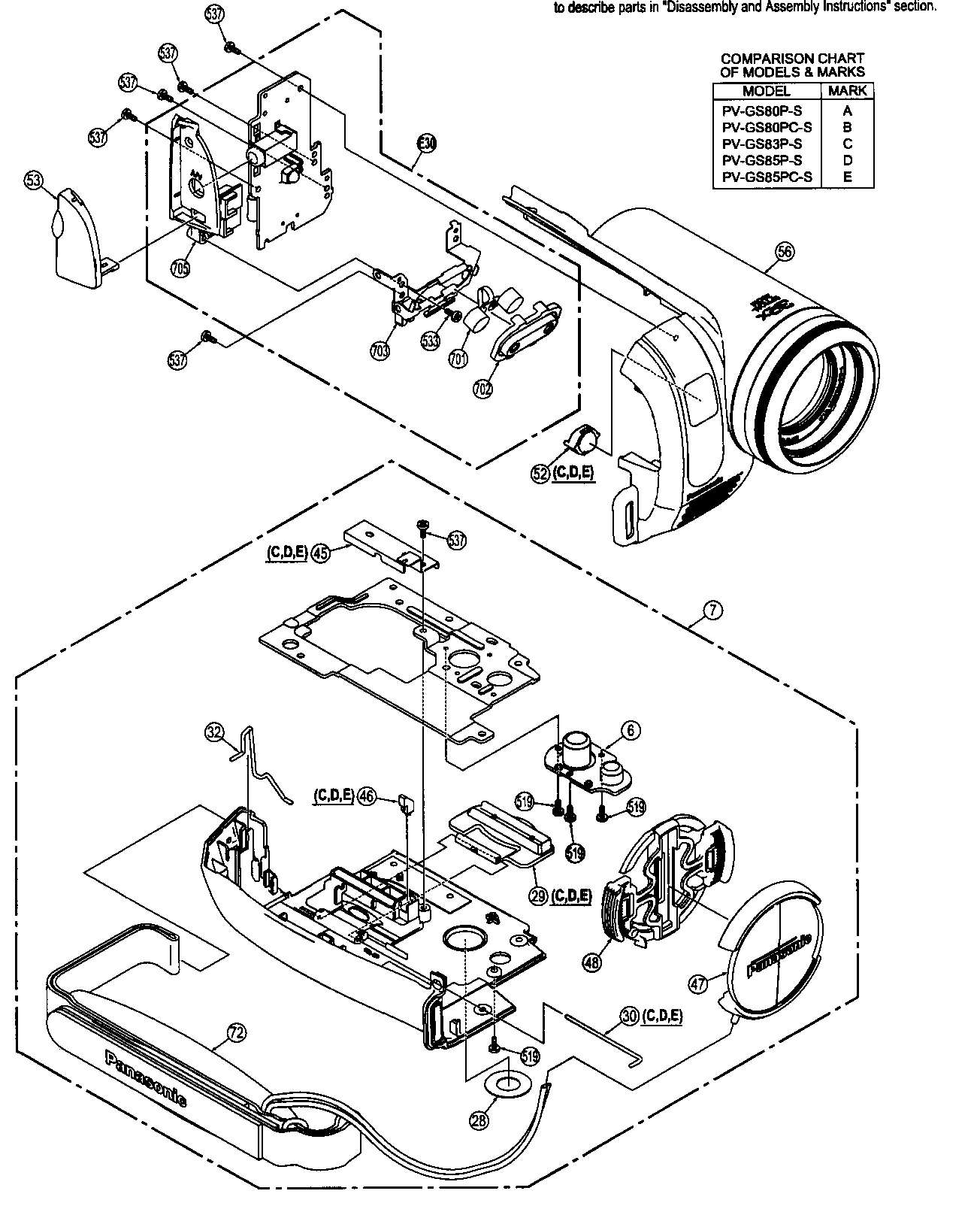

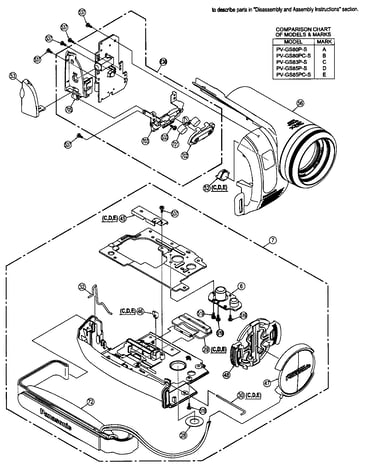

Front/bottom case diagram

Microphone

Part #LSEK0684

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit C0ABHA000078
#NI

Cabinet parts diagram

Integrated circuit

Part #C0ABHA000078

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit L2ES00000017
#NI

Cabinet parts diagram

Integrated circuit

Part #L2ES00000017

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit L2ES00000016
#NI

Cabinet parts diagram

Integrated circuit

Part #L2ES00000016

The manufacturer no longer makes this part, and there's no substitute part

Casst Hldr VXA8334
#NI

Cabinet parts diagram

Casst hldr

Part #VXA8334

The manufacturer no longer makes this part, and there's no substitute part
