Kenmore
Room Air Conditioner

Model # 58074107400 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 58074107400 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

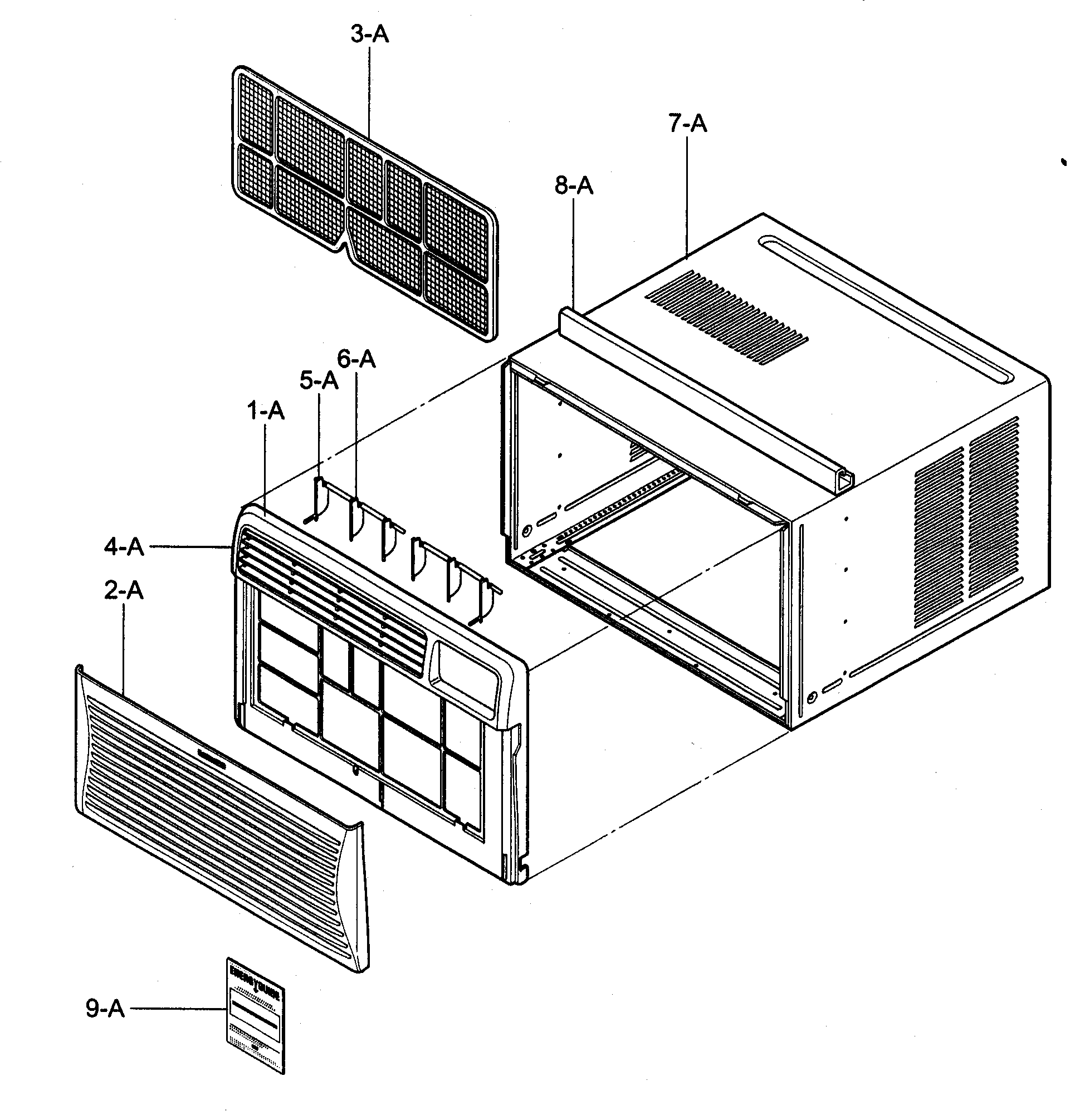

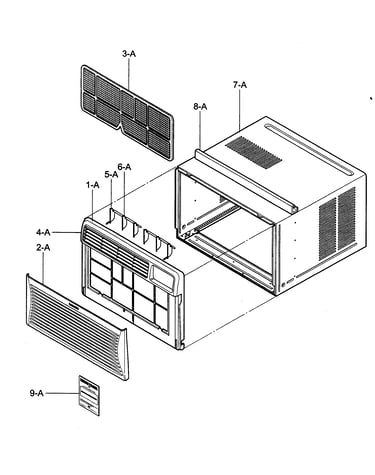

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Room Air Conditioner Accordion Filler, Left 4959AR3402C
#1-E

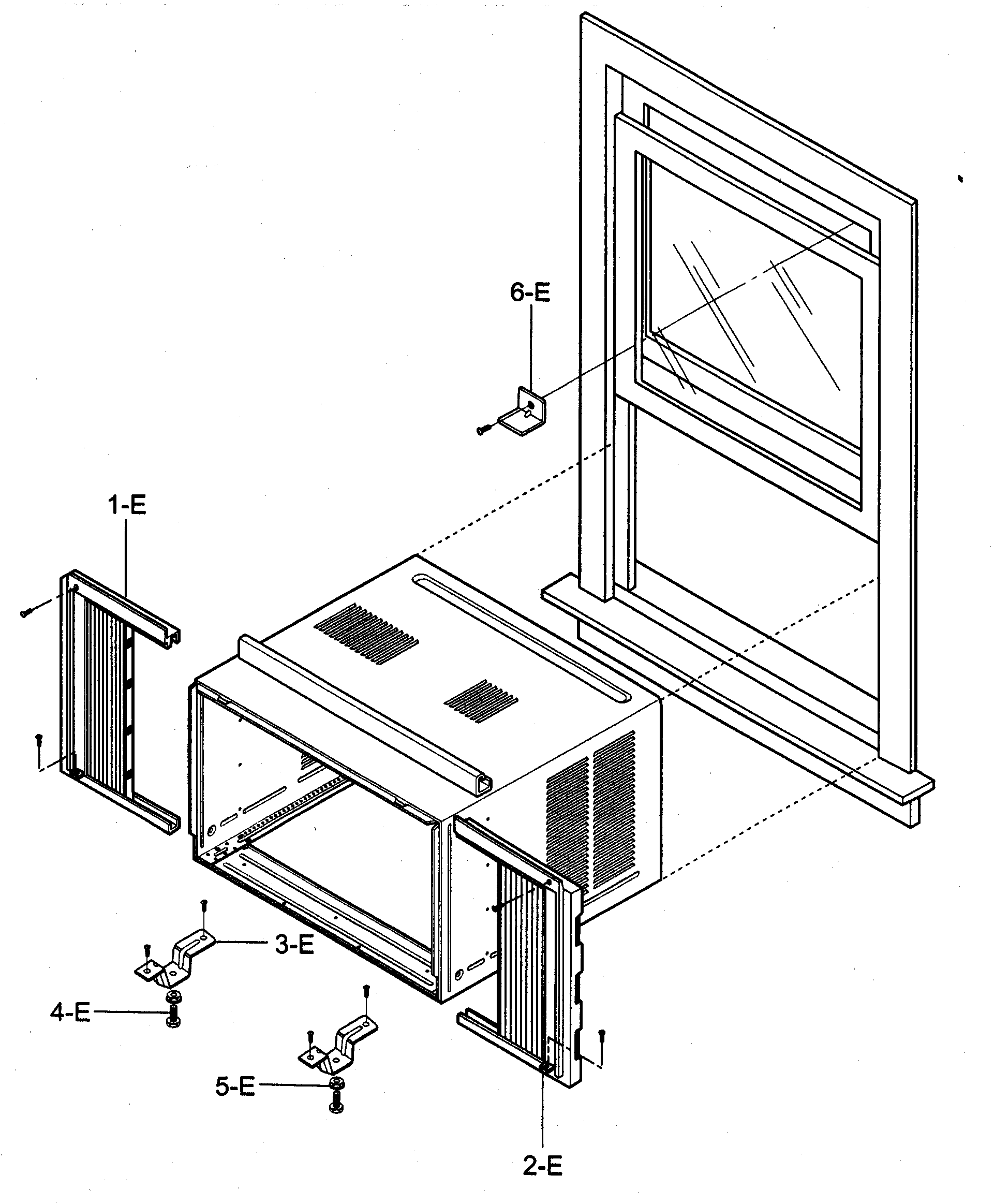

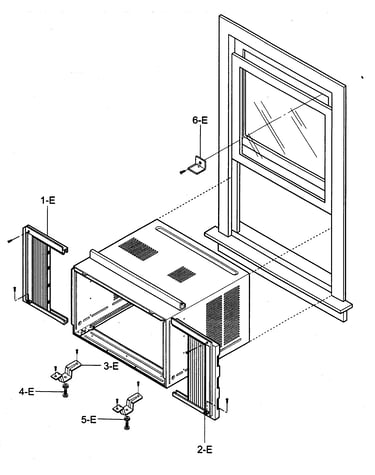

Installation kit assy diagram

Room air conditioner accordion filler, left

Part #4959AR3402C

Replaced by #3127A20074Y

?
Manufacturer substitution
This part replaces 4959AR3402C. Substitute parts can look different from the original.
$43.87 |
12% OFF Phone Price : $49.87
In Stock
Room Air Conditioner Accordion Filler, Right 4959AR3402D
#2-E

Installation kit assy diagram

Room air conditioner accordion filler, right

Part #4959AR3402D

Replaced by #3127A20074Y

?
Manufacturer substitution
This part replaces 4959AR3402D. Substitute parts can look different from the original.
$43.87 |
12% OFF Phone Price : $49.87
In Stock
Remote Control 6711A20056T
#12-B

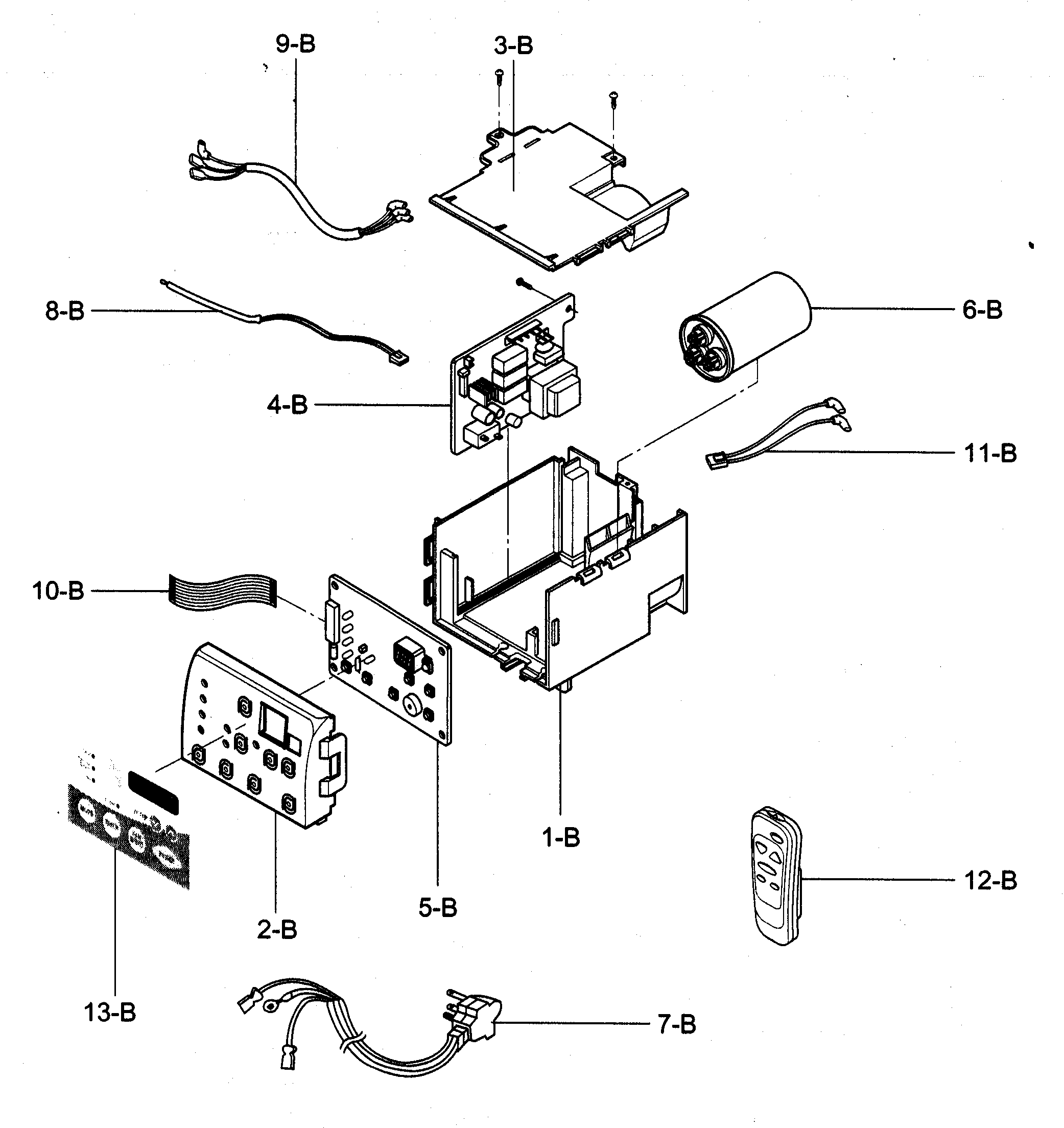

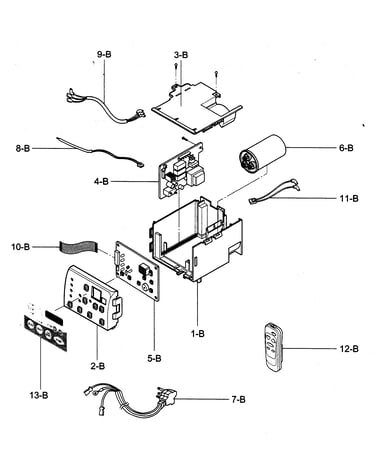

Control box assy diagram

Remote control

Part #6711A20056T

Replaced by #AKB73795706

?
Manufacturer substitution
This part replaces 6711A20056T. Substitute parts can look different from the original.
$31.05 |
16% OFF Phone Price : $37.05
In Stock
Room Air Conditioner Fan Blade Clamp 3H02932B
#5-C

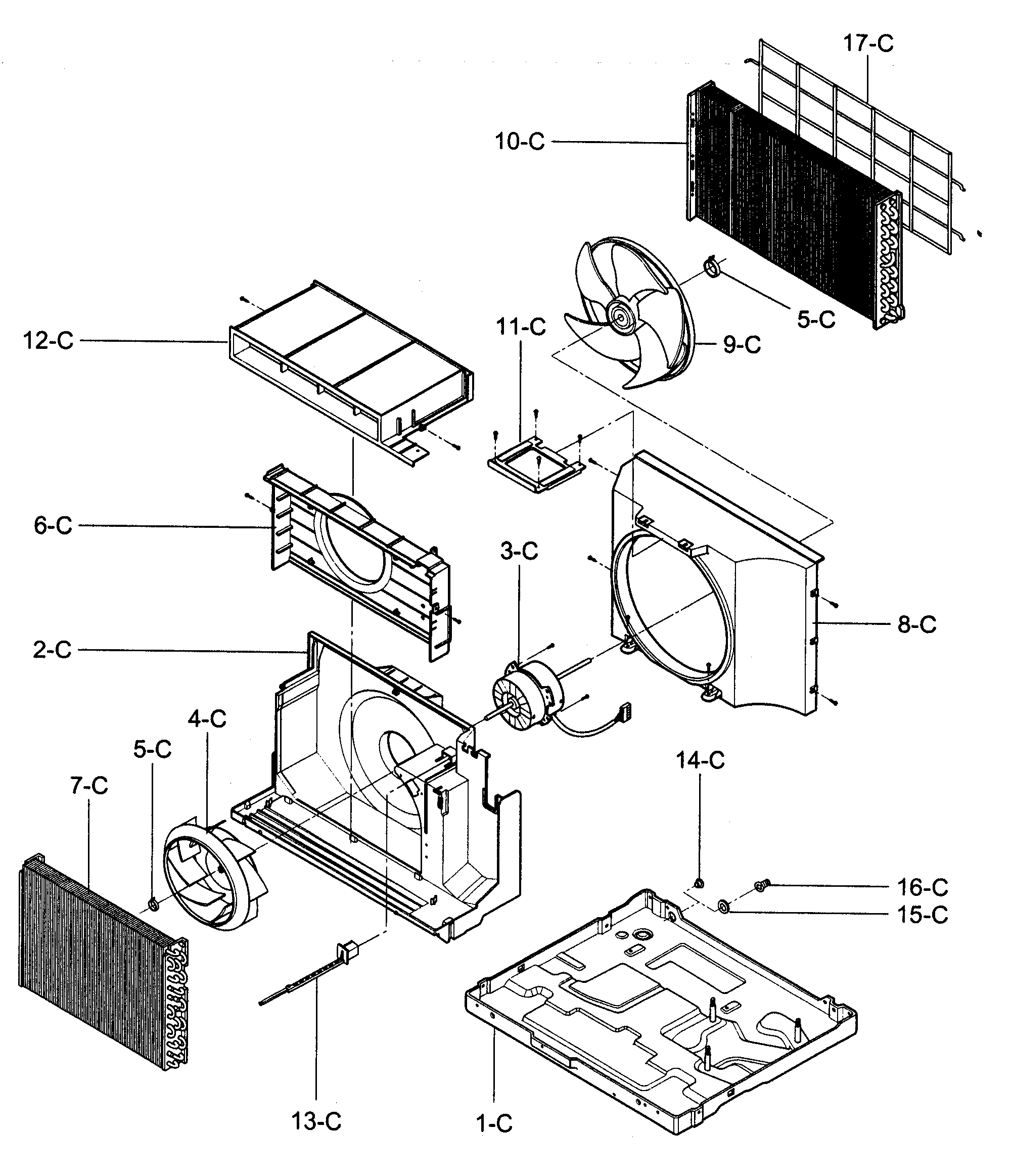

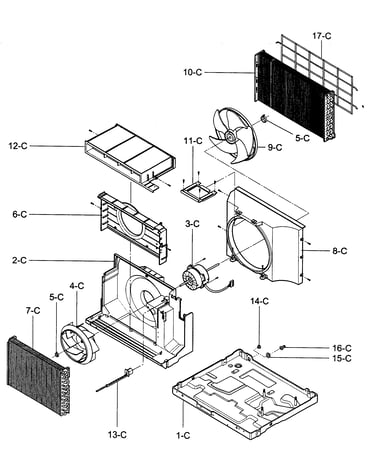

Air handling/cycle parts diagram

Room air conditioner fan blade clamp

Part #3H02932B

This item is not returnable
$3.82 |
21% OFF Phone Price : $4.82
In Stock
Friedrich Room Air Conditioner Evaporator Fan Blade 5900A20019C
#4-C

Air handling/cycle parts diagram

Friedrich room air conditioner evaporator fan blade

Part #5900A20019C

$15.19 |
12% OFF Phone Price : $17.19
In Stock
Kenmore Tube Assembly 5211A20441B
#11-D

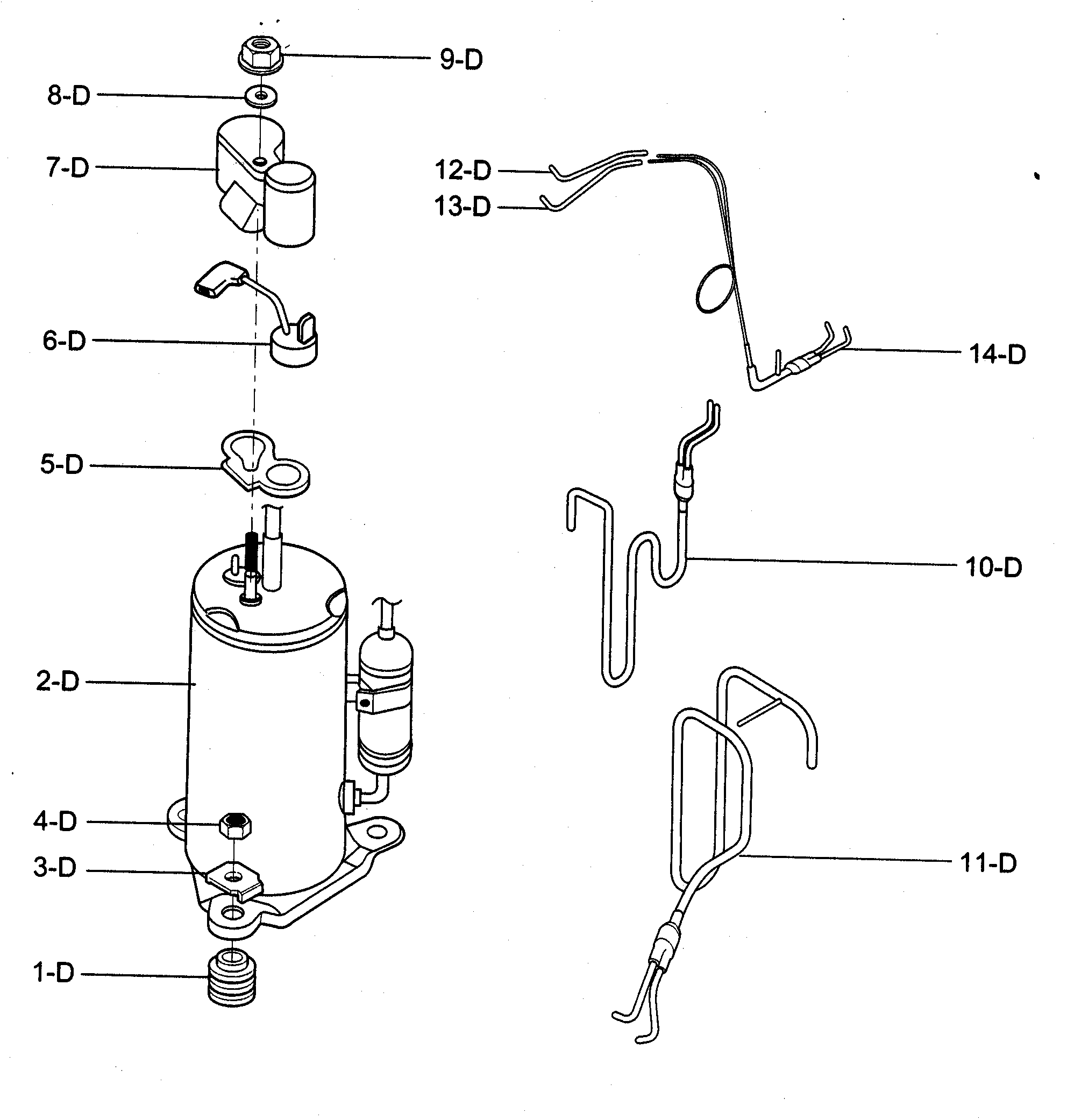

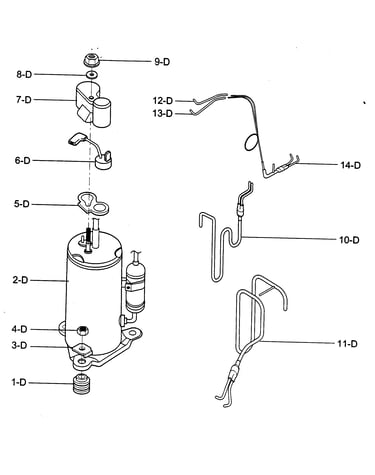

Compressor parts diagram

Kenmore tube assembly

Part #5211A20441B

$19.49
In Stock
Cover 3550U-L004A
#7-D

Compressor parts diagram

Cover

Part #3550U-L004A

$10.60
In Stock
Lg Air Guide 5238A20010A
#12-C

Air handling/cycle parts diagram

Lg air guide

Part #5238A20010A

$23.07
In Stock
Lg Room Air Conditioner Drain Pipe Rubber Washer 4H01029D
#15-C

Air handling/cycle parts diagram

Lg room air conditioner drain pipe rubber washer

Part #4H01029D

This item is not returnable
$2.83
In Stock
Friedrich Room Air Conditioner Compressor Overload Protector 6750U-L031A
#6-D

Compressor parts diagram

Friedrich room air conditioner compressor overload protector

Part #6750U-L031A

$24.09
In Stock
