Model # 31517550 Official Craftsman router

Here are the diagrams and repair parts for Official Craftsman 31517550 router, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |

Wrench 989935-003
#16

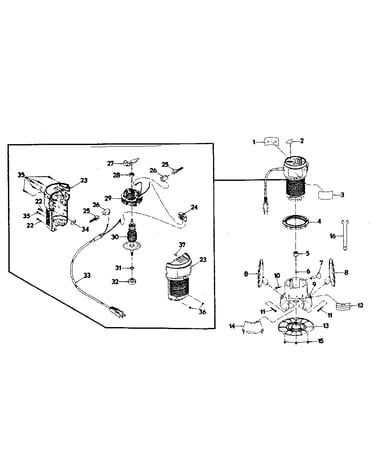

Unit parts diagram

Wrench

Part #989935-003

The manufacturer no longer makes this part, and there's no substitute part

Indicator 989652-001
#4

Unit parts diagram

Indicator

Part #989652-001

The manufacturer no longer makes this part, and there's no substitute part

Ball Brg 621221-002
#28

Unit parts diagram

Ball brg

Part #621221-002

The manufacturer no longer makes this part, and there's no substitute part

Sq H Bolt 623166-002
#10

Unit parts diagram

Sq h bolt

Part #623166-002

The manufacturer no longer makes this part, and there's no substitute part

Logo Plate 612702-001
#12

Unit parts diagram

Logo plate

Part #612702-001

The manufacturer no longer makes this part, and there's no substitute part

1/2 In. Cutter (item No. 9-25413) (standard Hardware Item-may Be Purchased Locally) N/P
1/2 in. cutter (item no. 9-25413) (standard hardware item-may be purchased locally)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Handle 612690-001
#8

Unit parts diagram

Handle

Part #612690-001

The manufacturer no longer makes this part, and there's no substitute part

Chip Shield 612785-001
#14

Unit parts diagram

Chip shield

Part #612785-001

The manufacturer no longer makes this part, and there's no substitute part

Switch 612721-002
#24

Unit parts diagram

Switch

Part #612721-002

The manufacturer no longer makes this part, and there's no substitute part

Screw 617966-011
#35

Unit parts diagram

Screw

Part #617966-011

The manufacturer no longer makes this part, and there's no substitute part
