Model # FR 17 CL 54 90-002827-00 Official Lowrance trimmer/brushcutter

Here are the diagrams and repair parts for Official Lowrance FR-17-CL-54-90-002827-00 trimmer/brushcutter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

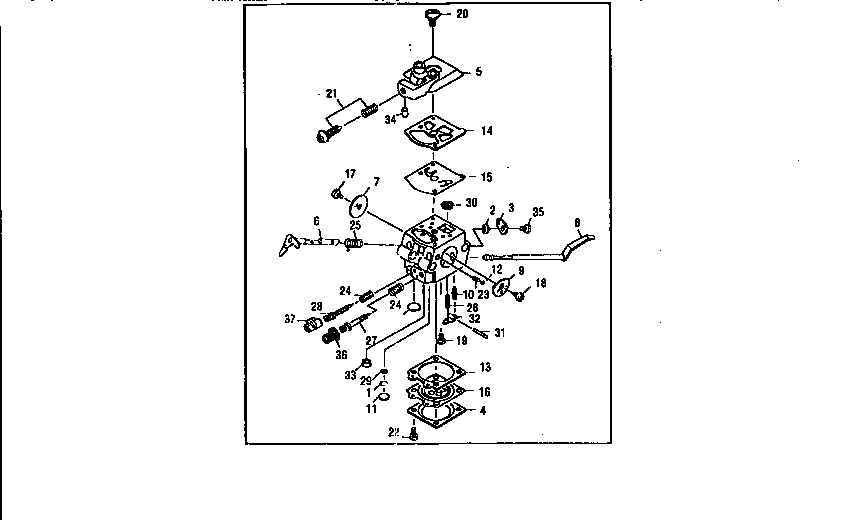

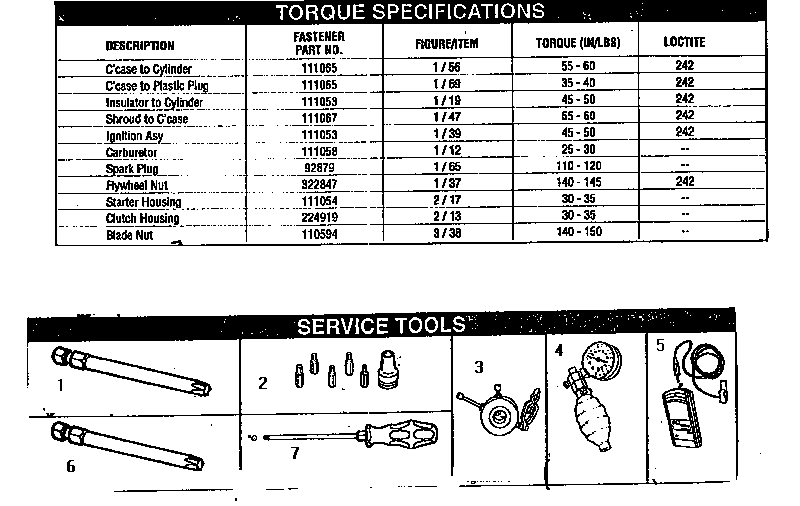

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 180 parts  |
Screw 223357
Screw

Part #223357

The manufacturer no longer makes this part, and there's no substitute part

Harness 224083
#7

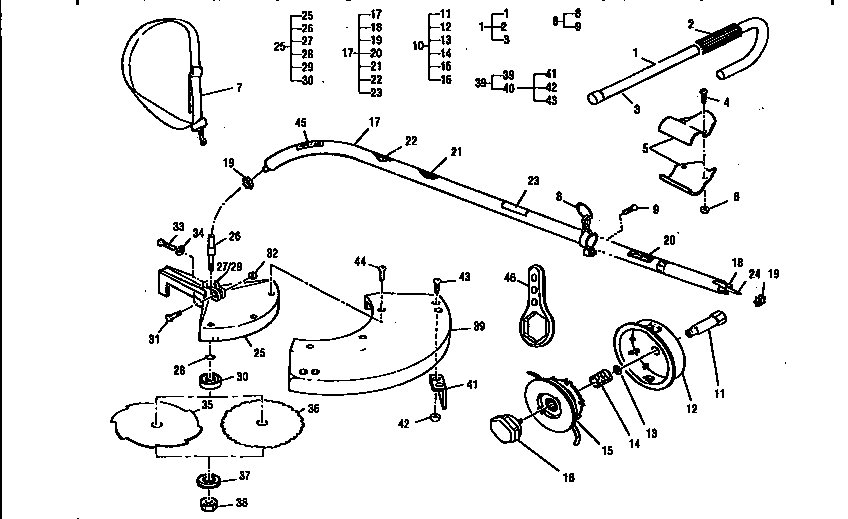

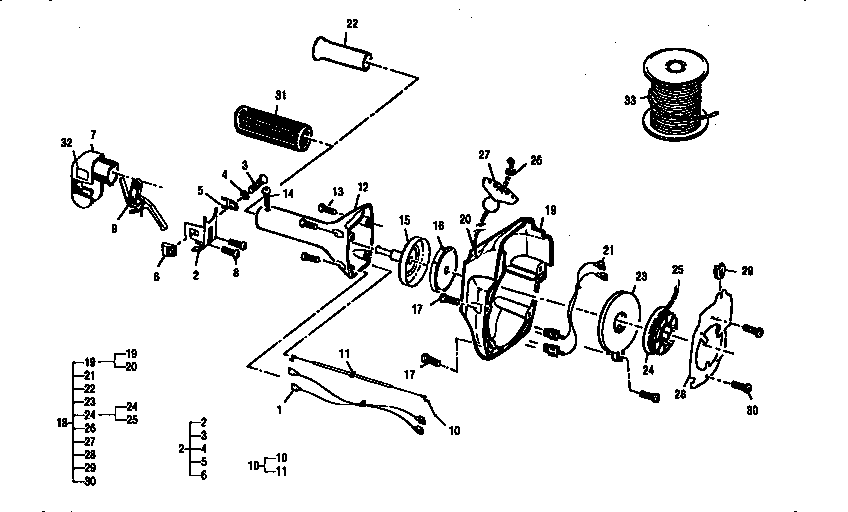

Stringhead assembly diagram

Harness

Part #224083

The manufacturer no longer makes this part, and there's no substitute part

Nut 111085
#36

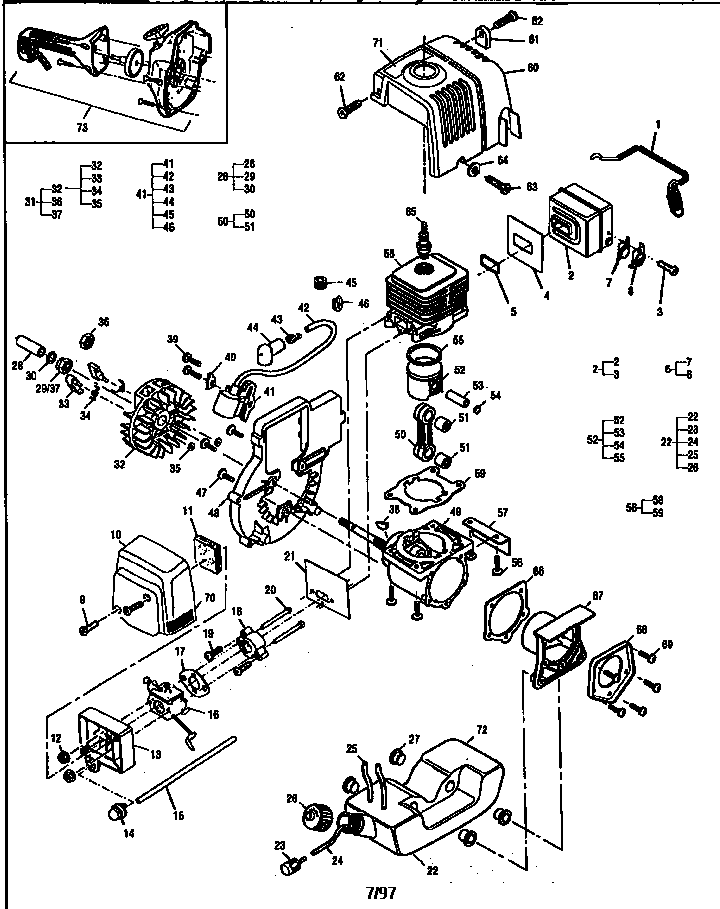

Powerhead assembly diagram

Nut

Part #111085

The manufacturer no longer makes this part, and there's no substitute part

Safety Decal 219030
#20

Stringhead assembly diagram

Safety decal

Part #219030

The manufacturer no longer makes this part, and there's no substitute part

"c" Ring N/P
"c" ring

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Drive Asy W/ 301025
#24

Stringhead assembly diagram

Drive asy w/

Part #301025

The manufacturer no longer makes this part, and there's no substitute part

Spring Clip 223412
#19

Stringhead assembly diagram

Spring clip

Part #223412

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing 217133
#27

Stringhead assembly diagram

Ball bearing

Part #217133

The manufacturer no longer makes this part, and there's no substitute part

Screw 111065
Screw

Part #111065

The manufacturer no longer makes this part, and there's no substitute part

Threadlocker 323749

#NI

All parts diagram

Threadlocker

Part #323749

The manufacturer no longer makes this part, and there's no substitute part
