Model # EBU2X30FA1 Official ICP evaporator coil

Here are the diagrams and repair parts for Official ICP EBU2X30FA1 evaporator coil, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 21 parts  |
Icp Door Coil 1173229
#J

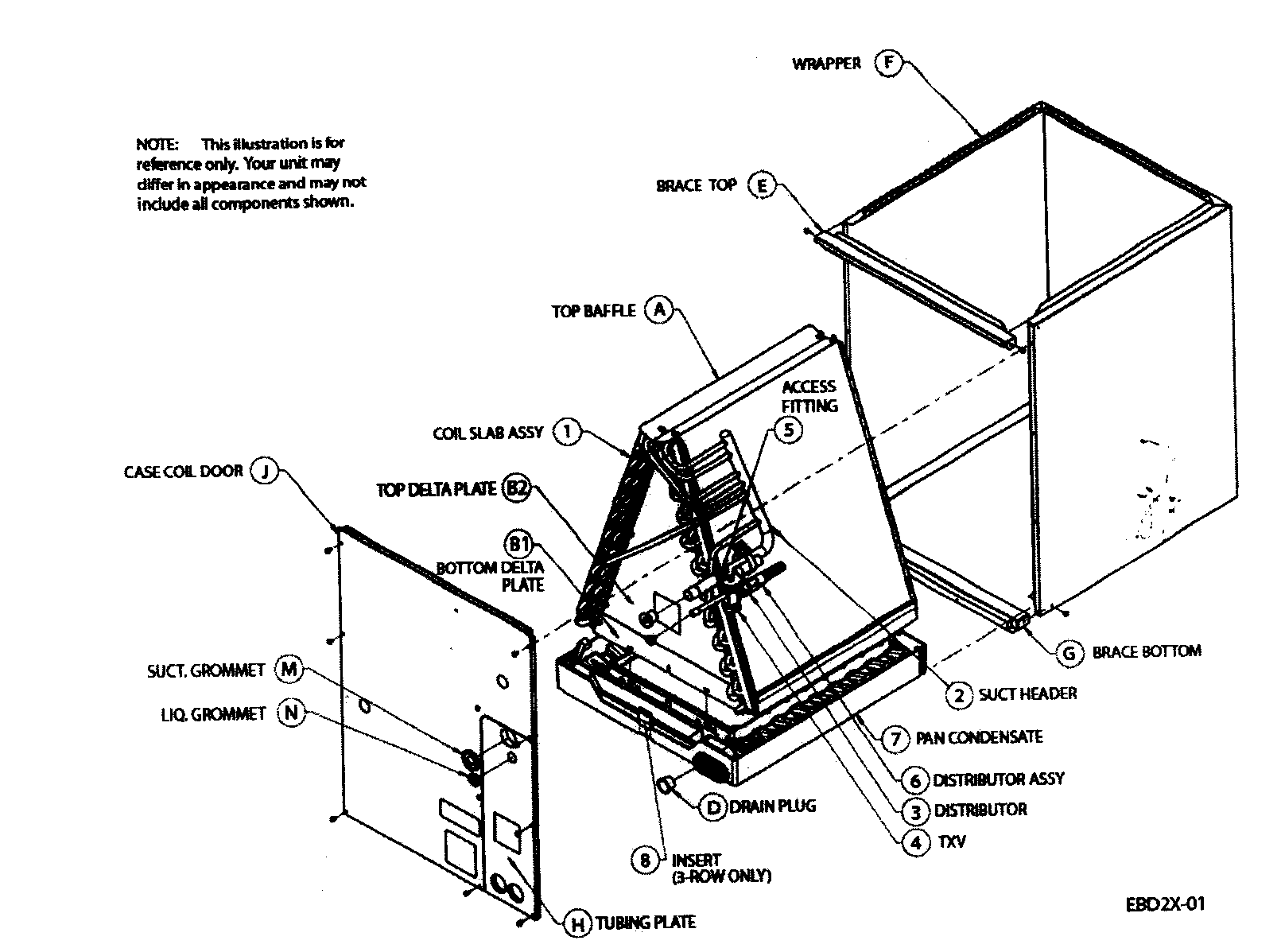

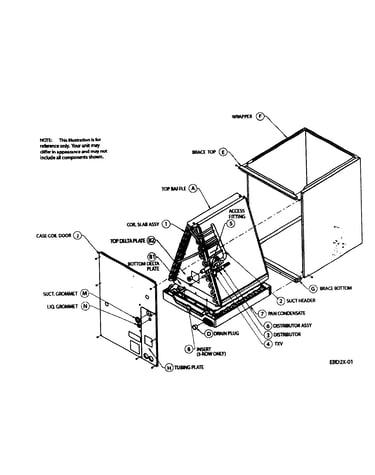

Cabinet parts diagram

Icp door coil

Part #1173229

$150.16
In Stock
Fitting 1171507
#5

Cabinet parts diagram

Fitting

Part #1171507

This item is not returnable
$4.51
In Stock
Pan Cond 1173097
#7

Cabinet parts diagram

Pan cond

Part #1173097

$241.38
In Stock
Adapter 1085010
#D

Cabinet parts diagram

Adapter

Part #1085010

$10.20
In Stock
Grommet 1173157
#N

Cabinet parts diagram

Grommet

Part #1173157

This item is not returnable
$2.16
In Stock
Grommet 1173159
#M

Cabinet parts diagram

Grommet

Part #1173159

This item is not returnable
$3.03
In Stock
Valve Txv 1174451
#4A

Cabinet parts diagram

Valve txv

Part #1174451

$201.24
In Stock
Distributor 1173139
#6

Cabinet parts diagram

Distributor

Part #1173139

The manufacturer no longer makes this part, and there's no substitute part

Evap A 1173130
#1

Cabinet parts diagram

Evap a

Part #1173130

The manufacturer no longer makes this part, and there's no substitute part

Deck Frnt 1173208
#G

Cabinet parts diagram

Deck frnt

Part #1173208

The manufacturer no longer makes this part, and there's no substitute part
