Whirlpool
Side-By-Side Refrigerator

Model # WRS315SDHZ0A Official Whirlpool side-by-side refrigerator

Here are the diagrams and repair parts for Official Whirlpool WRS315SDHZ0A side-by-side refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

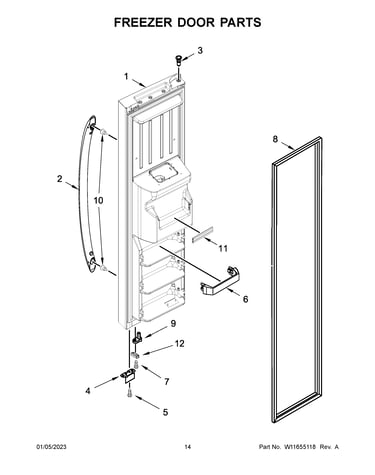

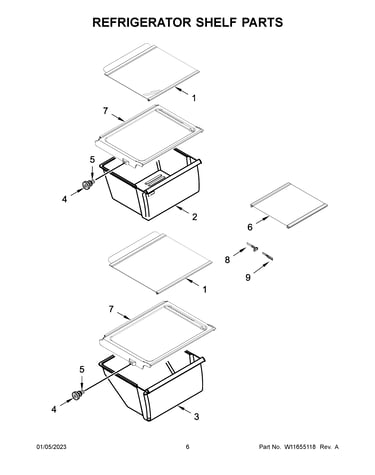

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 204 parts  |
Refrigerator Cartridge W10735398
#32

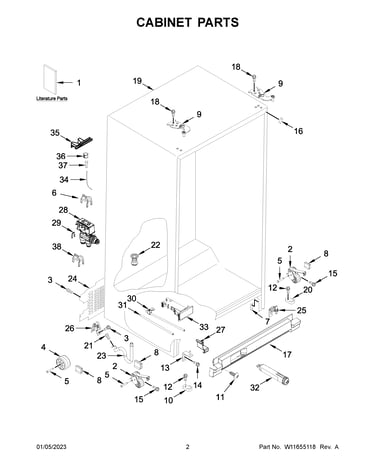

Cabinet parts diagram

Refrigerator cartridge

Part #W10735398

Replaced by #EDR1RXD1

?
Manufacturer substitution
This part replaces W10735398. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$59.99
In Stock
Switch- Rock W10847853
#4

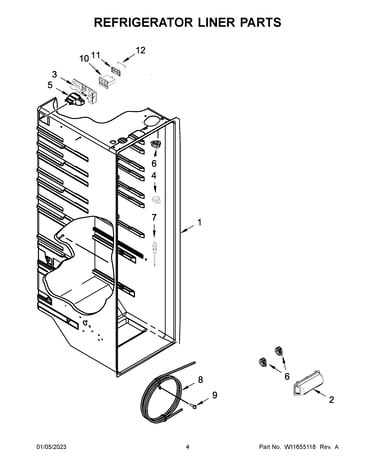

Refrigerator liner parts diagram

Switch- rock

Part #W10847853

Replaced by #W11384469

?
Manufacturer substitution
This part replaces W10847853. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Refrigerator Evaporator Fan Motor 2315549
#7

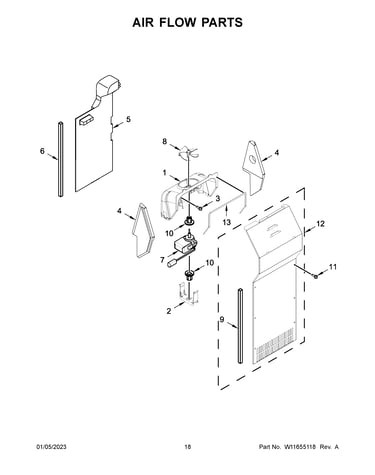

Air flow parts diagram

Refrigerator evaporator fan motor

Part #2315549

Replaced by #WP2315549

?
Manufacturer substitution
This part replaces 2315549. Substitute parts can look different from the original.
BEST SELLER
$128.40 |
9% OFF Phone Price : $140.40
In Stock
Refrigerator Ice Container W10670845
#11

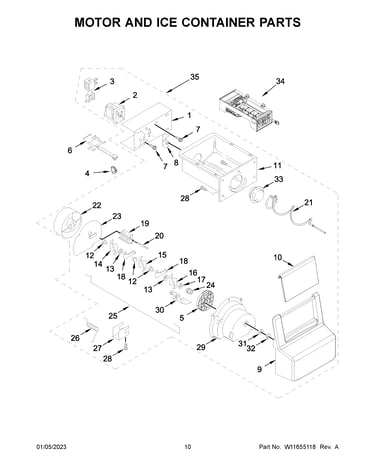

Motor and ice container parts diagram

Refrigerator ice container

Part #W10670845

Replaced by #WPW10670845

?
Manufacturer substitution
This part replaces W10670845. Substitute parts can look different from the original.
BEST SELLER
$82.45 |
7% OFF Phone Price : $88.45
In Stock
Refrigerator Capacitor W10590083
#32

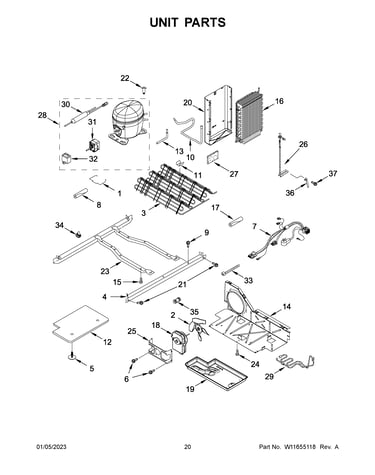

Unit parts diagram

Refrigerator capacitor

Part #W10590083

Replaced by #WPW10662129

?
Manufacturer substitution
This part replaces W10590083. Substitute parts can look different from the original.
BEST SELLER
$52.20 |
10% OFF Phone Price : $58.20
In Stock
Hemera 30deg W11549780
Hemera 30deg

Part #W11549780

Replaced by #W11602886

?
Manufacturer substitution
This part replaces W11549780. Substitute parts can look different from the original.
BEST SELLER
$19.61 |
9% OFF Phone Price : $21.61
Back Order
Refrigerator Door Switch W10847849
#4

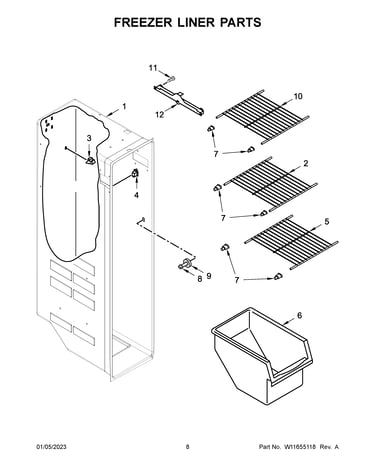

Freezer liner parts diagram

Refrigerator door switch

Part #W10847849

Replaced by #W11396033

?
Manufacturer substitution
This part replaces W10847849. Substitute parts can look different from the original.
BEST SELLER
$20.47 |
23% OFF Phone Price : $26.47
In Stock
Refrigerator Housing Assembly W11036338
#33

Cabinet parts diagram

Refrigerator housing assembly

Part #W11036338

Replaced by #W11162042

?
Manufacturer substitution
This part replaces W11036338. Substitute parts can look different from the original.
BEST SELLER
$92.69 |
6% OFF Phone Price : $98.69
In Stock
Refrigerator Door Shelf Rail 2309941
#7

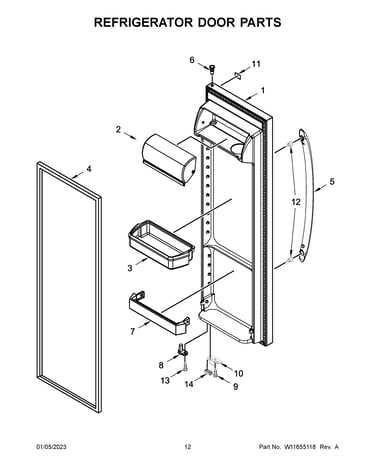

Refrigerator door parts diagram

Refrigerator door shelf rail

Part #2309941

Replaced by #WP2309941

?
Manufacturer substitution
This part replaces 2309941. Substitute parts can look different from the original.
BEST SELLER
$40.05 |
13% OFF Phone Price : $46.05
In Stock
Drier Tube W10805035
#30

Unit parts diagram

Drier tube

Part #W10805035

Replaced by #W11109499

?
Manufacturer substitution
This part replaces W10805035. Substitute parts can look different from the original.
BEST SELLER
$24.38 |
20% OFF Phone Price : $30.38
In Stock
