Maytag
Gas Water Heater

Model # HJ640NBDS Official Maytag water heater

Here are the diagrams and repair parts for Official Maytag HJ640NBDS water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 88 parts  |
Vent Wall 9000724
#23

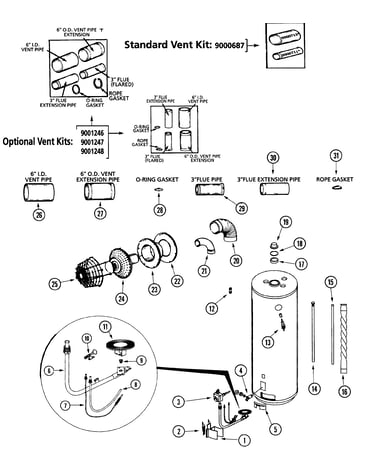

Body diagram

Vent wall

Part #9000724

Replaced by #66001214

?
Manufacturer substitution
This part replaces 9000724. Substitute parts can look different from the original.
$89.25
In Stock
Burner Orifice 0230223
#9C

Body diagram

Burner orifice

Part #0230223

Replaced by #Y0230223

?
Manufacturer substitution
This part replaces 0230223. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
Collar Liner 9000723
#22

Body diagram

Collar liner

Part #9000723

Replaced by #66001213

?
Manufacturer substitution
This part replaces 9000723. Substitute parts can look different from the original.
$34.31
In Stock
Vent Cap Assembly 9000725
#24

Body diagram

Vent cap assembly

Part #9000725

Replaced by #66001215

?
Manufacturer substitution
This part replaces 9000725. Substitute parts can look different from the original.
$128.83
In Stock
Burner Orifice 0230225
#9E

Body diagram

Burner orifice

Part #0230225

Replaced by #Y0230225

?
Manufacturer substitution
This part replaces 0230225. Substitute parts can look different from the original.
This item is not returnable
$3.33
In Stock
Plate, Adapt 66001240
#23

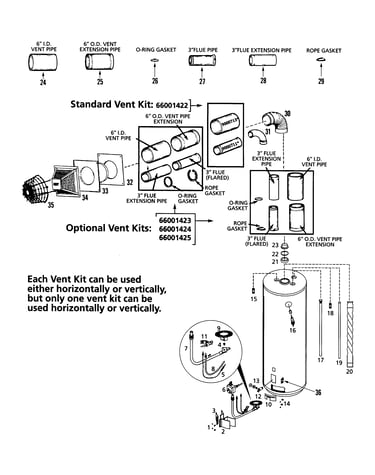

Body (models with piezo ignitor) diagram

Plate, adapt

Part #66001240

The manufacturer no longer makes this part, and there's no substitute part

Thermocouple 9000876
#7

Body diagram

Thermocouple

Part #9000876

The manufacturer no longer makes this part, and there's no substitute part

Burner Orifice 66001159
#4D

Body (models with piezo ignitor) diagram

Burner orifice

Part #66001159

The manufacturer no longer makes this part, and there's no substitute part

Plate, Adapt 9001293
#19

Body diagram

Plate, adapt

Part #9001293

The manufacturer no longer makes this part, and there's no substitute part

Washer, Drai 66001021
#13

Body (models with piezo ignitor) diagram

Washer, drai

Part #66001021

The manufacturer no longer makes this part, and there's no substitute part
