Model # 4150-6 Official Footedana transaxle

Here are the diagrams and repair parts for Official Footedana 4150-6 transaxle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |
Tractor Accessories Lawn & Garden Equipment Bolt 2276J
#2

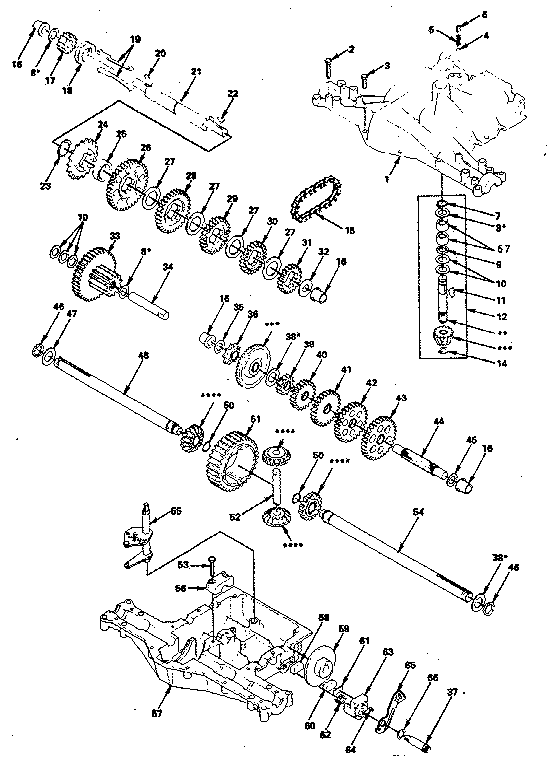

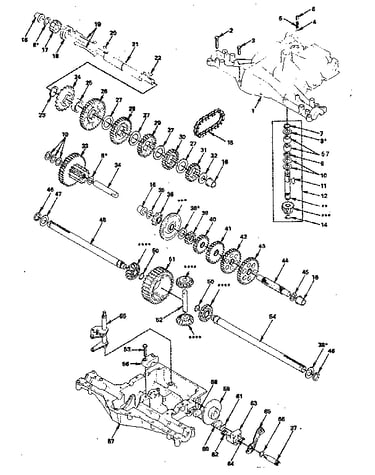

Transaxle diagram

Tractor accessories lawn & garden equipment bolt

Part #2276J

This item is not returnable
$2.16
In Stock
Gear, 20t 105934X
#40

Transaxle diagram

Gear, 20t

Part #105934X

Replaced by #582969001

?
Manufacturer substitution
This part replaces 105934X. Substitute parts can look different from the original.
$119.98
In Stock
Gear 12t 105933X
#39

Transaxle diagram

Gear 12t

Part #105933X

Replaced by #583656701

?
Manufacturer substitution
This part replaces 105933X. Substitute parts can look different from the original.
$70.64
In Stock
Washer 105906X
#8H

Transaxle diagram

Washer

Part #105906X

Replaced by #583647201

?
Manufacturer substitution
This part replaces 105906X. Substitute parts can look different from the original.
$10.26
In Stock
Bolt 2274J
#3

Transaxle diagram

Bolt

Part #2274J

The manufacturer no longer makes this part, and there's no substitute part

Gear 30t 105921X
#28

Transaxle diagram

Gear 30t

Part #105921X

Replaced by #582969001

?
Manufacturer substitution
This part replaces 105921X. Substitute parts can look different from the original.
$119.98
In Stock
Key 105914X
#19

Transaxle diagram

Key

Part #105914X

The manufacturer no longer makes this part, and there's no substitute part

Spacer 105918X
#25

Transaxle diagram

Spacer

Part #105918X

The manufacturer no longer makes this part, and there's no substitute part

Washer 106587X
#38I

Transaxle diagram

Washer

Part #106587X

The manufacturer no longer makes this part, and there's no substitute part

Collar 105913X
#18

Transaxle diagram

Collar

Part #105913X

The manufacturer no longer makes this part, and there's no substitute part
