Model # FRSC2333AS0 Official Frigidaire refrigerator

Here are the diagrams and repair parts for Official Frigidaire FRSC2333AS0 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

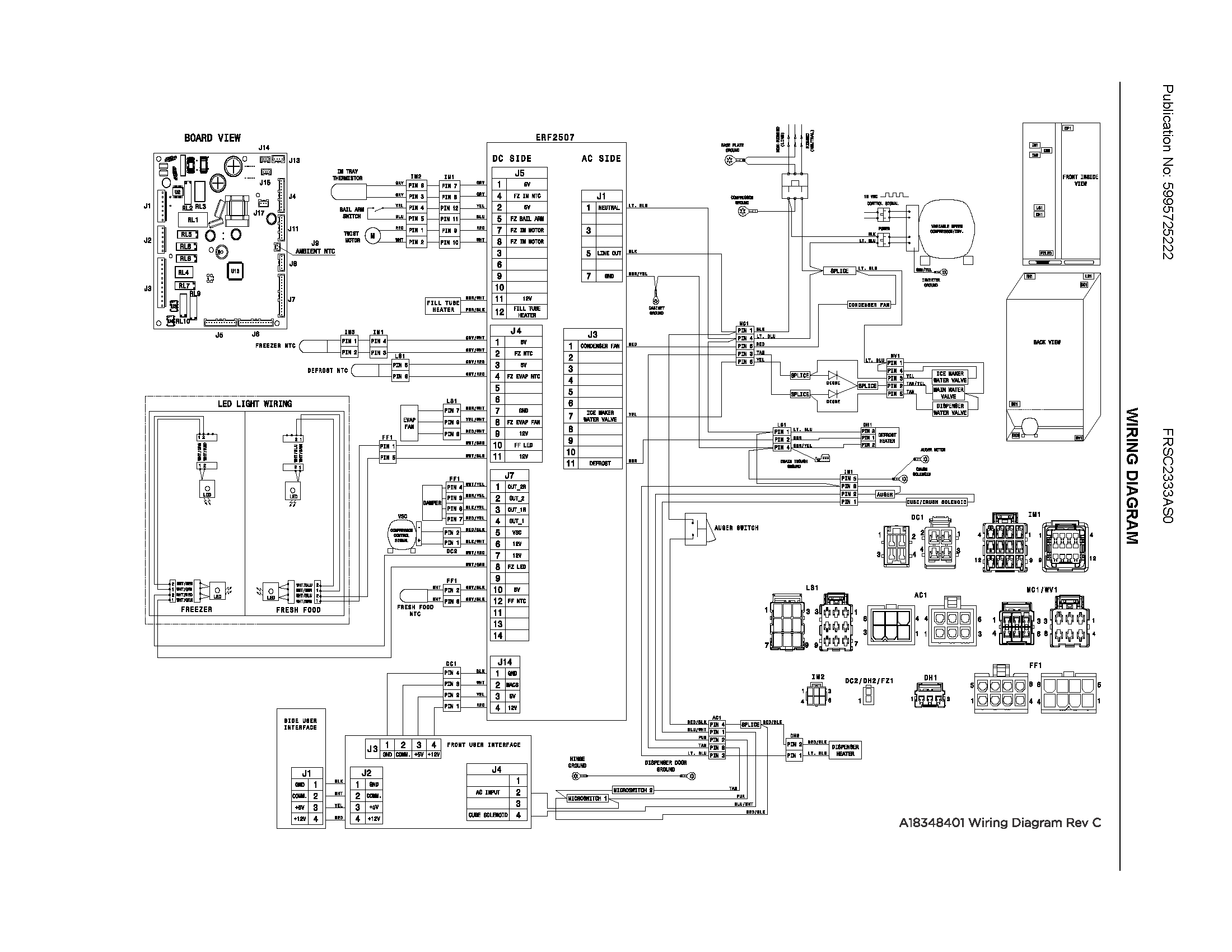

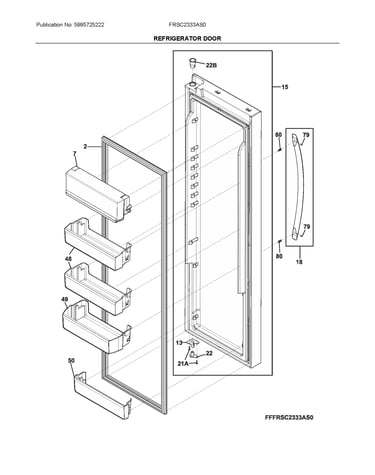

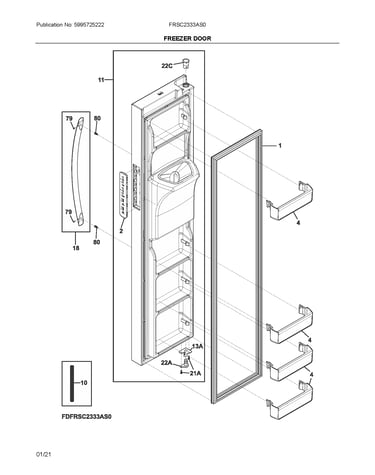

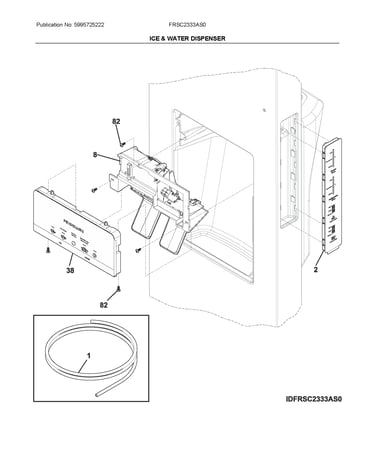

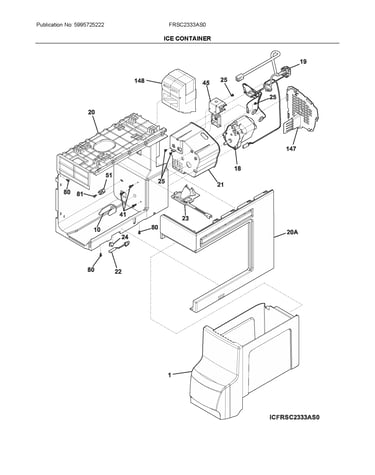

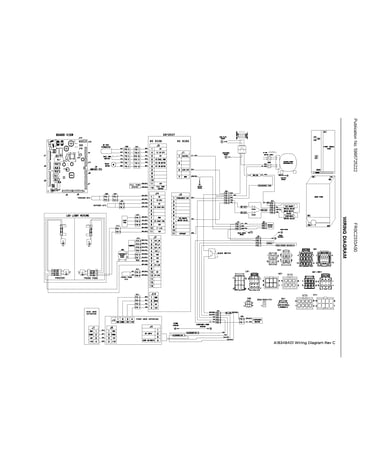

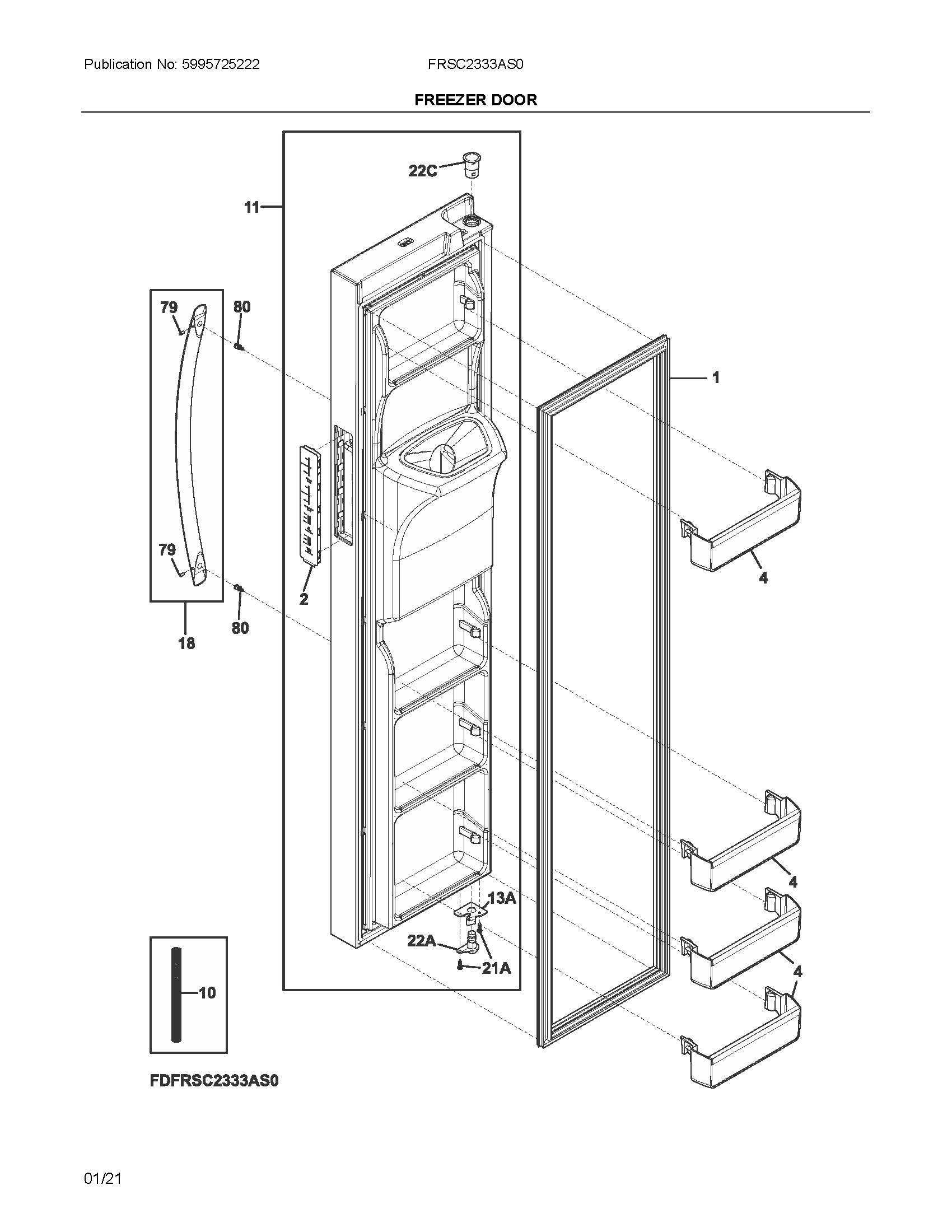

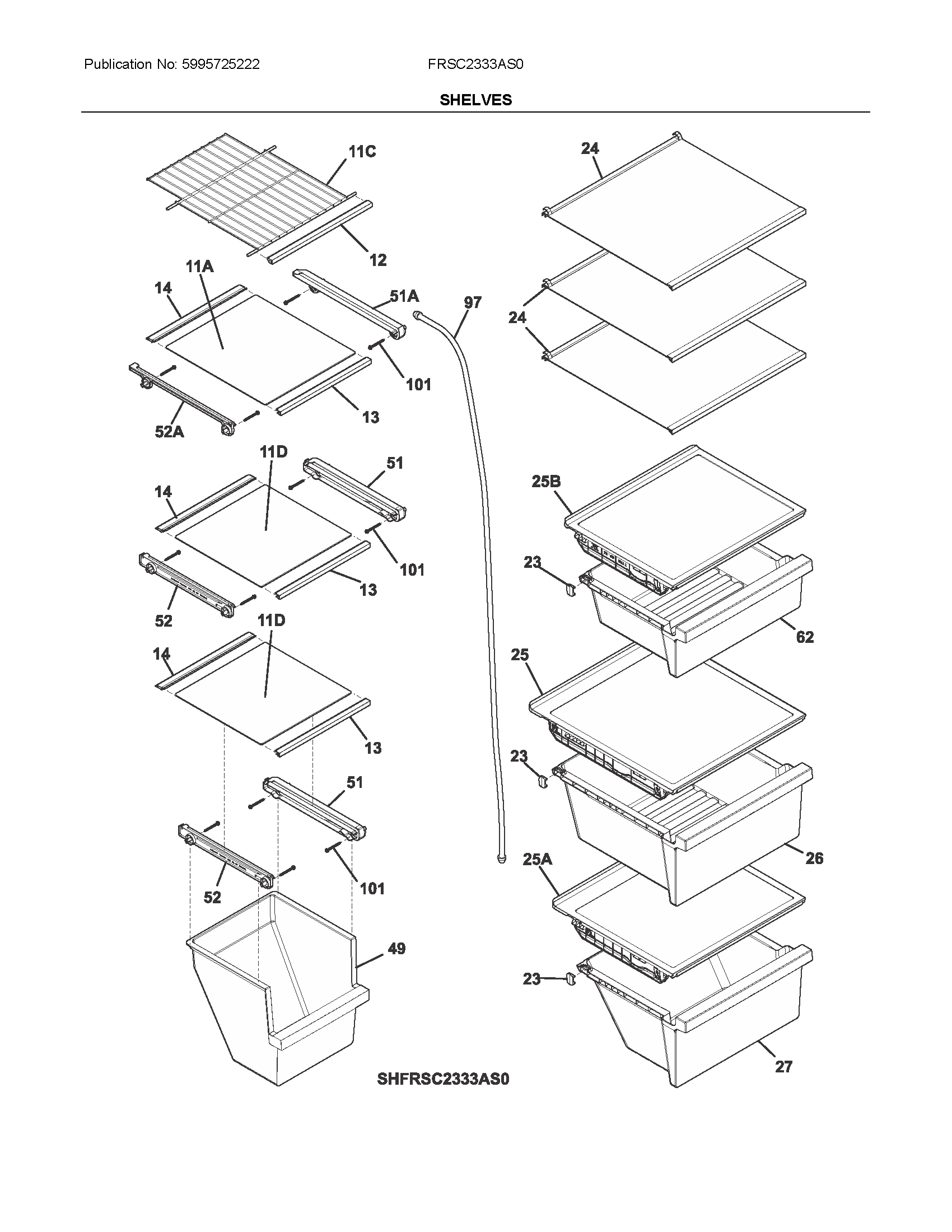

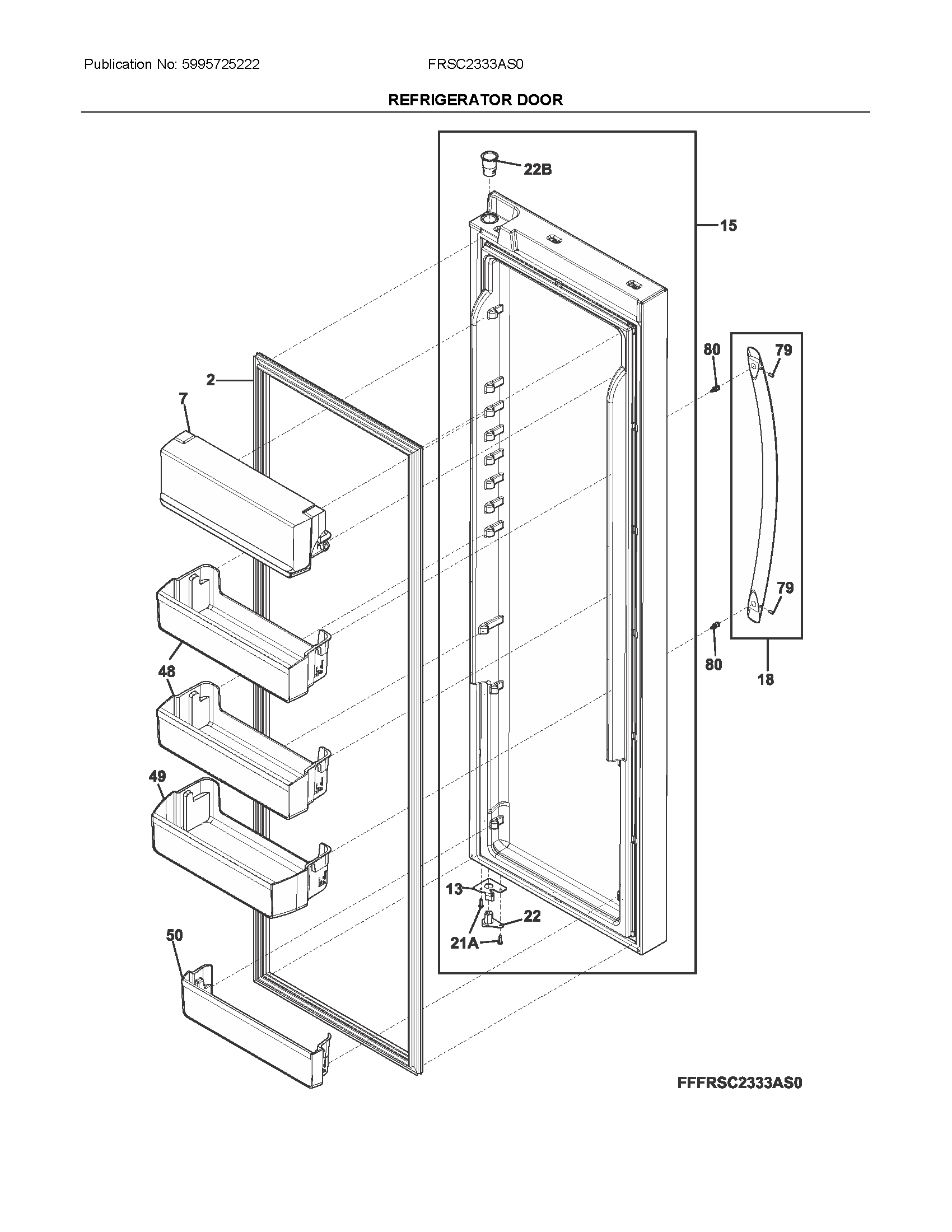

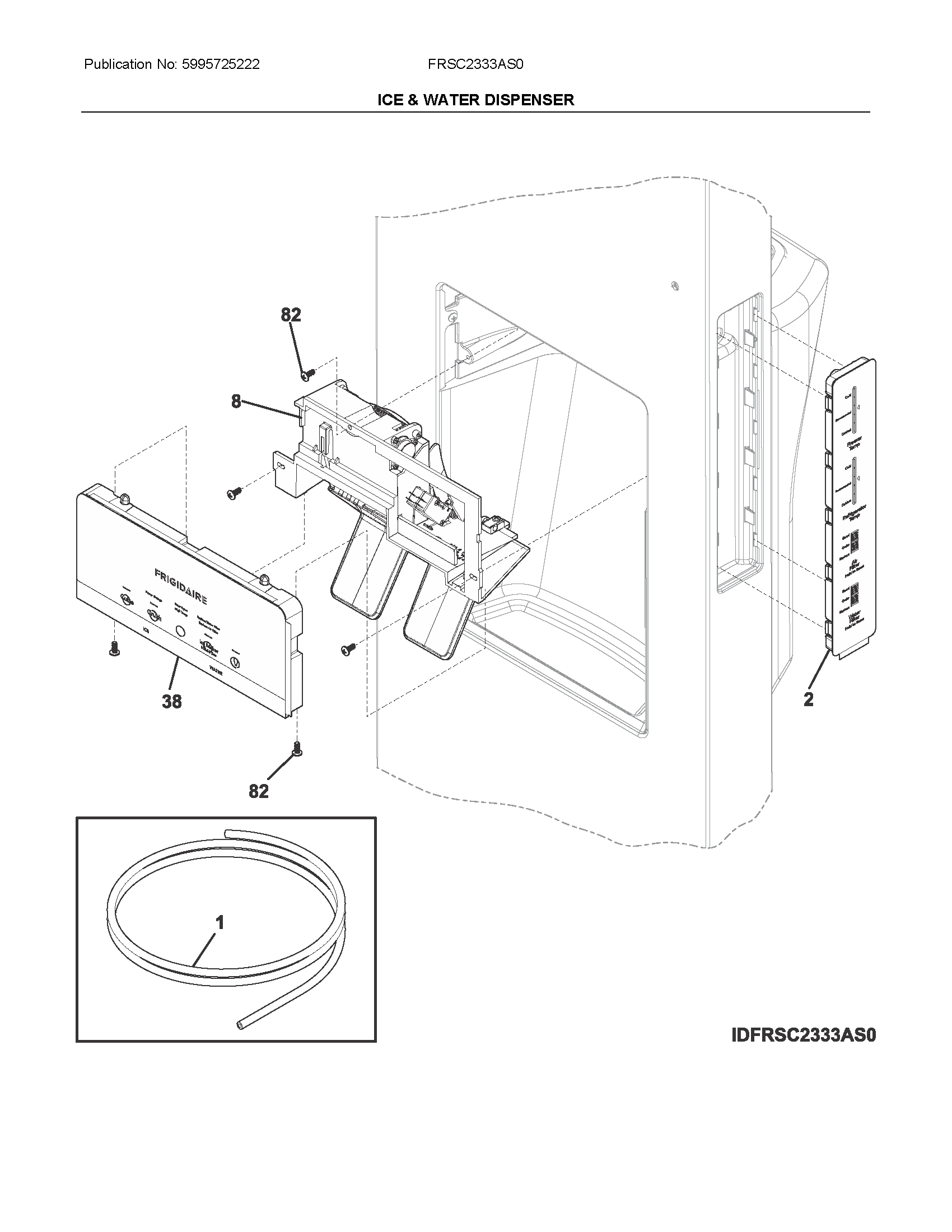

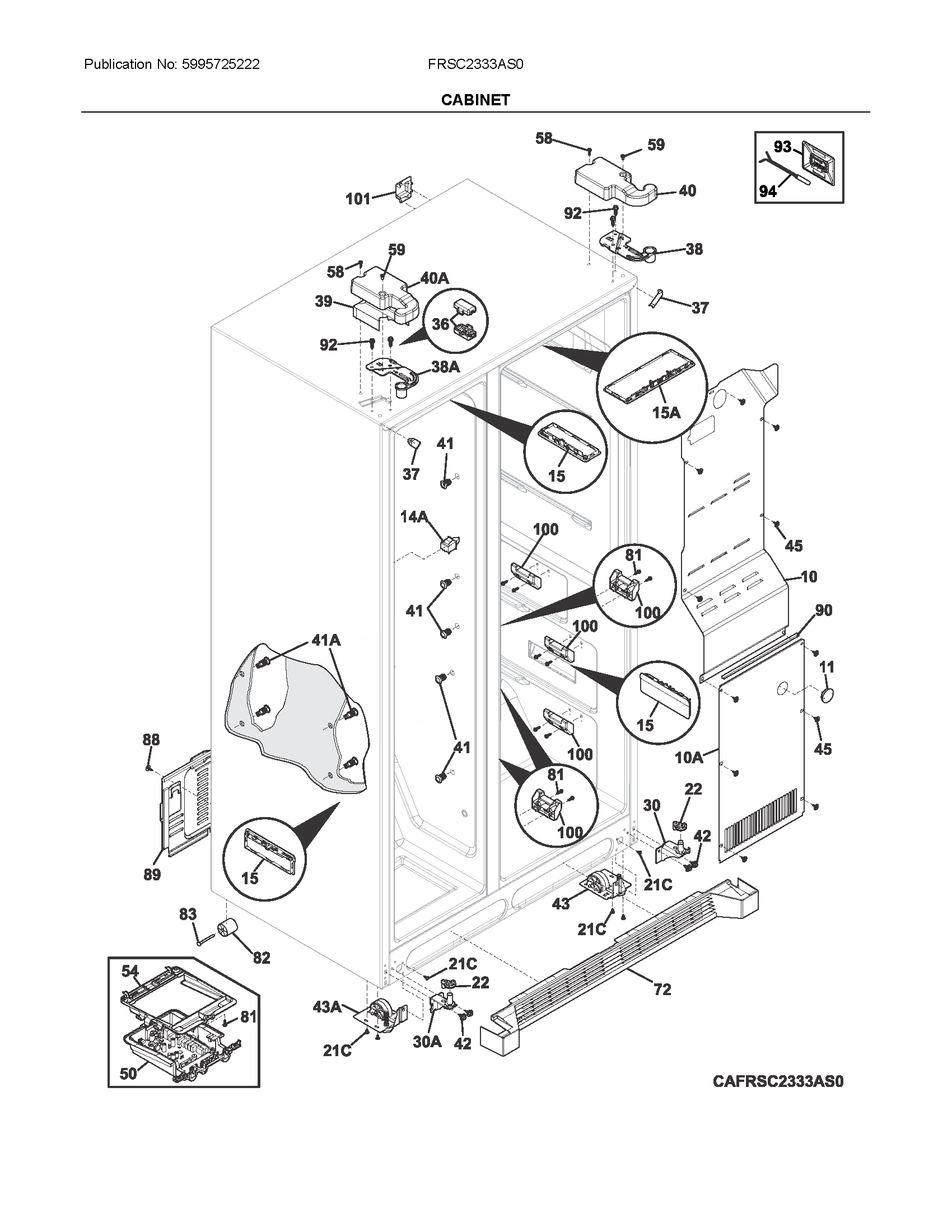

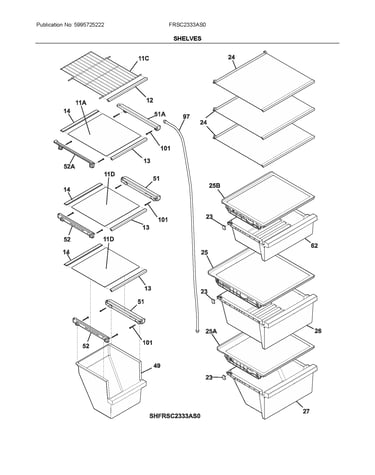

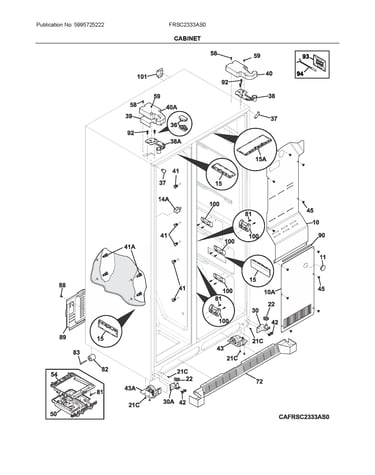

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 177 parts  |
Dryer Filter 242047604
#4

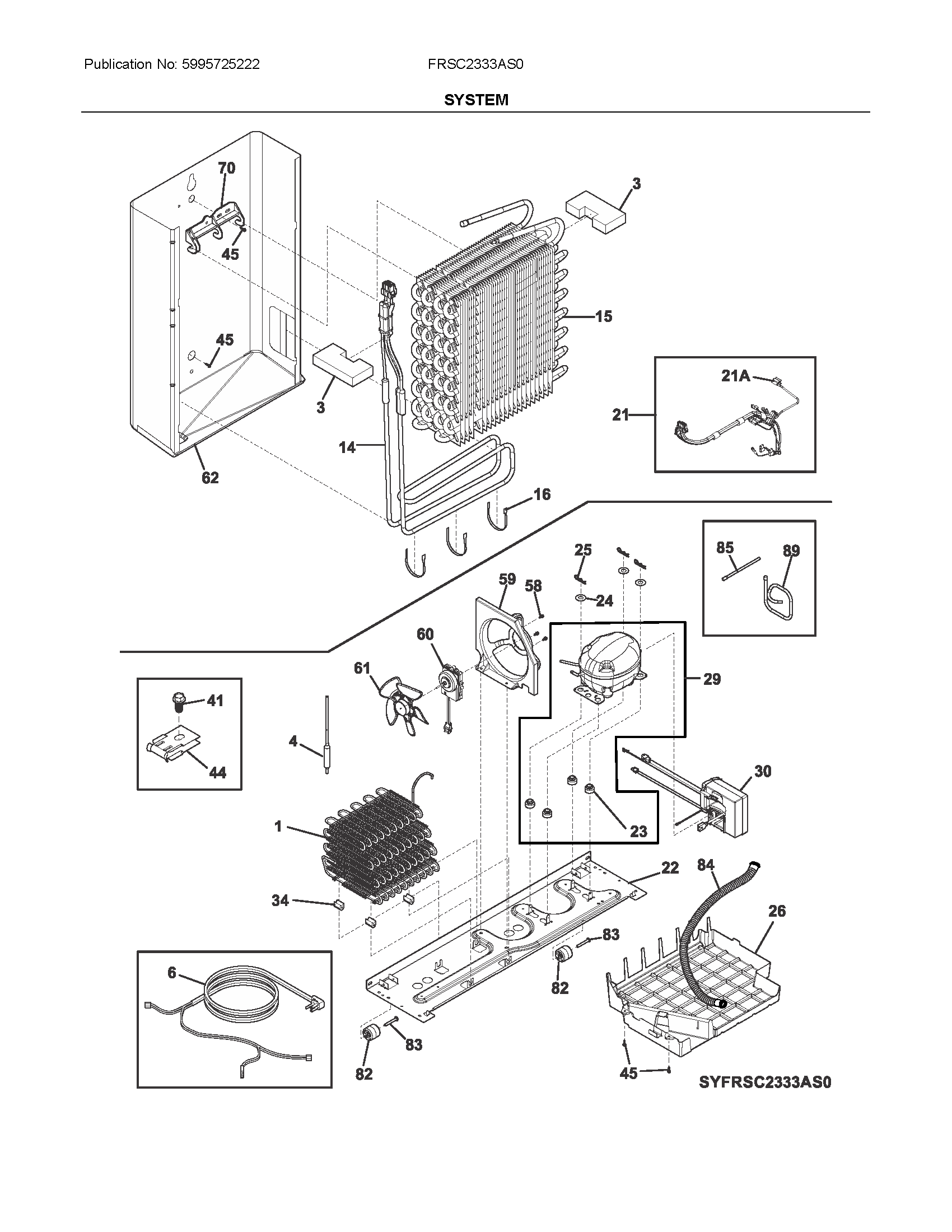

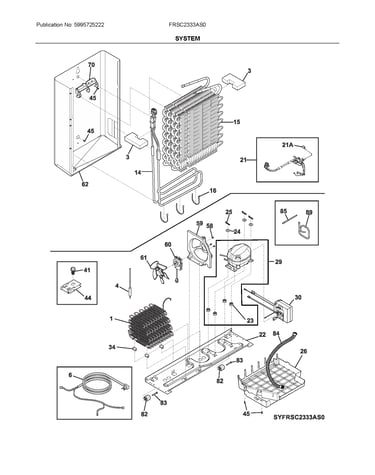

System diagram

Dryer filter

Part #242047604

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 242047604. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Refrigerator Ice Maker Assembly 243297609
#2

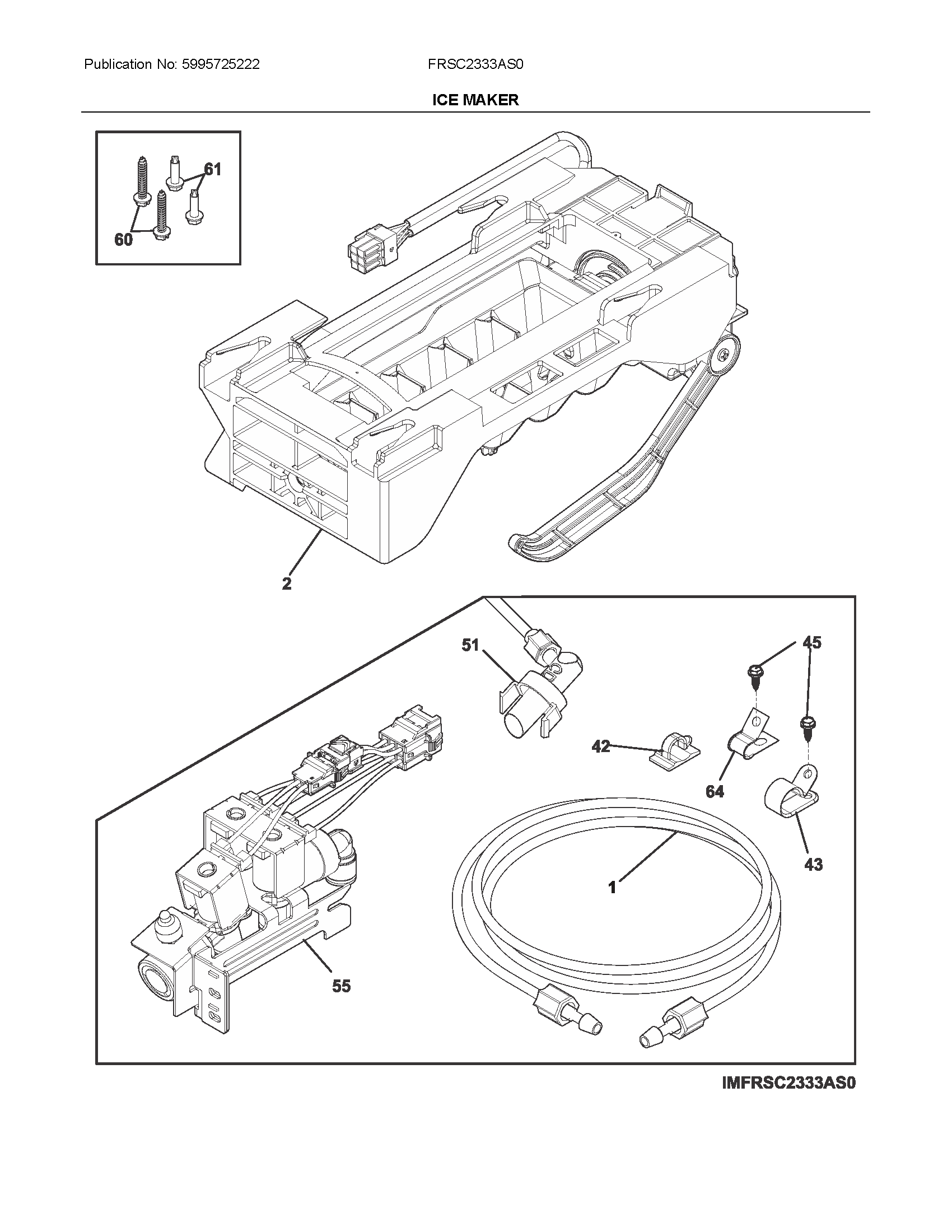

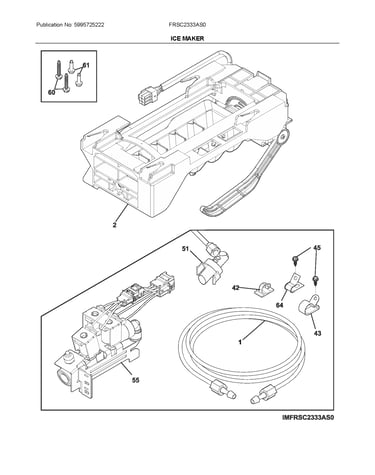

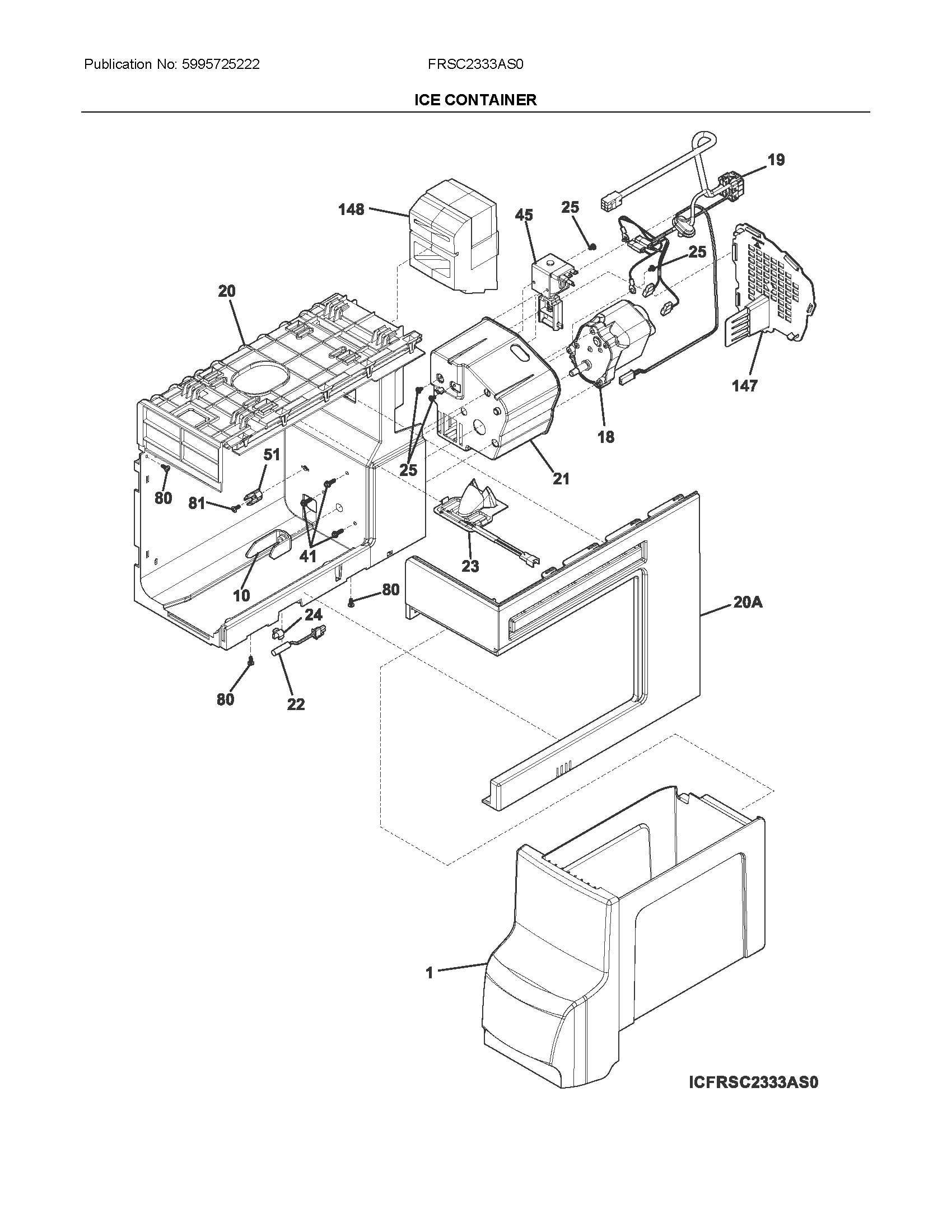

Ice maker diagram

Refrigerator ice maker assembly

Part #243297609

Replaced by #243297613

?
Manufacturer substitution
This part replaces 243297609. Substitute parts can look different from the original.
BEST SELLER
$96.24 |
11% OFF Phone Price : $108.24
In Stock
Frigidaire Refrigerator Water Filter FPPWFU01
#137

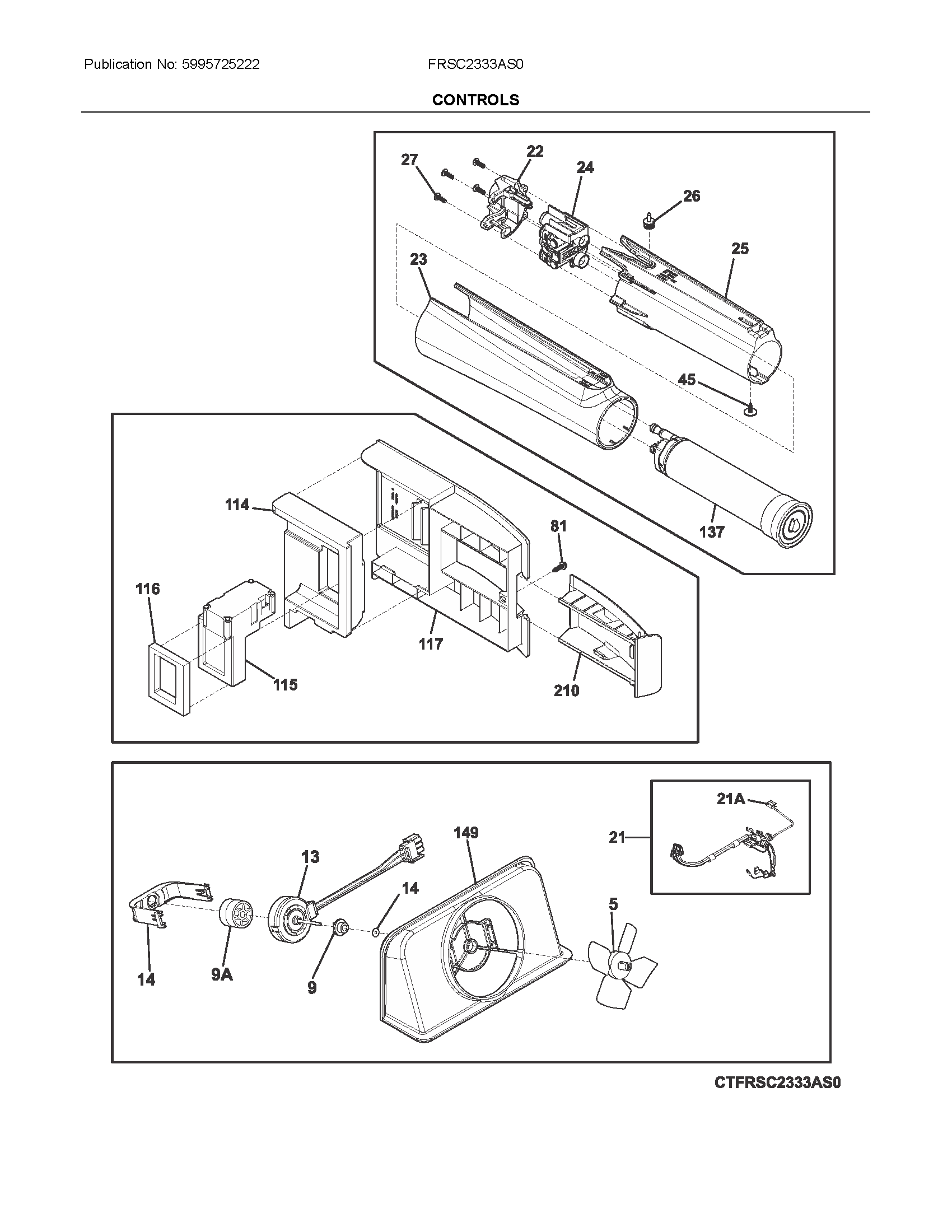

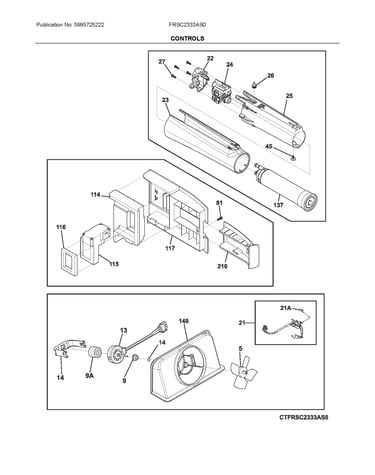

Controls diagram

Frigidaire refrigerator water filter

Part #FPPWFU01

BEST SELLER

Get free shipping with Automatic Reorder

$62.83 |
9% OFF Phone Price : $68.83
In Stock
Refrigerator Air Damper (replaces 7241518501) 241518501
#115

Controls diagram

Refrigerator air damper (replaces 7241518501)

Part #241518501

Replaced by #5303918899

?
Manufacturer substitution
This part replaces 241518501. Substitute parts can look different from the original.
BEST SELLER
$55.68 |
10% OFF Phone Price : $61.68
In Stock
Electrolux Refrigerator Water Inlet Valve 5304525994
#55

Ice maker diagram

Electrolux refrigerator water inlet valve

Part #5304525994

BEST SELLER
$113.10
In Stock
Refrigerator Evaporator (replaces 5303918216, 75303918284) 5303918284
#15

System diagram

Refrigerator evaporator (replaces 5303918216, 75303918284)

Part #5303918284

BEST SELLER
$327.83 |
$12.00 OFF Phone Price : $339.83
In Stock
Refrigerator Water Filter Head 5304524817
#24

Controls diagram

Refrigerator water filter head

Part #5304524817

BEST SELLER
$63.93 |
9% OFF Phone Price : $69.93
In Stock
Refrigerator Evaporator Fan Blade 242219302
#5

Controls diagram

Refrigerator evaporator fan blade

Part #242219302

BEST SELLER
$17.09 |
10% OFF Phone Price : $19.09
In Stock
Electrolux Refrigerator Temperature Sensor (replaces 242290506) 5303918645
Electrolux refrigerator temperature sensor (replaces 242290506)

Part #5303918645

BEST SELLER
$62.89 |
9% OFF Phone Price : $68.89
In Stock
Inverter Boa 5304526012
#30

System diagram

Inverter boa

Part #5304526012

Replaced by #5304527038

?
Manufacturer substitution
This part replaces 5304526012. Substitute parts can look different from the original.
BEST SELLER
$148.54 |
7% OFF Phone Price : $160.54
In Stock
