Model # 41791052000 Official Kenmore gas dryer

Here are the diagrams and repair parts for Official Kenmore 41791052000 gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

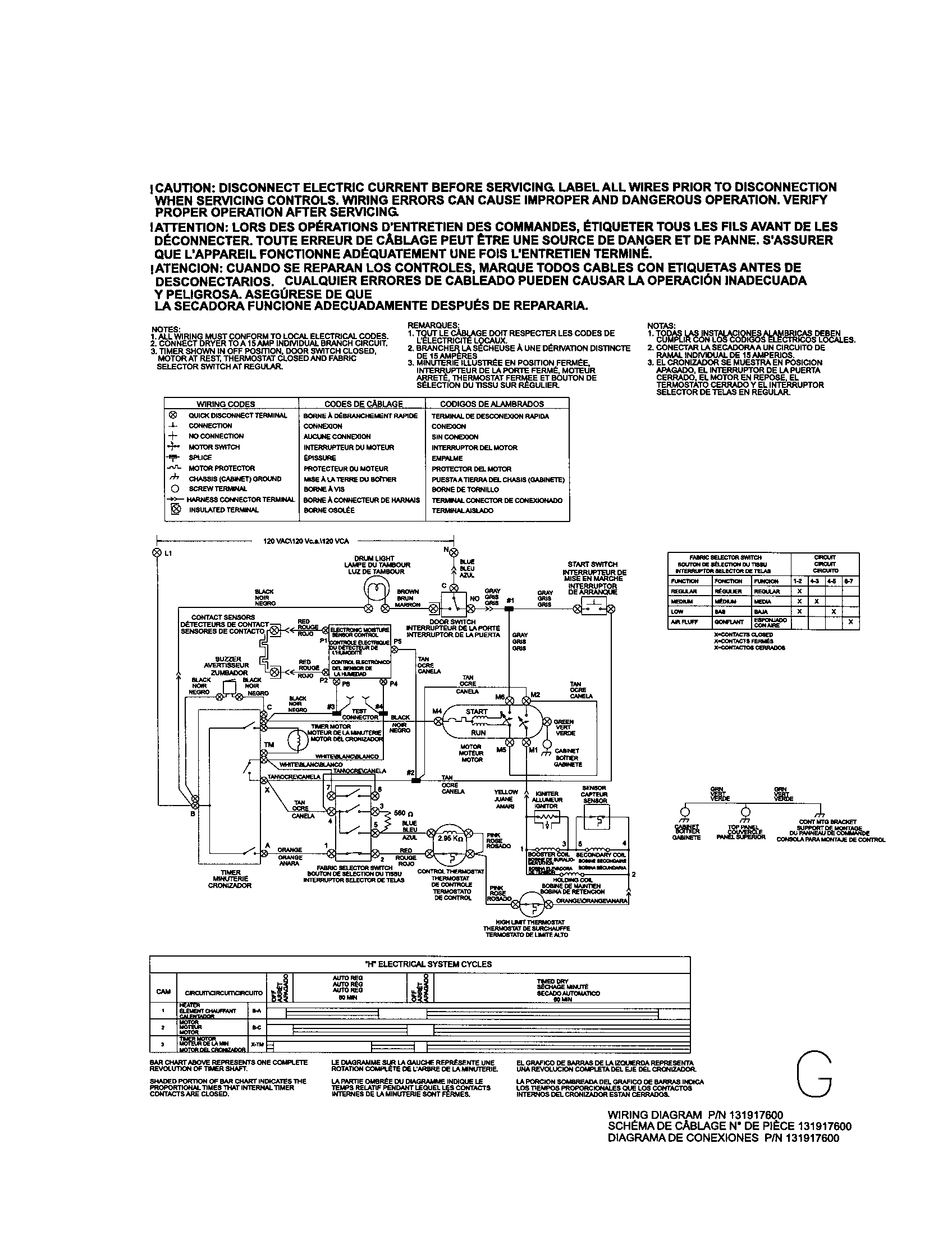

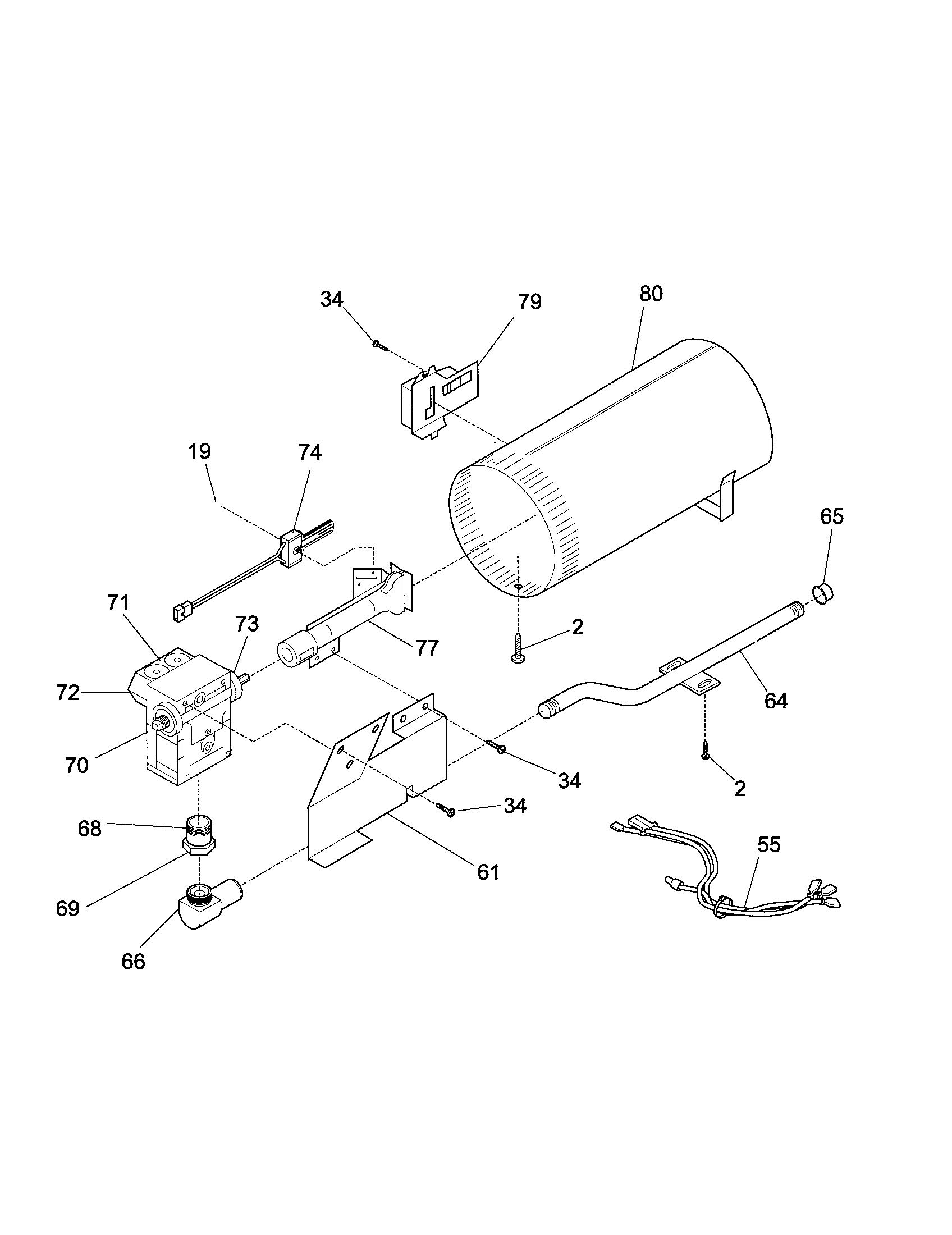

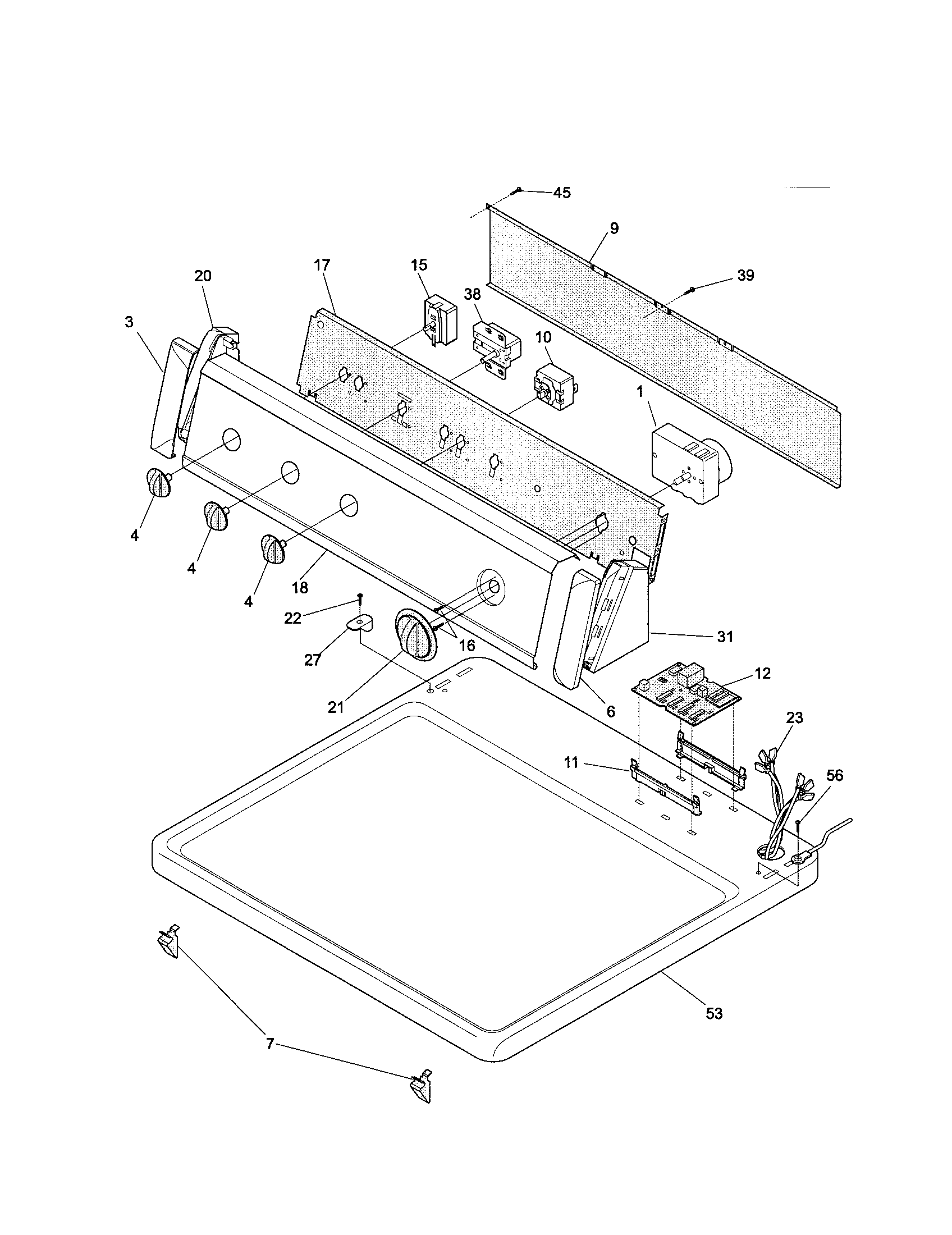

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 113 parts  |
Belt 5303283471
#25

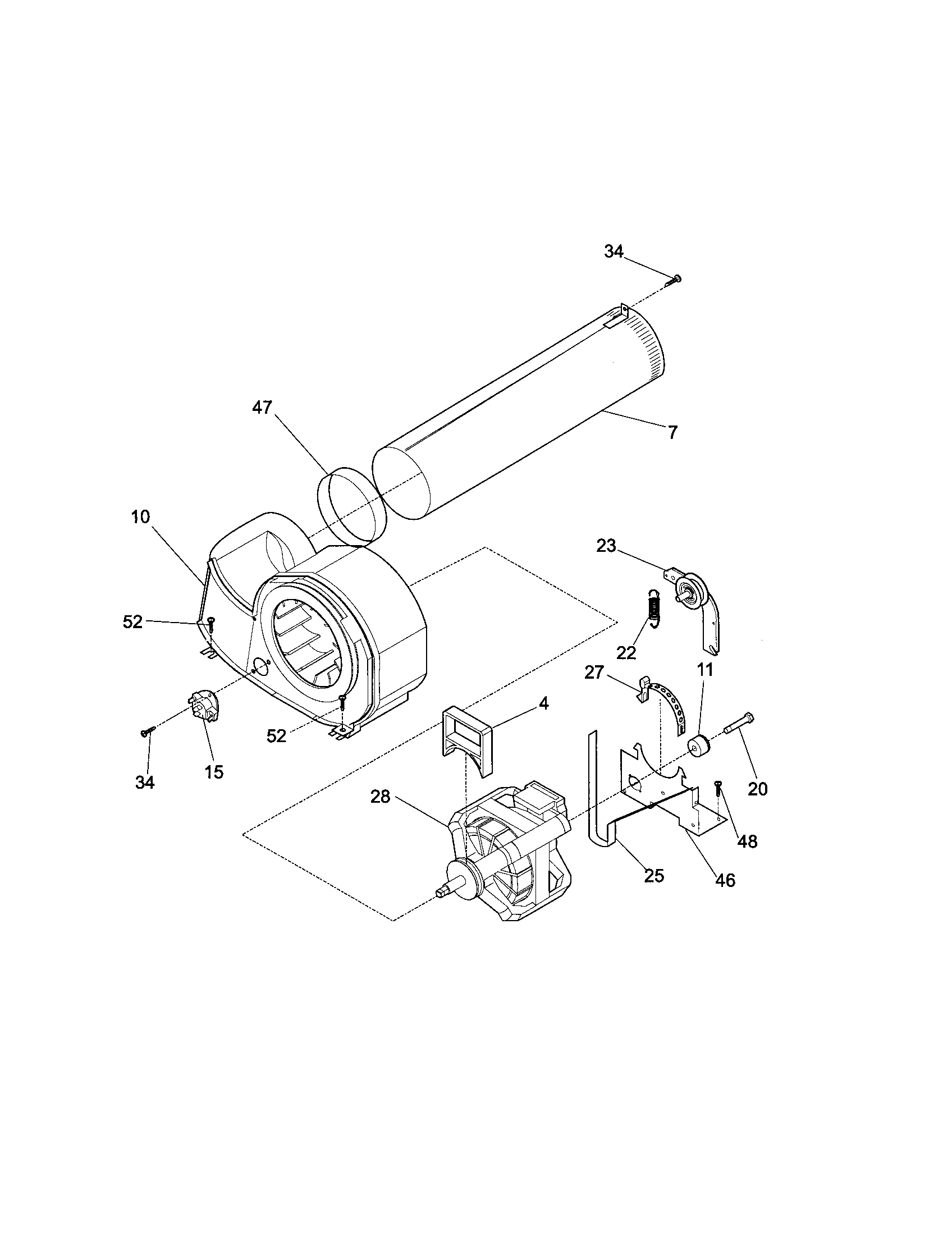

Motor and blower diagram

Belt

Part #5303283471

Replaced by #134503600

?
Manufacturer substitution
This part replaces 5303283471. Substitute parts can look different from the original.
BEST SELLER
$14.48 |
12% OFF Phone Price : $16.48
In Stock
Dryer Drum Bearing (replaces 5303281008, Q000143951, Wq143951) 131825900
#12

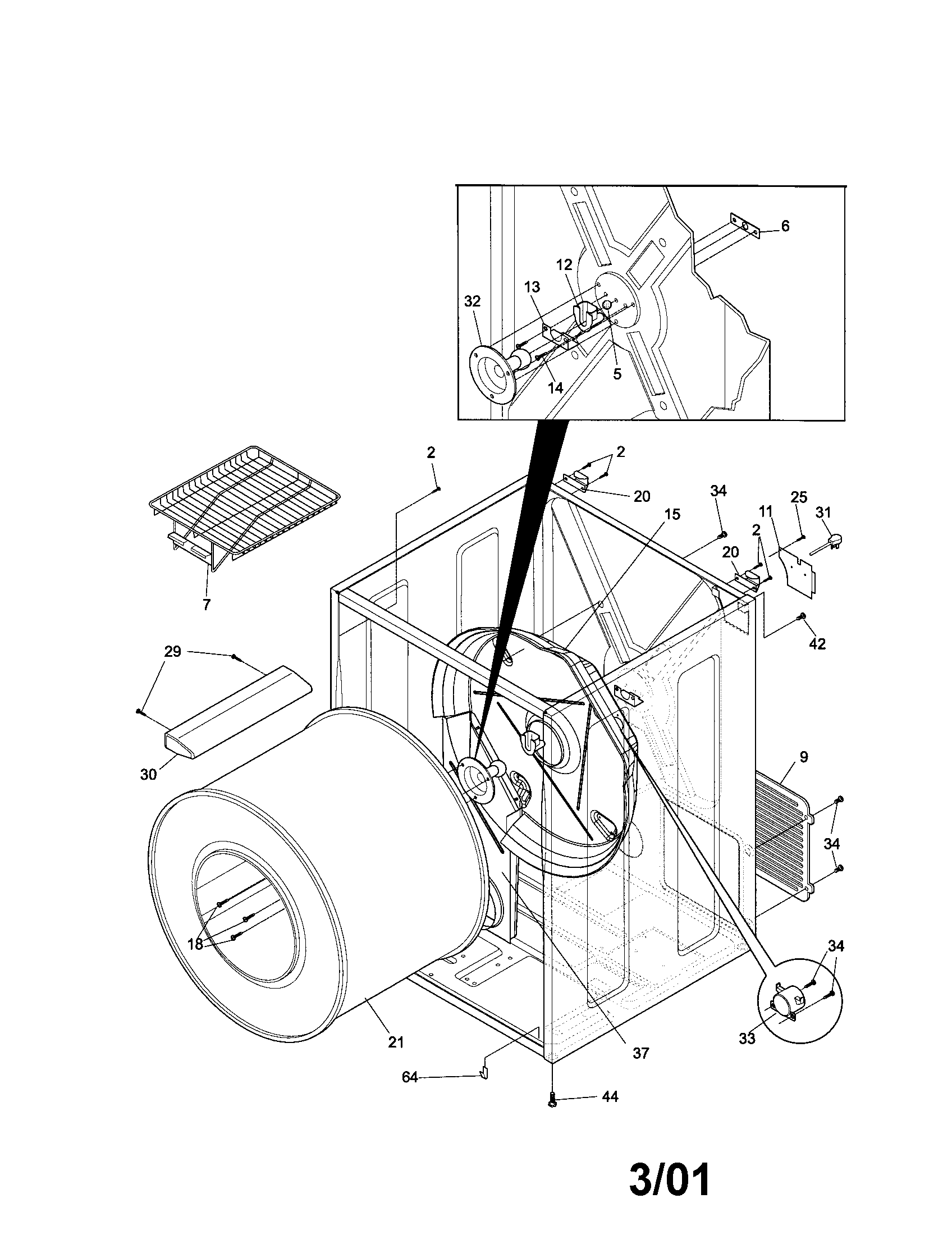

Drum diagram

Dryer drum bearing (replaces 5303281008, q000143951, wq143951)

Part #131825900

BEST SELLER
$7.44 |
12% OFF Phone Price : $8.44
In Stock
Dryer Drum Support Shaft (replaces 137088600) 131777700
#32

Drum diagram

Dryer drum support shaft (replaces 137088600)

Part #131777700

BEST SELLER
$58.75 |
9% OFF Phone Price : $64.75
In Stock
Dryer Blower Wheel And Housing Assembly (replaces 131775610) 131775600
#10

Motor and blower diagram

Dryer blower wheel and housing assembly (replaces 131775610)

Part #131775600

BEST SELLER
$96.23 |
11% OFF Phone Price : $108.23
In Stock
Dryer Drive Motor (replaces 134156500, S131560100) 131560100
#28

Motor and blower diagram

Dryer drive motor (replaces 134156500, s131560100)

Part #131560100

BEST SELLER
$161.15 |
7% OFF Phone Price : $173.15
In Stock
Bracket 131863000
#23

Motor and blower diagram

Bracket

Part #131863000

Replaced by #131863007

?
Manufacturer substitution
This part replaces 131863000. Substitute parts can look different from the original.
BEST SELLER
$46.04 |
12% OFF Phone Price : $52.04
In Stock
Dryer Drum Felt Seal, Lower 5303283286
#21

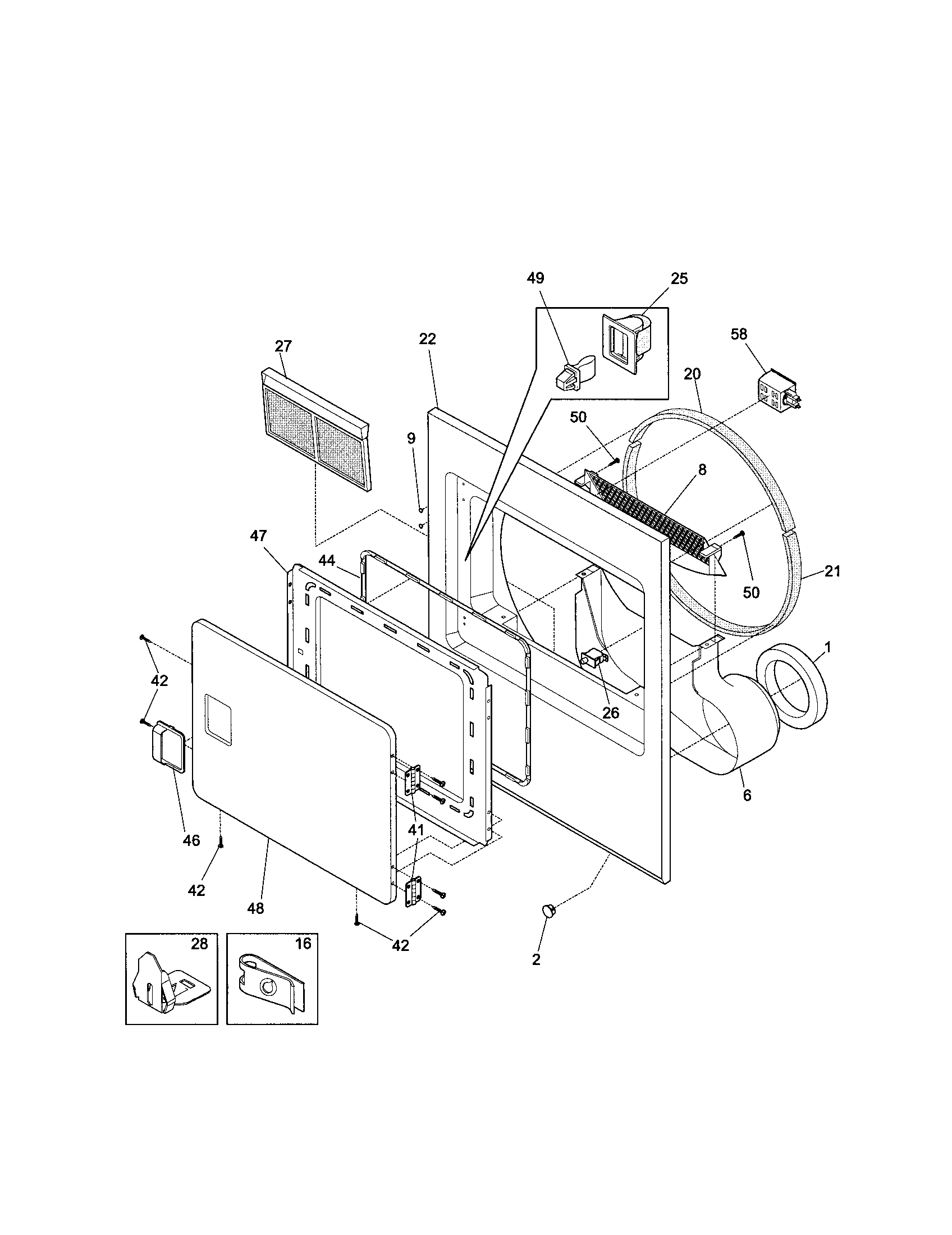

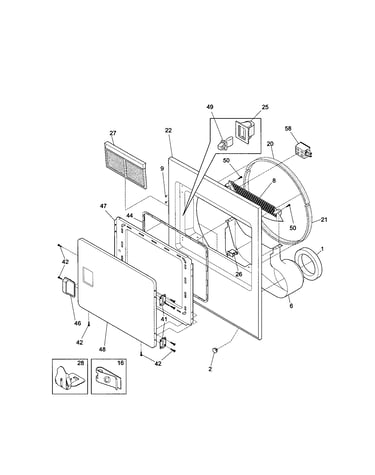

Door diagram

Dryer drum felt seal, lower

Part #5303283286

BEST SELLER
$38.52 |
13% OFF Phone Price : $44.52
In Stock
Laundry Appliance Screw, #8-18 X 31/100-in 131168200
Laundry appliance screw, #8-18 x 31/100-in

Part #131168200

BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Dryer Screw 131477000
#18

Drum diagram

Dryer screw

Part #131477000

Replaced by #131168200

?
Manufacturer substitution
This part replaces 131477000. Substitute parts can look different from the original.
BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Dryer Grounding Ball (replaces 000022224, 08015113, 22224, 3281019, Q000022224, Wq22224) 5303281019
#5

Drum diagram

Dryer grounding ball (replaces 000022224, 08015113, 22224, 3281019, q000022224, wq22224)

Part #5303281019

BEST SELLER
$19.49 |
9% OFF Phone Price : $21.49
In Stock
