Model # KSM150PSDC5 Official KitchenAid stand mixer

Here are the diagrams and repair parts for Official KitchenAid KSM150PSDC5 stand mixer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Gear, Worm W11604364
#6

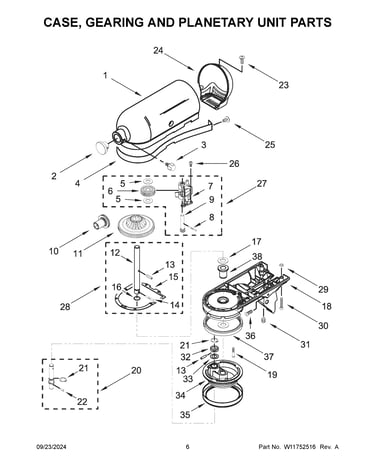

Case, gearing and planetary unit parts diagram

Gear, worm

Part #W11604364

Replaced by #WPW10112253

?
Manufacturer substitution
This part replaces W11604364. Substitute parts can look different from the original.
BEST SELLER
$14.64 |
12% OFF Phone Price : $16.64
In Stock
Stand Mixer Worm Gear Assembly 240309-2
#27

Motor and control unit parts diagram

Stand mixer worm gear assembly

Part #240309-2

Replaced by #WP240309-2

?
Manufacturer substitution
This part replaces 240309-2. Substitute parts can look different from the original.
$30.24 |
17% OFF Phone Price : $36.24
In Stock
Stand Mixer Wire Whip 9704329
#8

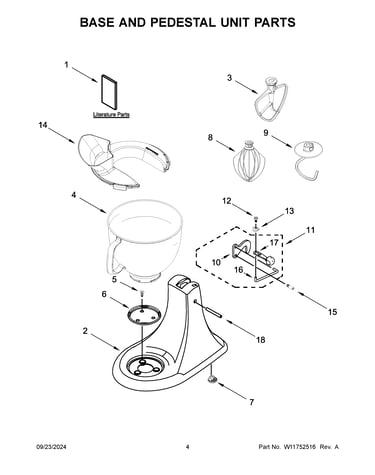

Base and pedestal unit parts diagram

Stand mixer wire whip

Part #9704329

Replaced by #WP9704329

?
Manufacturer substitution
This part replaces 9704329. Substitute parts can look different from the original.
This item is not returnable
$22.27 |
21% OFF Phone Price : $28.27
In Stock
Gear, Center Bevel Pinion W11175138
#11

Case, gearing and planetary unit parts diagram

Gear, center bevel pinion

Part #W11175138

Replaced by #W11192794

?
Manufacturer substitution
This part replaces W11175138. Substitute parts can look different from the original.
$32.85 |
15% OFF Phone Price : $38.85
In Stock
Gear, Attachment Hub W11175140
#10

Case, gearing and planetary unit parts diagram

Gear, attachment hub

Part #W11175140

Replaced by #W11192794

?
Manufacturer substitution
This part replaces W11175140. Substitute parts can look different from the original.
$32.85 |
15% OFF Phone Price : $38.85
In Stock
Pin-dowel 16910
#18

Base and pedestal unit parts diagram

Pin-dowel

Part #16910

Replaced by #WP16910

?
Manufacturer substitution
This part replaces 16910. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Pin-groove 9705444
#8

Case, gearing and planetary unit parts diagram

Pin-groove

Part #9705444

Replaced by #WP9705444

?
Manufacturer substitution
This part replaces 9705444. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Center Shaft 4160474
#28

Motor and control unit parts diagram

Center shaft

Part #4160474

$22.88
In Stock
Trim Band (black And Silver) 9706630
#2

Color variation parts diagram

Trim band (black and silver)

Part #9706630

$31.49
In Stock
Cap Screw W10191926
#6

Base and pedestal unit parts diagram

Cap screw

Part #W10191926

Replaced by #WPW10191926

?
Manufacturer substitution
This part replaces W10191926. Substitute parts can look different from the original.
This item is not returnable
$18.89 |
10% OFF Phone Price : $20.89
In Stock
