Frigidaire
Gas Cooktop

Model # FPGC3077RSA Official Frigidaire cooktop

Here are the diagrams and repair parts for Official Frigidaire FPGC3077RSA cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

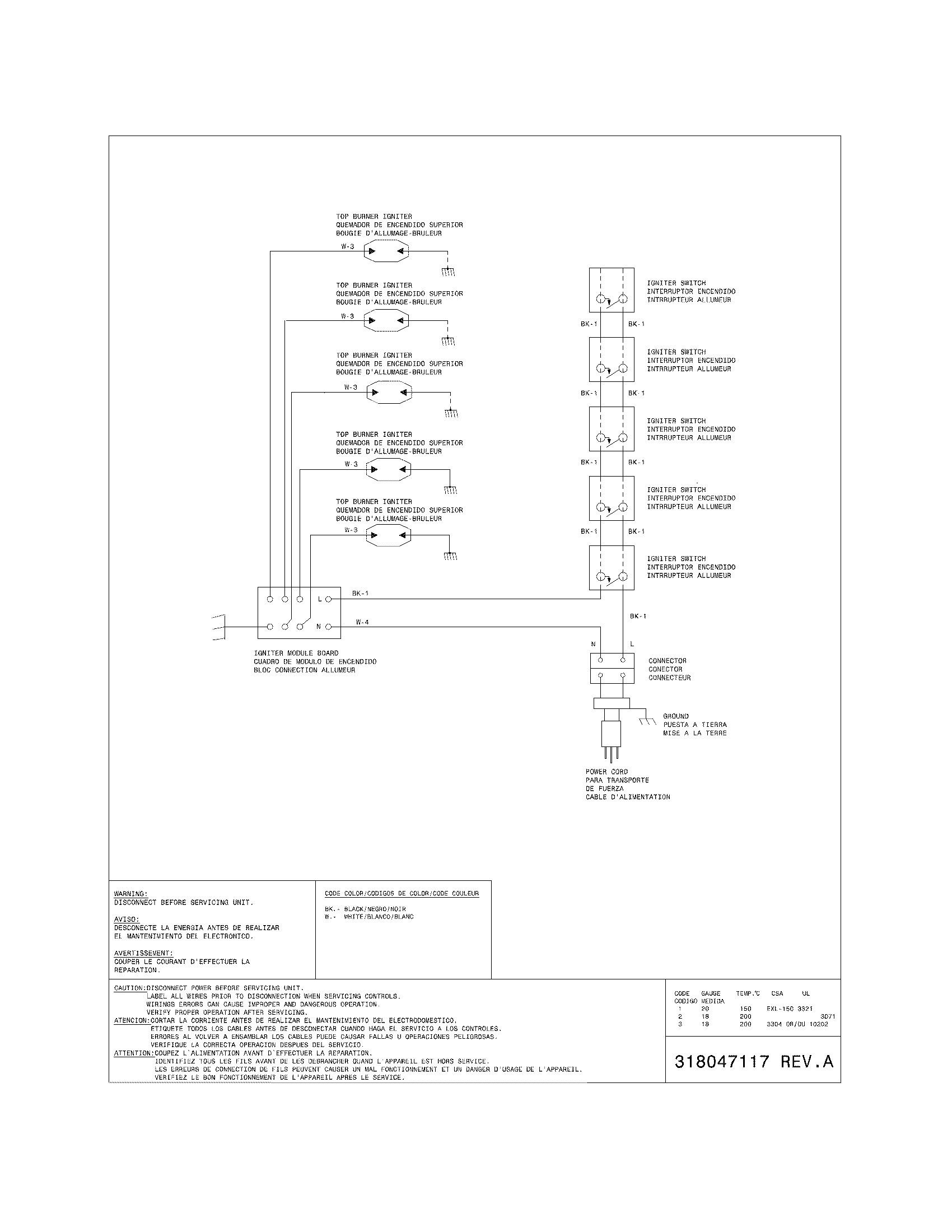

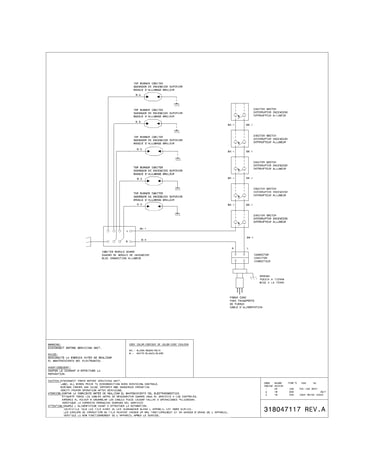

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Range Screw 5304472956
#4

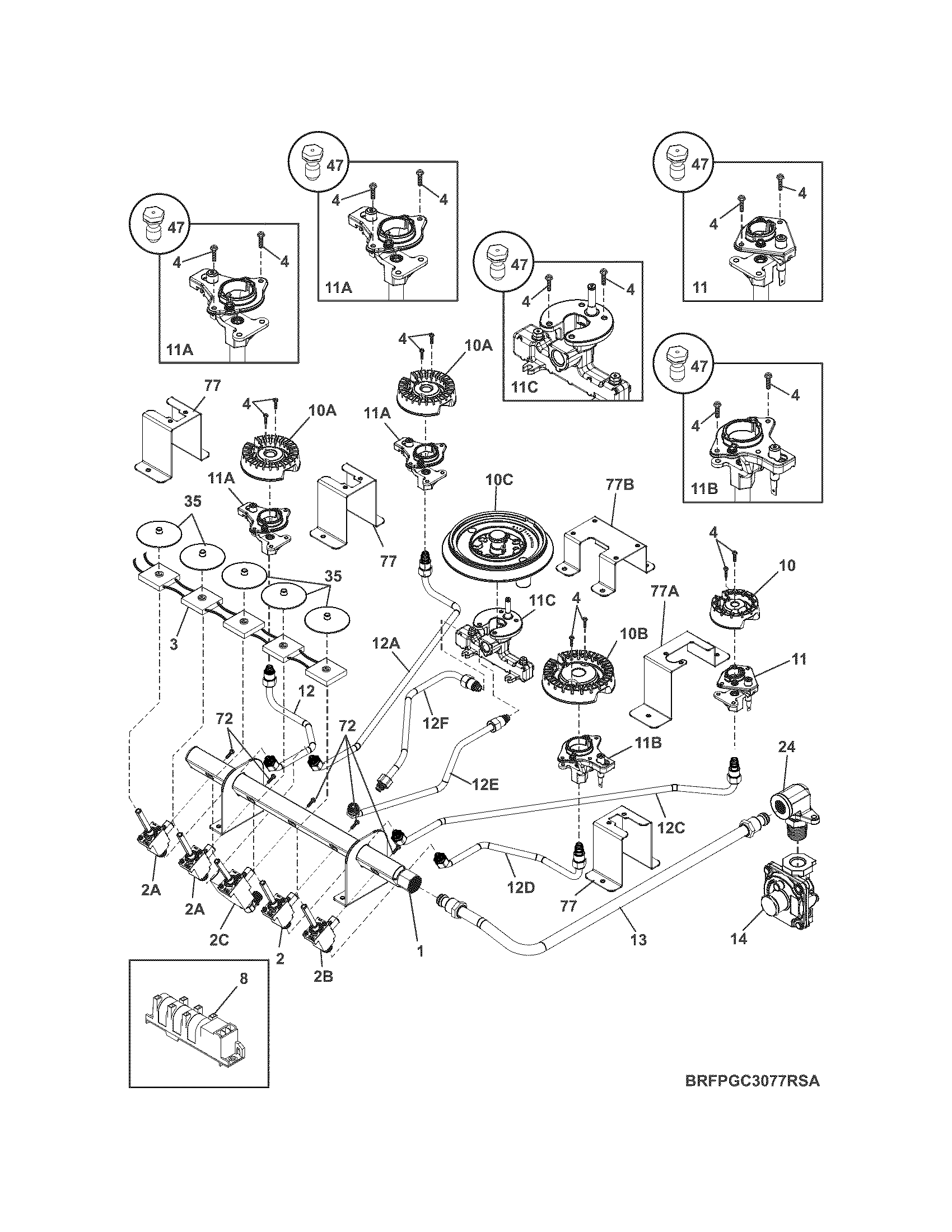

Burner diagram

Range screw

Part #5304472956

Replaced by #316240600

?
Manufacturer substitution
This part replaces 5304472956. Substitute parts can look different from the original.
BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Range Surface Burner Cap, 9,500-btu (matte Black) 316261804
#22A

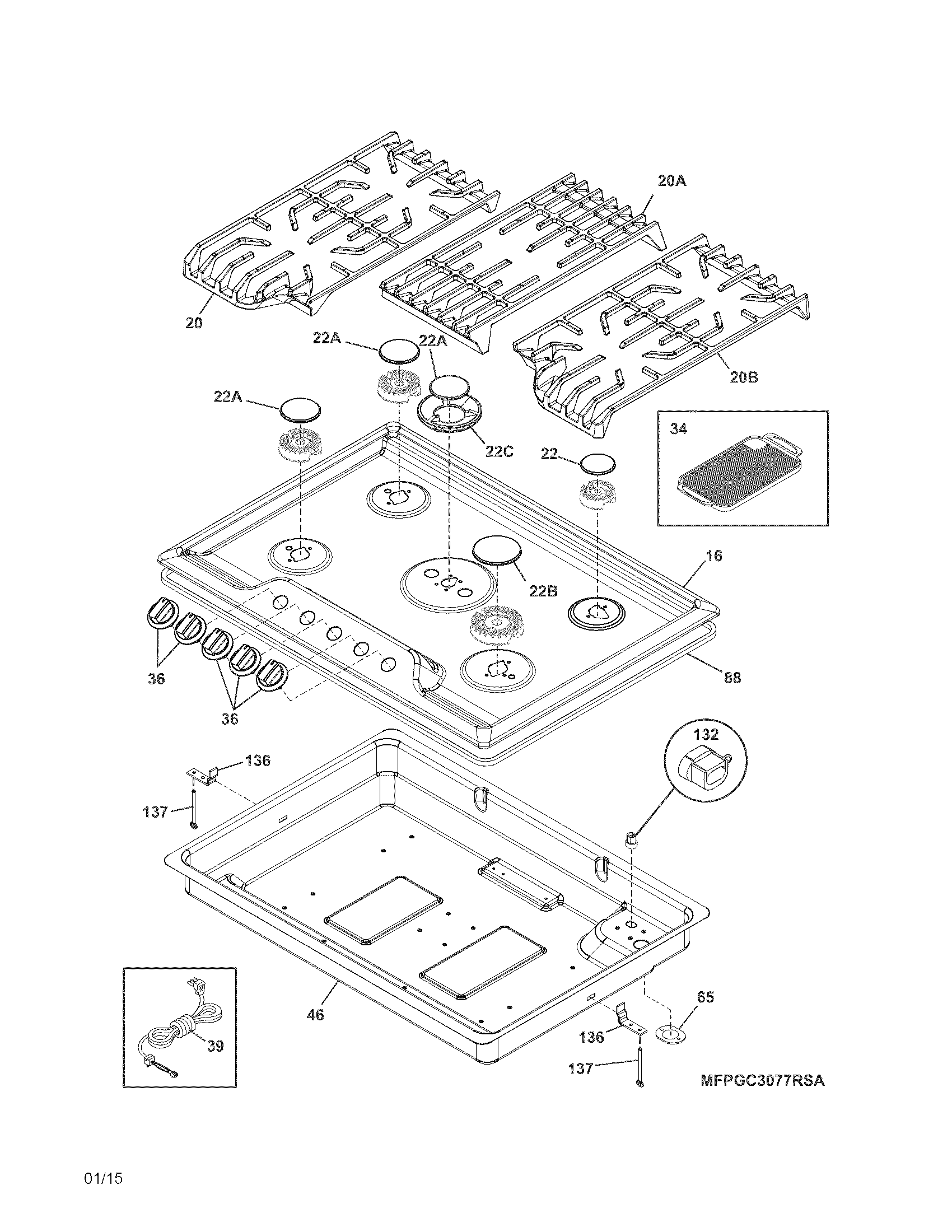

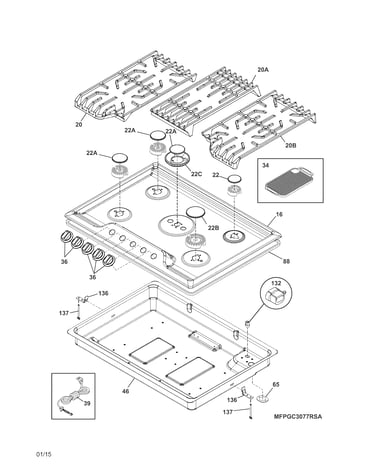

Cook top diagram

Range surface burner cap, 9,500-btu (matte black)

Part #316261804

Replaced by #5304508442

?
Manufacturer substitution
This part replaces 316261804. Substitute parts can look different from the original.
BEST SELLER
$27.10 |
18% OFF Phone Price : $33.10
In Stock
Range Spark Module 318079001
#8

Burner diagram

Range spark module

Part #318079001

Replaced by #808608804

?
Manufacturer substitution
This part replaces 318079001. Substitute parts can look different from the original.
BEST SELLER
$58.27 |
9% OFF Phone Price : $64.27
In Stock
Range Surface Burner Cap, 5,000-btu (matte Black) 316261704
#22

Cook top diagram

Range surface burner cap, 5,000-btu (matte black)

Part #316261704

Replaced by #5304508441

?
Manufacturer substitution
This part replaces 316261704. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$25.22 |
19% OFF Phone Price : $31.22
In Stock
Tappan Range Surface Burner Head (replaces 7316438600) 316438600
#10B

Burner diagram

Tappan range surface burner head (replaces 7316438600)

Part #316438600

BEST SELLER
$66.51 |
8% OFF Phone Price : $72.51
In Stock
Cooktop Igniter Switch And Harness Assembly 305595107
#3

Burner diagram

Cooktop igniter switch and harness assembly

Part #305595107

$74.15 |
7% OFF Phone Price : $80.15
In Stock
Cooktop Burner, 18,000-btu 139029400
#10C

Burner diagram

Cooktop burner, 18,000-btu

Part #139029400

Replaced by #5304532558

?
Manufacturer substitution
This part replaces 139029400. Substitute parts can look different from the original.
$102.49 |
10% OFF Phone Price : $114.49
In Stock
Cooktop Knob Grommet 807164301
#35

Burner diagram

Cooktop knob grommet

Part #807164301

$16.06
In Stock
Cooktop Burner Igniter And Orifice Holder, 5,000-btu 5304498786
#11

Burner diagram

Cooktop burner igniter and orifice holder, 5,000-btu

Part #5304498786

$61.08 |
9% OFF Phone Price : $67.08
In Stock
Cooktop Igniter Wire Harness (replaces 318199763, 7318199780) 318199780
#NI

Burner diagram

Cooktop igniter wire harness (replaces 318199763, 7318199780)

Part #318199780

$58.50 |
9% OFF Phone Price : $64.50
In Stock
