Whirlpool
Electric Range

Model # RS630PXBH0 Official Whirlpool 30" electric set-in continuous-cleaning range

Here are the diagrams and repair parts for Official Whirlpool RS630PXBH0 30" electric set-in continuous-cleaning range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

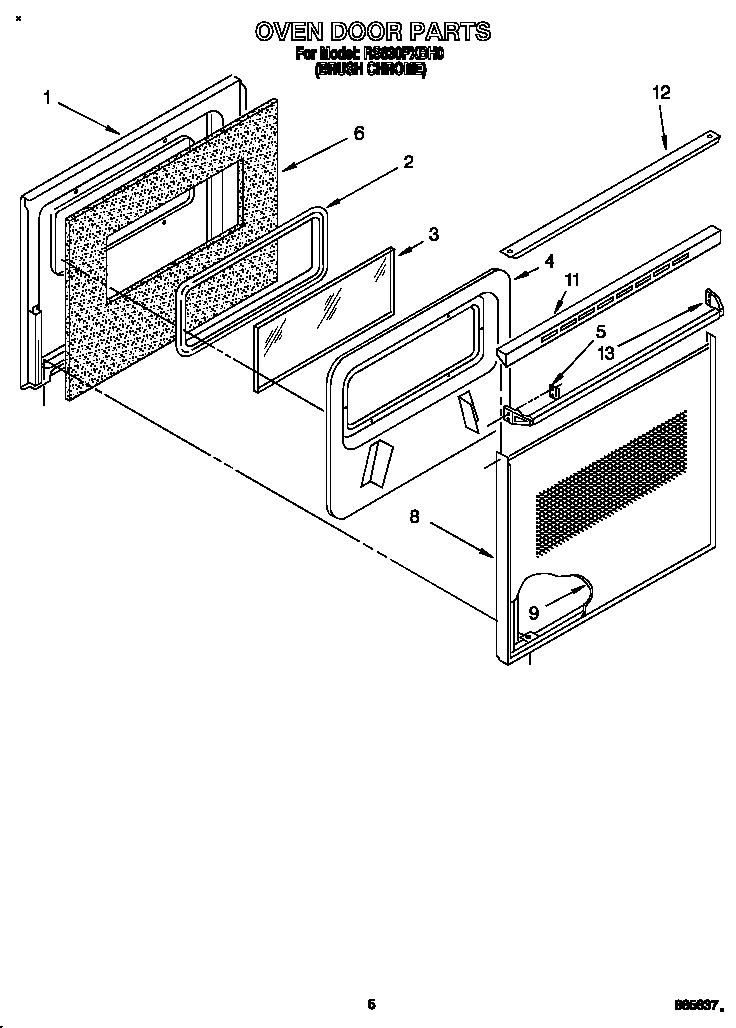

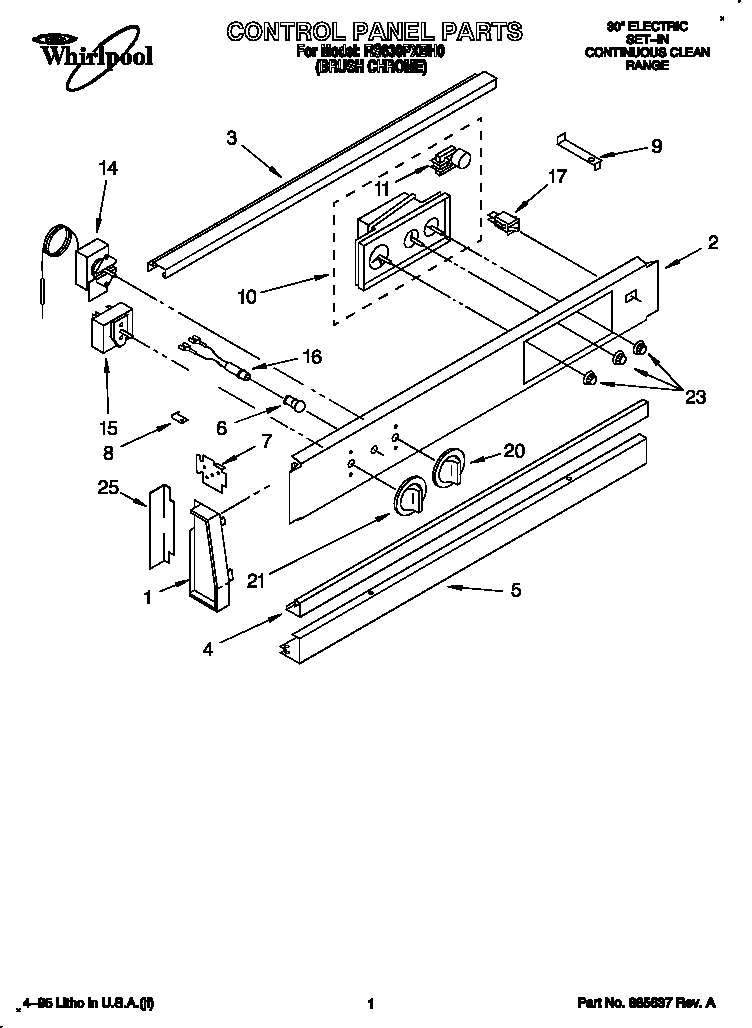

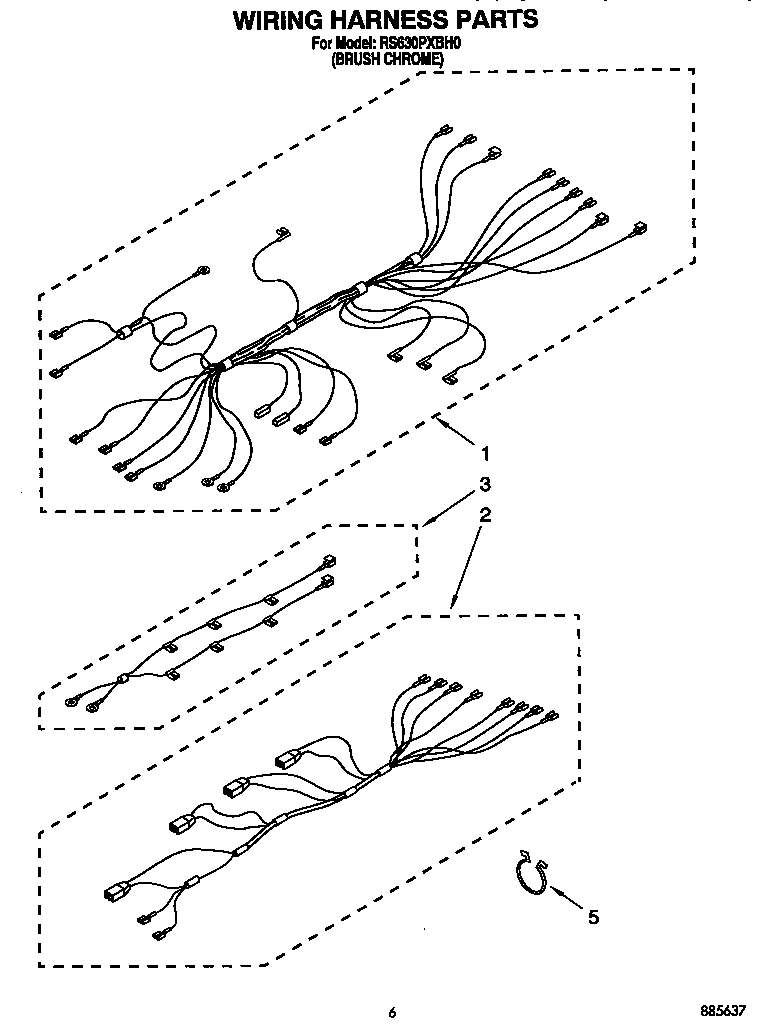

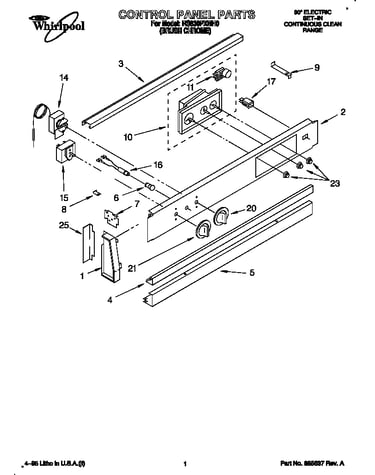

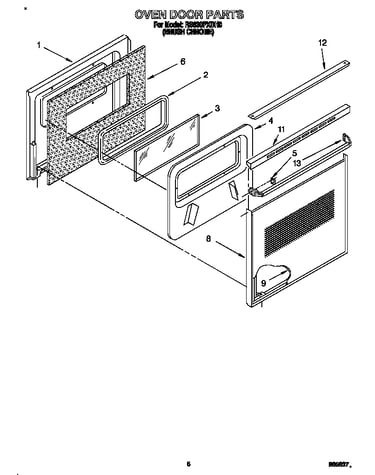

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 132 parts  |
Light Bulb 311255
#29

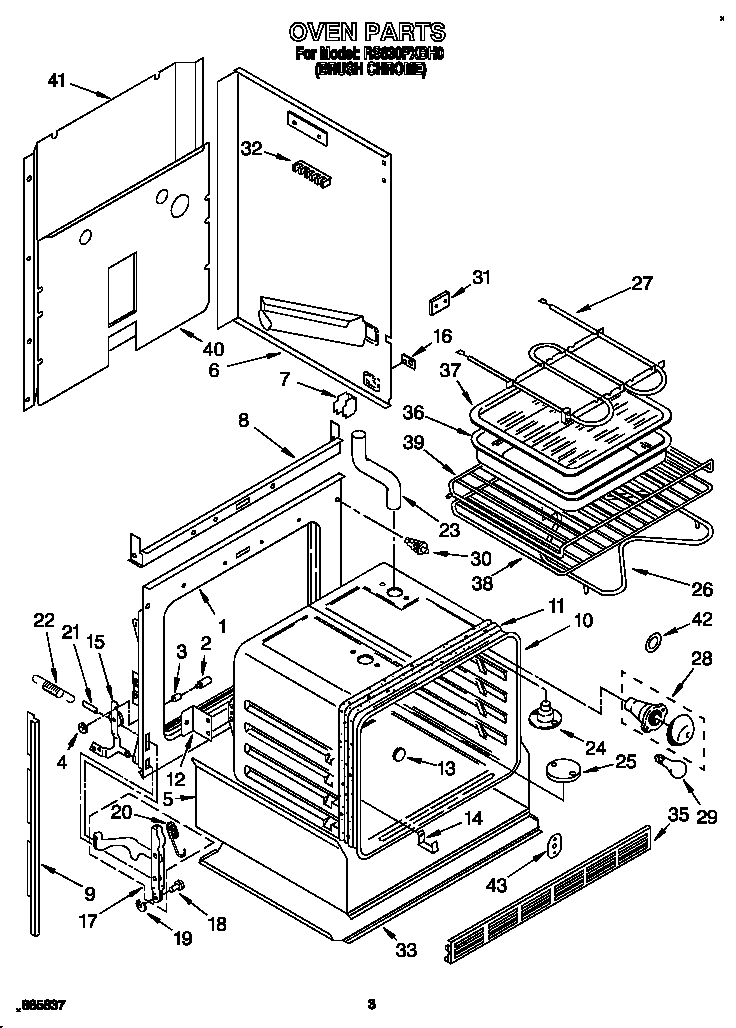

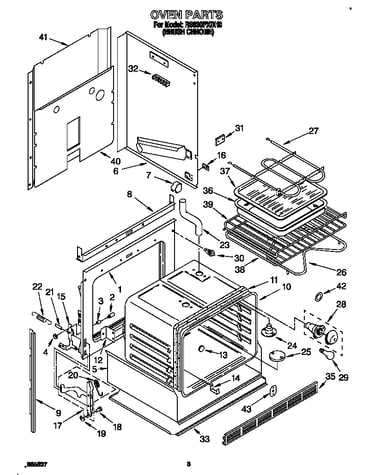

Oven diagram

Light bulb

Part #311255

Replaced by #40A15

?
Manufacturer substitution
This part replaces 311255. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Bake Element 661170
#26

Oven diagram

Bake element

Part #661170

Replaced by #WP308180

?
Manufacturer substitution
This part replaces 661170. Substitute parts can look different from the original.
BEST SELLER
$44.81 |
12% OFF Phone Price : $50.81
In Stock
Screw 3148107
#40A

Oven diagram

Screw

Part #3148107

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 3148107. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 313638
Screw

Part #313638

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 313638. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Drip Bowl 3150246
#19A

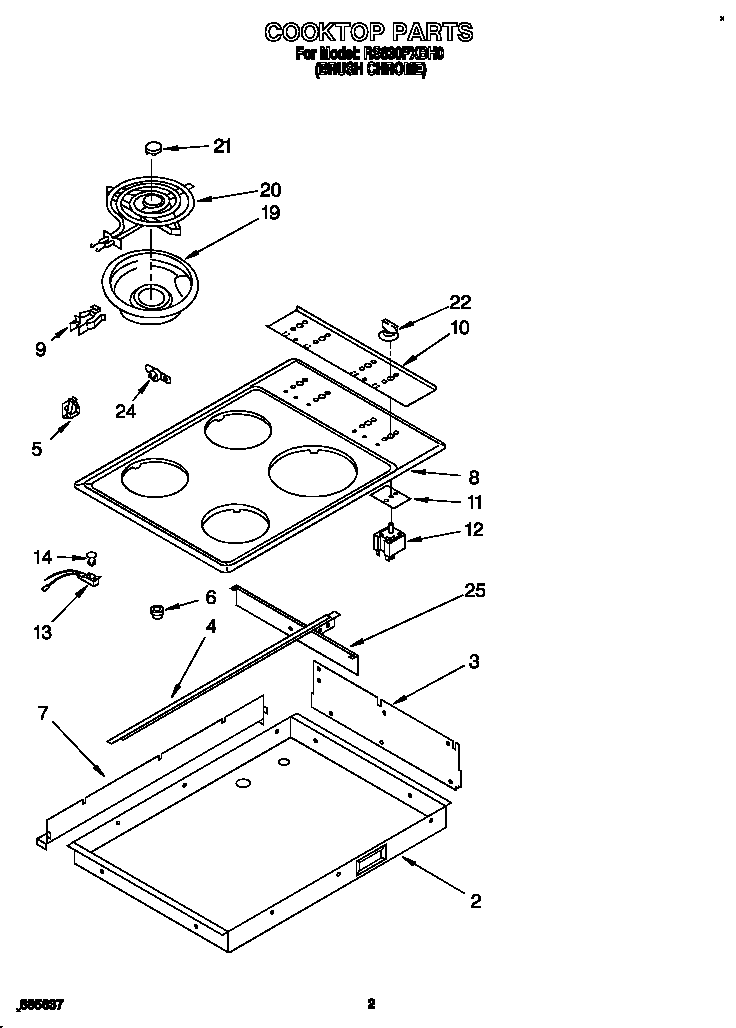

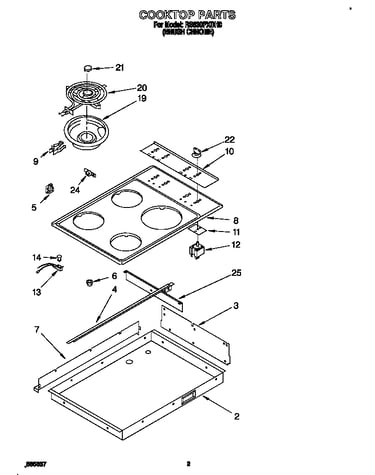

Cooktop diagram

Drip bowl

Part #3150246

Replaced by #W10196406RW

?
Manufacturer substitution
This part replaces 3150246. Substitute parts can look different from the original.
$12.95 |
13% OFF Phone Price : $14.95
In Stock
Range Broil Element 660579
#27

Oven diagram

Range broil element

Part #660579

Replaced by #WP660579

?
Manufacturer substitution
This part replaces 660579. Substitute parts can look different from the original.
$67.38 |
8% OFF Phone Price : $73.38
In Stock
Drip Bowl 3150247
#19B

Cooktop diagram

Drip bowl

Part #3150247

Replaced by #W10196405RW

?
Manufacturer substitution
This part replaces 3150247. Substitute parts can look different from the original.
This item is not returnable
$10.52 |
16% OFF Phone Price : $12.52
In Stock
Terminal Block 258076
#32

Oven diagram

Terminal block

Part #258076

Replaced by #WP8203546

?
Manufacturer substitution
This part replaces 258076. Substitute parts can look different from the original.
This item is not returnable
$16.75 |
11% OFF Phone Price : $18.75
In Stock
Screw 311932
#9A

Cooktop diagram

Screw

Part #311932

Replaced by #WP313808

?
Manufacturer substitution
This part replaces 311932. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Nut 112432
#32A

Oven diagram

Nut

Part #112432

Replaced by #WP112432

?
Manufacturer substitution
This part replaces 112432. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
