Craftsman
Rolling Tool Cart

Model # 706136330 Official Craftsman tool chest

Here are the diagrams and repair parts for Official Craftsman 706136330 tool chest, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |

Craftsman Drawer,2 18194-DR9
#18

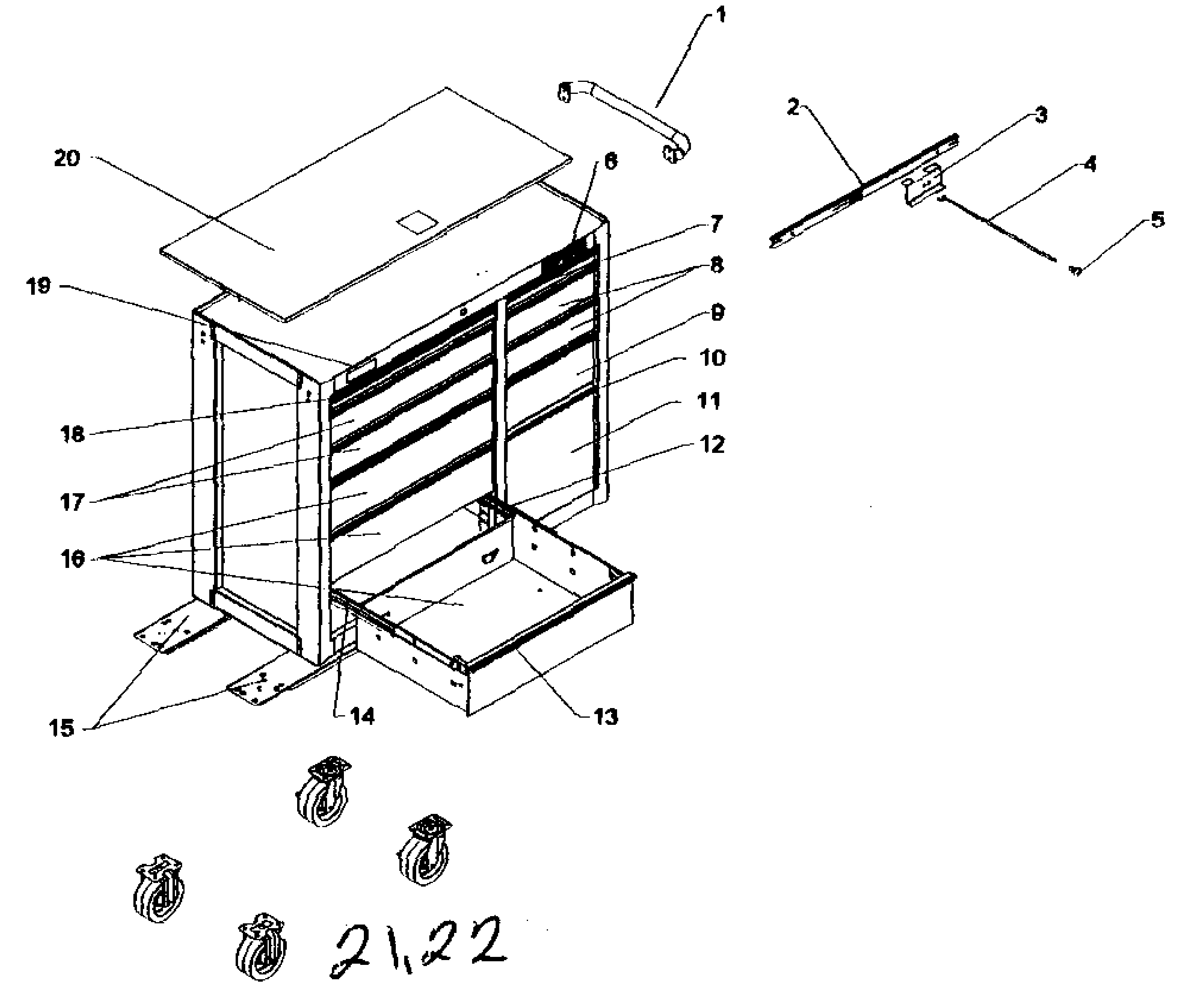

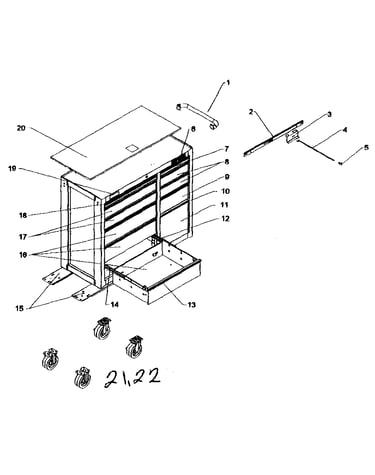

Tool chest diagram

Craftsman drawer,2

Part #18194-DR9

The manufacturer no longer makes this part, and there's no substitute part

Handle 13859A2-DR9
#1

Tool chest diagram

Handle

Part #13859A2-DR9

The manufacturer no longer makes this part, and there's no substitute part

Channel 15606A4-DR9
#15

Tool chest diagram

Channel

Part #15606A4-DR9

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Drawer,6 1003172-DR9
#9

Tool chest diagram

Craftsman drawer,6

Part #1003172-DR9

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Drawer,6 18195A1-DR9
#16

Tool chest diagram

Craftsman drawer,6

Part #18195A1-DR9

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Hardware Bag A17086
#NI

Tool chest diagram

Tool chest hardware bag

Part #A17086

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Decal M15228A1
#19

Tool chest diagram

Tool chest decal

Part #M15228A1

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Drawer,2 18194A4-DR9
#7

Tool chest diagram

Craftsman drawer,2

Part #18194A4-DR9

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Hardware Bag Assembly A9331
#21

Tool chest diagram

Tool chest hardware bag assembly

Part #A9331

The manufacturer no longer makes this part, and there's no substitute part

Drawer,12" 18195A10-DR9
Drawer,12"

Part #18195A10-DR9

The manufacturer no longer makes this part, and there's no substitute part
