Model # WD24QB Official Thermador warming drawer

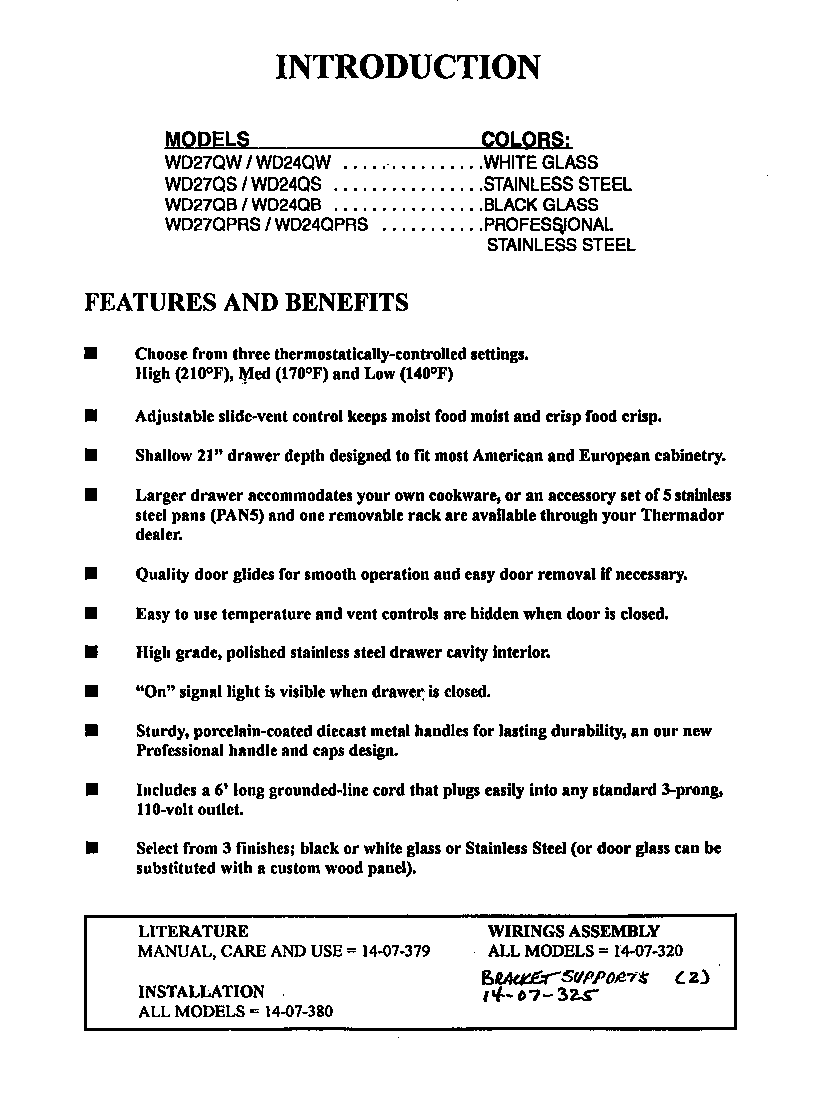

Here are the diagrams and repair parts for Official Thermador WD24QB warming drawer, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
WD24QB Warming Drawer
#17
Drawer panel support assembly (wd27qb) (wd27qprs) (wd27qs) (wd27qw) diagram
Support
Part #14-07-364-01
Replaced by #00487030
?
Manufacturer substitution
This part replaces 14-07-364-01. Substitute parts can look different from the original.
$314.71 |
$12.00 OFF Phone Price : $326.71
In Stock
#5
Control diagram
Pilot light
Part #14-07-308
The manufacturer no longer makes this part, and there's no substitute part
Moist/dry plate assembly
Part #14-07-330
The manufacturer no longer makes this part, and there's no substitute part
Lens, red
Part #14-29-444
The manufacturer no longer makes this part, and there's no substitute part
Glass support assy, stainless
Part #14-07-334-03
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Washer nylon (2)
Part #14-92-0741
The manufacturer no longer makes this part, and there's no substitute part
#12

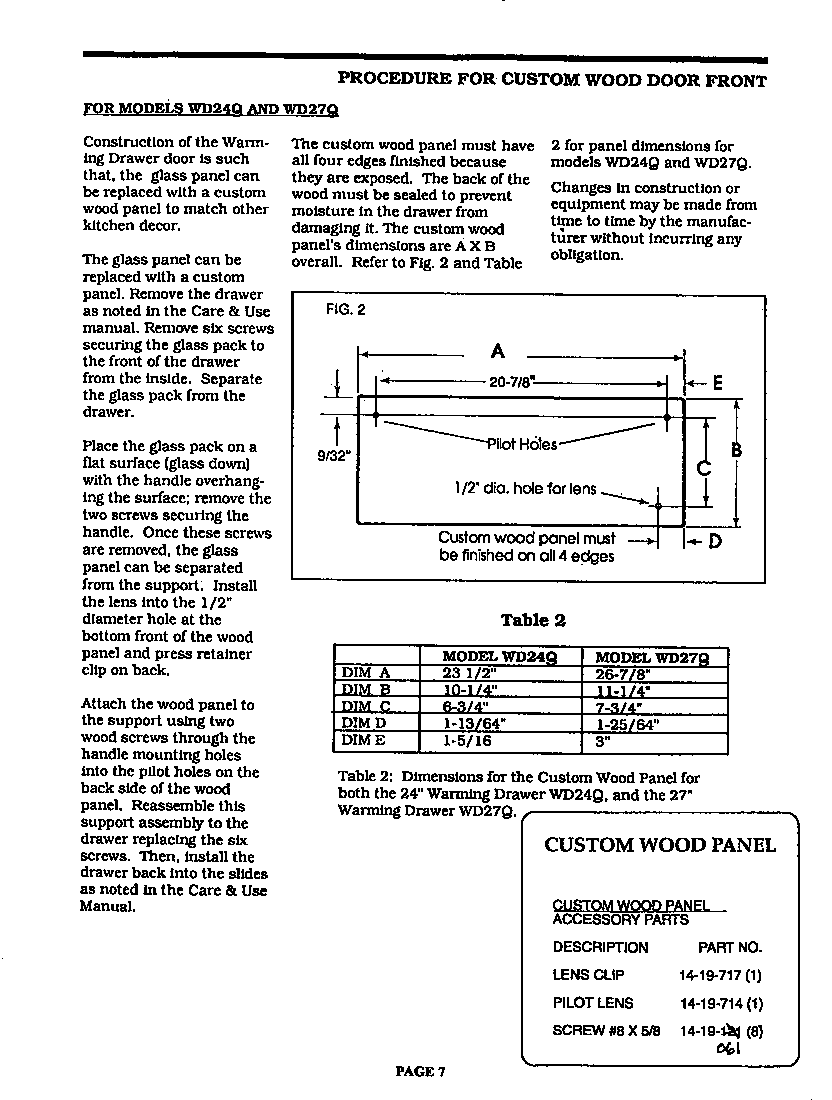

Drawer panel support assembly (wd27qb) (wd27qprs) (wd27qs) (wd27qw) diagram
Handle (white)
Part #14-31-204-05
The manufacturer no longer makes this part, and there's no substitute part
#26

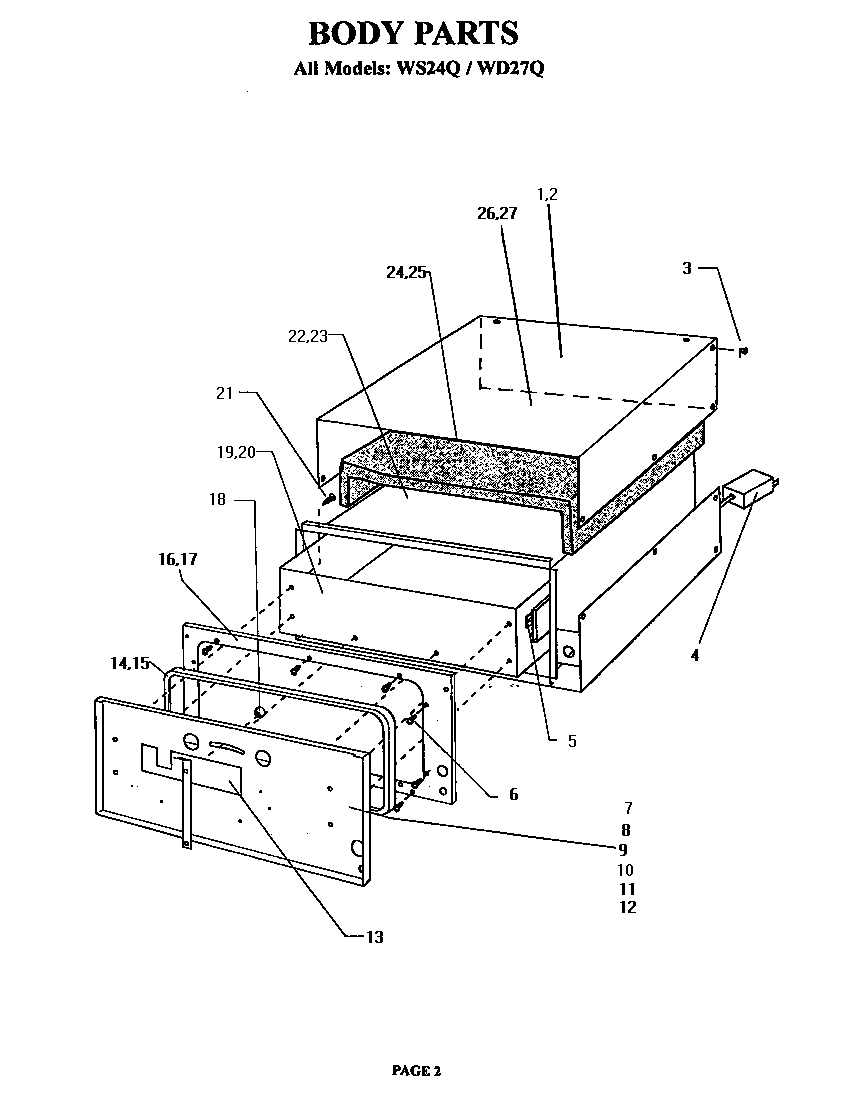

Body diagram
Wrap kit (wd27q)
Part #35-00-597
The manufacturer no longer makes this part, and there's no substitute part
#13
Drawer panel support assembly (wd27qb) (wd27qprs) (wd27qs) (wd27qw) diagram
White glass support assembly
Part #14-07-364-02
The manufacturer no longer makes this part, and there's no substitute part
#11
Drawer slides and rails (detail) diagram
Drawer mounting rails, left and right
Part #14-07-393
The manufacturer no longer makes this part, and there's no substitute part
