Model # 3919 Official Craftsman winch

Here are the diagrams and repair parts for Official Craftsman 3919 winch, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

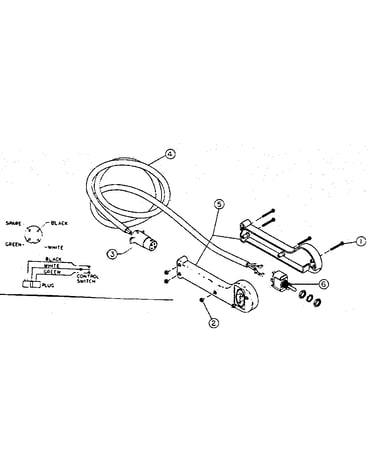

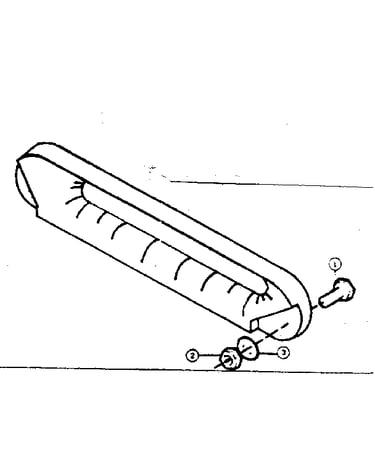

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 112 parts  |

7902 346040
#2B

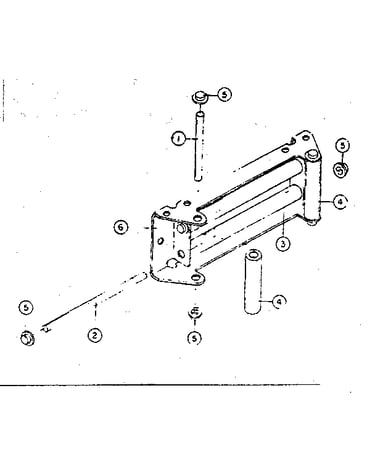

Roller type fairlead diagram

7902

Part #346040

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw 414842
#37

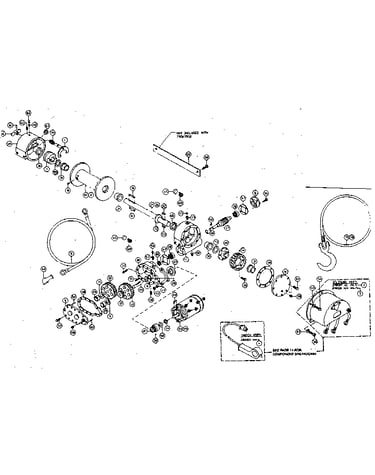

Unit diagram

Cap screw

Part #414842

The manufacturer no longer makes this part, and there's no substitute part

Bushing 412040
#31

Unit diagram

Bushing

Part #412040

The manufacturer no longer makes this part, and there's no substitute part

Key 342075
#22

Unit diagram

Key

Part #342075

The manufacturer no longer makes this part, and there's no substitute part

Bracket 408035
#7

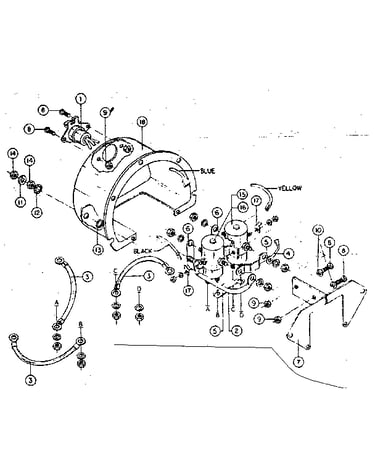

Solenoid assembly diagram

Bracket

Part #408035

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 418164
#12

Solenoid assembly diagram

Lock washer

Part #418164

The manufacturer no longer makes this part, and there's no substitute part

Roler Fr 439001
#6A

Roller type fairlead diagram

Roler fr

Part #439001

The manufacturer no longer makes this part, and there's no substitute part

Wire Assembly 289077
#3

Solenoid assembly diagram

Wire assembly

Part #289077

The manufacturer no longer makes this part, and there's no substitute part

Fitting Rlf 456008
#53

Unit diagram

Fitting rlf

Part #456008

The manufacturer no longer makes this part, and there's no substitute part

Shifter Assembly 276028
#1

Unit diagram

Shifter assembly

Part #276028

The manufacturer no longer makes this part, and there's no substitute part
