Model # 725REZ Official Ryobi trimmer

Here are the diagrams and repair parts for Official Ryobi 725REZ trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 102 parts |

#46

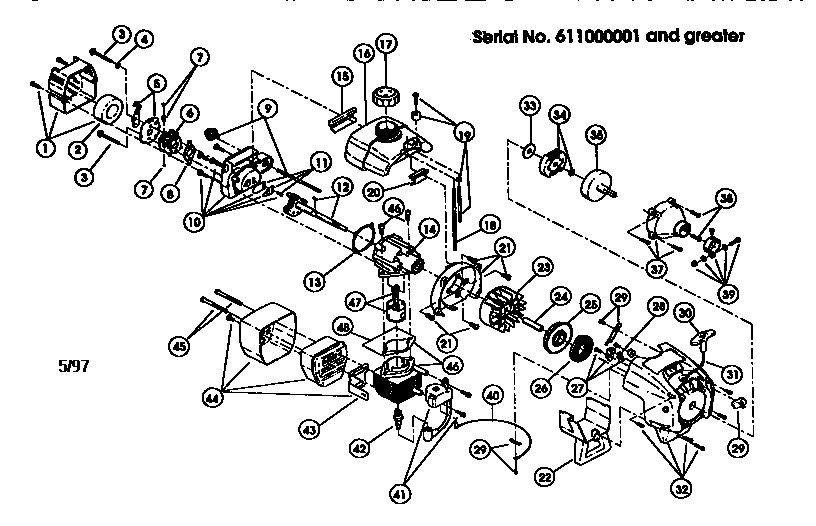

Engine diagram

Cylinder

Part #181622

The manufacturer no longer makes this part, and there's no substitute part

#32

Engine diagram

Housing assembly

Part #181443

The manufacturer no longer makes this part, and there's no substitute part

#33

Engine diagram

Washer

Part #181074

The manufacturer no longer makes this part, and there's no substitute part

#16

Engine diagram

Fuel tank

Part #181438

The manufacturer no longer makes this part, and there's no substitute part

#33

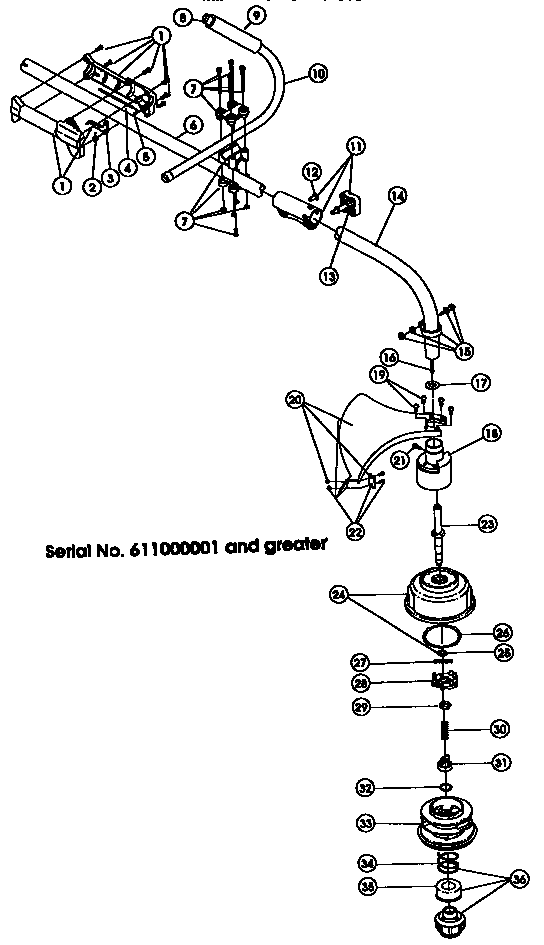

Cutting head diagram

Cartridge

Part #181464

The manufacturer no longer makes this part, and there's no substitute part

#40

Engine diagram

Lead wire

Part #180036

The manufacturer no longer makes this part, and there's no substitute part

#17

Cutting head diagram

Pal nut

Part #181560

The manufacturer no longer makes this part, and there's no substitute part

#13

Engine diagram

Gasket

Part #612115

The manufacturer no longer makes this part, and there's no substitute part

Engine diagram

Washer

Part #180352

The manufacturer no longer makes this part, and there's no substitute part

#20

Cutting head diagram

Shield

Part #683274

The manufacturer no longer makes this part, and there's no substitute part
