Model # RC10B-PB/P73547-1M Official Amana radarange microwave with magna guard & ceramic magnetron - rc-10b

Here are the diagrams and repair parts for Official Amana RC10B-PB-P73547-1M radarange microwave with magna guard & ceramic magnetron - rc-10b, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 222 parts  |
Screw M0216515
#10

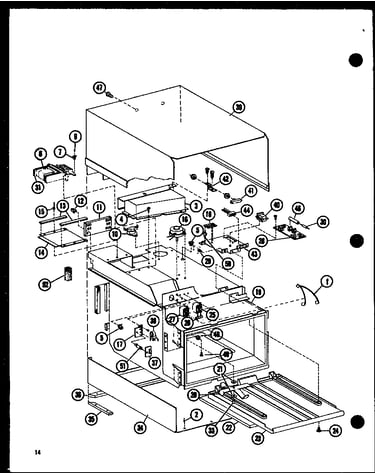

Cabinet parts diagram

Screw

Part #M0216515

Replaced by #WP489349

?
Manufacturer substitution
This part replaces M0216515. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Screw M0234029
#10

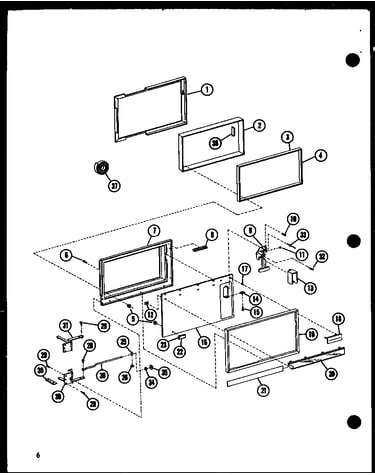

Door diagram

Screw

Part #M0234029

Replaced by #WPW10068250

?
Manufacturer substitution
This part replaces M0234029. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Screw M0234030
#32

Door diagram

Screw

Part #M0234030

Replaced by #M0234030

?
Manufacturer substitution
This part replaces M0234030. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
Head Screw M0211217
#49

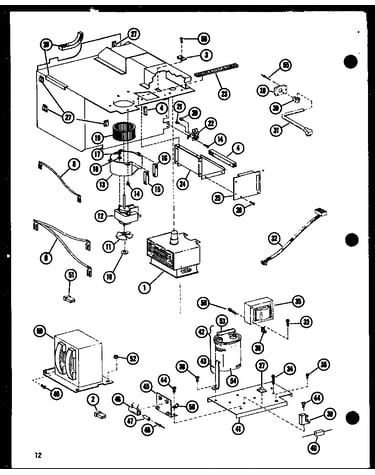

Transformer and magnetron diagram

Head screw

Part #M0211217

Replaced by #WP489464

?
Manufacturer substitution
This part replaces M0211217. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Screw M0216703
#47

Cabinet parts diagram

Screw

Part #M0216703

Replaced by #M0216703

?
Manufacturer substitution
This part replaces M0216703. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Nut M0282005
#40

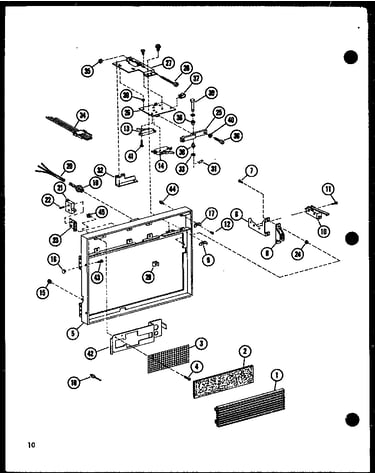

Grille and lock diagram

Nut

Part #M0282005

Replaced by #M0282005

?
Manufacturer substitution
This part replaces M0282005. Substitute parts can look different from the original.
This item is not returnable
$5.99
In Stock
Grommet, Support, Circuit Board B5675501
Grommet, support, circuit board

Part #B5675501

The manufacturer no longer makes this part, and there's no substitute part

Air Duct Weldment D7262902
#3

Cabinet parts diagram

Air duct weldment

Part #D7262902

The manufacturer no longer makes this part, and there's no substitute part

Bushing A3185001
#28

Door diagram

Bushing

Part #A3185001

The manufacturer no longer makes this part, and there's no substitute part

Wiring Harness C8732301
#28

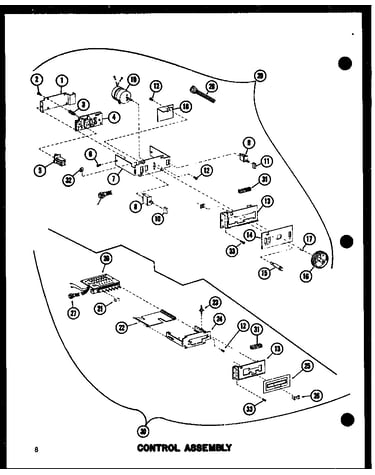

Control assembly diagram

Wiring harness

Part #C8732301

The manufacturer no longer makes this part, and there's no substitute part
