Model # 21-2865A Official DP ergometer treadmill

Here are the diagrams and repair parts for Official DP 21-2865A ergometer treadmill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 82 parts  |
Washer 26005600
#152

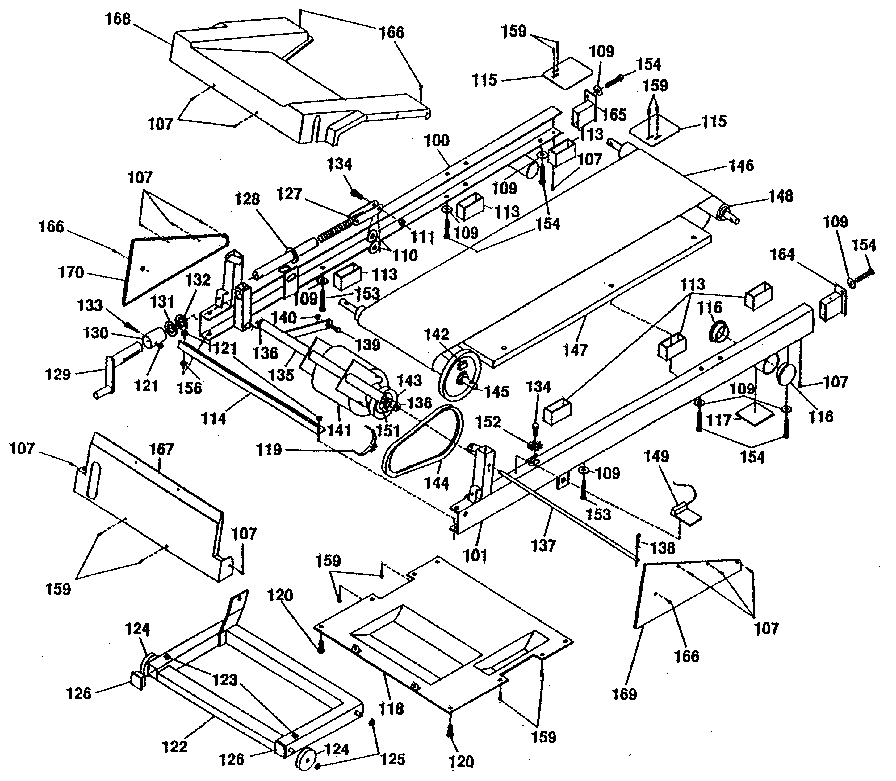

Motor belt and walking assembly diagram

Washer

Part #26005600

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 04035100
#6

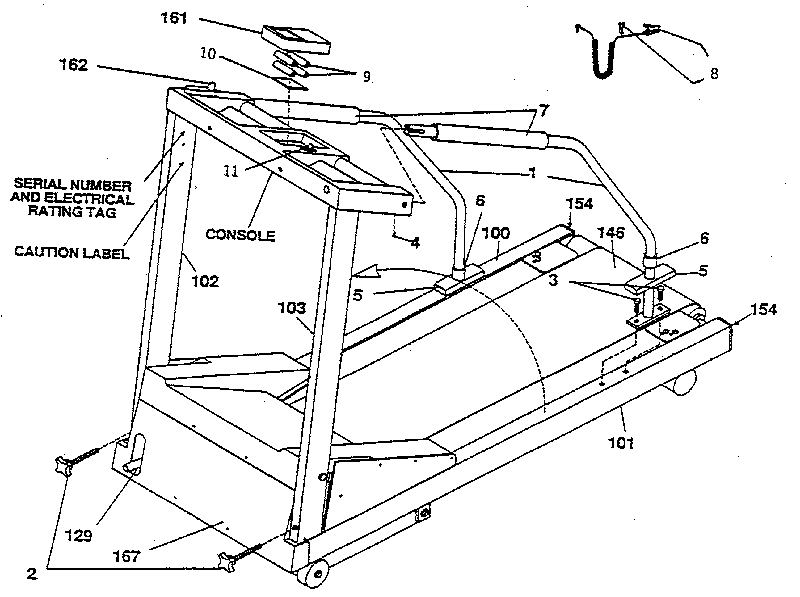

Unit parts diagram

Sleeve

Part #04035100

The manufacturer no longer makes this part, and there's no substitute part

Handlebar 39268600
#105

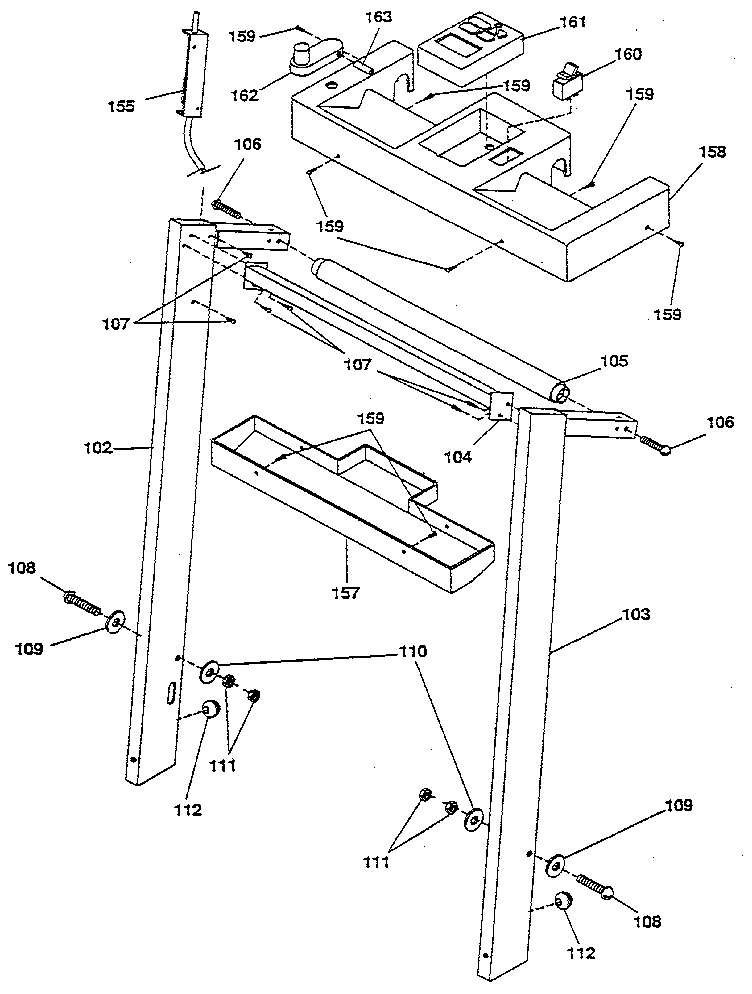

Control panel diagram

Handlebar

Part #39268600

The manufacturer no longer makes this part, and there's no substitute part

Red Key Cvr 29306300
#11

Unit parts diagram

Red key cvr

Part #29306300

The manufacturer no longer makes this part, and there's no substitute part

Battry Cover 09086000
#10

Unit parts diagram

Battry cover

Part #09086000

The manufacturer no longer makes this part, and there's no substitute part

Ln Pwr Cord 39166300

#NI

All parts diagram

Ln pwr cord

Part #39166300

The manufacturer no longer makes this part, and there's no substitute part

Rt Cover 09125700
#170

Motor belt and walking assembly diagram

Rt cover

Part #09125700

The manufacturer no longer makes this part, and there's no substitute part

Bolt 22005900
#153

Motor belt and walking assembly diagram

Bolt

Part #22005900

The manufacturer no longer makes this part, and there's no substitute part

Speed Sensor 37011100
#149

Motor belt and walking assembly diagram

Speed sensor

Part #37011100

The manufacturer no longer makes this part, and there's no substitute part

Upright Lh 38224516
Upright lh

Part #38224516

The manufacturer no longer makes this part, and there's no substitute part
