Rheem
Air Handler

Model # RHTZ Official Rheem air handler

Here are the diagrams and repair parts for Official Rheem RHTZ air handler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

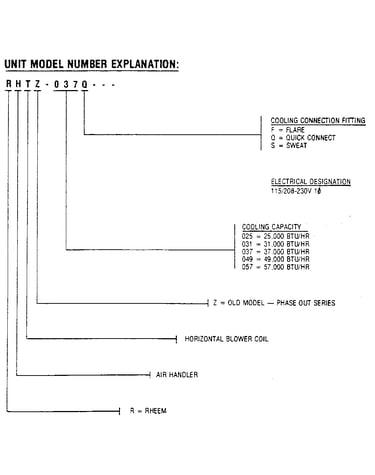

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |
Bearing Cushion 56-17414-01
#4

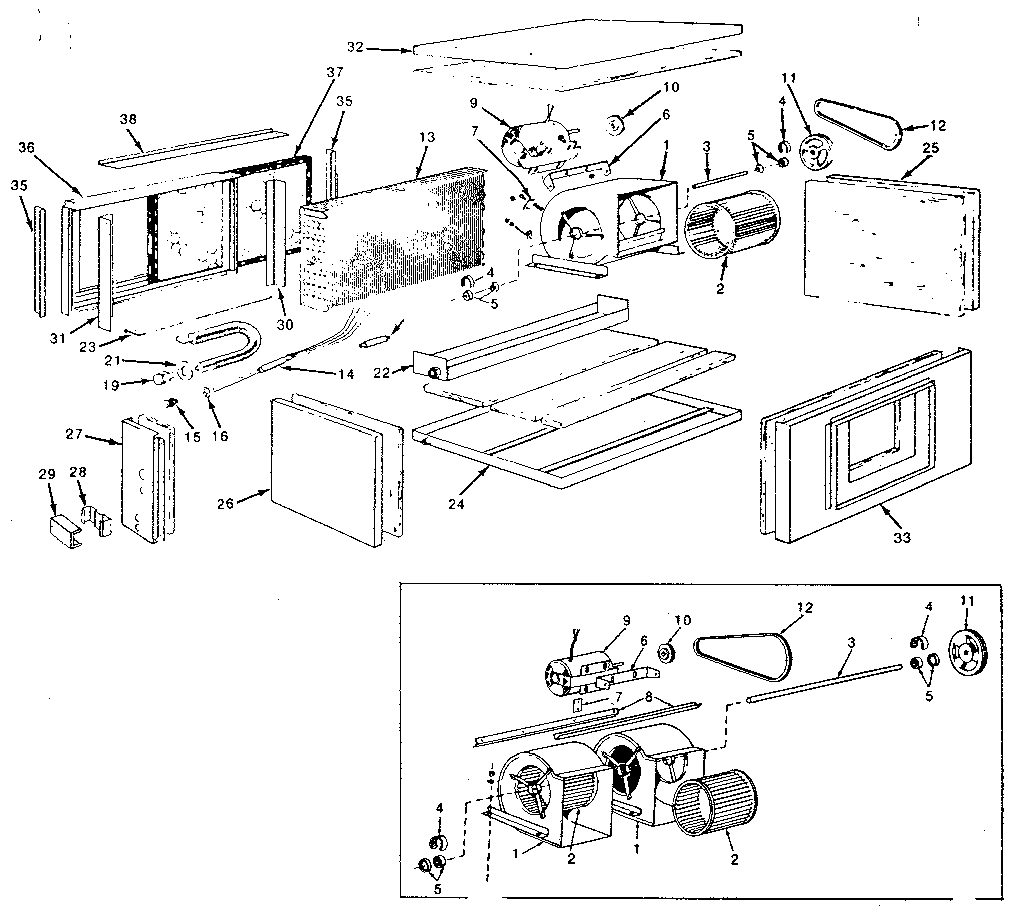

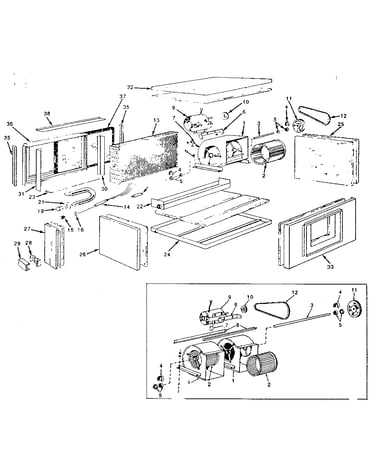

Functional replacement parts diagram

Bearing cushion

Part #56-17414-01

$7.83
In Stock
Bearing Assembly 70-17023-01
#5

Functional replacement parts diagram

Bearing assembly

Part #70-17023-01

Replaced by #70-21036-05

?
Manufacturer substitution
This part replaces 70-17023-01. Substitute parts can look different from the original.
$256.29
In Stock
Blower Wheel 70-18636-01
#2A

Functional replacement parts diagram

Blower wheel

Part #70-18636-01

Replaced by #70-18623-03

?
Manufacturer substitution
This part replaces 70-18636-01. Substitute parts can look different from the original.
$165.76
In Stock
Blower Housing Assembly -025 Q, F, S, -031 Q, F, S, -037 Q, F, S AS-75108-01
#1

Functional replacement parts diagram

Blower housing assembly -025 q, f, s, -031 q, f, s, -037 q, f, s

Part #AS-75108-01

The manufacturer no longer makes this part, and there's no substitute part

Side Panel Assembly (lh) -049 Q, F, S, -057 Q, F, S AS-75067-02
#26A

Functional replacement parts diagram

Side panel assembly (lh) -049 q, f, s, -057 q, f, s

Part #AS-75067-02

The manufacturer no longer makes this part, and there's no substitute part

Blower Cut-off (notshown) -049 Q, F, S, -057 Q, F, S AE-30318-02
#40A

Functional replacement parts diagram

Blower cut-off (notshown) -049 q, f, s, -057 q, f, s

Part #AE-30318-02

The manufacturer no longer makes this part, and there's no substitute part

Motor - 3/4 Hp, 115v-10, 1725 Rpm, Cw -057 Q, F, S 51-18294-01
#9D

Functional replacement parts diagram

Motor - 3/4 hp, 115v-10, 1725 rpm, cw -057 q, f, s

Part #51-18294-01

The manufacturer no longer makes this part, and there's no substitute part

Tailpiece AE-60497-01
#7

Functional replacement parts diagram

Tailpiece

Part #AE-60497-01

The manufacturer no longer makes this part, and there's no substitute part

Filter Rack Assembly -025 Q, F, S, -031 Q, F, S, -037 Q, F, S AS-75102-01
#36

Functional replacement parts diagram

Filter rack assembly -025 q, f, s, -031 q, f, s, -037 q, f, s

Part #AS-75102-01

The manufacturer no longer makes this part, and there's no substitute part

Connector Panel Assembly -025 Q, F, S, -031 Q, F, S, -037 Q, F, S AS-75113-01
#27

Functional replacement parts diagram

Connector panel assembly -025 q, f, s, -031 q, f, s, -037 q, f, s

Part #AS-75113-01

The manufacturer no longer makes this part, and there's no substitute part
