Craftsman
Gas Grill

Model # 2581040210 Official Craftsman gas grill

Here are the diagrams and repair parts for Official Craftsman 2581040210 gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |
Rh Support 10184-323-1
#74

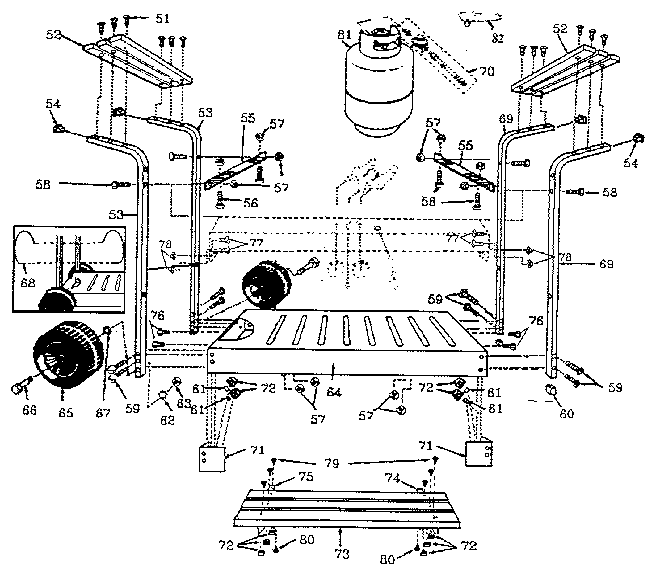

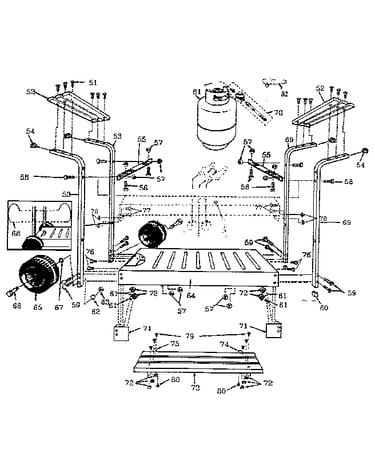

Main frame diagram

Rh support

Part #10184-323-1

The manufacturer no longer makes this part, and there's no substitute part

Bolt Casting 10909-239-1
#16

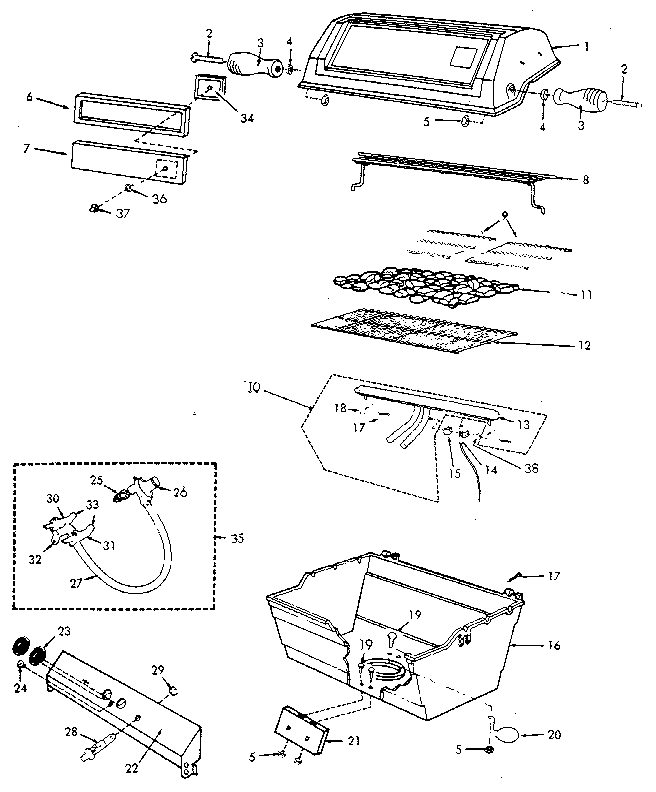

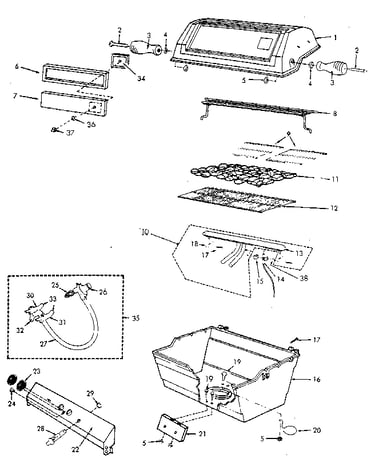

Grill and burner diagram

Bolt casting

Part #10909-239-1

The manufacturer no longer makes this part, and there's no substitute part

#10-24 X 1 Thms STD511010
#79

Main frame diagram

#10-24 x 1 thms

Part #STD511010

The manufacturer no longer makes this part, and there's no substitute part

Lh Support 10184-324-1
#75

Main frame diagram

Lh support

Part #10184-324-1

The manufacturer no longer makes this part, and there's no substitute part

Casting 10473-425
#1

Grill and burner diagram

Casting

Part #10473-425

The manufacturer no longer makes this part, and there's no substitute part

Temperature Gauge 10571-11
#34

Grill and burner diagram

Temperature gauge

Part #10571-11

The manufacturer no longer makes this part, and there's no substitute part

Hose 10111-44-1
#27

Grill and burner diagram

Hose

Part #10111-44-1

The manufacturer no longer makes this part, and there's no substitute part

Softy Plug 10625-92
#82

Main frame diagram

Softy plug

Part #10625-92

The manufacturer no longer makes this part, and there's no substitute part

Conversion Label 10084-450

#NI

All parts diagram

Conversion label

Part #10084-450

The manufacturer no longer makes this part, and there's no substitute part

Pal Nut Y-12650
#29

Grill and burner diagram

Pal nut

Part #Y-12650

The manufacturer no longer makes this part, and there's no substitute part
