Model # F420 Official Devilbiss air compressor
Here are the diagrams and repair parts for Official Devilbiss F420 air compressor, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts forF420 Power Tools
- #20

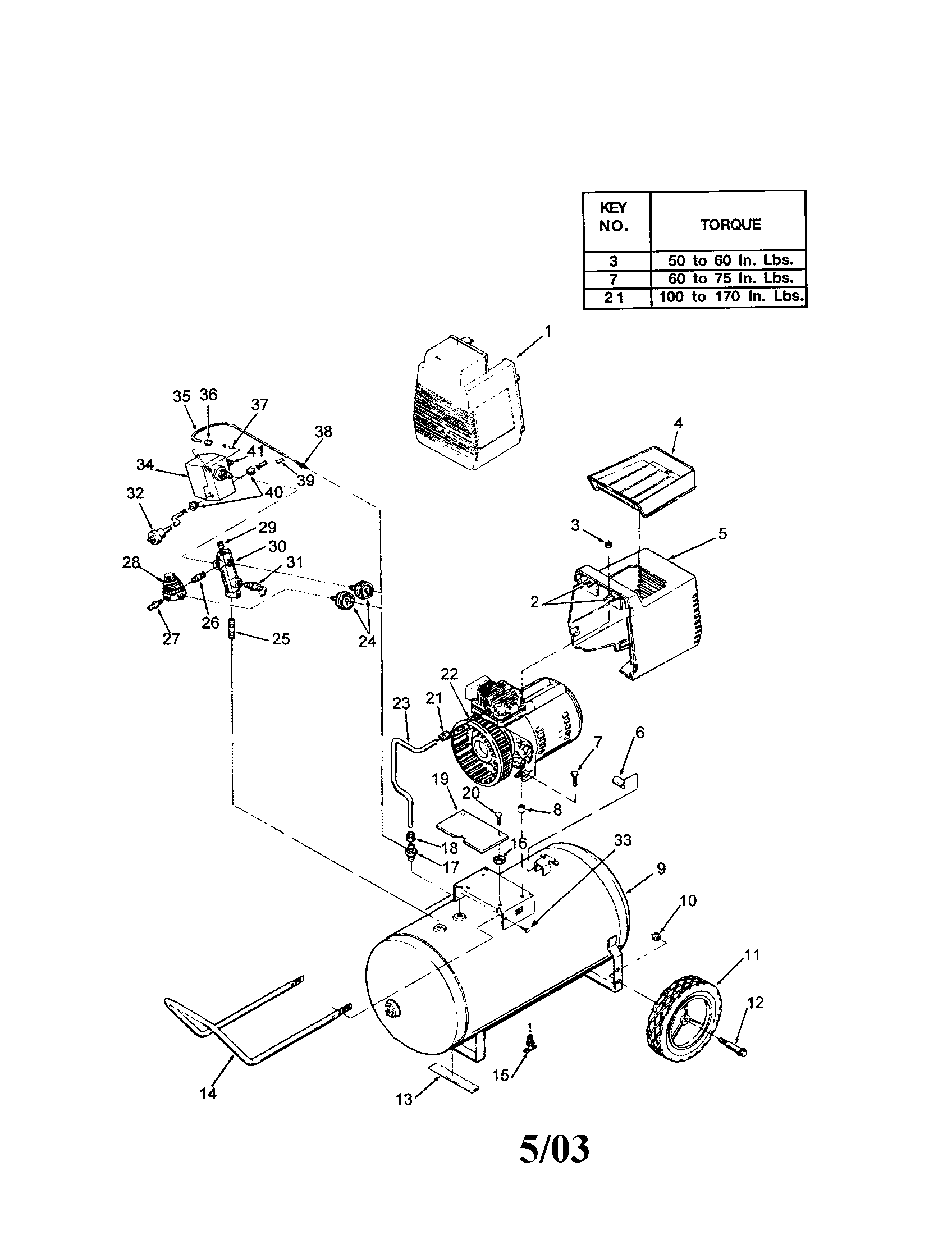

Air compressor diagram diagram
Devilbiss screwPart #SSF-1000
The manufacturer no longer makes this part, and there's no substitute part
- #2
Air compressor diagram diagram
Shroud bracketPart #CAC-1121
The manufacturer no longer makes this part, and there's no substitute part
- #4
Air compressor diagram diagram
Air compressor tool trayPart #CAC-1080
The manufacturer no longer makes this part, and there's no substitute part
- #56

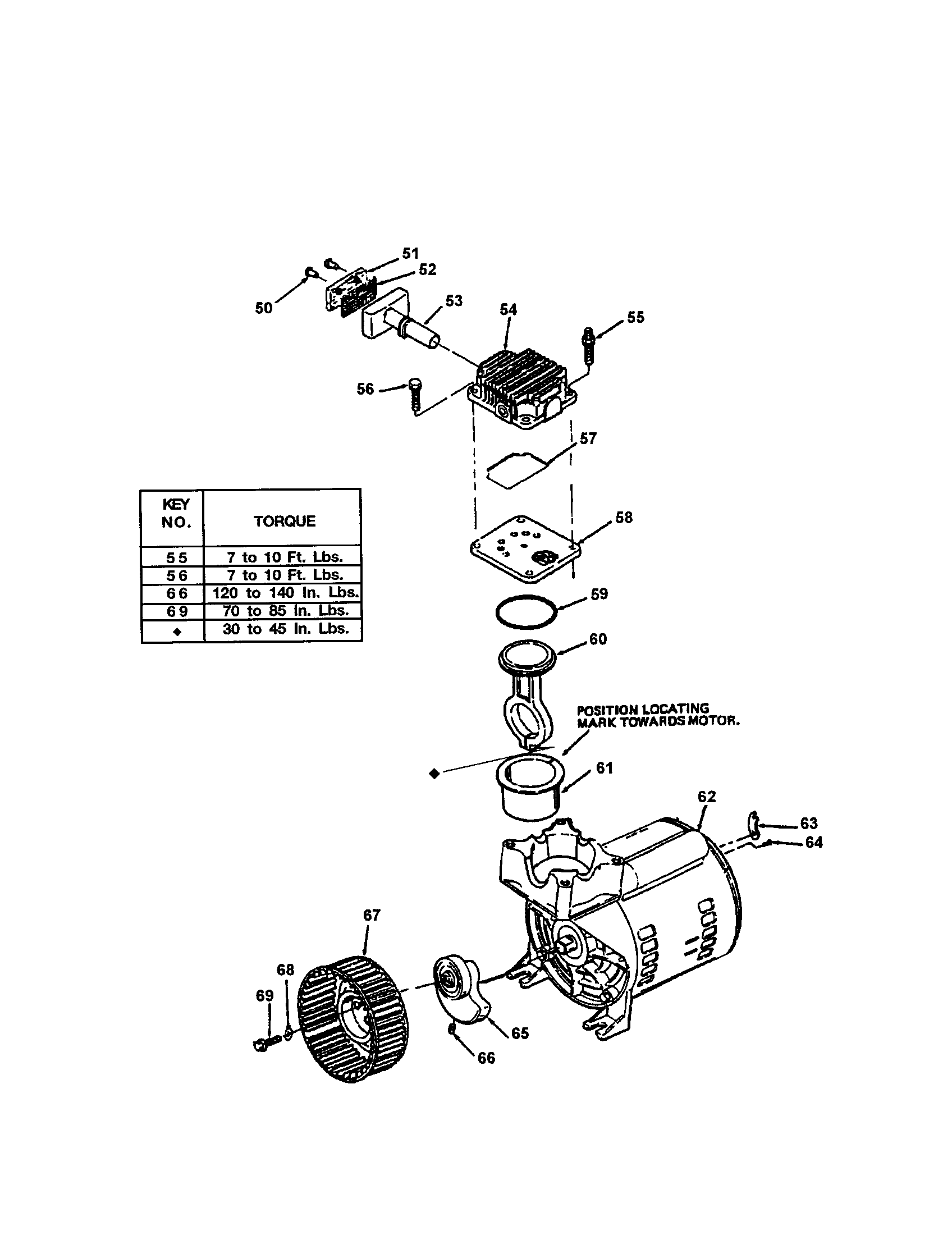

Compressor pump diagram diagram
ScrewPart #SSF-990
The manufacturer no longer makes this part, and there's no substitute part
- #33
Air compressor diagram diagram
Air compressor handle screwPart #SSF-981
The manufacturer no longer makes this part, and there's no substitute part
- #41
Air compressor diagram diagram
Air compressor pressure relief valvePart #KK-4315
The manufacturer no longer makes this part, and there's no substitute part
- #28
Air compressor diagram diagram
Air compressor pressure regulatorPart #CAC-4296-1
The manufacturer no longer makes this part, and there's no substitute part
- #36
Air compressor diagram diagram
Air compressor nut and sleevePart #SSP-7811
The manufacturer no longer makes this part, and there's no substitute part
- #19
Air compressor diagram diagram
Devilbiss platePart #CAC-333-1
The manufacturer no longer makes this part, and there's no substitute part
- #59
Compressor pump diagram diagram
Tower air compressor valve plate o-ringPart #SSG-8156
The manufacturer no longer makes this part, and there's no substitute part
