Model # 5KSB5070ECA0 Official KitchenAid blender

Here are the diagrams and repair parts for Official KitchenAid 5KSB5070ECA0 blender, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Screw 3400814
#9

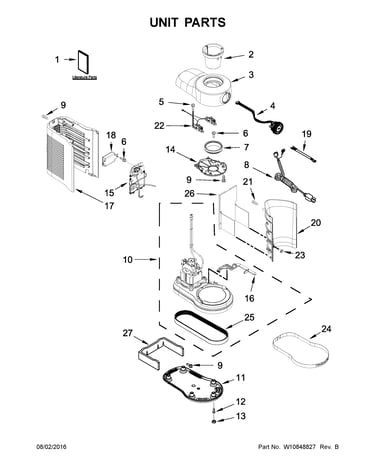

Unit parts diagram

Screw

Part #3400814

Replaced by #WP3400814

?
Manufacturer substitution
This part replaces 3400814. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Enclosed Spe W10568405
#18

Unit parts diagram

Enclosed spe

Part #W10568405

Replaced by #W11123146

?
Manufacturer substitution
This part replaces W10568405. Substitute parts can look different from the original.
$34.91 |
15% OFF Phone Price : $40.91
In Stock
Assembly W10627688
#2

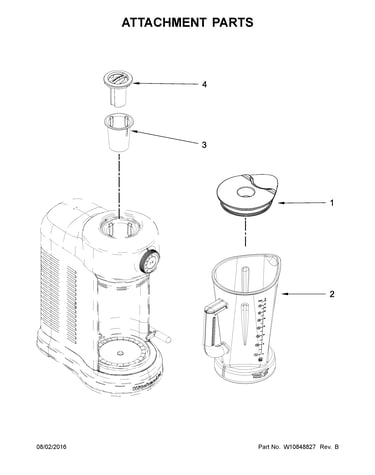

Attachment parts diagram

Assembly

Part #W10627688

Replaced by #W10861536

?
Manufacturer substitution
This part replaces W10627688. Substitute parts can look different from the original.
$160.12 |
7% OFF Phone Price : $172.12
In Stock
Control Board W10691804
#15

Unit parts diagram

Control board

Part #W10691804

$68.79 |
8% OFF Phone Price : $74.79
In Stock
Assembly W10768470
#23

Unit parts diagram

Assembly

Part #W10768470

$27.89
In Stock
Cover, Upper Housing (candy Apple) W10707892
#14

Unit parts diagram

Cover, upper housing (candy apple)

Part #W10707892

$87.78
In Stock
Power Cord W10643544
#8

Unit parts diagram

Power cord

Part #W10643544

$32.09
In Stock
Assembly W10769702
#16

Unit parts diagram

Assembly

Part #W10769702

$67.71
In Stock
Housing - Fr W10625877
#20

Unit parts diagram

Housing - fr

Part #W10625877

$52.09
In Stock
Assembly W10776356
#10

Unit parts diagram

Assembly

Part #W10776356

$303.69
In Stock
