Craftsman
Gas Walk-Behind Mower

Model # 917379420 Official Craftsman rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 917379420 rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 236 parts  |
Pipe Fitting 132010
#36

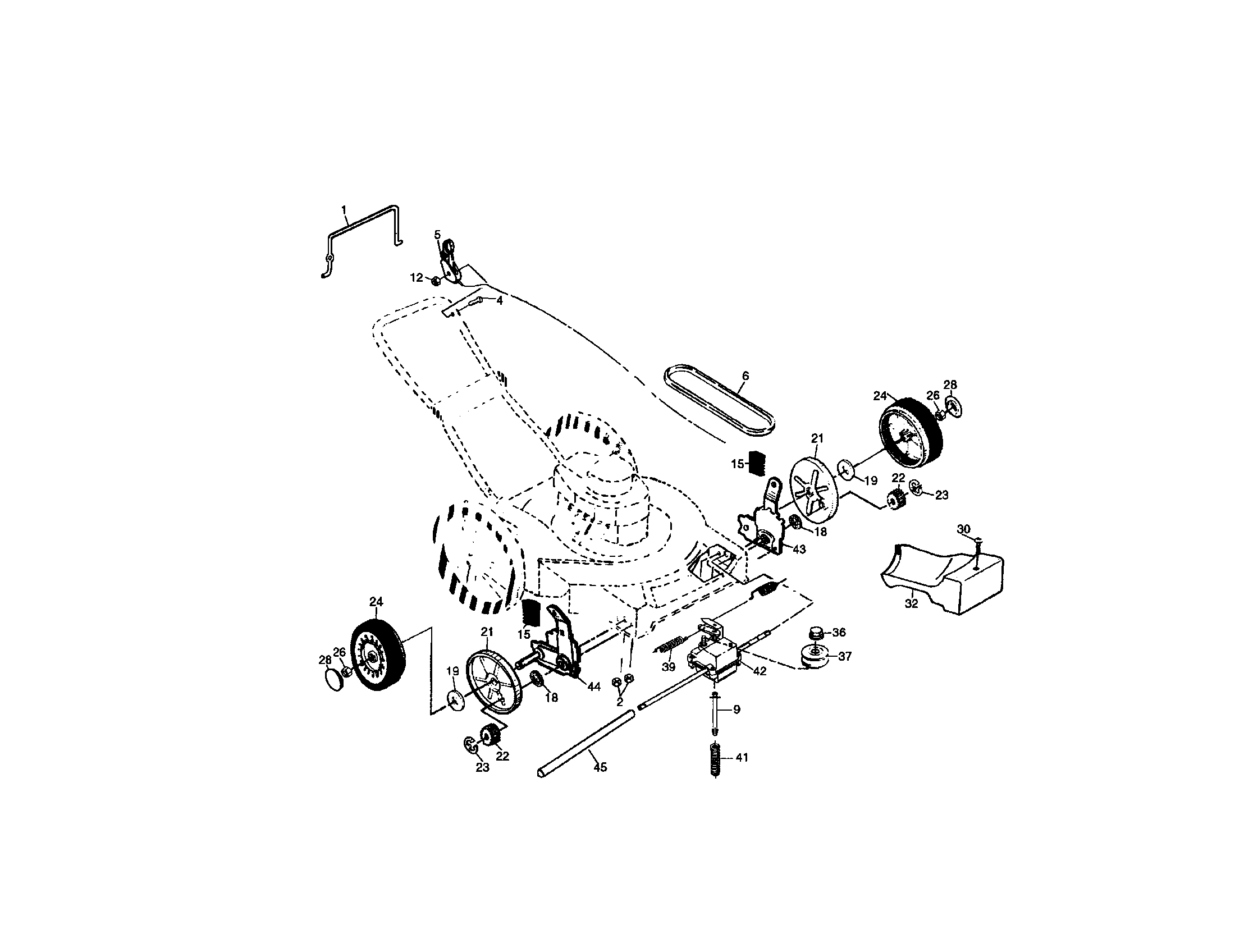

Whele and tire assembly diagram

Pipe fitting

Part #132010

Replaced by #532409149

?
Manufacturer substitution
This part replaces 132010. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lock Nut 83923
#45

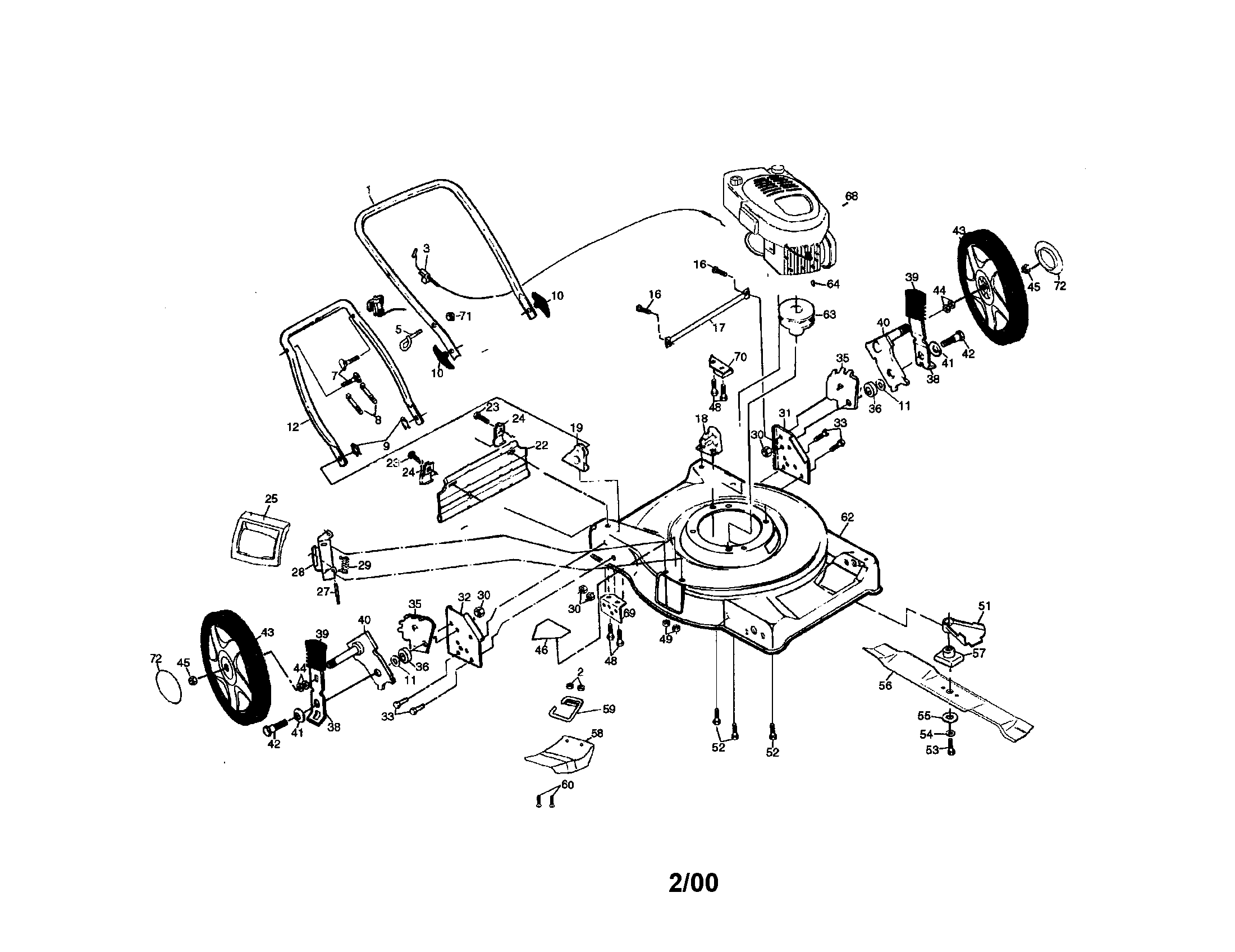

Rotary lawn mower diagram

Lock nut

Part #83923

Replaced by #532409149

?
Manufacturer substitution
This part replaces 83923. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Hex Flange Lock Nut 145212
#26

Whele and tire assembly diagram

Hex flange lock nut

Part #145212

Replaced by #532409149

?
Manufacturer substitution
This part replaces 145212. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Mower Blade 152202
#56

Rotary lawn mower diagram

Lawn mower blade

Part #152202

Replaced by #532406713

?
Manufacturer substitution
This part replaces 152202. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$28.29 |
17% OFF Phone Price : $34.29
In Stock
Skirt 140540
#22

Rotary lawn mower diagram

Skirt

Part #140540

Replaced by #413160

?
Manufacturer substitution
This part replaces 140540. Substitute parts can look different from the original.
BEST SELLER
$8.86 |
10% OFF Phone Price : $9.86
In Stock
Belt 146527
#6

Whele and tire assembly diagram

Belt

Part #146527

Replaced by #157769

?
Manufacturer substitution
This part replaces 146527. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$10.59 |
16% OFF Phone Price : $12.59
In Stock
Lawn & Garden Equipment Screw 851084
#53

Rotary lawn mower diagram

Lawn & garden equipment screw

Part #851084

Replaced by #532435345

?
Manufacturer substitution
This part replaces 851084. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.49 |
22% OFF Phone Price : $4.49
In Stock
Lawn & Garden Equipment Washer (replaces 532851074, 5328510-74) 851074
#55

Rotary lawn mower diagram

Lawn & garden equipment washer (replaces 532851074, 5328510-74)

Part #851074

BEST SELLER
This item is not returnable
$2.79 |
26% OFF Phone Price : $3.79
In Stock
Lawn Mower Height Adjuster Knob 701037
Lawn mower height adjuster knob

Part #701037

Replaced by #532701037

?
Manufacturer substitution
This part replaces 701037. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Lawn Mower Wheel 151138
#43

Rotary lawn mower diagram

Lawn mower wheel

Part #151138

Replaced by #180552

?
Manufacturer substitution
This part replaces 151138. Substitute parts can look different from the original.
BEST SELLER
$29.83 |
17% OFF Phone Price : $35.83
In Stock
