GE
Washer

Model # WWP1170GDW Official GE washer

Here are the diagrams and repair parts for Official GE WWP1170GDW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 144 parts  |
Washer Hose Clamp Kit WH1X2036

#790

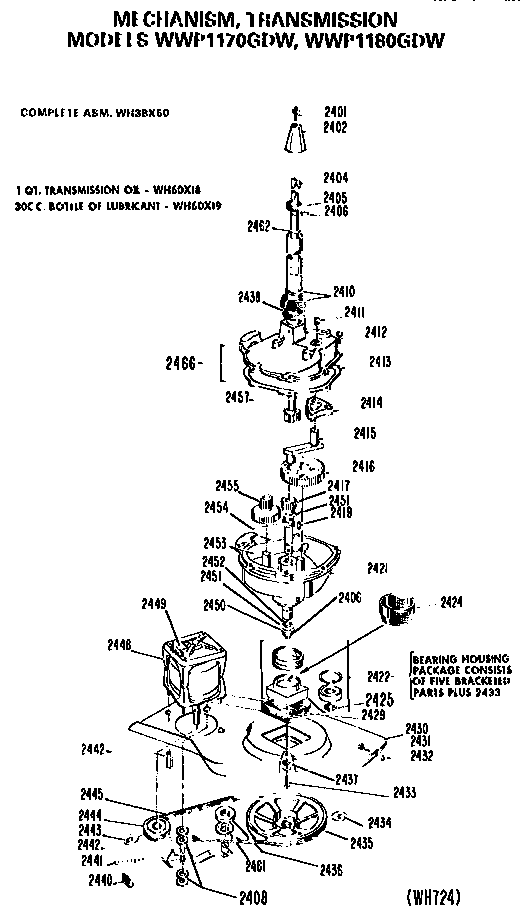

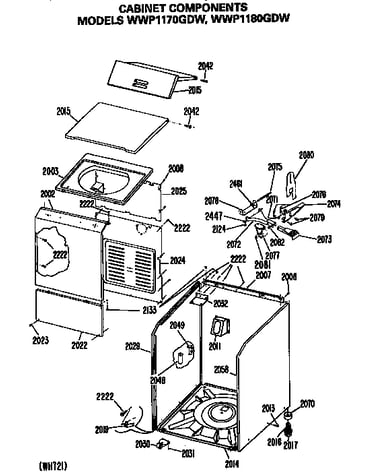

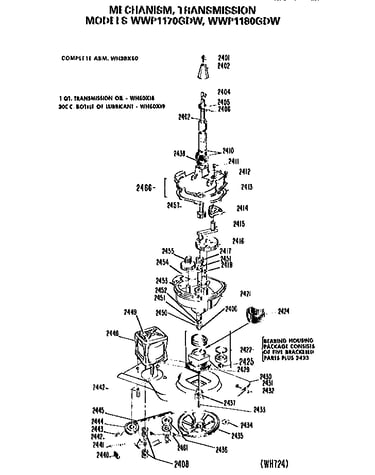

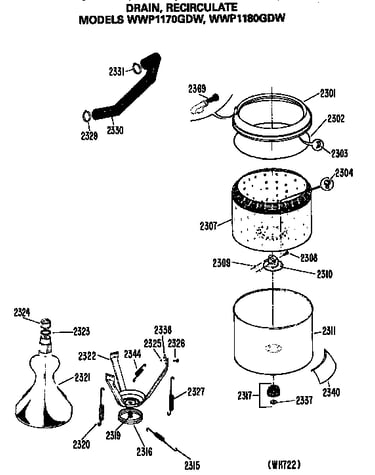

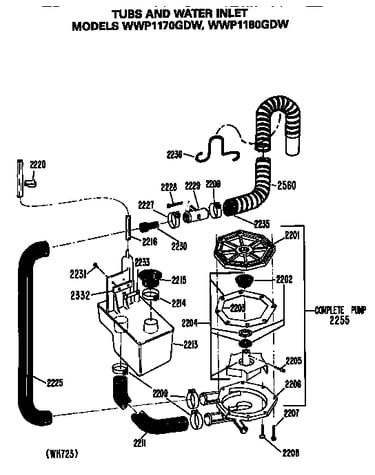

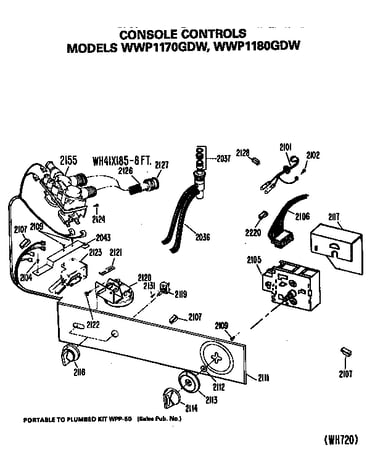

All parts diagram

Washer hose clamp kit

Part #WH1X2036

$11.59 |
15% OFF Phone Price : $13.59
In Stock
Spacr Lev WH1X2520

#2070

All parts diagram

Spacr lev

Part #WH1X2520

$8.99
In Stock
In.hose 4 WH41X58

#808

All parts diagram

In.hose 4

Part #WH41X58

Replaced by #WH41X10207

?
Manufacturer substitution
This part replaces WH41X58. Substitute parts can look different from the original.
This item is not returnable
$22.73 |
21% OFF Phone Price : $28.73
In Stock
Washer WH2X42

#807

All parts diagram

Washer

Part #WH2X42

Replaced by #WH2X42D

?
Manufacturer substitution
This part replaces WH2X42. Substitute parts can look different from the original.
$8.11
In Stock
Slinger WH1X2332

#2438

All parts diagram

Slinger

Part #WH1X2332

The manufacturer no longer makes this part, and there's no substitute part

Pump Housing WH23X75

#2206

All parts diagram

Pump housing

Part #WH23X75

The manufacturer no longer makes this part, and there's no substitute part

Pointer WH11X131

#2113

All parts diagram

Pointer

Part #WH11X131

The manufacturer no longer makes this part, and there's no substitute part

Wtr Valve Bk WH16X444

#2011

All parts diagram

Wtr valve bk

Part #WH16X444

The manufacturer no longer makes this part, and there's no substitute part

Cushion WH1X2322

#2429

All parts diagram

Cushion

Part #WH1X2322

The manufacturer no longer makes this part, and there's no substitute part

Tub Splash WH45X110

#2311

All parts diagram

Tub splash

Part #WH45X110

The manufacturer no longer makes this part, and there's no substitute part
