Model # 2581084280 Official Kenmore gas outdoor grill

Here are the diagrams and repair parts for Official Kenmore 2581084280 gas outdoor grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 119 parts  |
Briq Grate 10222-20
#11

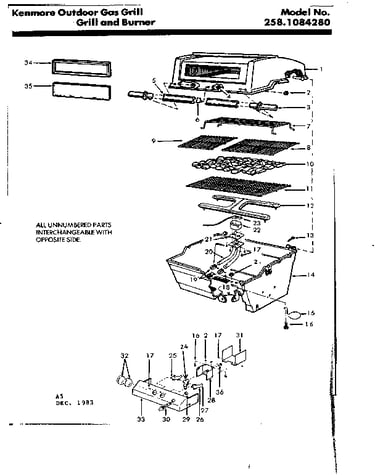

Grill and burner section diagram

Briq grate

Part #10222-20

Replaced by #04170107

?
Manufacturer substitution
This part replaces 10222-20. Substitute parts can look different from the original.
$44.39 |
12% OFF Phone Price : $50.39
In Stock
Shelf 10724-37
#121

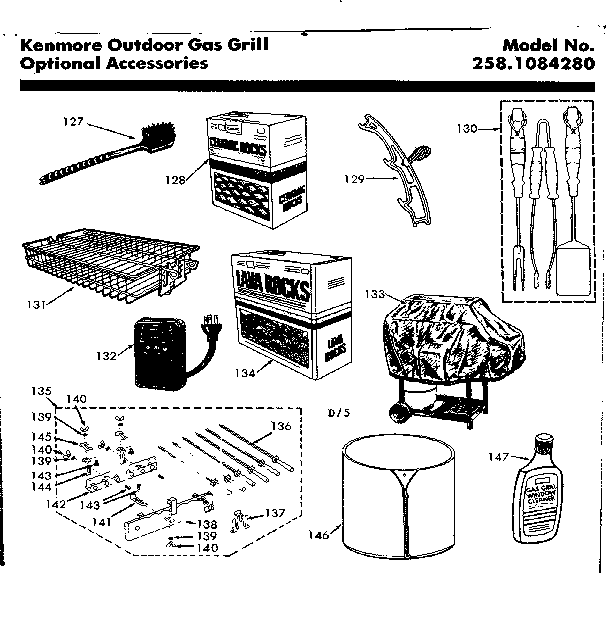

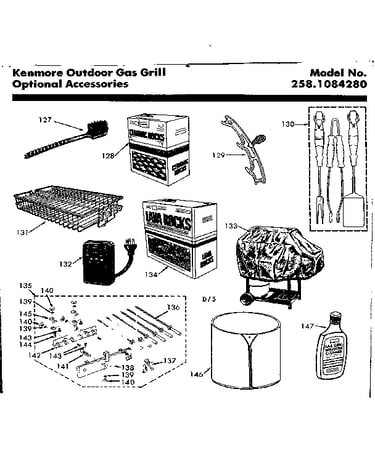

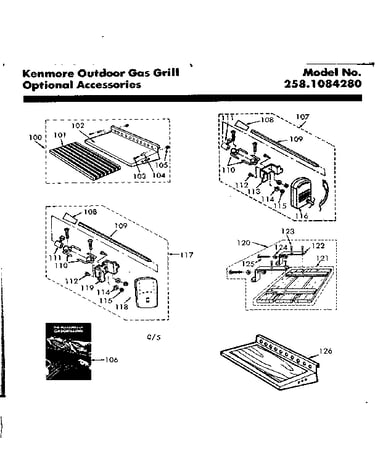

Optional accessories diagram

Shelf

Part #10724-37

The manufacturer no longer makes this part, and there's no substitute part

Shelf Board 10004-312
#100

Optional accessories diagram

Shelf board

Part #10004-312

The manufacturer no longer makes this part, and there's no substitute part

Shield 10157-2
#22

Grill and burner section diagram

Shield

Part #10157-2

The manufacturer no longer makes this part, and there's no substitute part

Burner 10390-31
#12

Grill and burner section diagram

Burner

Part #10390-31

The manufacturer no longer makes this part, and there's no substitute part

Wing Nut STD541610
#140

Optional accessories diagram

Wing nut

Part #STD541610

The manufacturer no longer makes this part, and there's no substitute part

Screw Y-12356
#123

Optional accessories diagram

Screw

Part #Y-12356

The manufacturer no longer makes this part, and there's no substitute part

Base 10956-42
#59

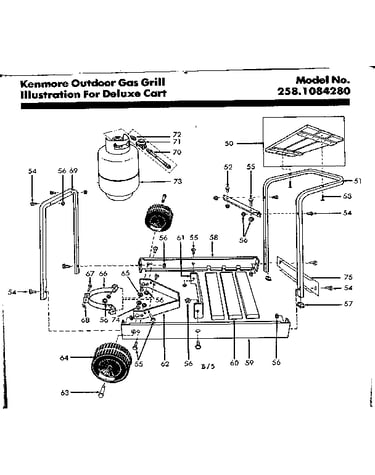

Deluxe cart diagram

Base

Part #10956-42

The manufacturer no longer makes this part, and there's no substitute part

T-bolt Y-12427
#6

Grill and burner section diagram

T-bolt

Part #Y-12427

The manufacturer no longer makes this part, and there's no substitute part

Propelled Grill 10004-898
#129

Optional accessories diagram

Propelled grill

Part #10004-898

The manufacturer no longer makes this part, and there's no substitute part
