Model # 58031978 Official Craftsman alternator

Here are the diagrams and repair parts for Official Craftsman 58031978 alternator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |
Screw 24421
#20

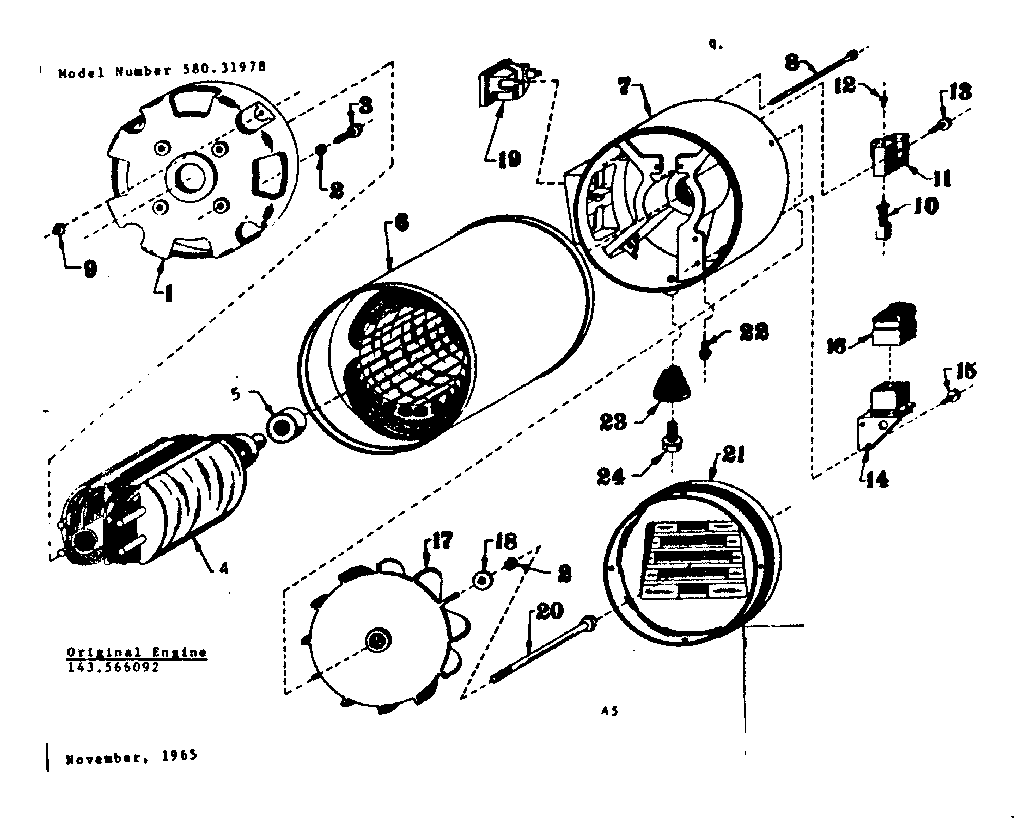

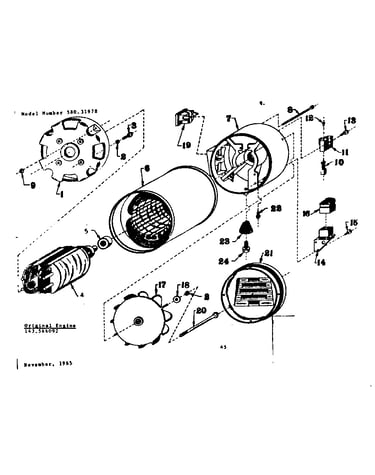

Stator assembly diagram

Screw

Part #24421

Replaced by #24421GS

?
Manufacturer substitution
This part replaces 24421. Substitute parts can look different from the original.
$26.36
In Stock
Hex Nut 24237
#9

Stator assembly diagram

Hex nut

Part #24237

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 22769
#11

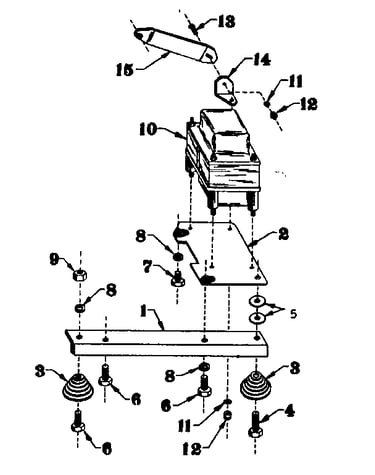

Reactor assembly & engine mounting support diagram

Lock washer

Part #22769

The manufacturer no longer makes this part, and there's no substitute part

Receptacle 22693
#19

Stator assembly diagram

Receptacle

Part #22693

The manufacturer no longer makes this part, and there's no substitute part

Support Assembly N-24071
#14

Stator assembly diagram

Support assembly

Part #N-24071

The manufacturer no longer makes this part, and there's no substitute part

Handle 24702
#1

Handle diagram

Handle

Part #24702

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 22129
Lock washer

Part #22129

The manufacturer no longer makes this part, and there's no substitute part

Rotor E-24020-B
#4

Stator assembly diagram

Rotor

Part #E-24020-B

The manufacturer no longer makes this part, and there's no substitute part

Spring 23594
Spring

Part #23594

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 24114
#9

Reactor assembly & engine mounting support diagram

Hex nut

Part #24114

The manufacturer no longer makes this part, and there's no substitute part
