Lawn & Garden Engine

Model # TYPE 643-23 Official Tecumseh engine

Here are the diagrams and repair parts for Official Tecumseh TYPE 643-23 engine, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
TYPE 643-23 Engine
Clip 631022
#13

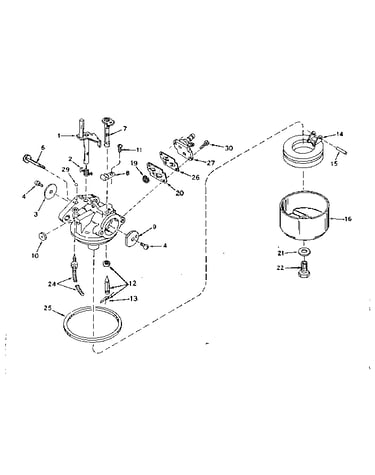

Carburetor no. 631727 diagram

Clip

Part #631022

The manufacturer no longer makes this part, and there's no substitute part

Gasket 510274
#18

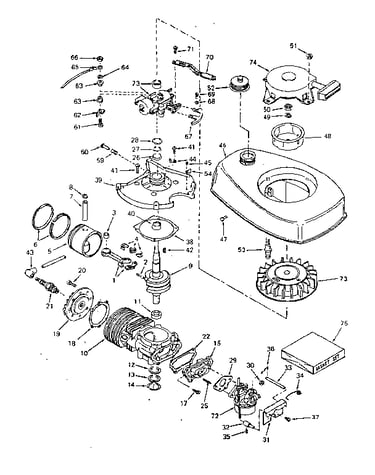

Basic engine diagram

Gasket

Part #510274

The manufacturer no longer makes this part, and there's no substitute part

Rewnd Startr 590420
#74

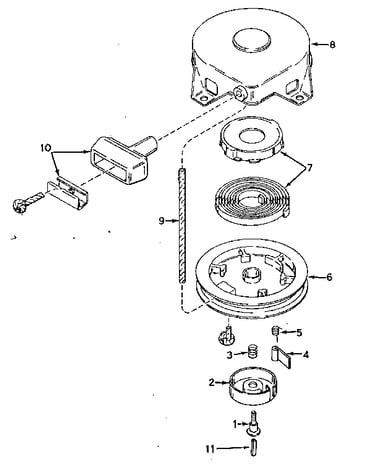

Basic engine diagram

Rewnd startr

Part #590420

The manufacturer no longer makes this part, and there's no substitute part

Spring 630766
#59

Basic engine diagram

Spring

Part #630766

The manufacturer no longer makes this part, and there's no substitute part

Bowl Gasket 631334
#21

Carburetor no. 631727 diagram

Bowl gasket

Part #631334

The manufacturer no longer makes this part, and there's no substitute part

Piston 310230
#5

Basic engine diagram

Piston

Part #310230

The manufacturer no longer makes this part, and there's no substitute part

Pistn Rng St 310190
#6

Basic engine diagram

Pistn rng st

Part #310190

The manufacturer no longer makes this part, and there's no substitute part

Coil 30560A
#11

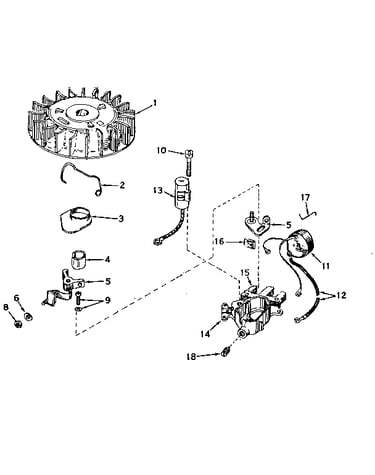

Magneto no. 610832a diagram

Coil

Part #30560A

The manufacturer no longer makes this part, and there's no substitute part

Gasket 510282
#22

Basic engine diagram

Gasket

Part #510282

The manufacturer no longer makes this part, and there's no substitute part

Cover 30550
#3

Magneto no. 610832a diagram

Cover

Part #30550

The manufacturer no longer makes this part, and there's no substitute part
