Harris
Welder

Model # SYSTEM 50/3 PHASE Official Harris plasma cutting system

Here are the diagrams and repair parts for Official Harris SYSTEM-50-3-PHASE plasma cutting system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

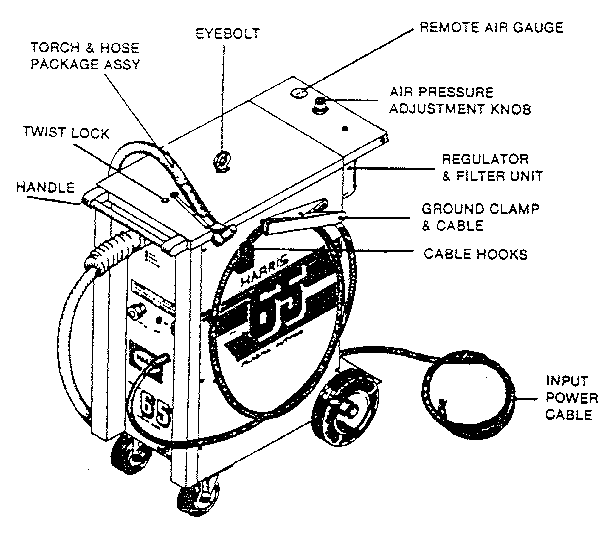

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 109 parts  |
Pilot Unit 2065573
#4

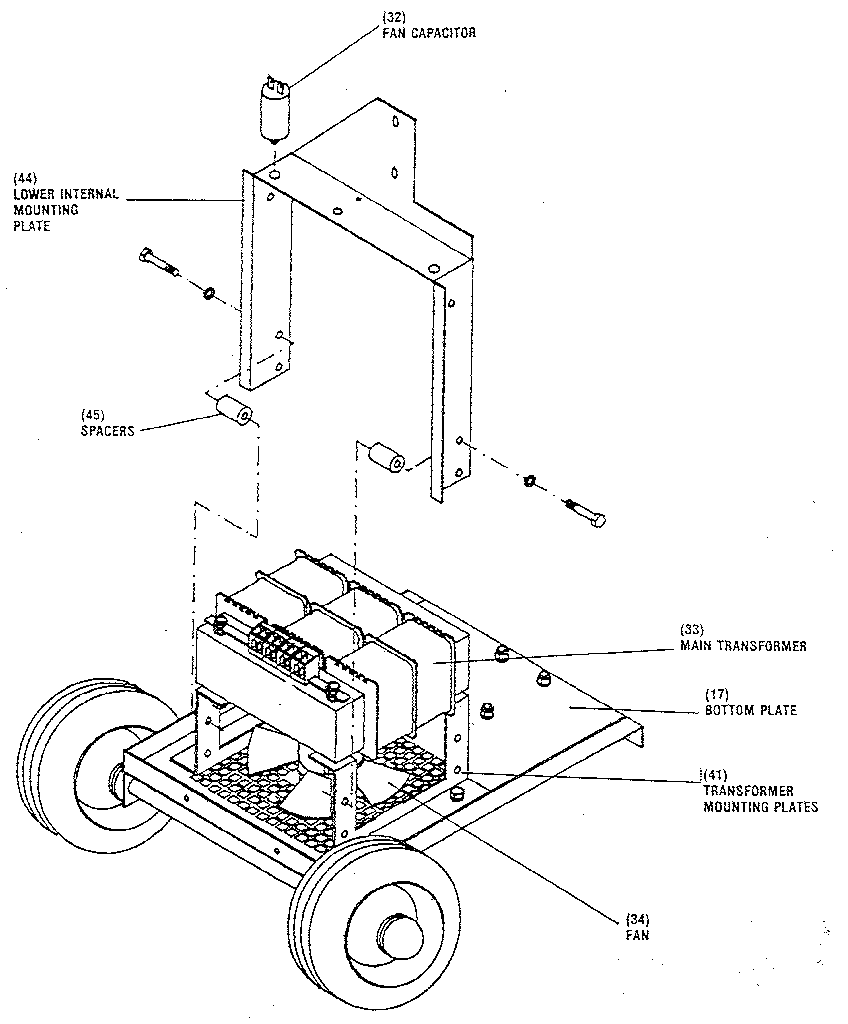

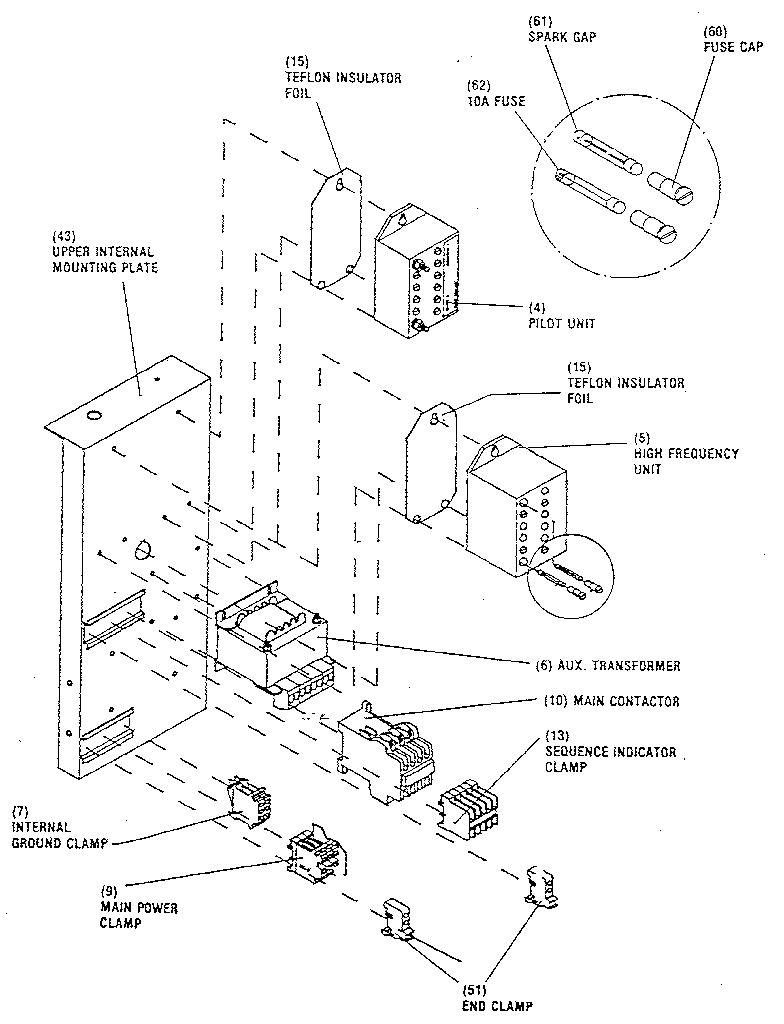

Mounting plate diagram

Pilot unit

Part #2065573

The manufacturer no longer makes this part, and there's no substitute part

Regulator 2065600
#24

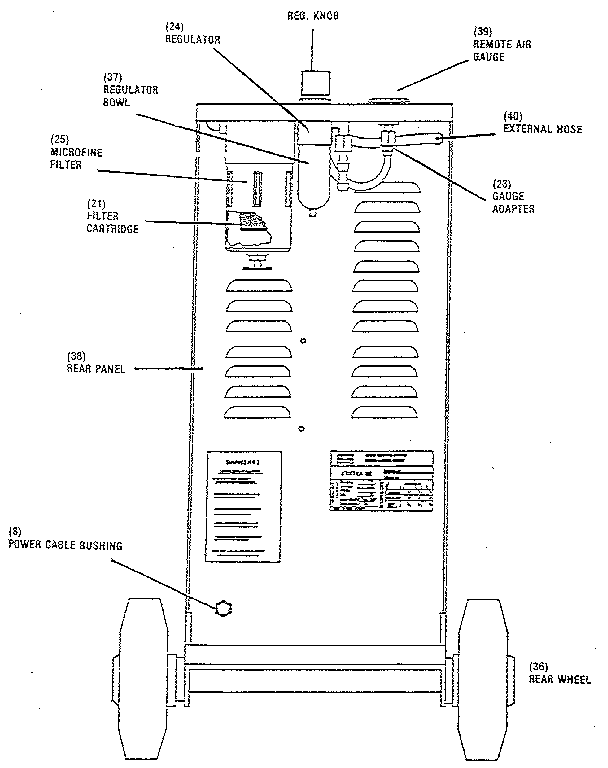

Unit diagram

Regulator

Part #2065600

The manufacturer no longer makes this part, and there's no substitute part

Tip (system 100) 2810036
Tip (system 100)

Part #2810036

The manufacturer no longer makes this part, and there's no substitute part

Hose Pkg 2811054
#1B

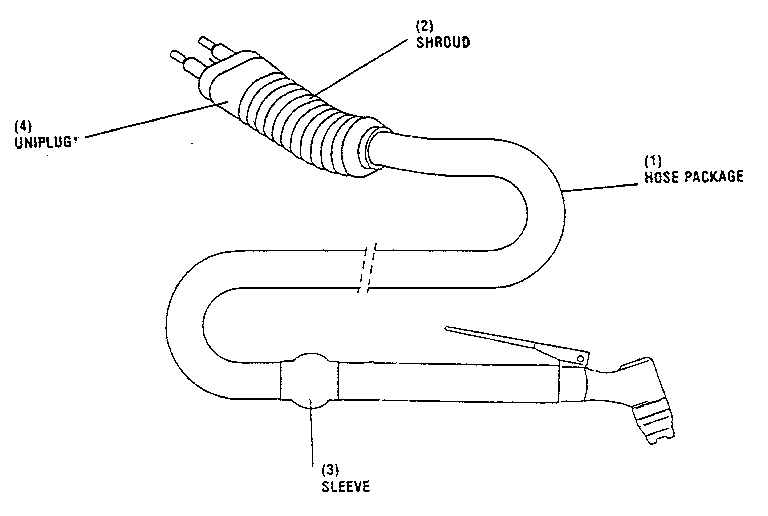

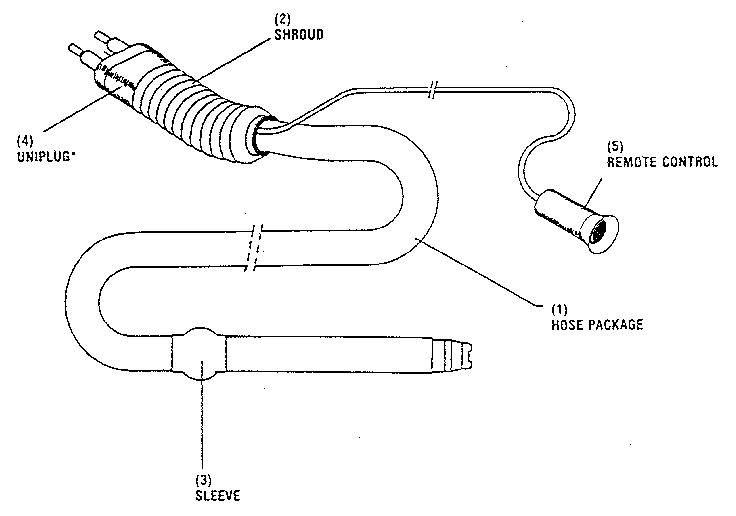

Mk1 machine cutting torch diagram

Hose pkg

Part #2811054

The manufacturer no longer makes this part, and there's no substitute part

Hose Pkg 2811052
#1A

Mk1 machine cutting torch diagram

Hose pkg

Part #2811052

The manufacturer no longer makes this part, and there's no substitute part

Piston Assembly 2810098
#4

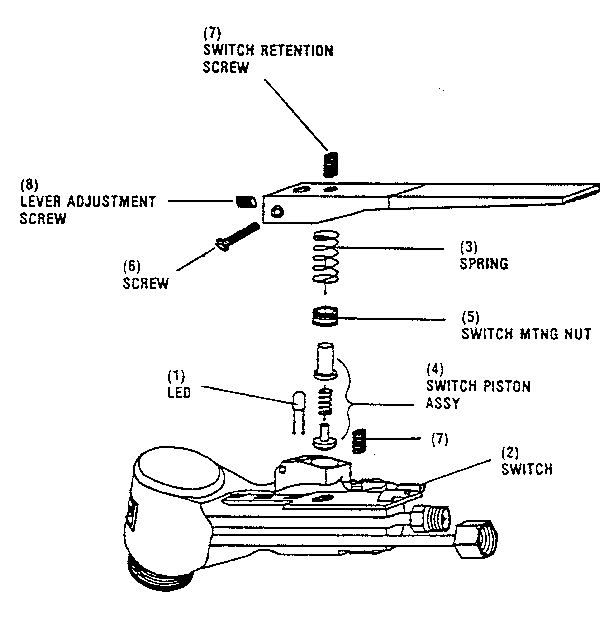

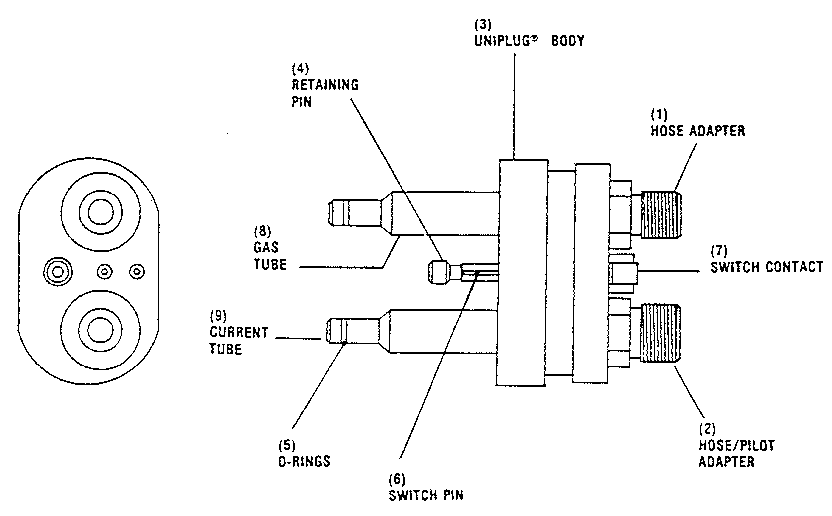

Switch components schematic drawing diagram

Piston assembly

Part #2810098

The manufacturer no longer makes this part, and there's no substitute part

Rectifier 2065595
#20

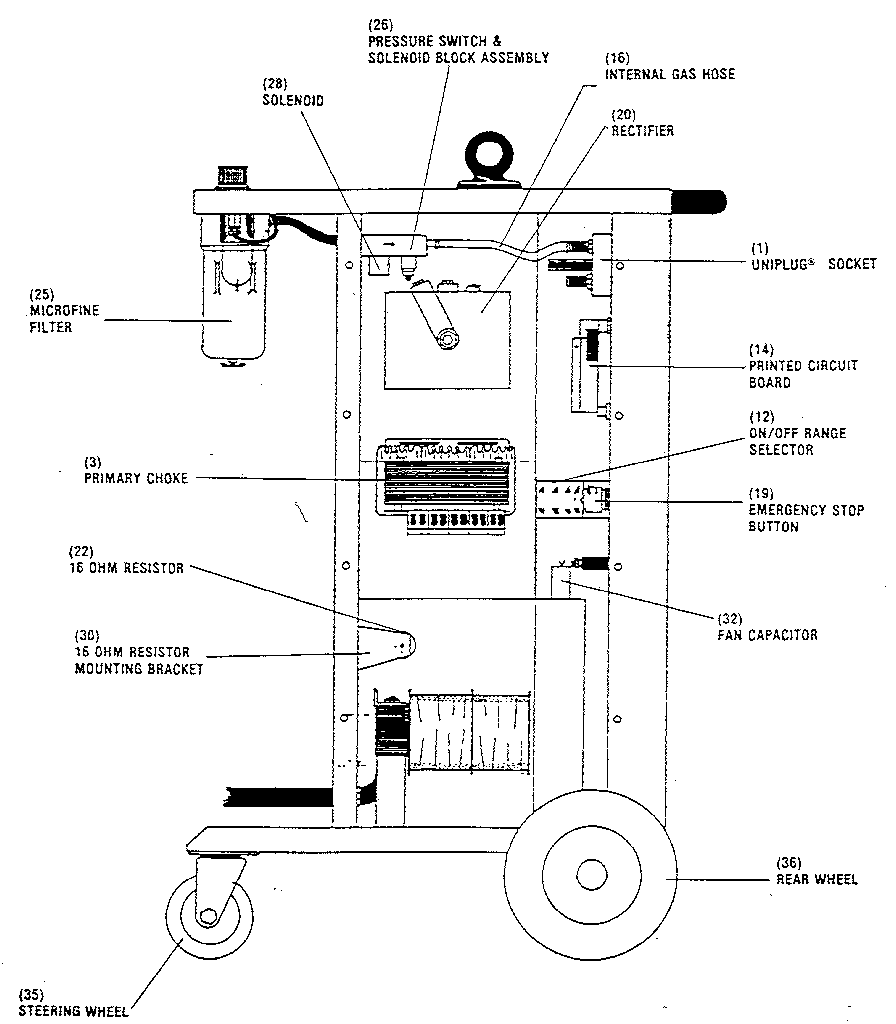

Microfine filter diagram

Rectifier

Part #2065595

The manufacturer no longer makes this part, and there's no substitute part

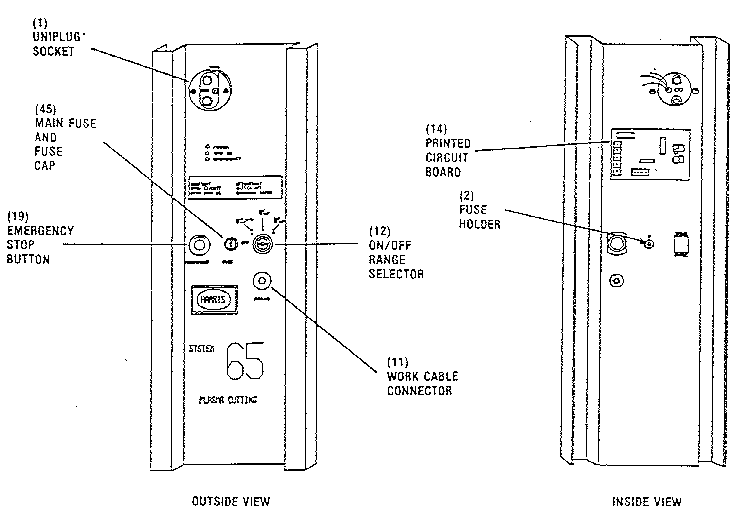

Main Fuse 2065614
Main fuse

Part #2065614

The manufacturer no longer makes this part, and there's no substitute part

Handle 2811033
#4

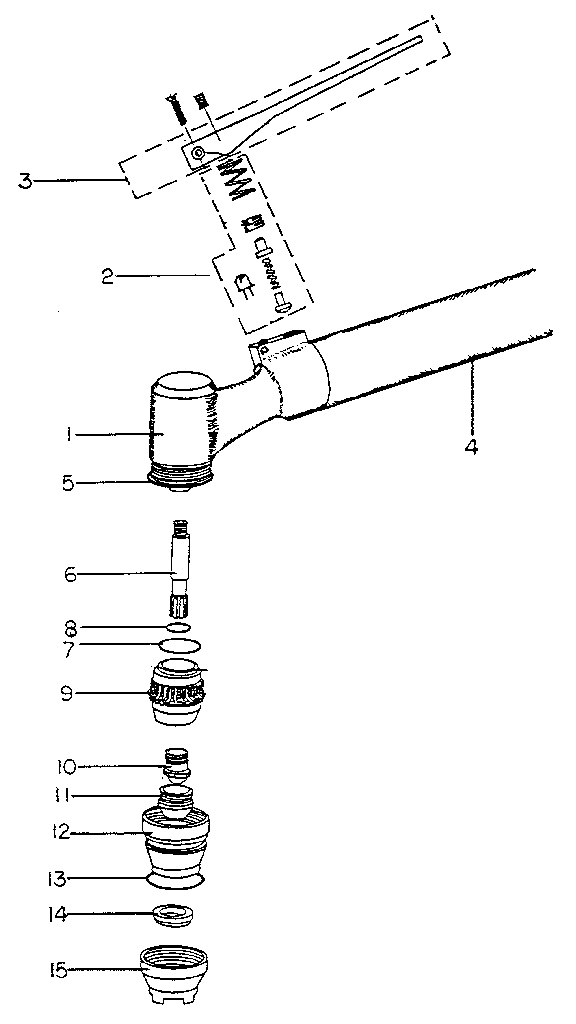

Machine torch diagram

Handle

Part #2811033

The manufacturer no longer makes this part, and there's no substitute part

Transformer, Auxiliary 2065525
#6

Mounting plate diagram

Transformer, auxiliary

Part #2065525

The manufacturer no longer makes this part, and there's no substitute part
