Dirt Devil
Upright Vacuum

Model # 088750 Official Dirt Devil visionlite upright

Here are the diagrams and repair parts for Official Dirt Devil 088750 visionlite upright, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

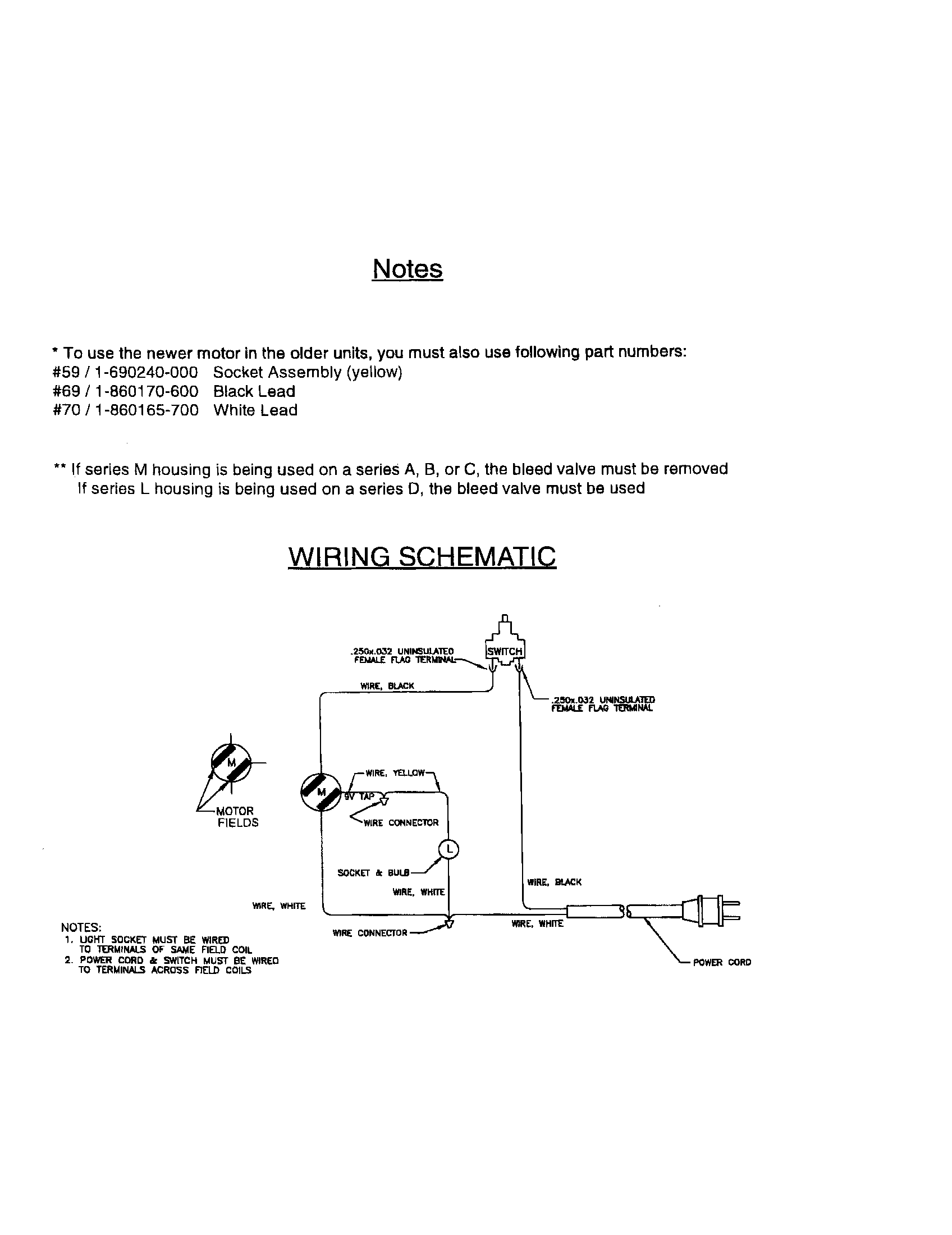

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |
Clip 1-860046-600
#8

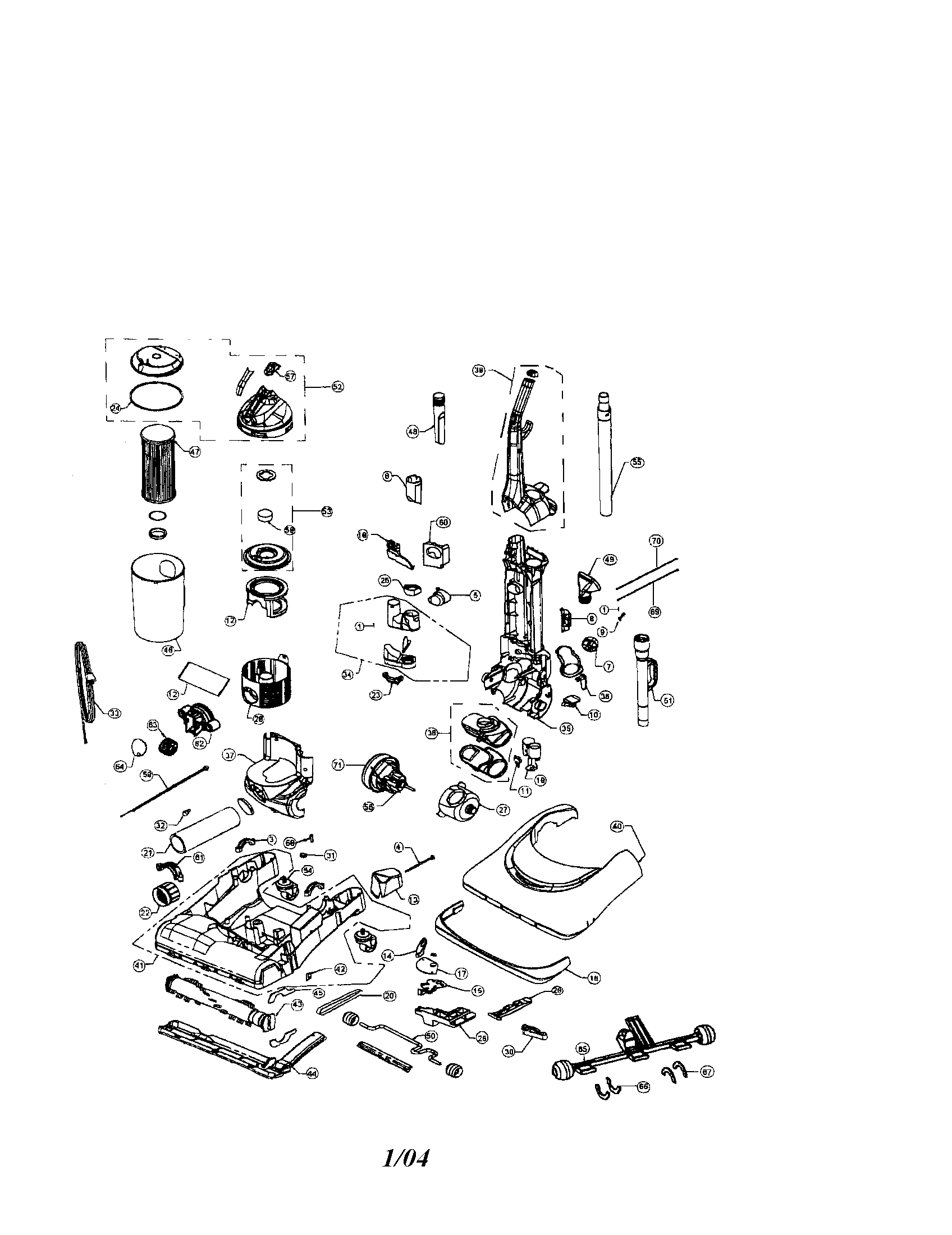

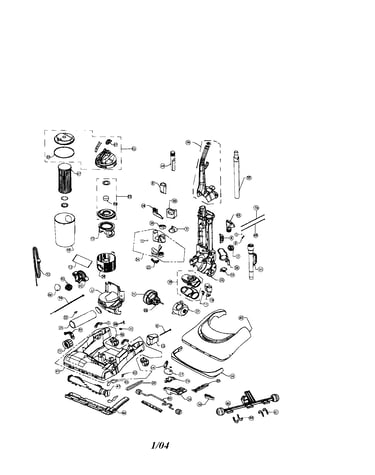

Nozzle cover/agitator/handle diagram

Clip

Part #1-860046-600

The manufacturer no longer makes this part, and there's no substitute part

Motor 2990303000
#56A

Nozzle cover/agitator/handle diagram

Motor

Part #2990303000

The manufacturer no longer makes this part, and there's no substitute part

Collar 1-860180-600
#22

Nozzle cover/agitator/handle diagram

Collar

Part #1-860180-600

The manufacturer no longer makes this part, and there's no substitute part

Housng-mtr 1-860350-600
#27

Nozzle cover/agitator/handle diagram

Housng-mtr

Part #1-860350-600

The manufacturer no longer makes this part, and there's no substitute part

Lead (black) 1-860170-600
#69

Nozzle cover/agitator/handle diagram

Lead (black)

Part #1-860170-600

The manufacturer no longer makes this part, and there's no substitute part

Lifter 1-860245-600
#26

Nozzle cover/agitator/handle diagram

Lifter

Part #1-860245-600

The manufacturer no longer makes this part, and there's no substitute part

Lever 1-860118-600
#15

Nozzle cover/agitator/handle diagram

Lever

Part #1-860118-600

The manufacturer no longer makes this part, and there's no substitute part

Spring 1-860061-000
#9

Nozzle cover/agitator/handle diagram

Spring

Part #1-860061-000

The manufacturer no longer makes this part, and there's no substitute part

Lever 1-860505-600
#29

Nozzle cover/agitator/handle diagram

Lever

Part #1-860505-600

The manufacturer no longer makes this part, and there's no substitute part

Handle 2-860015-600
#39

Nozzle cover/agitator/handle diagram

Handle

Part #2-860015-600

The manufacturer no longer makes this part, and there's no substitute part
