Model # 06016137434 Official Bosch 2-hp plunge router

Here are the diagrams and repair parts for Official Bosch 06016137434 2-hp plunge router, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 81 parts  |
Handle 3605133530
#10

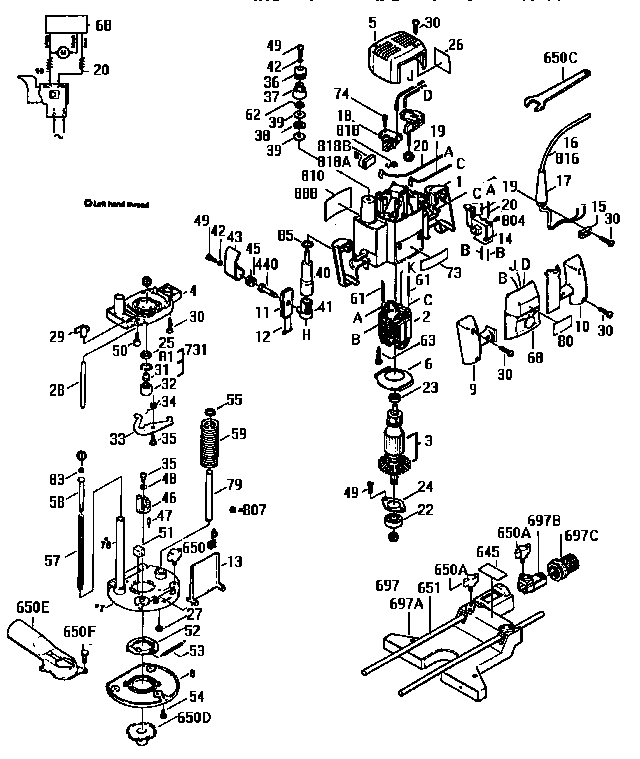

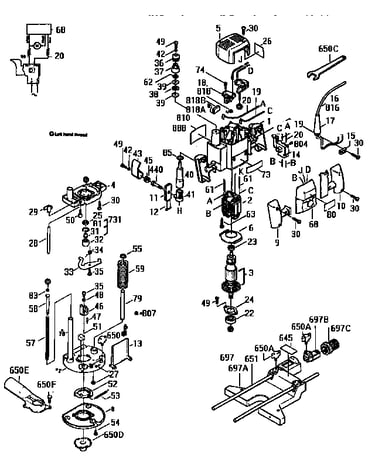

2hp plunge router diagram

Handle

Part #3605133530

The manufacturer no longer makes this part, and there's no substitute part

Spring 3604651502
#34

2hp plunge router diagram

Spring

Part #3604651502

The manufacturer no longer makes this part, and there's no substitute part

Deflector 3600590508
#6

2hp plunge router diagram

Deflector

Part #3600590508

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 2916680005
#42

2hp plunge router diagram

Lock washer

Part #2916680005

The manufacturer no longer makes this part, and there's no substitute part

Washer 3600100528
#38

2hp plunge router diagram

Washer

Part #3600100528

The manufacturer no longer makes this part, and there's no substitute part

Insert 3601010521
#12

2hp plunge router diagram

Insert

Part #3601010521

The manufacturer no longer makes this part, and there's no substitute part

Slot Cover 3601010519
#11

2hp plunge router diagram

Slot cover

Part #3601010519

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Lock Bolt 3603450504
#44

2hp plunge router diagram

Craftsman lock bolt

Part #3603450504

The manufacturer no longer makes this part, and there's no substitute part

Knob 3603211501
#51

2hp plunge router diagram

Knob

Part #3603211501

The manufacturer no longer makes this part, and there's no substitute part

Locking Piece 3600400507
#41

2hp plunge router diagram

Locking piece

Part #3600400507

The manufacturer no longer makes this part, and there's no substitute part
