KitchenAid
Bottom-Mount Refrigerator

Model # KBFO42FTX08 Official KitchenAid 42" built-in refrigerator

Here are the diagrams and repair parts for Official KitchenAid KBFO42FTX08 42" built-in refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

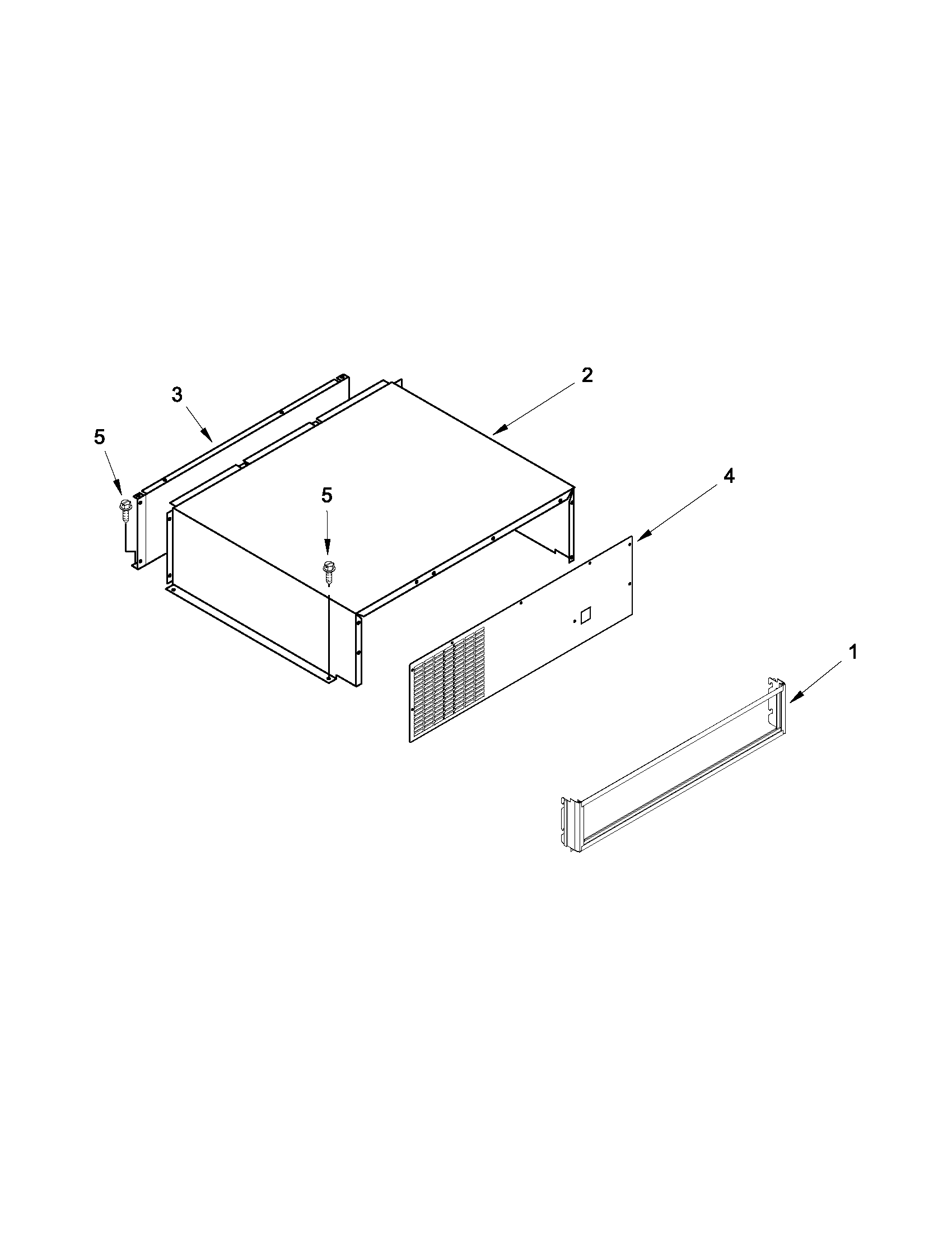

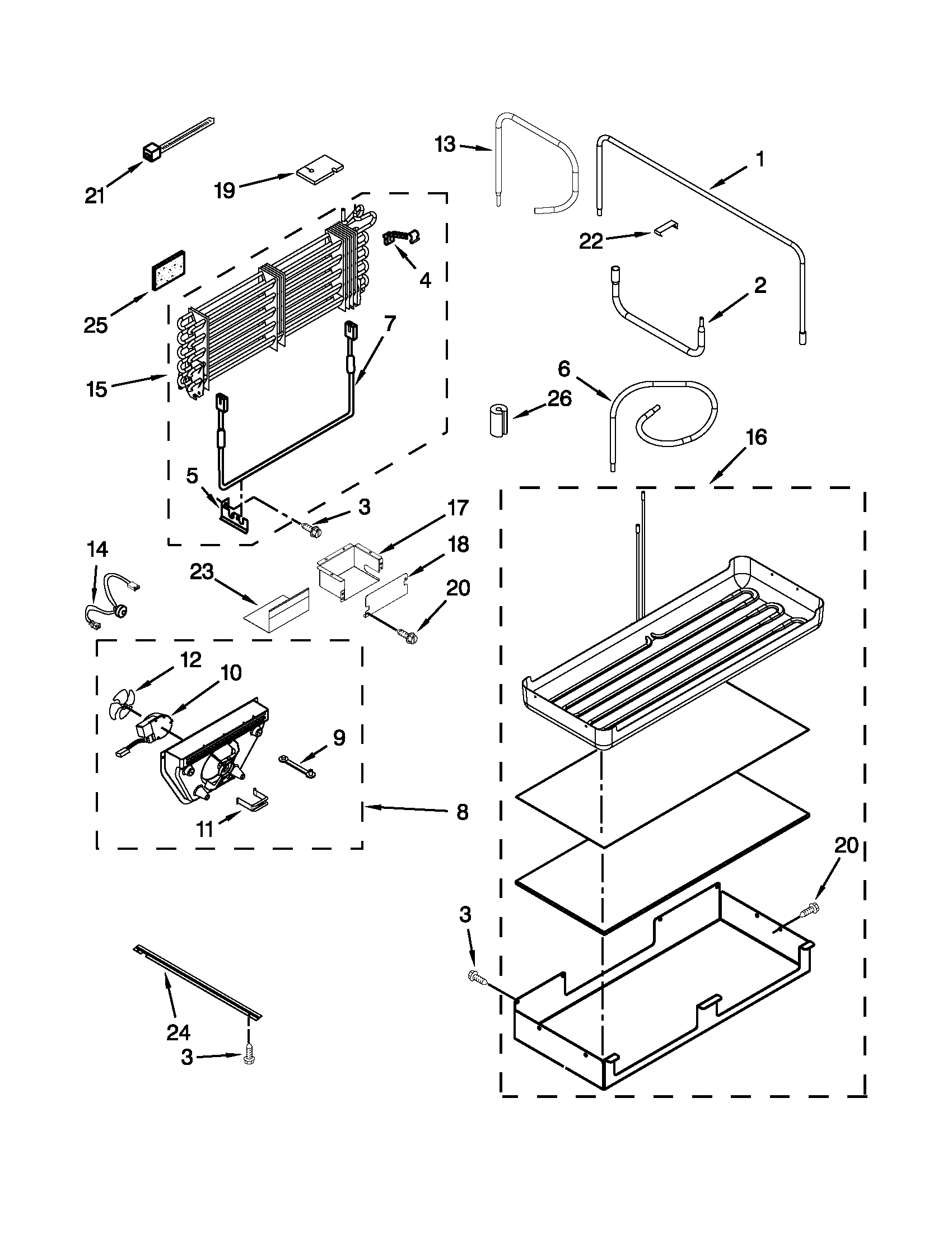

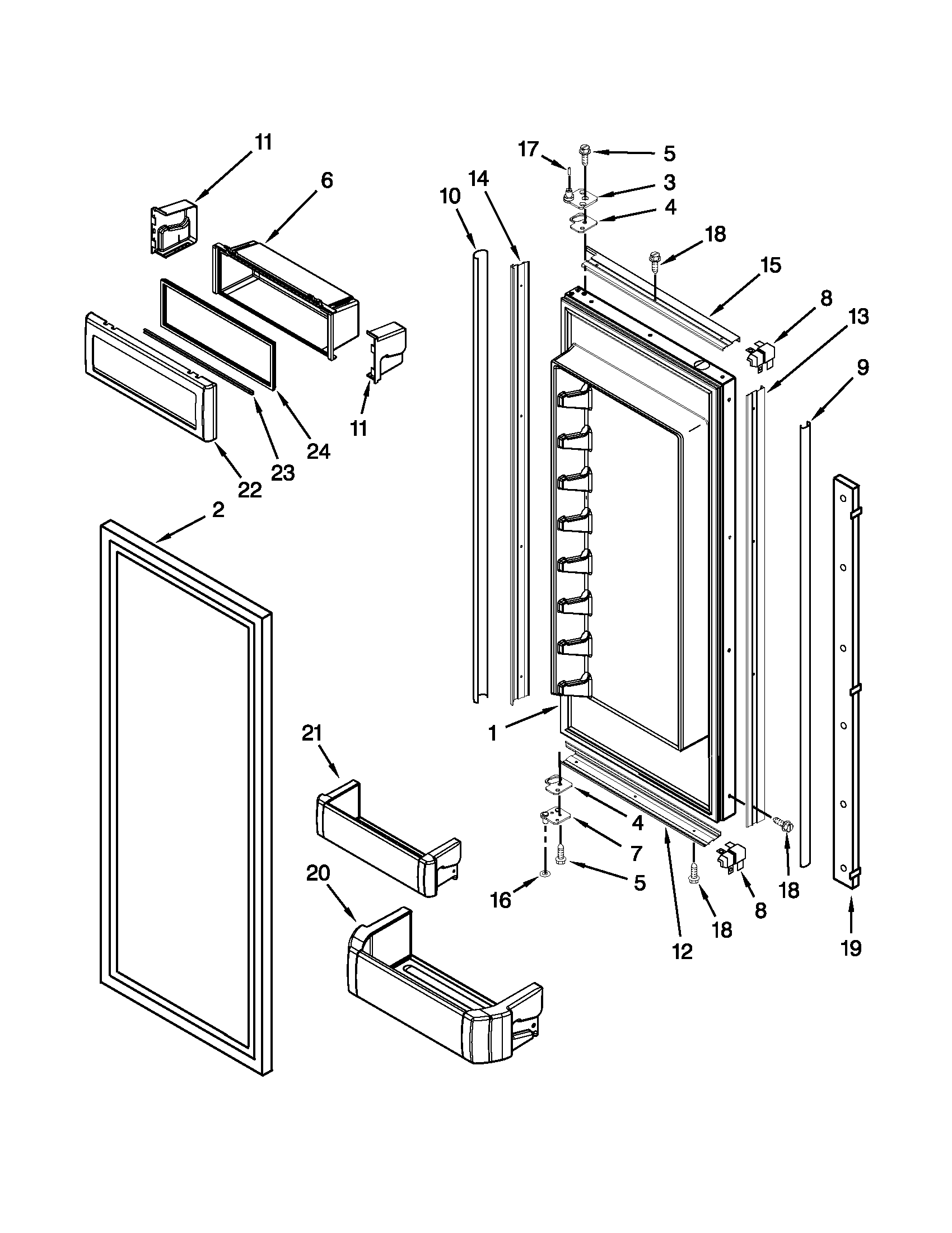

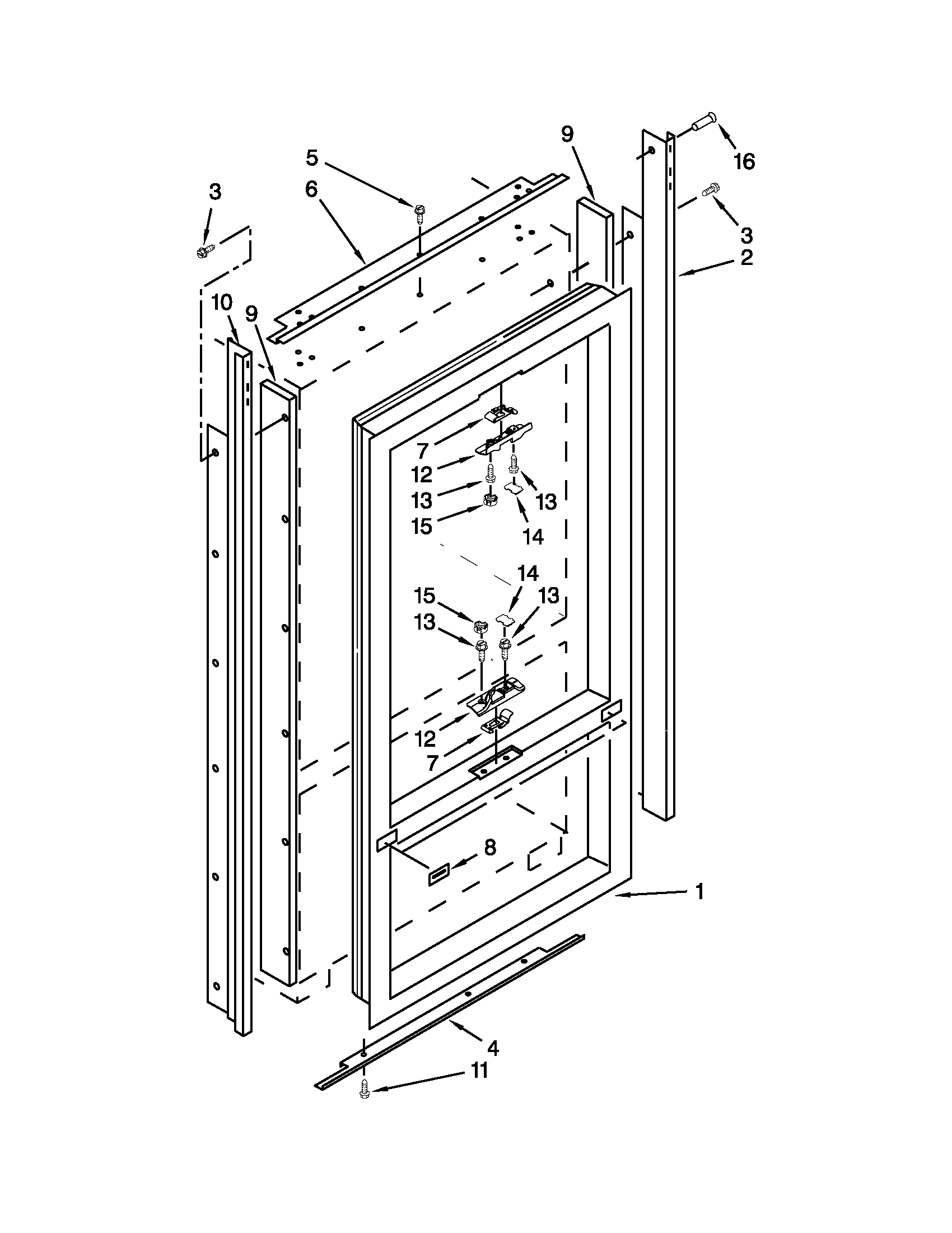

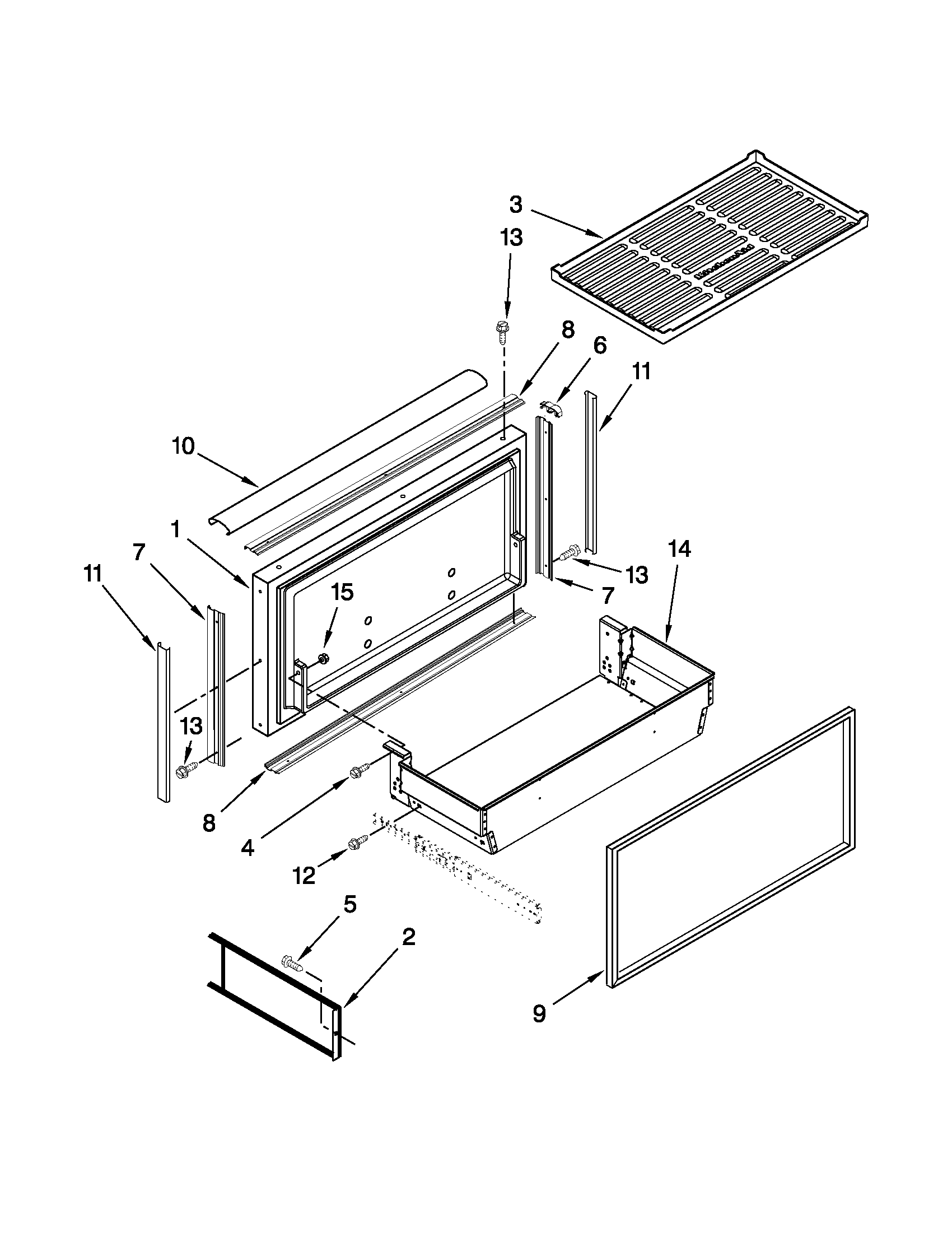

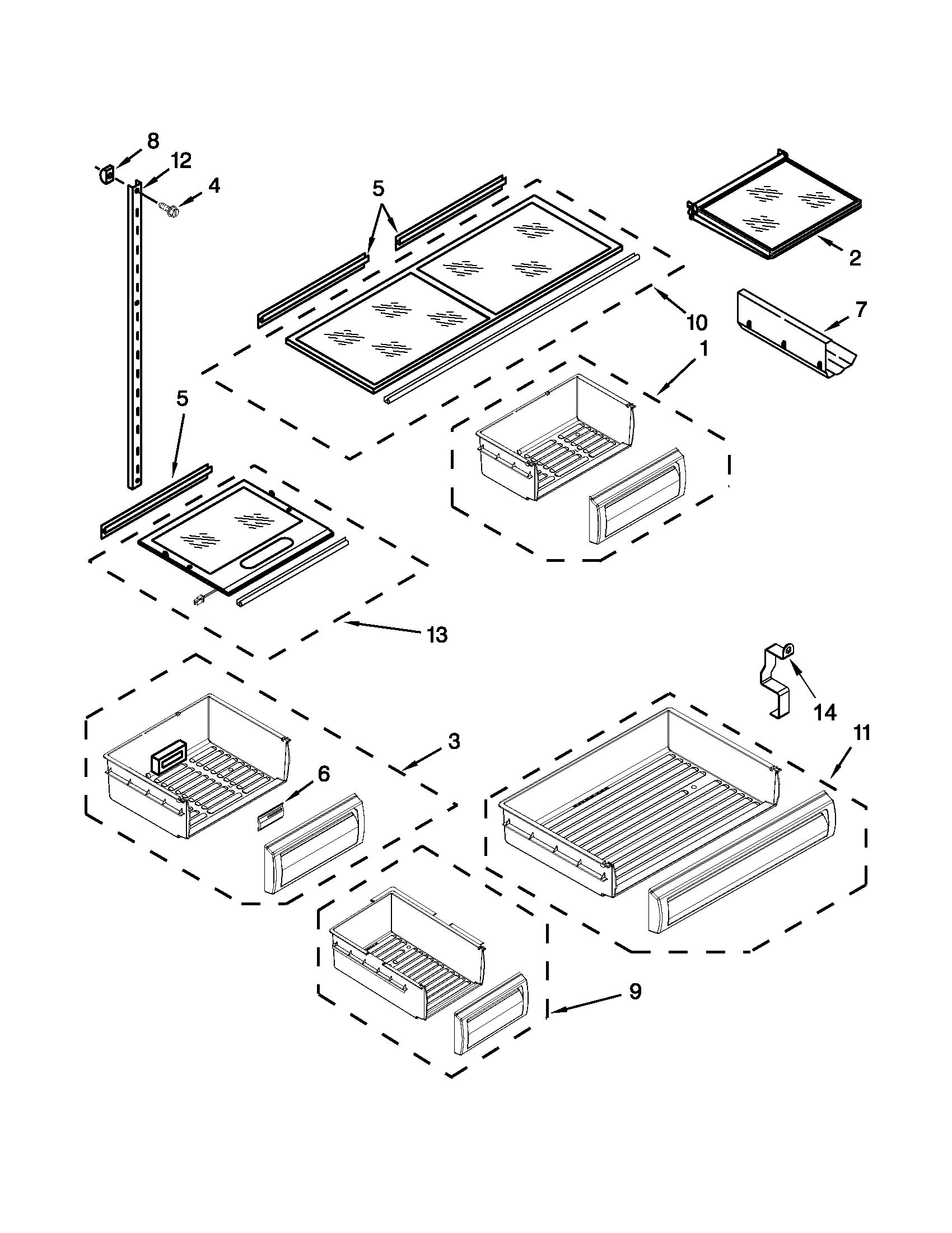

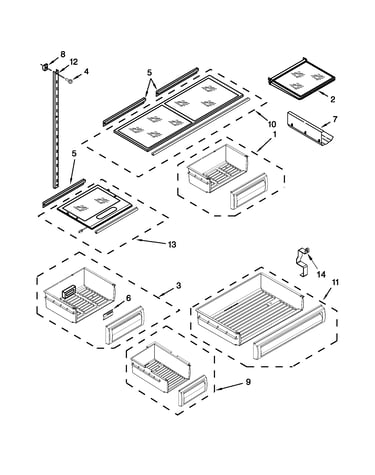

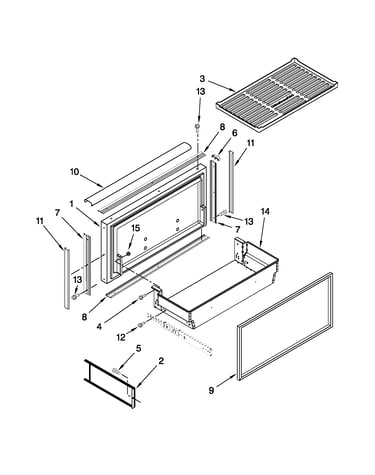

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 286 parts  |
Refrigerator Filter W10121146
#26

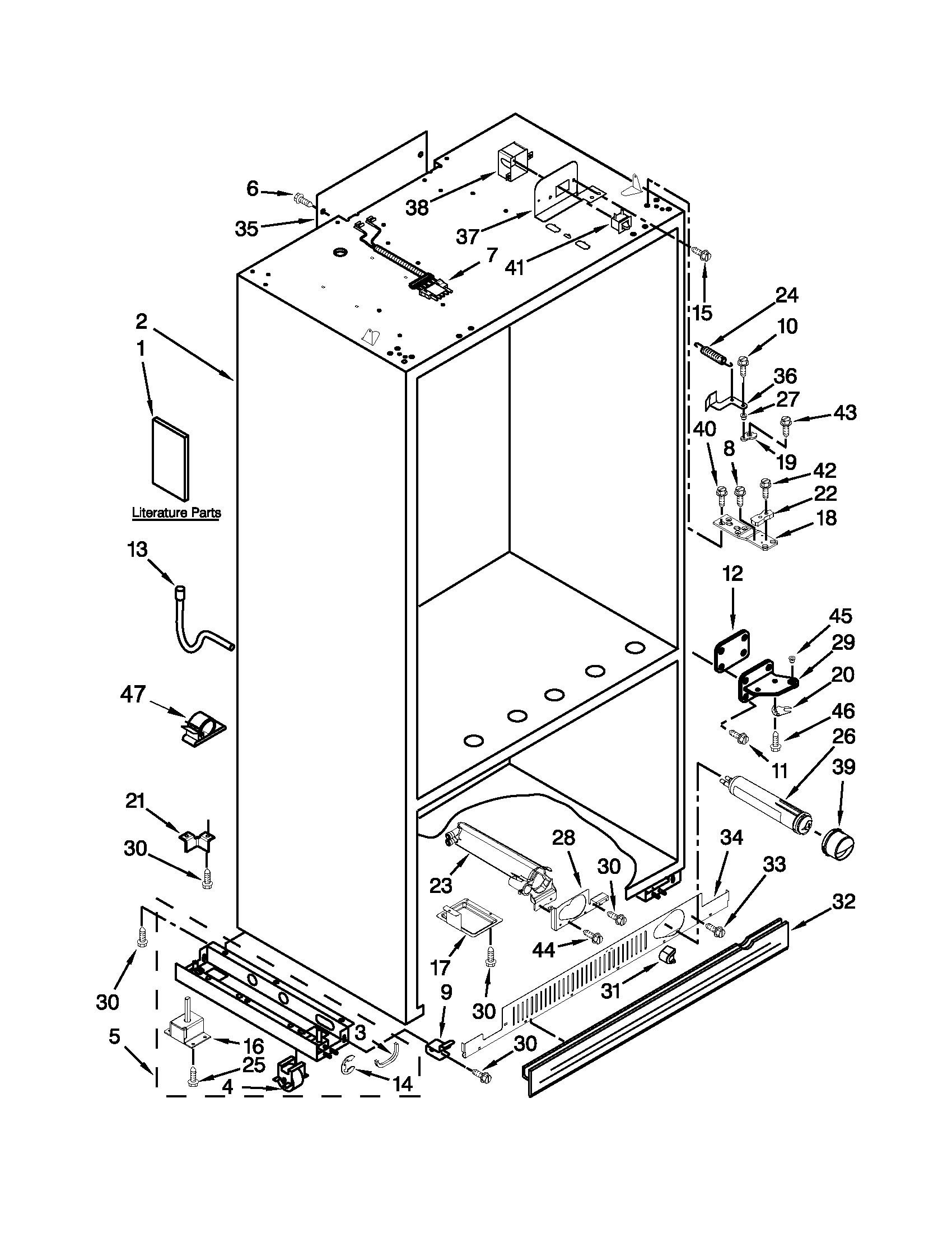

Cabinet parts diagram

Refrigerator filter

Part #W10121146

Replaced by #EDR3RXD1

?
Manufacturer substitution
This part replaces W10121146. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$59.99
In Stock
Drier Tube W10175593
#21

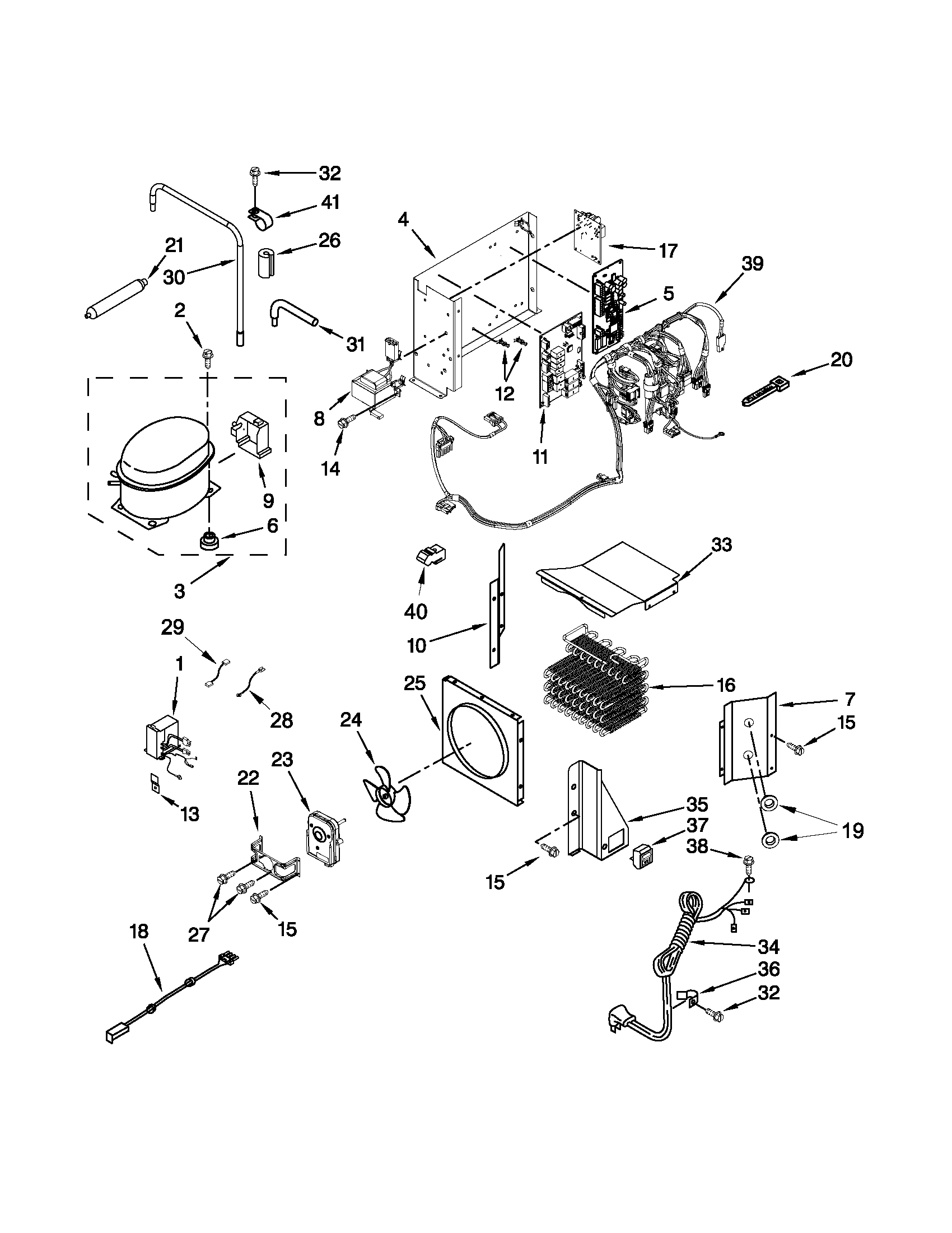

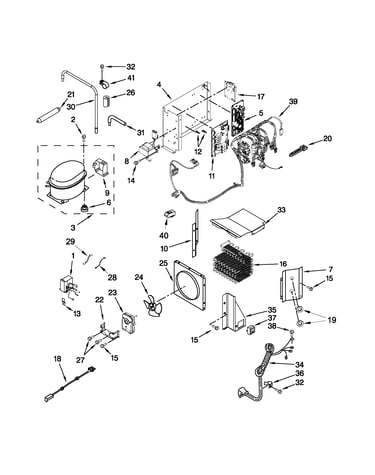

Upper unit parts diagram

Drier tube

Part #W10175593

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces W10175593. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Light Switch 1118894
#41

Cabinet parts diagram

Refrigerator light switch

Part #1118894

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 1118894. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Refrigerator Push-button Switch C3680314
#7

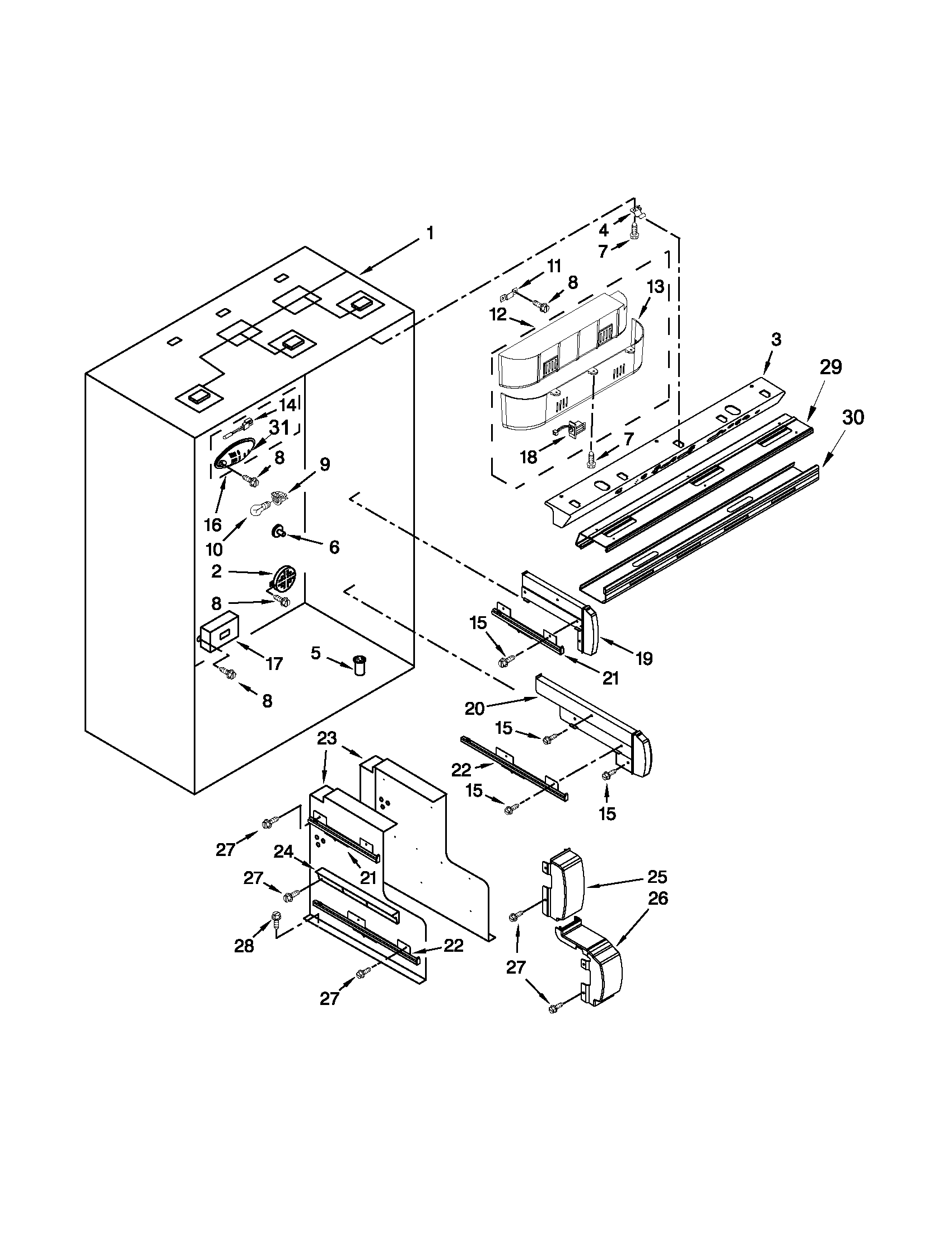

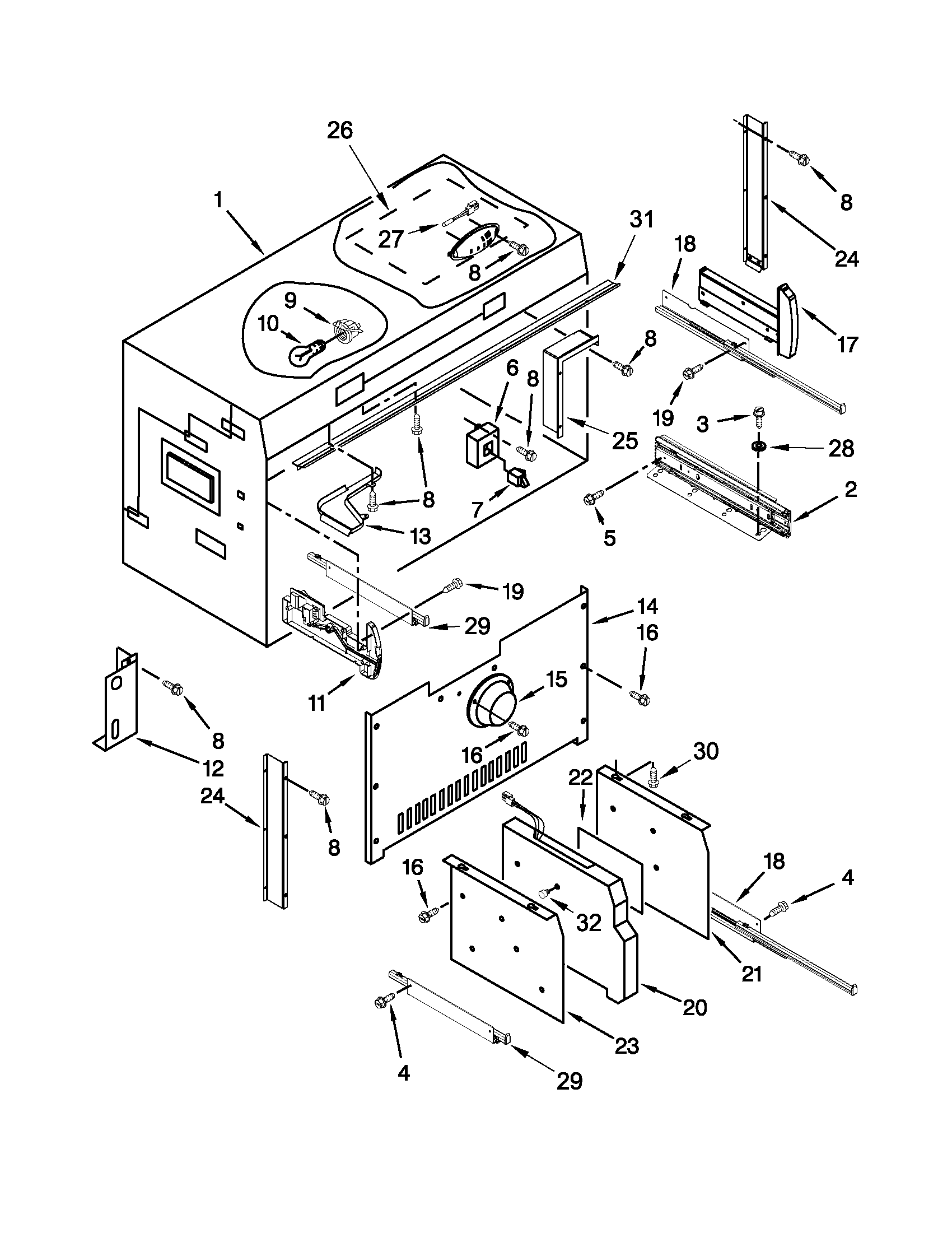

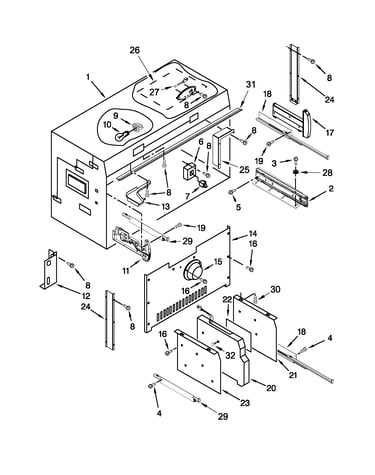

Freezer liner parts diagram

Refrigerator push-button switch

Part #C3680314

Replaced by #W11384469

?
Manufacturer substitution
This part replaces C3680314. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Refrigerator Water Filter Cap (black) 2260518B
#39

Cabinet parts diagram

Refrigerator water filter cap (black)

Part #2260518B

Replaced by #WP2260518B

?
Manufacturer substitution
This part replaces 2260518B. Substitute parts can look different from the original.
BEST SELLER
$27.49 |
18% OFF Phone Price : $33.49
In Stock
Refrigerator Screw 8533928
Refrigerator screw

Part #8533928

Replaced by #WP8533928

?
Manufacturer substitution
This part replaces 8533928. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Refrigerator Ice Maker W10277450
#100

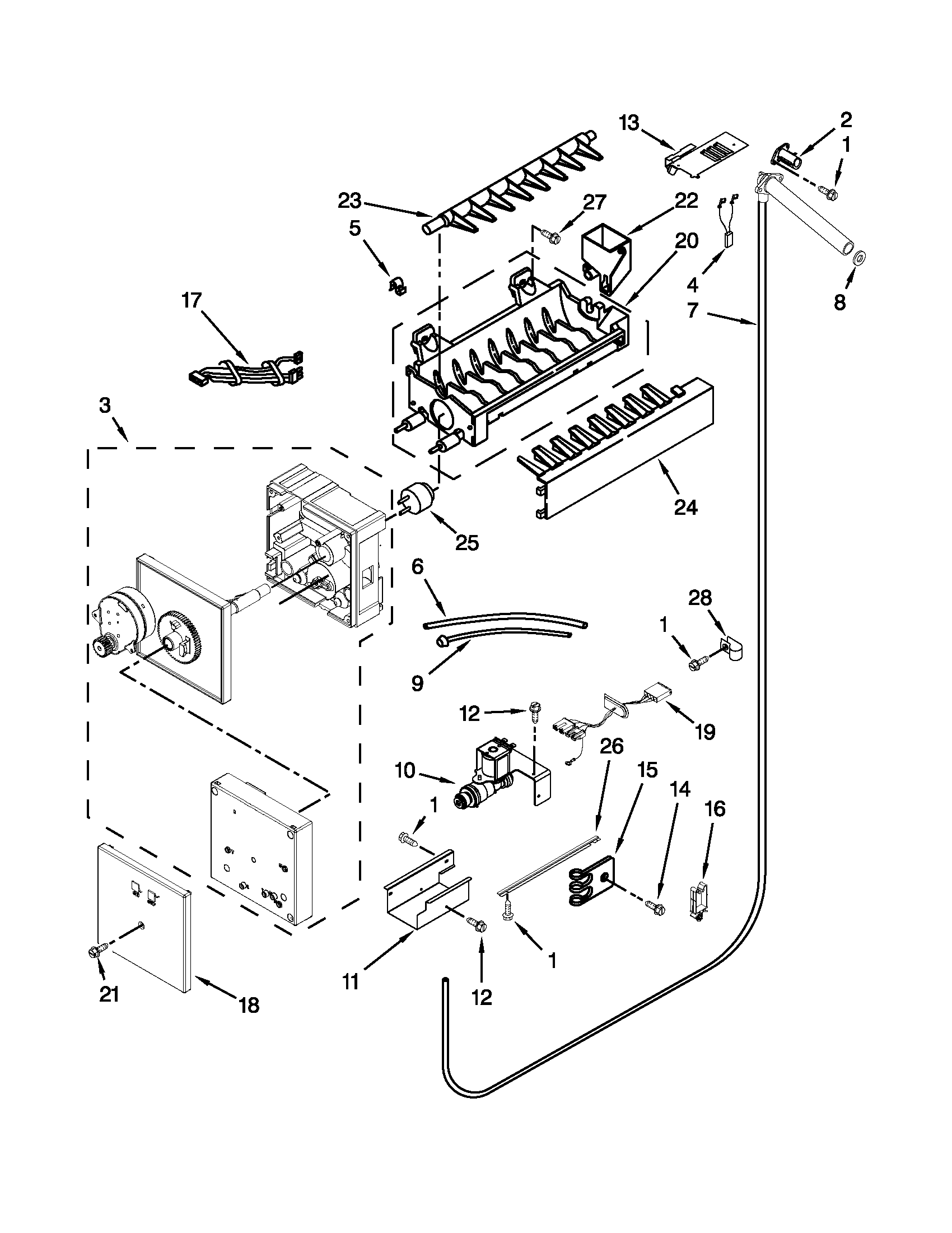

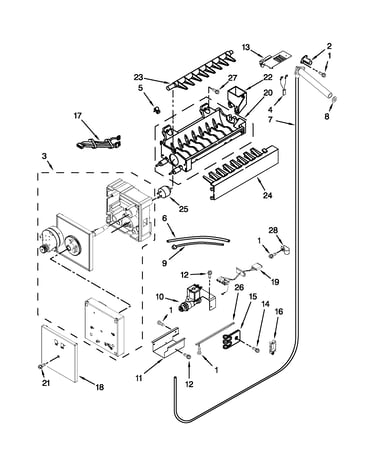

Ice maker parts diagram

Refrigerator ice maker

Part #W10277450

Replaced by #WPW10277450

?
Manufacturer substitution
This part replaces W10277450. Substitute parts can look different from the original.
BEST SELLER
$191.66 |
6% OFF Phone Price : $203.66
In Stock
Motor Mold 626691
#3

Ice maker parts diagram

Motor mold

Part #626691

Replaced by #8201515

?
Manufacturer substitution
This part replaces 626691. Substitute parts can look different from the original.
BEST SELLER
$92.27 |
6% OFF Phone Price : $98.27
In Stock
Refrigerator Ice Mold W10122527
#20

Ice maker parts diagram

Refrigerator ice mold

Part #W10122527

Replaced by #WPW10190929

?
Manufacturer substitution
This part replaces W10122527. Substitute parts can look different from the original.
BEST SELLER
$123.29 |
9% OFF Phone Price : $135.29
In Stock
Refrigerator Service Valve 978025
#NI

Upper unit parts diagram

Refrigerator service valve

Part #978025

Replaced by #WP978025

?
Manufacturer substitution
This part replaces 978025. Substitute parts can look different from the original.
$29.51 |
17% OFF Phone Price : $35.51
In Stock
