Electric Wall Oven

Model # ZHP365ETV1SS Official GE electric range

Here are the diagrams and repair parts for Official GE ZHP365ETV1SS electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

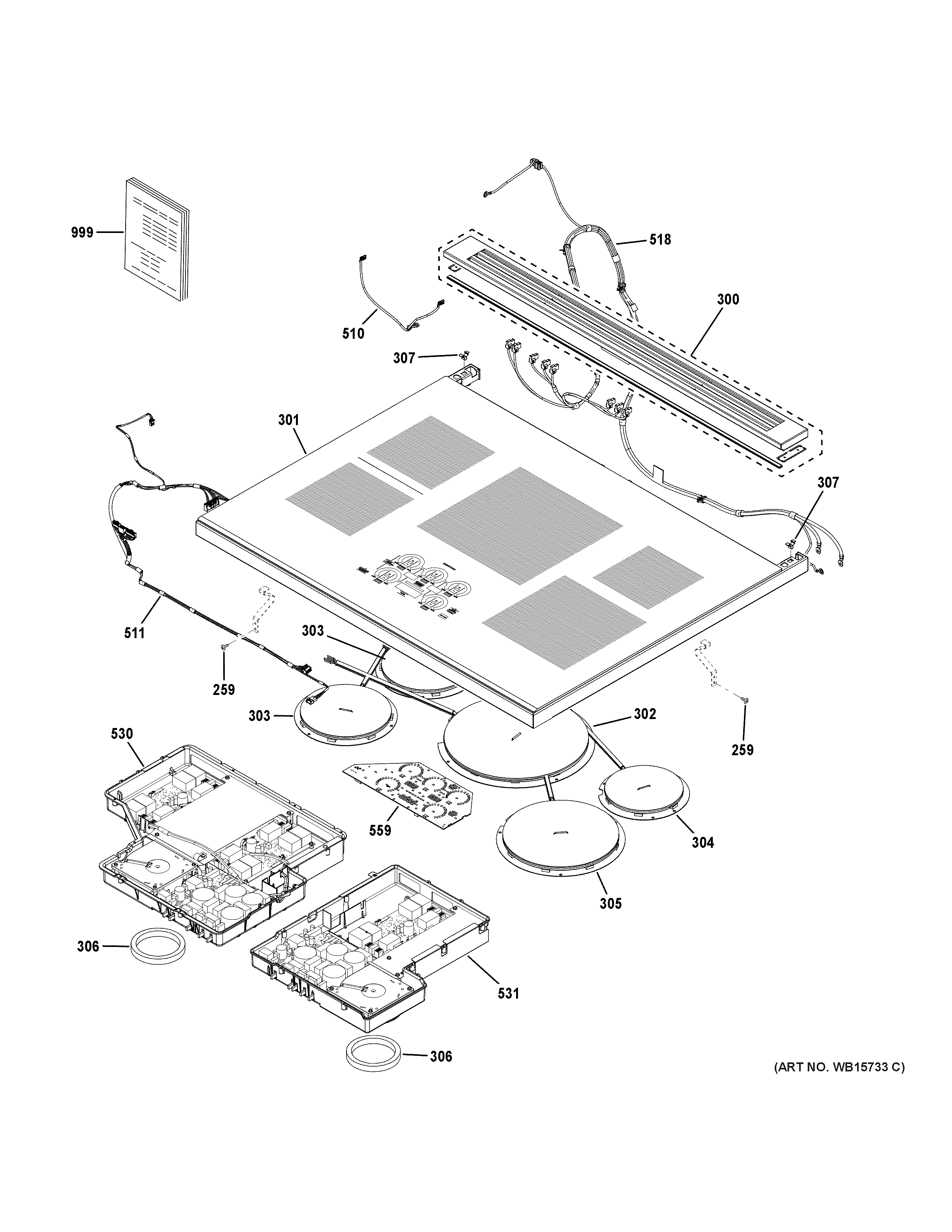

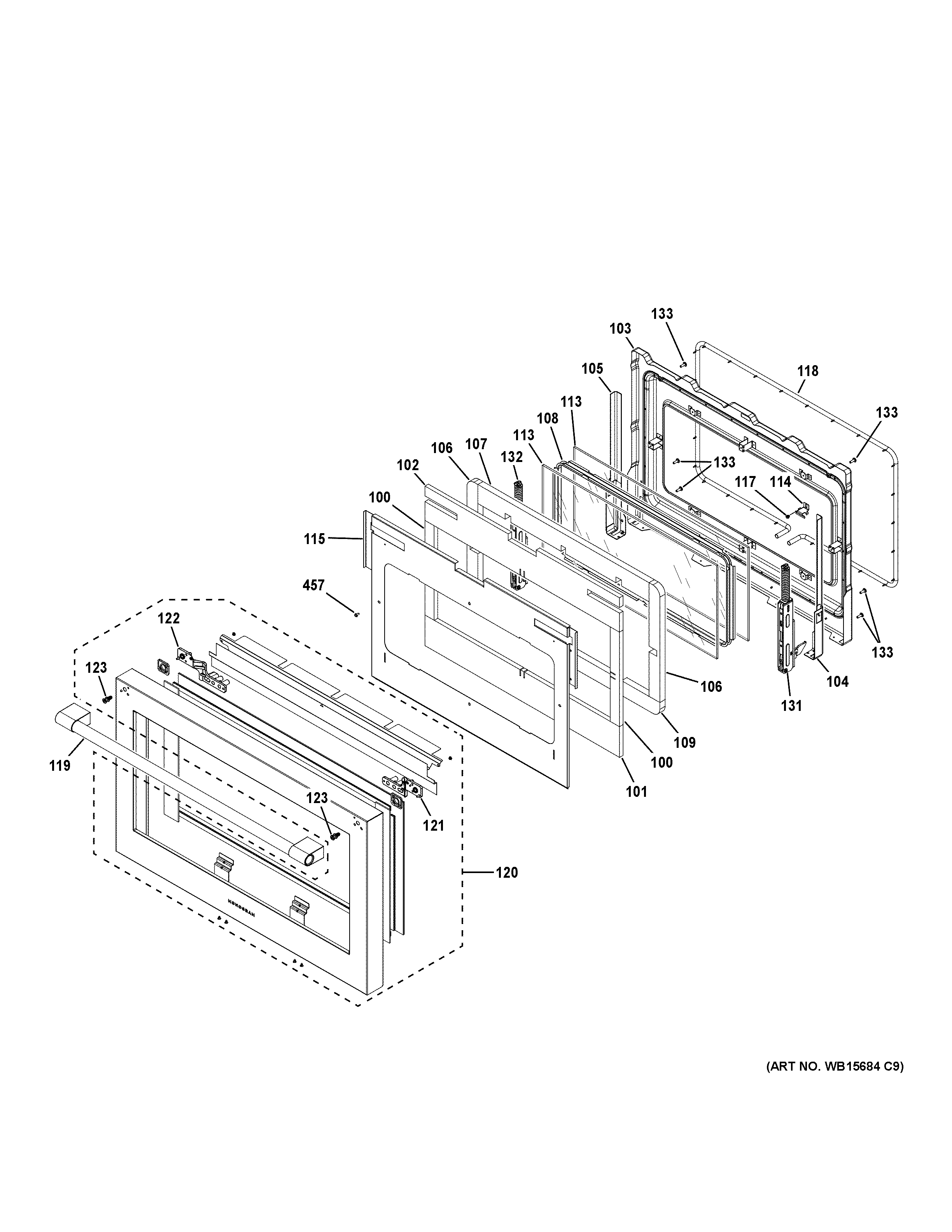

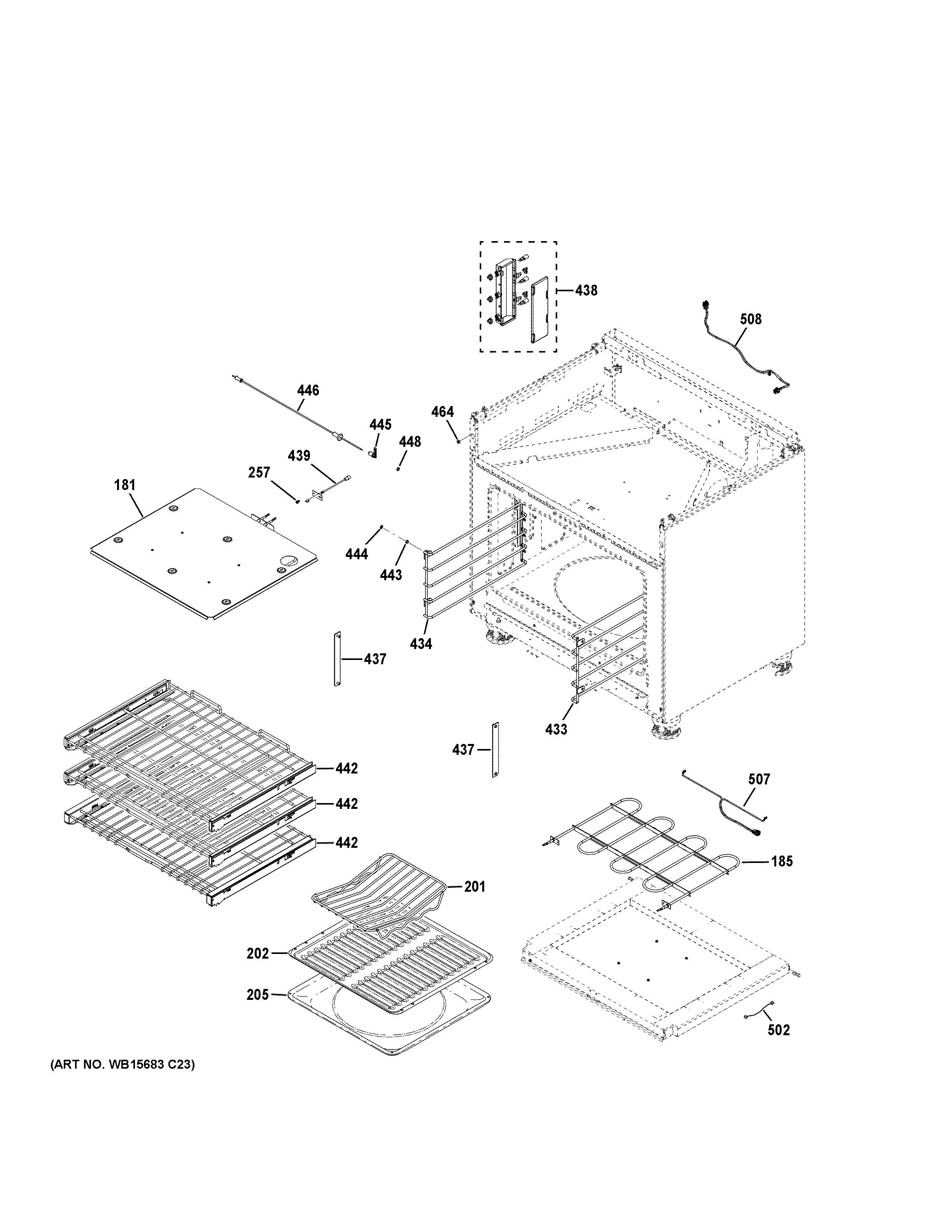

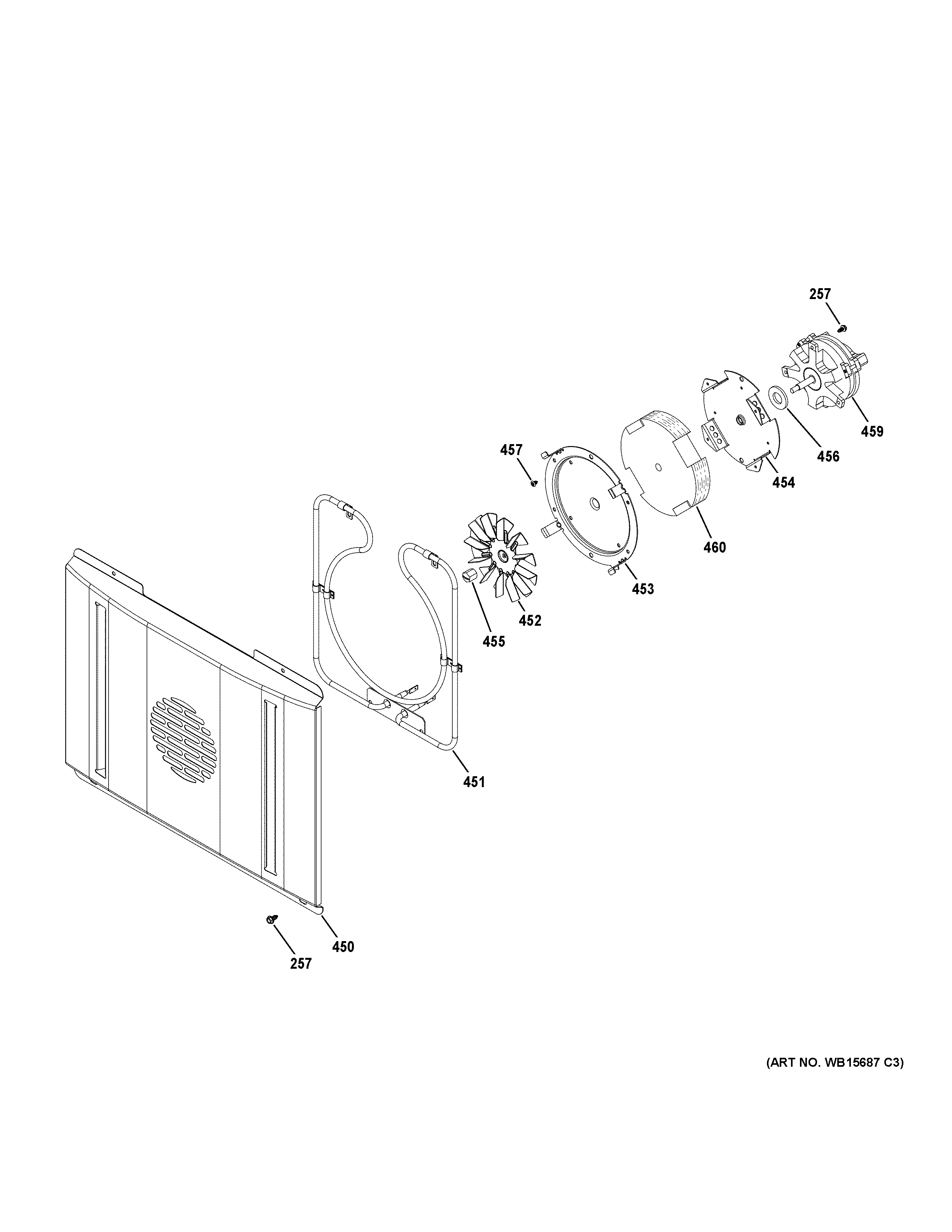

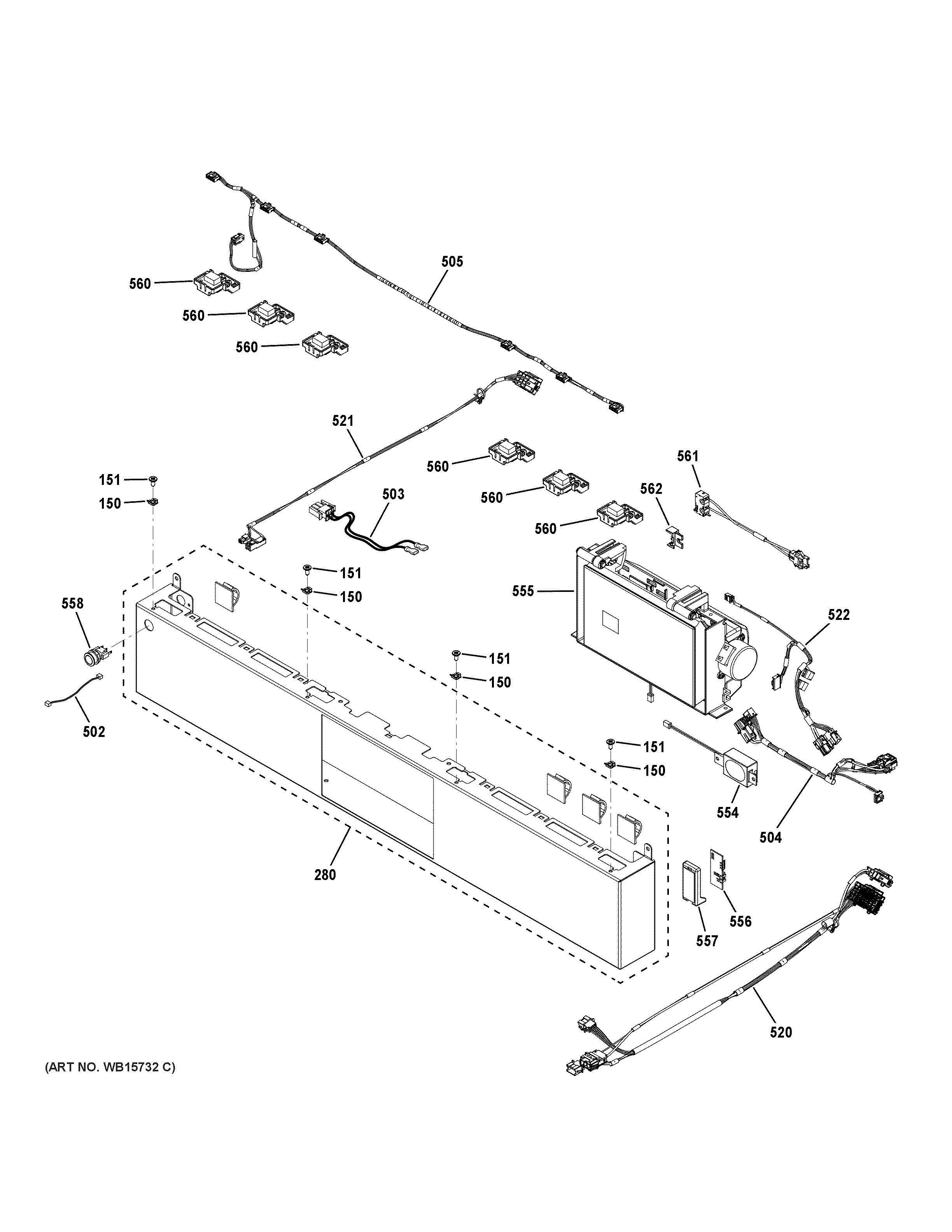

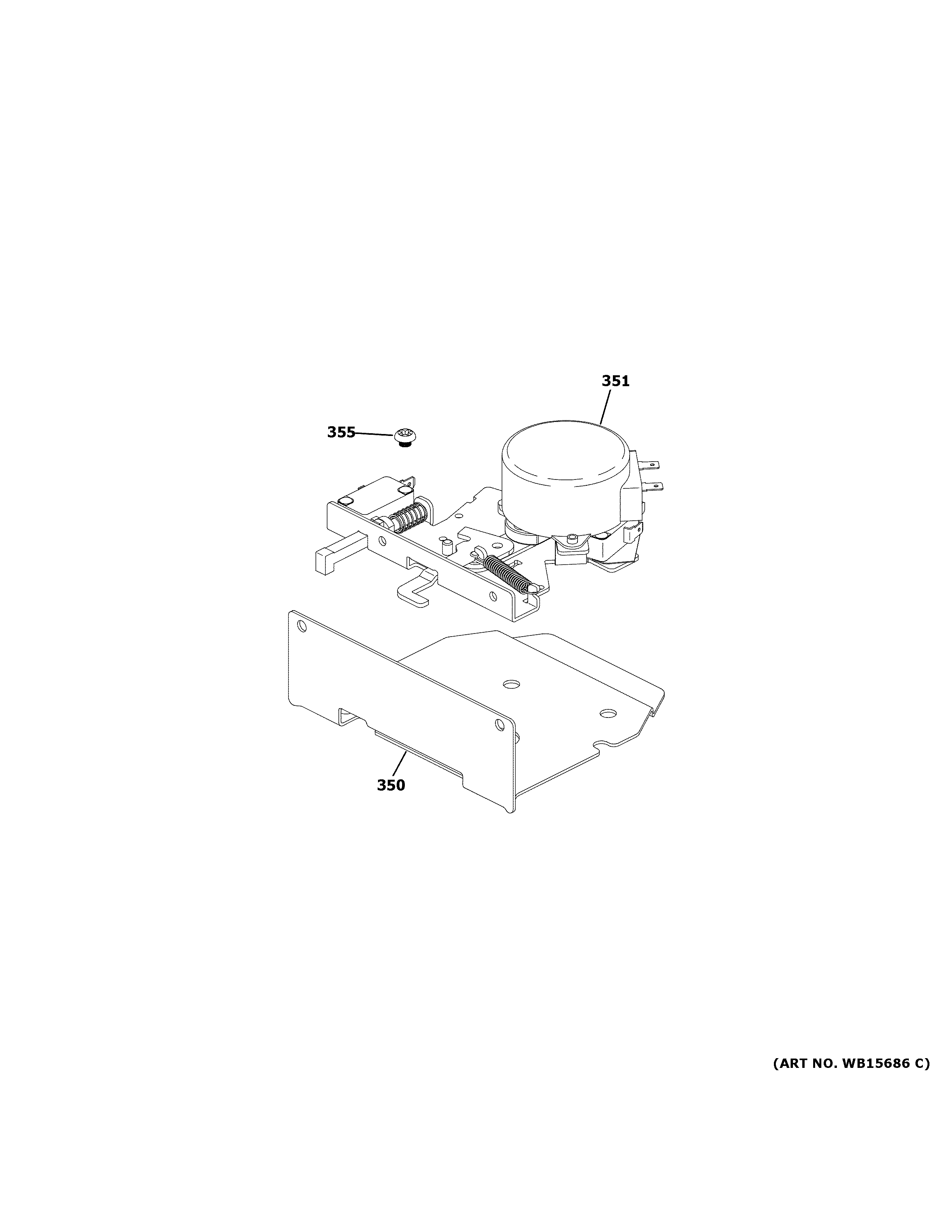

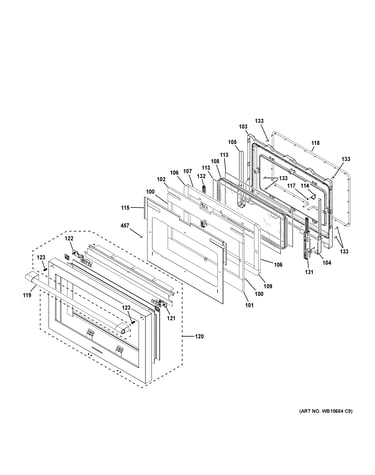

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 132 parts  |
Range Cooling Fan Sensor Board (replaces Wb27t11451, Wb27x23614) WB27X28659
Range cooling fan sensor board (replaces wb27t11451, wb27x23614)

Part #WB27X28659

BEST SELLER
This item is not returnable
$25.09 |
19% OFF Phone Price : $31.09
In Stock
Nut WB02T10017
Nut

Part #WB02T10017

This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
Range Convection Fan Motor Start Capacitor WB27T10662
Range convection fan motor start capacitor

Part #WB27T10662

$6.51 |
13% OFF Phone Price : $7.51
In Stock
Screw WB1K5028
Screw

Part #WB1K5028

Replaced by #WB1X536

?
Manufacturer substitution
This part replaces WB1K5028. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Frame Front Bumper WB02X28738
Frame front bumper

Part #WB02X28738

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Leg Service Kit WB63X39957
#407

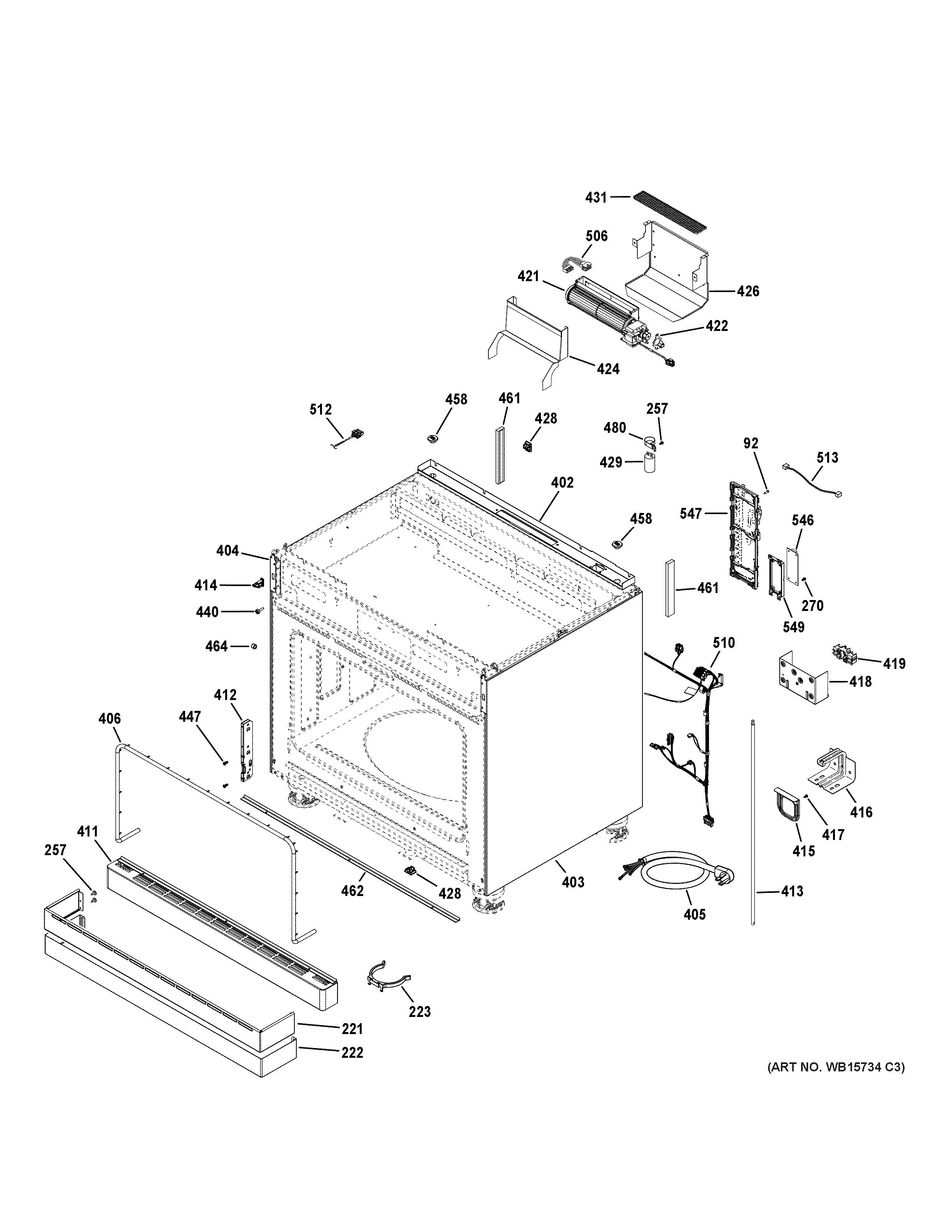

Body parts diagram
